Pyle PDIGPRDP22 User guide

Before you use this Digital Practice Drum Pad, we recommend that you

carefully read through this manual.

Please keep the instruction manual for future reference.

FEATURES:

• 8-inch Digital Practice Drum Pad

• Height Adjustable Tripod Stand

• 3.5mm Headphone Jack, TYPE-C Power

• Controls: Beat Button, Up & Down Keys, On/O, Volume Wheel

• Rechargeable

• Beat and Speed Detection

• LCD Display

• Adjustable Volume at Will

• Lightweight and Adjustable Folding Tripod Stand

• Pairs of Drum Sticks for Drum Practice

• Built-in Speaker

• Collapsible Metal Tripod Stand

• Perfect Learning and Practice Sets

• Popular Oak Drum Sticks

• Environmentally Friendly Rubber

• Portable Digital Drum Practice Pad

• Travel Bag ts All Kit Pieces for Easy Transport

• Used for a Beginner or Professional

WIRELESS BT STREAMING:

• Drum Pad

• Tripod Stand

• One Pair of Drum Sticks

TECHNICAL SPECS:

• Construction Materials: ABS and Rubber

• Tempo Range: 40 to 208bpm

• Power Supply: 5V AC Adapter

• Drum Size: 9.45’’ x 10.63’’ x 1.06’’ -inches

• Drum Pad Dimensions: 8’’ -inches

• Black Bag Dimensions: 22.83’’ x 11.42’’ x 2.95’’ -inches

• Tripod Stand Folded Dimensions: 20.47’’ x 4.13’’ x 3.15’’ -inches

www.PyleUSA.com

2

CAUTIONS

Location

Using the device in the following locations can result malfunction.

• Locations of extreme temperature or humidity

• Excessively dusty or dirty locations

• Locations of e xcessive vibration

• Close to magnetic elds

Power supply

Be sure to turn the power OFF when the unit is not in use. Use only the supplied

AC adaptor and the correct voltage. To prolong battery life please cycle charge

every three months if not in regular use.

In order to make fuII use of the performance of the lithium battery, make sure the

temperature is between -10 and 60°C when the battery is being charged.

Interference with other electrical devices

Radios and televisions placed near by may experience reception interference.

Operate this unit at a suitable distance from radios and televisions.

Handling

To avoid breakage, do not apply excessive force to the switches or display.

Care

If the exterior becomes dirty, wipe it with a clean, dry cloth.

Do no t use liquid cleaners such as benzene or thinner, or cIeaning compounds

of ammabIe polishes.

Keeping foreign matter out of your equipment

Never set any container with liquid near this equipment.

If liquid gets into the equipment, it could cause a breakdown, re, or electrical

shock. Be careful not to let metal objects get into the equipment.

www.PyleUSA.com

3

PANEL AND FUNCTIONS

www.PyleUSA.com

4

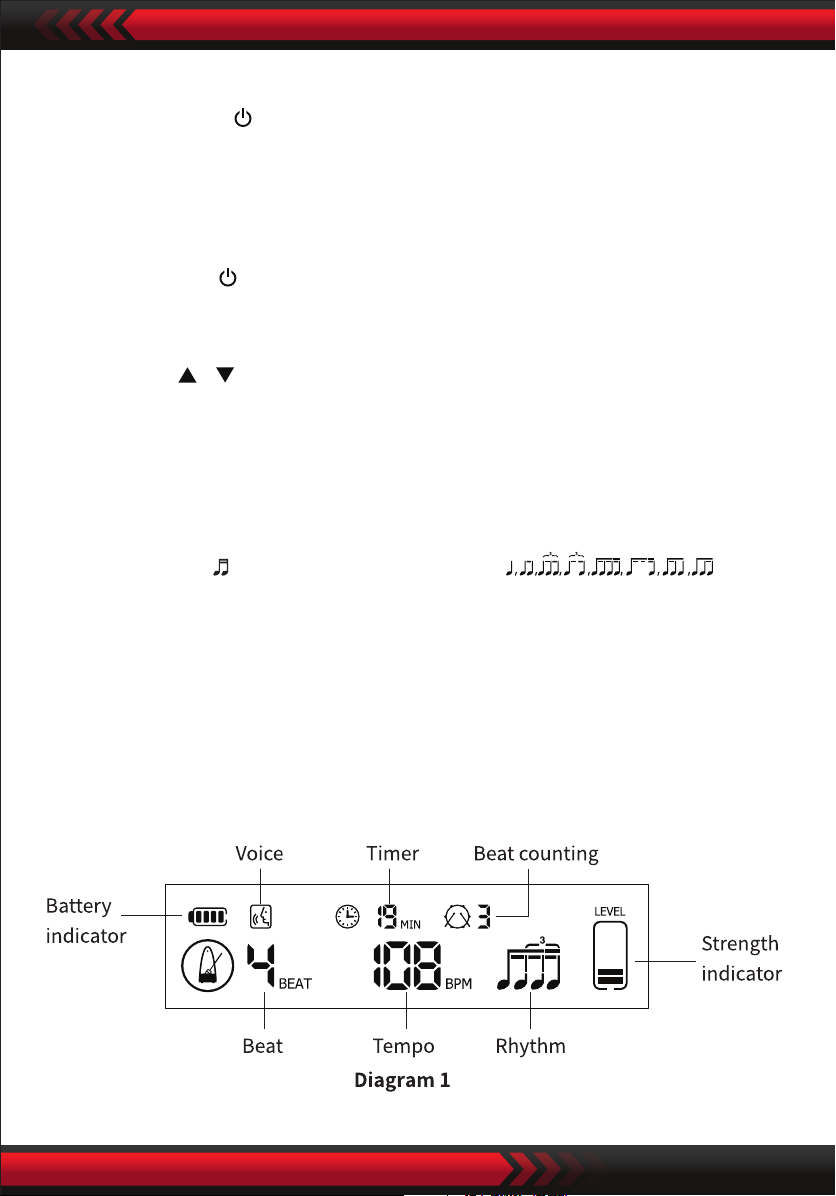

HOW TO USE

Press and hold the " " button to turn on/o.

1. Metronome Mode

Open/Pause Metronome

Short press the " " button

Set Tempo

Short press " " " " button to change tempo: 40 BPM --208 BPM

Choose Beats

Short press the "BEAT" button to select beats: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9

Choose Rhythm

Short press the " " button to select the rhythm:

Set Time

Short press "MODE" button to set (10, 20, 30, 40, 50, 60 Mins or unlimited)

Voice

Press and hold the "VOICE" button to start, and press and hold again to switch

"Chinese - English - Close the voice".

www.PyleUSA.com

5

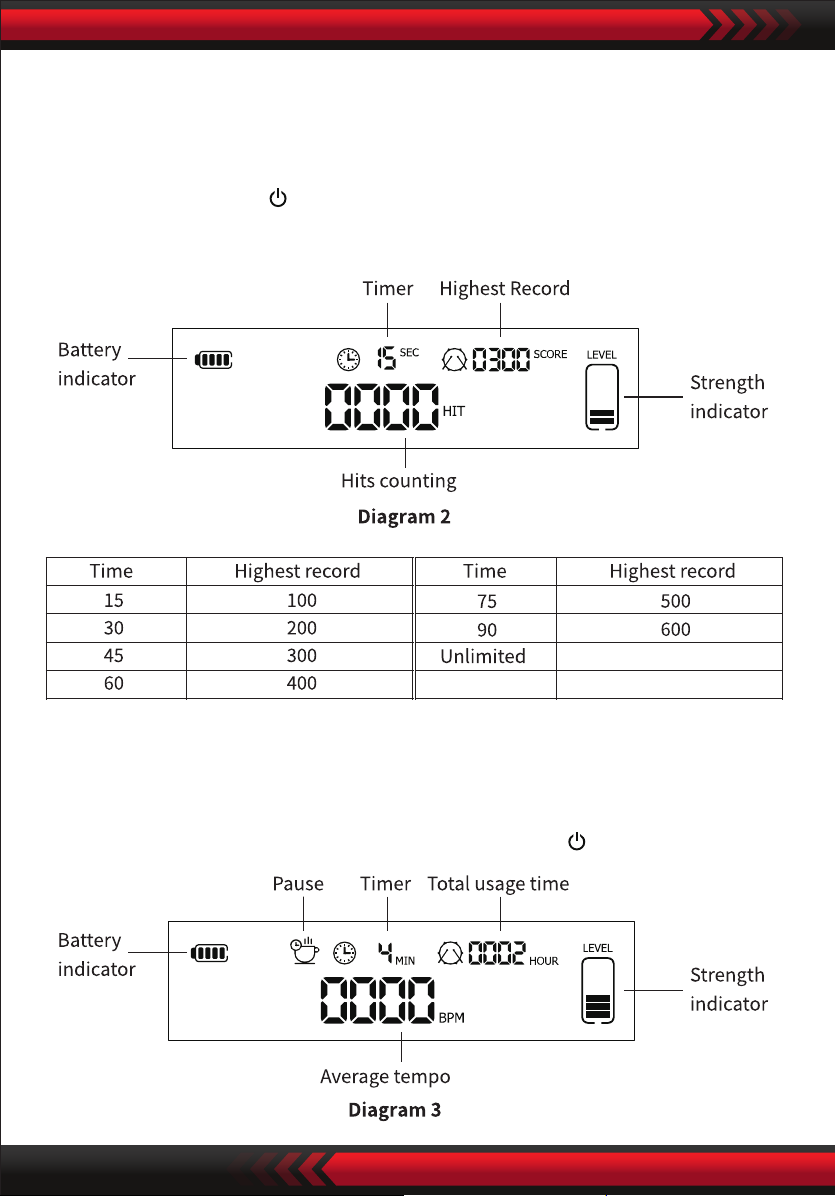

2. Counting mode

Counting the hits within set time and highest record will be saved.
Press and hold "MODE" button to select counting mode (diagram 2), then short
press MODE to choose the counting time (15, 30, 45, 60, 75, 90 seconds or
unlimited). Press the " " button to reset.
Restore Defaults: Press and hold the "BEAT" (CLEAR) button until the word "CLr"
appears and wait for restore completed.

Default Chart

——

——

——

3. Speed detection mode

The average tempo and total usage time will be display under this mode.
Press and hold "MODE" button to select Speed detection (diagram 3), then short
press "MODE" to choose the counting time (1, 5, 10, 15, 20, 25, 30 Mins or
unlimited). Counting begins at your frist hit, press the " " button to reset.

www.PyleUSA.com

6

Reminder:

1. If no operation for one minute, the system will enter pause mode automatically,

and power o in 5 mins. Mode and settings will be memorized before power o.

2. " " Indicates no set time.

4. Total practice time

It has a limit capacity of recording time for maximum 10,000 hours, and reset

when up to 10,000 hours every time.

The total usage time includes the time that you use metronome mode, counting

mode and speed detection mode.

The total practice time is not allowed to deleted or modied manually.

5. Strength level indicator of pad hits

According to the dierent position and strength that you hit, it will display the

current strength value, which is useful for training strength.

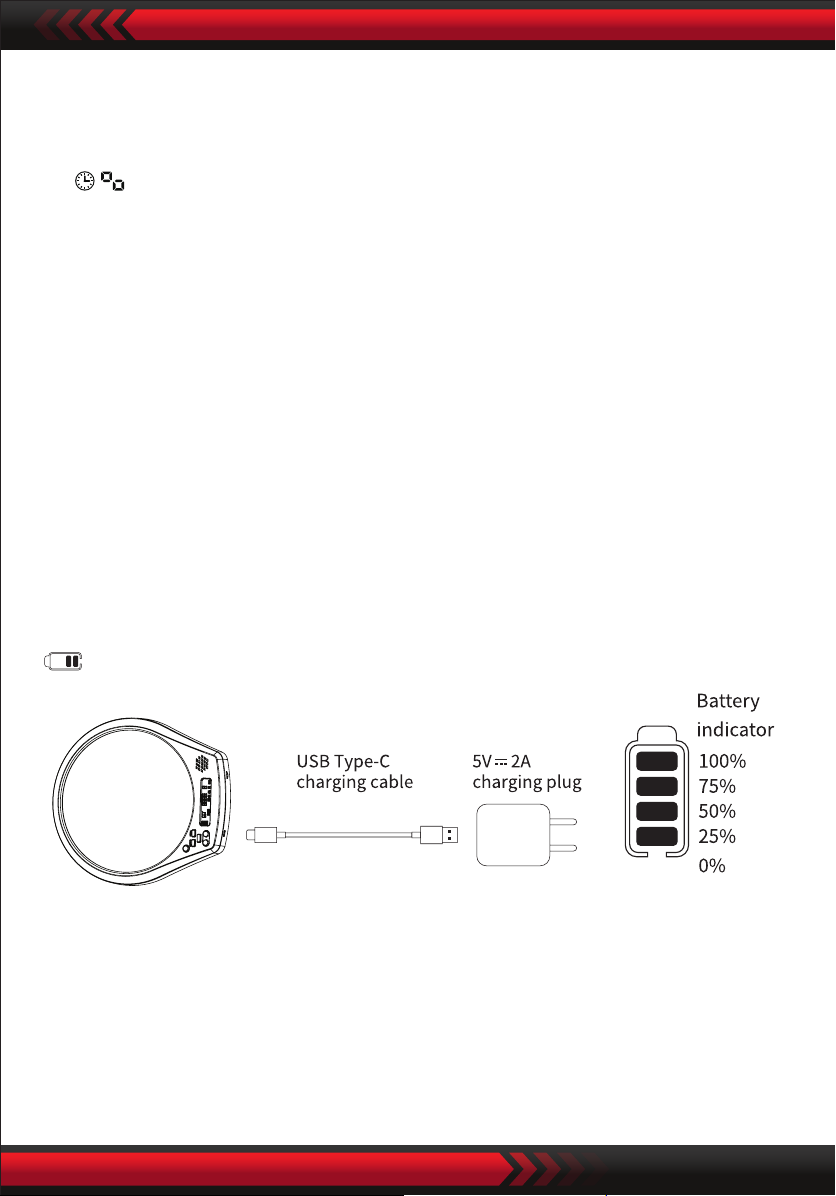

RECHARGE

Connect USB Type-C charging cable and use 5V=--2A charging plug for charging,

will blink when charging, stop blinking when full charged.

EXTERNAL DEVICES

Headphone or amp can be connected to the 3.5mm output jack.

The speaker is no sound when the headphone be connected.

www.PyleUSA.com

7

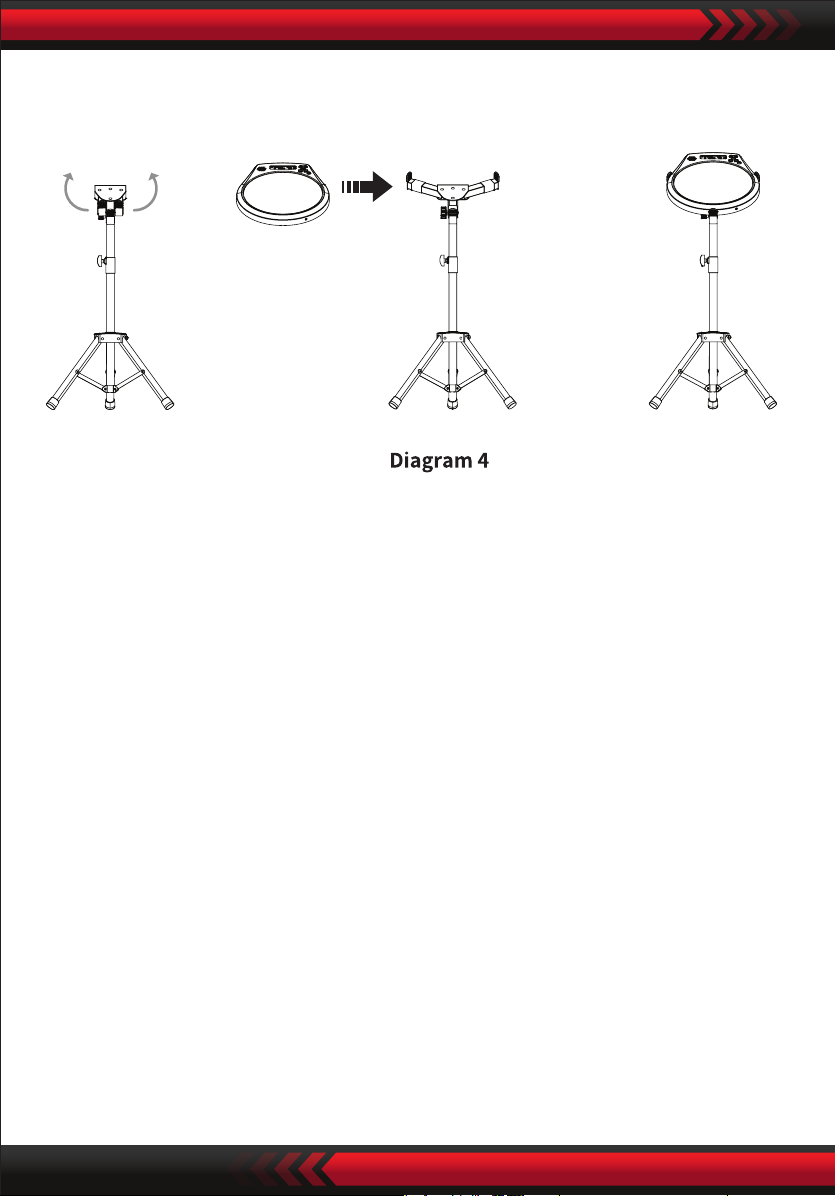

STAND (OPTIONAL PURCHASE)

This pad can be used with APS-01 tripod (optional purchase)

FCC Warning:

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment o and on, the

user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

www.PyleUSA.com

8

Caution: Any changes or modications to this device not explicitly approved by

manufacturer could void your authority to operate this equipment. This device

complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause

undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.

www.PyleUSA.com

9
