Pyle PDIC8LT User guide

PDIC8LT

8.0’’ In-Wall / In-Ceiling 70V Speaker

Flush Mount Low-Profile Speaker

with 70 Volt Transformer, Magnetic Grill (600 Watt)

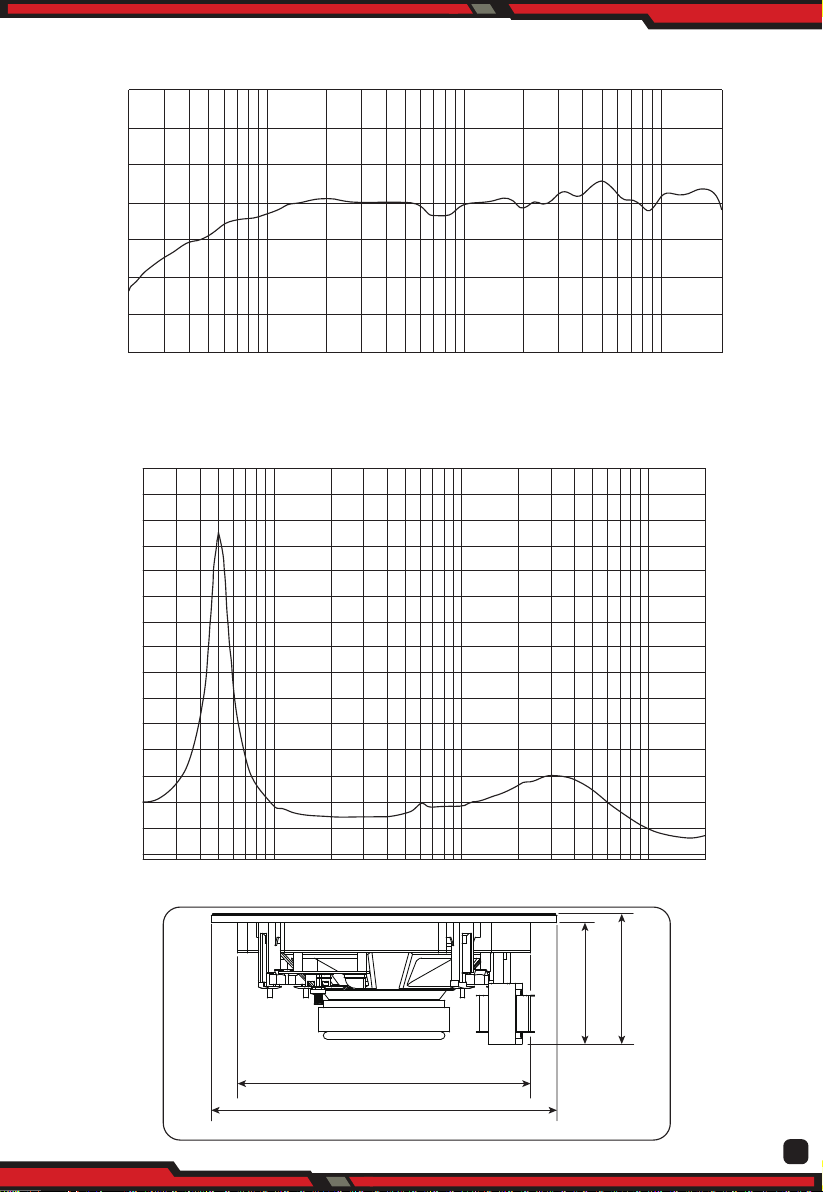

PDIC8LT SPL

120.0

110.0

100.0

90.0

80.0

70.0

60.0

50.0

PDIC8LT IMP

40.0

30.0

20.0

10.0

2.0
20HZ 100 1K 10K 20K

100 1K 10K20 20K

Frequency Response

Frequency Response

www.PyleUSA.com

9.53 (242mm)

”

11.06 (281mm)

”

4.17 (106mm)

4.33 (110mm)

”

”

Side View

1

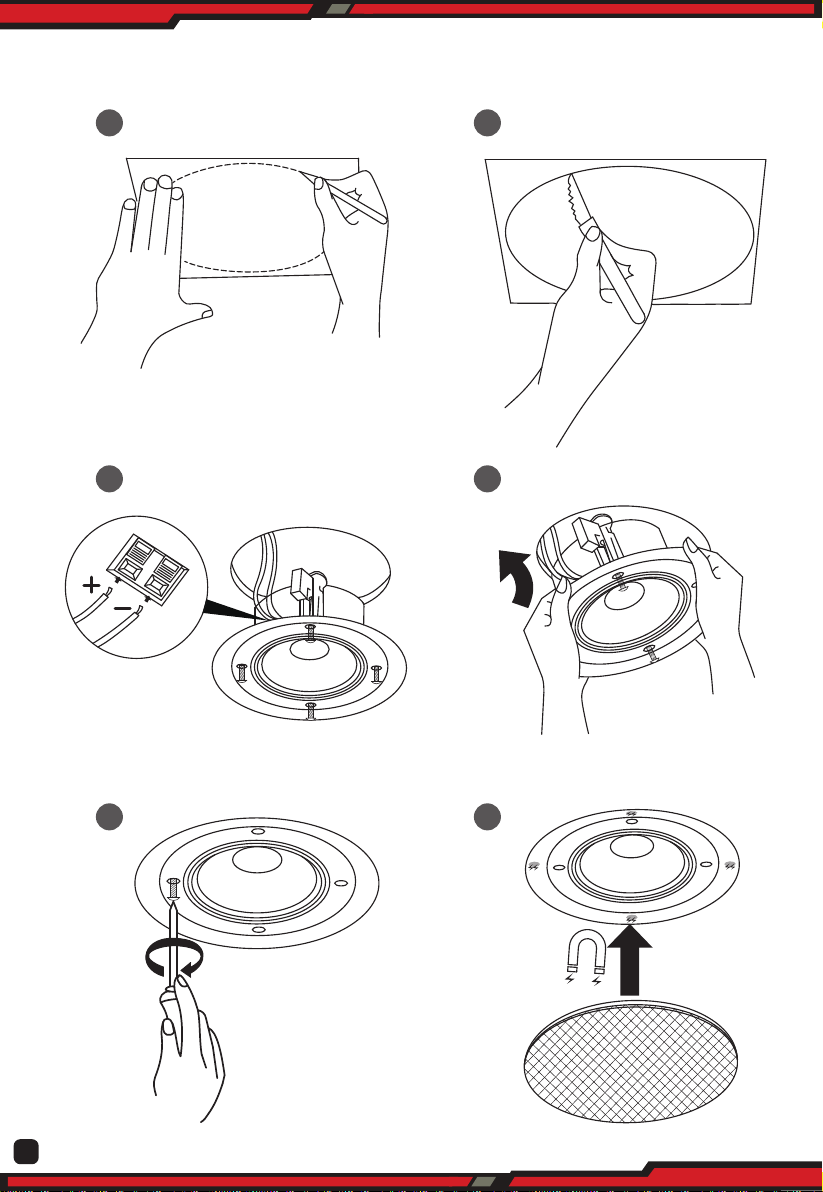

• Speaker Installation

1 2

Cutting

guide

3 4

5 6

N S

2

www.PyleUSA.com

1. Position the cutting guide against the required speaker

placement and trace around.

2. Cut out the traced area using a pad saw or other suitable tool.

3. Take the speaker unit out of the packaging and remove the

grille. Connect the speaker wire to the appropriate “+” and “-”

connections (select the desired tapping for 70V units).

4. Locate the speaker unit into the cut-out, ensuring that the 4

rotating xing clamps stay turned inward.

5. Once located, turning the 4 xing screws clockwise will cause

the xing clamps to rotate outward and tighten onto the

mounting surface.

6. Put the speaker grille onto speaker in place by magnetism.

www.PyleUSA.com

3

PDIC8LT

8.0’’ In-Wall / In-Ceiling 70V Speaker

Flush Mount Low-Prole Speaker

with 70 Volt Transformer, Magnetic Grill (600 Watt)

Features:

• In-Wall / In-Ceiling Speaker System

• Built-in 70 Volt Transformer Tapping

• High-Impedance, Line-Matching Transformer

• 2-Way Full Range Stereo Sound

• Detachable Magnetic Speaker Grill Cover

• Used for Amplier / PA Speaker Public Address Systems

• Slim-Style, Low Prole Design

• Mounts Flush on Walls or Ceilings

• 1/2'' High Compliance Dome Tweeter

• Poly Mica Cone with High-Sensitivity Foam Edge

• Cut-Out Size Template for Easy Installation

• Environmentally Friendly ABS Construction

• Used for Home, Oce & Business Applications

Technical Specs:

• Power Output: 600 Watt MAX

• Speaker Size: 8.0’’ -inches

• 70V Transformer Tapping at 20W/15W/10W/5W/2.5W

and 8OHM

• Frequency Response: 55Hz-20kHz

• Sensitivity: 91 dB

• Magnet: 25 oz.

• Cut-Out Diameter: 9.53'' -inches

• Mounting Depth: 4.17'' -inches

• Total Speaker Size (Diameter x Depth): 11.06" x 4.33" -inches

• Sold as: 1
