2.2"
Depth
Mounting
Cut-Out
Bluetooth
LED Light
3.7"
Diameter
Aux In
Receiver
Bulb
2.4"
3.7"
2.4"
3.7"
2.4"
3.7"
2.5"
4.2"
2.7"
4.2"
2.7"
4.2"
2.7"
4.2"
2.7"
4.5"
3.0"
4.5"
3.0"
4.5"
3.0"
4.5"
PDIC3FR PDIC35 PDIC4
Ceiling / Wall Speakers, Aluminum Frame Speaker Pair
PDICLE3FR PDICLE35 PDICLE4
Ceiling / Wall Speakers, Aluminum Frame Speaker
Pair with Built-in LED Light
PDICBTL3F PDICBTL35 PDICBTL4
2-Channel Bluetooth Ceiling / Wall Speakers,
Aluminum Frame Speaker Pair with Built-in LED Light
PDIC4CBTL3B PDIC4CBTL35B PDIC4CBTL4B
4-Channel Bluetooth Ceiling / Wall Speaker Kit.
Built-in
Tweeter
Housing
Aluminum
Power
MAX Output
Speaker
Amount of
100 Watt
3.0"
Size
2
Speakers
100 Watt
3.0"
2
100 Watt
3.0"
2
200 Watt
3.0"
4
140 Watt
3.5"
2
140 Watt
3.5"
2
140 Watt
3.5"
2
280 Watt
3.5"
4
160 Watt
4.0"
2
160 Watt
4.0"
2
160 Watt
4.0"
2
1600-63rd Street
Brooklyn,NY 11204 USA
320 Watt
4.0"
4
(4) Aluminum Frame Speakers with Built-in LED Light

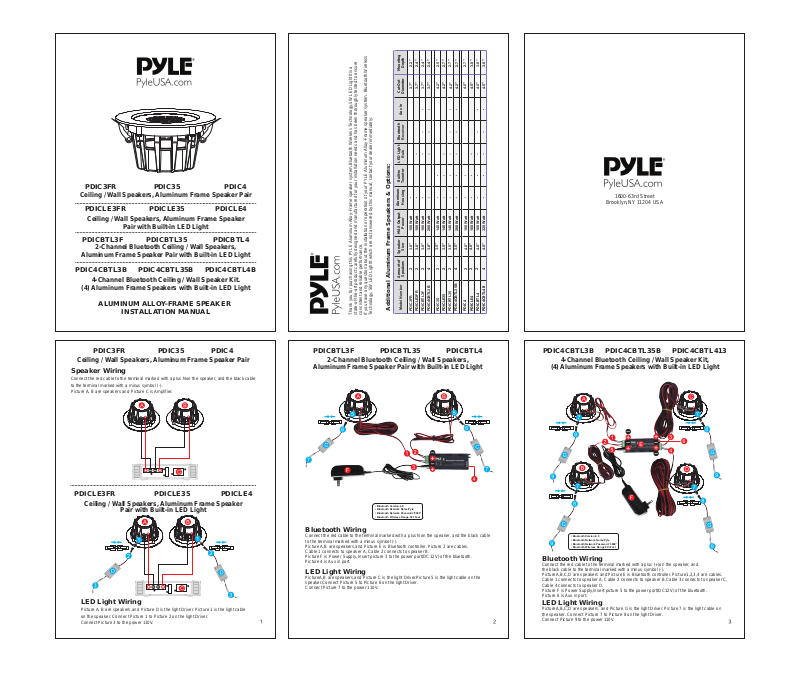

ALUMINUM ALLOY-FRAME SPEAKER
INSTALLATION MANUAL
PDIC3FR PDIC35 PDIC4
Ceiling / Wall Speakers, Aluminum Frame Speaker Pair
Speaker Wiring
Connect the red cable to the terminal marked with a plus Non the speaker, and the black cable
to the terminal marked with a minus symbol (-).
Picture A, B are speakers and Picture C is Amplifier.
Additional Aluminum Frame Speakers & Options:
Thank you for purchasing this PYLE Aluminum Alloy-Frame speaker system.Bluetooth Wireless Technology,5W LED Lightlt is a
state-of-the-art product carefully designed and manufactured for your installation needs and has been thoroughly tested to ensure
consistent and reliable performance.
If you have any question about the installation or operation of your PYLE Aluminum Alloy-Frame speaker system. Bluetooth Wireless
Technology, 5W LED Lightlt which are not answered by this manual, contact your dealer immediately.
Model Number
PDIC3FR
PDICLE3FR
PDICBTL3F
PDIC4CBTL3B
PDIC35
PDICLE35
PDICBTL35
PDIC4CBTL35B
PDIC4
PDICLE4
PDICBTL4
PDICBTL3F PDICBTL35 PDICBTL4
2-Channel Bluetooth Ceiling / Wall Speakers,
Aluminum Frame Speaker Pair with Built-in LED Light
PDIC4CBTL4B
PDIC4CBTL3B PDIC4CBTL35B PDIC4CBTL413
4-Channel Bluetooth Ceiling / Wall Speaker Kit,
(4) Aluminum Frame Speakers with Built-in LED Light
PDICLE3FR PDICLE35 PDICLE4
Ceiling / Wall Speakers, Aluminum Frame Speaker
Pair with Built-in LED Light
LED Light Wiring
Picture A, B are speakers,and Picture D is the light Driver. Picture 1 is the light cable
on the speaker. Connect Picture 1 to Picture 2 on the light Driver.
Connect Picture 3 to the power 110V.
• Bluetooth Verslon:4.0
• Bluetooth Network Name:Pyle
• Bluetooth Network Password:'0000'
• Bluetooth Wireless Range:30'+Feet
Bluetooth Wiring
Connect the red cable to the terminal marked with a plus Non the speaker, and the black cable
to the terminal marked with a minus symbol (-).
Picture A,B are speakers,and Picture E is Bluetooth controller. Picture 2 are cables.
Cable 1 connects to speaker A, Cable 2 connects to speaker B.
Picture F is Power Supply, lnsert picture 3 to the power port(DC12V) of the bluetooth.
Picture 4 is Aux in port.
LED Light Wiring
PictureA,B are speakers,and Picture C is the light Driver.Picture 5 is the light cable on the
speaker.Connect Picture 5 to Picture 6 on the light Driver.
Connect Picture 7 to the power 110V.
• Bluetooth Version:4.0
• Bluetooth Network Name:Pyle
• Bluetooth Network Password:`0000'
• Bluetooth Wireless Range:30'+Feet
Bluetooth Wiring
Connect the red cable to the terminal marked with a plus (+)on the speaker, and
the black cable to the terminal marked with a minus symbol (-).
PictureA,B,C,D are speakers and Picture E is Bluetooth controller. Picture1,2,3,4 are cables.
Cable 1 connects to speaker A, Cable 2 connects to speaker B,Cable 3 connects to speaker C,
Cable 4 connects to speaker D.
Picture F is Power Supply,lnsert picture 5 to the power port(DC12V) of the bluetooth.
Picture 6 is Aux in port.
LED Light Wiring
PictureA,B,C,D are speakers, and Picture G is the light Driver. Picture 7 is the light cable on
the speaker. Connect Picture 7 to Picture 8 on the light Driver.
Connect Picture 9 to the power 110V.
