Pyle PDIC1681RD, PDIC1651RD User guide

Visit Our Website

IN-CEILING SPEAKERS

SCAN ME

PyleUSA.com

MAX Power Output

Sensitivity

Frequency Response

Total Unit Dimensions
(Diameter x Depth)

Cutout Diameter

Single Speaker Weight

Both Speaker Weight

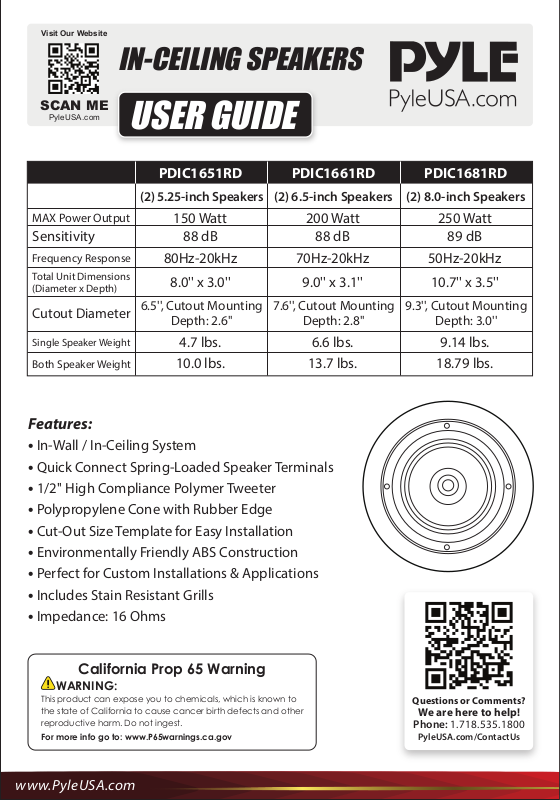

USER GUIDE

PDIC1651RD PDIC1661RD PDIC1681RD

(2) 5.25-inch Speakers (2) 6.5-inch Speakers (2) 8.0-inch Speakers

150 Watt 200 Watt 250 Watt

88 dB 88 dB 89 dB

80Hz-20kHz 70Hz-20kHz 50Hz-20kHz

8.0'' x 3.0'' 9.0'' x 3.1'' 10.7'' x 3.5''

6.5'', Cutout Mounting
Depth: 2.6''

4.7 lbs. 6.6 lbs. 9.14 lbs.

10.0 lbs. 13.7 lbs. 18.79 lbs.

7.6'', Cutout Mounting
Depth: 2.8''

9.3'', Cutout Mounting
Depth: 3.0''

Features:

•

In-Wall / In-Ceiling System

• Quick Connect Spring-Loaded Speaker Terminals

• 1/2'' High Compliance Polymer Tweeter

• Polypropylene Cone with Rubber Edge

• Cut-Out Size Template for Easy Installation

• Environmentally Friendly ABS Construction

• Perfect for Custom Installations & Applications

• Includes Stain Resistant Grills

• Impedance: 16 Ohms

California Prop 65 Warning

WARNING:

This product can expose you to chemicals, which is known to
the state of California to cause cancer birth defects and other
reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

www.PyleUSA.com

Questions or Comments?

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

Installation

Cut the drywall.

Note: Always allow at least one-half
inch between a wall stud and the
speaker cutout, or the locking tabs
will not be able to swivel into place.

Screw down each of the four Phillips
head screws. The locking tabs will
swivel into place and secure the unit
to the rear surface of the drywall.
Put in the strips of adhesive to secure
the grille.

Connect the speaker wires to the
speaker.

Replace the metal grille.

Complete
