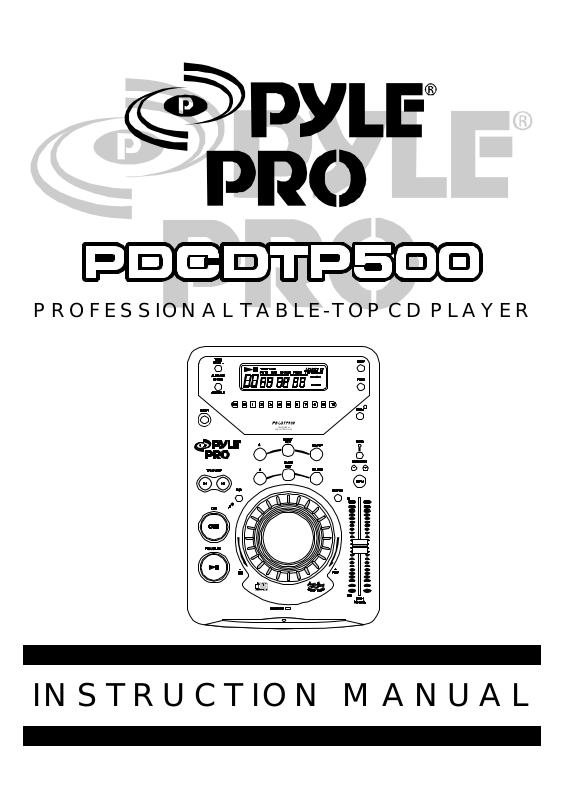

PROFESSIONALTABLE-TOPCDPLAYER
PROFESSIONAL
COMPACTDISCPLAYER
INSTRUCTIONMANUAL
TABLE OF CONTENTS
NOTE ON USE………………………………………………………………………..…2
FOR SAFE AND EFFICIENT OPERATION ………………………………………… 2
IMPORTANT SAFETY INSTRUCTION…………………………………….…3
SAFETY AND CERTIFICATION……………………………………………3
DESCRIPTION OF THE FUNCTIONS …………………………………………….. 4
CONNECTIONS ……………………………………………………...………………. 6
BASIC OPERATION ………………………………………………………..………….. 7
TROUBLE SHOOTING …………………………………………………....7
1
NOTE ON USE
BE CAREFUL OF HIGH TEMPERA-
TURE
DO NOT USE CHEMICALS IF OUT OF WORK, CONTACT
TO A VOID DUST & MOISTURE KEEP AWAY FROM TV &
MAGNETISM
DO NOT OPEN THE CASE CARE WITH THE POWER CORD
SALES AGENCY IMMEDIATELY
TO AVOID PLACING ON UN-
STABLE LOCATION
FOR SAFE AND EFFICIENT OPERATION
1. Be careful with heat and extreme temperature
Avoid exposing it to direct rays of the sun or near any heat
sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat. Not put it
in a temperature below 41°F /5°C, or exceeding 95°F /35°C.
2. Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
3. Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
4. To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
5. Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for
stubborn dirt.
6. If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an
engineer for repairing, do not open the cabinet by yourself, it might
result a danger of electric shock.
6-1. Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be
sure to hold the plug. When not using the player for an extended
period of time be sure to disconnect the plug from the receptacle.
Carefully handling the compact disc
7.
Always keep the disc clean; do not use cracked or wrapped discs, it
will damage the player.
2
IMPORTANT SAFETY INSTRUCTION
• Read and follow all instructions and heed all warnings.
• Do not block any of the ventilation openings. Install in accordance with
the manufacturer’s instructions.
• Only use attachments/accessories specified by the manufacturer
• Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from
tip-over.
• Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
SAFETY CERTIFICATION
Laser Diode Properties
Material: Ga.-Al-As
Wavelength: 755-815 nm (25°C)
Laser Output: Continuous Wave max. 0.5mW
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFED HEREIN MAY RESULT
IN HAZARDOUS RADIATIO EXPOSURE.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not
be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
3
DESCRIPTION OF THE FUNCTIONS
Function of the Control Unit
1. TIME /STOP BUTTON
This button switches the time display between each remaining time, elapsed playing time, and total remaining time. The
unit will be in the “stop” mode if you continue to press the button for more than 3 seconds
2. CONT./SINGLE BUTTON ( OUTRO)
To press this button it can switch between auto cue single and continue. The selected mode is indicated on the display.
*AUTO CUE SINGLE-After each track, the unit pauses at the beginning of next track. The playback starts from audible
point.
*CONTINUE—To play the whole tracks.
*OUTRO-Press the button for 3 seconds for OUTRO function, the unit will play the last 30 seconds of each track.
3. EJECT Button
Press to eject the disc
4. TRACK SKIP BUTTON
This button selects the track to be played
5. BOP BUTTON
The playback will automatically play from the CUE point upon the button is pressed.
6. CUE BUTTON
The cue function allows the CD to be played from the memorized point any number of times. With the unit in the pause
mode, pressing the CUE button to set up the memorized cue point and then the cue button blinks.
7. PLAY/ PAUSE BUTTON
Each press of this button causes the operation to change between PLAY and PAUSE modes.
4
8. L.C.D
These liquid crystal display (L.C.D.) indicate the track numbers, time (minute, second, frame), remain, pitch, beat, loop,
auto cue single, continue and time bar.
9. +10 BUTTON
Pressed the button to forward 10 tracks. If you forward 10 tracks, and the tracks over total tracks, the unit will jump to
track 1.
10. DIRECT ACCESS KEY (0~10)
To select the number of the track you would like to play.
11. SEAMLESS LOOP ( 2 set)
There are A, B/LOOP/EXIT, RELOOP buttons.
︵1︶
A ― “start point” (A point)
︵2︶
B/LOOP ― “end point” (B point) Press B/LOOP/EXIT to set end point (B point) and start loop playback
automatically. LOOP blinks on LCD.
︵3︶
EXIT ― To exit the loop playback, Press B/LOOP/EXIT to exit the loop playback. LOOP lights on the LCD.
And the playback goes on from B point.
︵4︶
Return RELOOP: Return to the loop playback by pressing RELOOP.
︵5︶
Change “START POINT” & “END POINT” by pressing A & B/LOOP/EXIT in play mode.
︵6︶
The interval between A and B point must be more than 20 frames, or the B point will be canceled, then Loop
function disappear, and LOOP fades on the LCD.
12. JOG WHEEL
This contains various functions, as follows:
*Speed Control
Rotating the wheel, in play mode, will change the playback speed accordingly. While rotating clockwise, the playing speed
increase; rotating counterclockwise, the speed decrease.
*Searching
Rotating the wheel in pause mode, the player will forward or backward to the desired point to start. The searching speed
changed according to the dialing speed. It can be carried out by one frame increment.
13. RELAY
Press the “RELAY” button to activate. When one unit is in play mode, and the other unit is in “pause” mode; pause the
playing unit, the other unit will automatically start to play.
14. PROGRAM BUTTON
You can program the track you want. While the unit is stopped, pressing the PROG button first to enter memorized mode,
by pressing the skip buttons to select the tracks you want to order and then press the PROG button again to compete set up
per track. The max tracks you can program are 30 tracks. While playing programmed tracks, the LED of PROG lights up.
While the unit is stopped, eject disc or turn off the power, the program will be exited.
15. PITCH BUTTON
With unit on the PITCH ON mode, to select the pitch range from 8%, 16%, which the LED indicator light up. With the
unit on the PITCH OFF mode, it means playback speed is normal (0%). The playback speed will not change when you
move the pitch control slider.
16. PITCH RANGE SELECT
To select 8 % will assign +/-8 % (Red LED light up) to pitch control slider and so does 16% (Yellow LED light up).
17. PITCH BEND + / - BUTTON
When CD player is playing, the pitch bend function allows the position of the bass beat to be matched after the pitch has
been adjusted. The pitch will automatically rise up to + 16% from the current setting while pressing the “ + “button. While
pressing the “ – “ button, the pitch will automatically drop to - 16 % from current setting. By the way of changing the pitch
the position of the beats can be matched.
18. BPM BUTTON
To get the BPM number manually.
19. SEARCH BUTTON
Pressing the button for quick forward or backward
20. PITCH CONTROL SLIDER
To match the choices of playback speed (8%, 16%), you can choose what range you want between minimum (up side) and
maximum (bottom side) by moving the pitch control slider.
21. SLEEP:
Leave the unit unused for 30 minutes; the machine will shut off automatically.
5
CONNECTION
Function of the Rear Unit :
1. LINE OUT
The audio from CD player is output from these jacks.
2. DIGITAL OUT
Digital output jack for connecting to D/A converter.
3. TACT-LOCK option
Select the type of switch in the mixer for FADER START wire remote control.
4. RELAY JACK
Used to connect the other CD player.
5. REMOTE JACK
Used to connect and control the CD player.
6. AC INPUT
Connecting this power cord into an AC wall outlet with the proper AC voltage.
7. POWER Switch
To switch the POWER on and off
6
BASIC OPERATION
1. Loading and ejecting the disc
* Place a disc in the loader
compartment with the label side
up.
* Push the disc into the loader.
2. Track skip
Use the TRACK SKIP control to advance (
3. SEARCH CONTROL
* JOG DIAL
In pause mode, dial the jog, the playback will move by frame or frames depending on the speed you dial.
* SEARCH BUTTON
Press the SERCH button in play mode to move by minute. While, in pause mode, the SEARCH button
activated, the search control moves by minute.
4. PITCH CONTROL KNOB
* JOG DIAL
In play mode rotate the job clockwise to speed up; rotate counterclockwise to slow down.
* PITCH CONTROL KNOB
Move the knob toward +16 direction, the playback become fast; move it toward -16 directions, the
playback become slow.
*Press the PLAY/PAUSE button
to start the playback.
) or reverse (
) to a desired track.
* Press the EJECT button to eject
the disc.
TROUBLESHOOTING
Symptom Cause Remedy
When playback is started, stops or
pauses immediately.
No sound
Sound is distorted
* Disc is loaded upside down.
* Dust or dirt on the disc.
* Output cables connected improperly.
* Audio mixer operated improperly.
* Pin plugs or amplifier terminals are
dirty.
* Player is in pause mode.
* Incorrect connection.
* Pin plugs or amplifier terminals are
dirty
* Load the disc with label side up.
* Clean the disc and load it again.
* Connect the cable properly.
* Check the setting of audio mixer.
* Press the PLAY/PAUSE button.
* Connection with audio mixer to the
LINE INPUT terminals.
* Clean away the dirt.
Hum Cable connected improperly. * Firmly connect all audio plugs.
7
