Pyle PDBT33 User guide

PDBT33

1.75'' Voice Coil Titanium Dome Tweeter

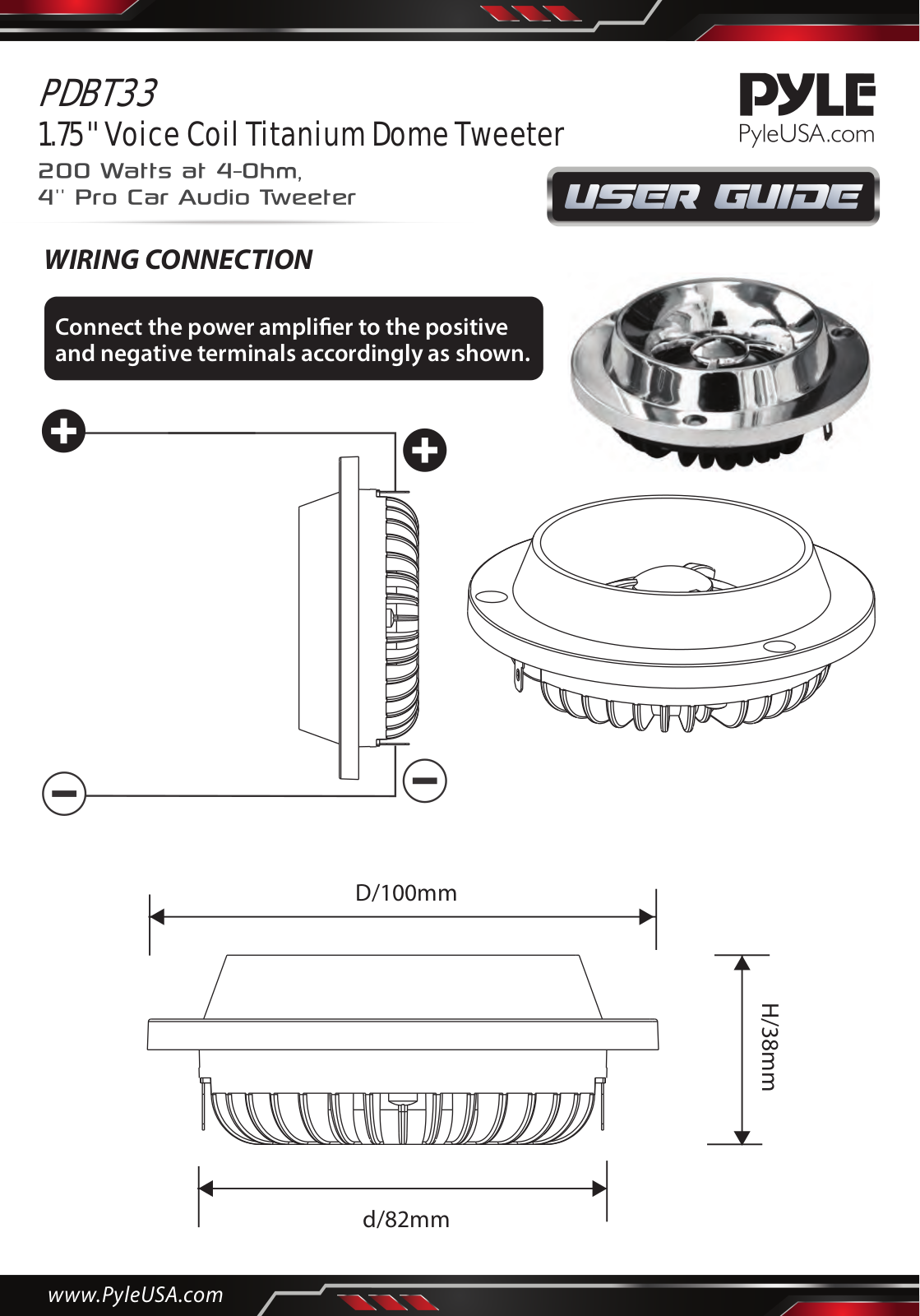

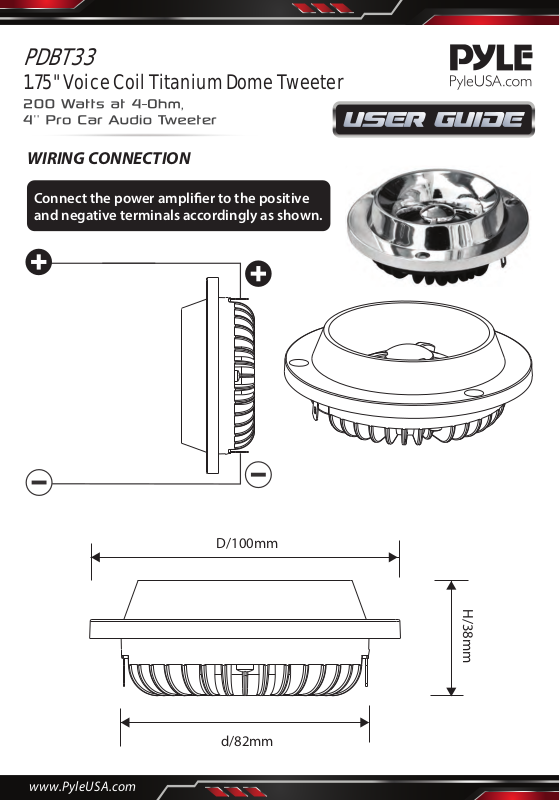

WIRING CONNECTION

Connect the power amplier to the positive
and negative terminals accordingly as shown.

www.PyleUSA.com

D/100mm

H/38mm

d/82mm

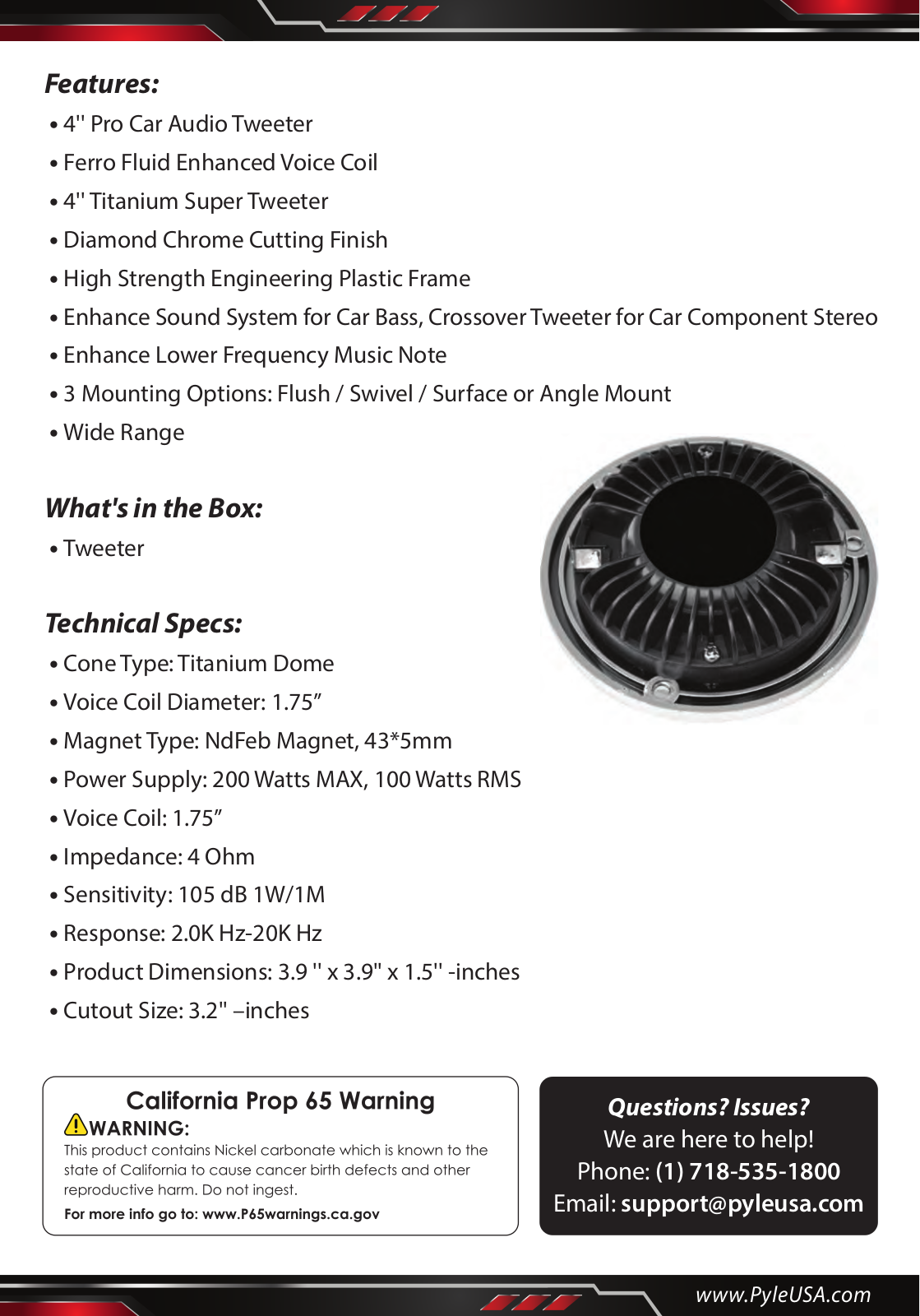

Features:

• 4'' Pro Car Audio Tweeter

• Ferro Fluid Enhanced Voice Coil

• 4'' Titanium Super Tweeter

• Diamond Chrome Cutting Finish

• High Strength Engineering Plastic Frame

• Enhance Sound System for Car Bass, Crossover Tweeter for Car Component Stereo

• Enhance Lower Frequency Music Note

• 3 Mounting Options: Flush / Swivel / Surface or Angle Mount

• Wide Range

What's in the Box:

• Tweeter

Technical Specs:

• Cone Type: Titanium Dome

• Voice Coil Diameter: 1.75”

• Magnet Type: NdFeb Magnet, 43*5mm

• Power Supply: 200 Watts MAX, 100 Watts RMS

• Voice Coil: 1.75”

• Impedance: 4 Ohm

• Sensitivity: 105 dB 1W/1M

• Response: 2.0K Hz-20K Hz

• Product Dimensions: 3.9 '' x 3.9'' x 1.5'' -inches

• Cutout Size: 3.2'' –inches

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

www.PyleUSA.com
