Pyle PDBT30 User guide

PDBT30

1.0'' Voice Coil Titanium Dome Tweeter

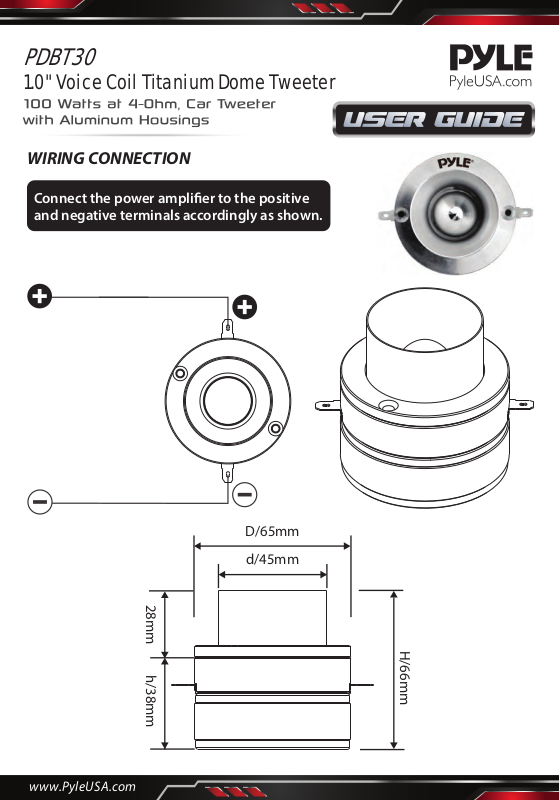

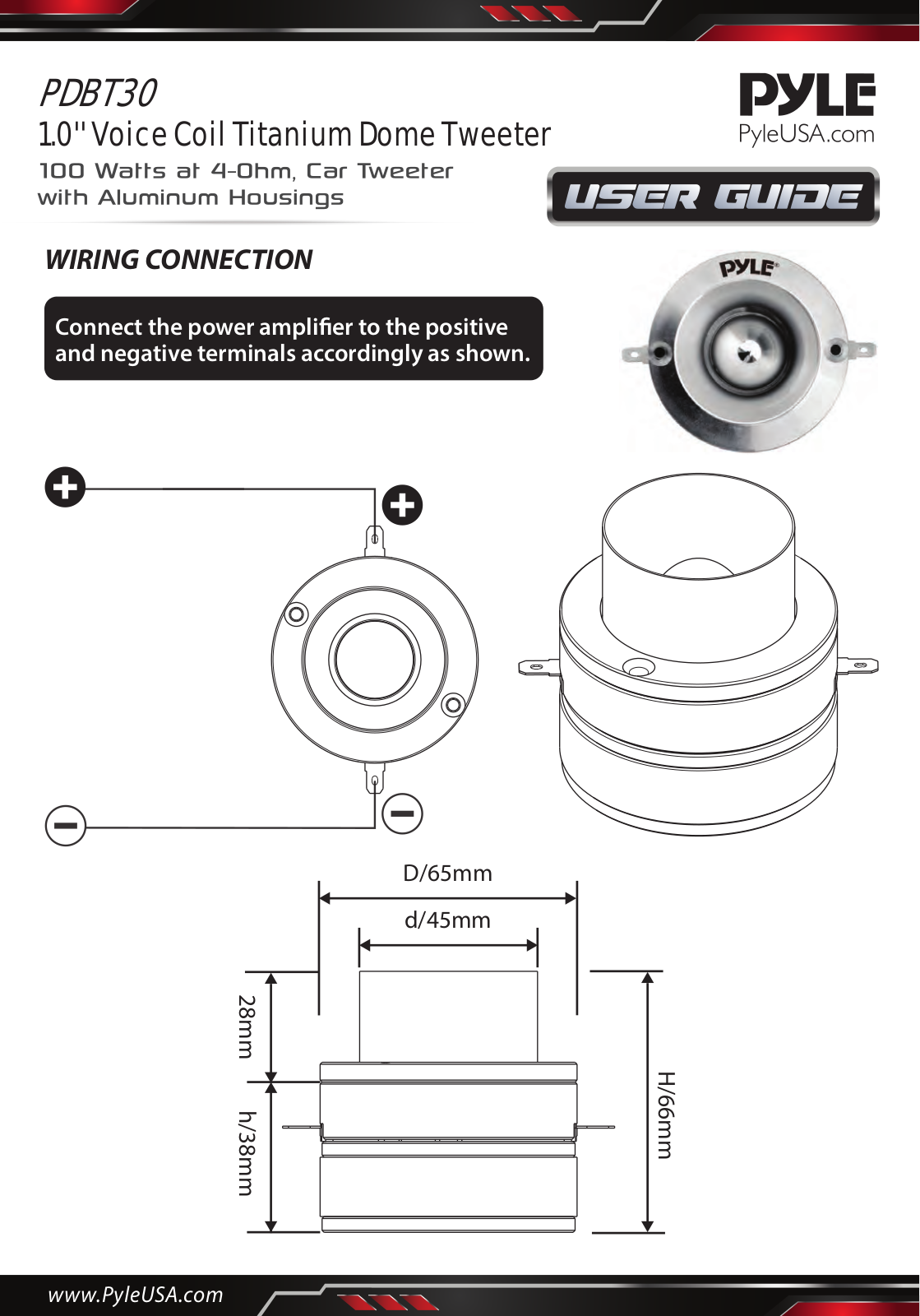

WIRING CONNECTION

Connect the power amplier to the positive
and negative terminals accordingly as shown.

www.PyleUSA.com

D/65mm

d/45mm

28mm

H/66mm

h/38mm

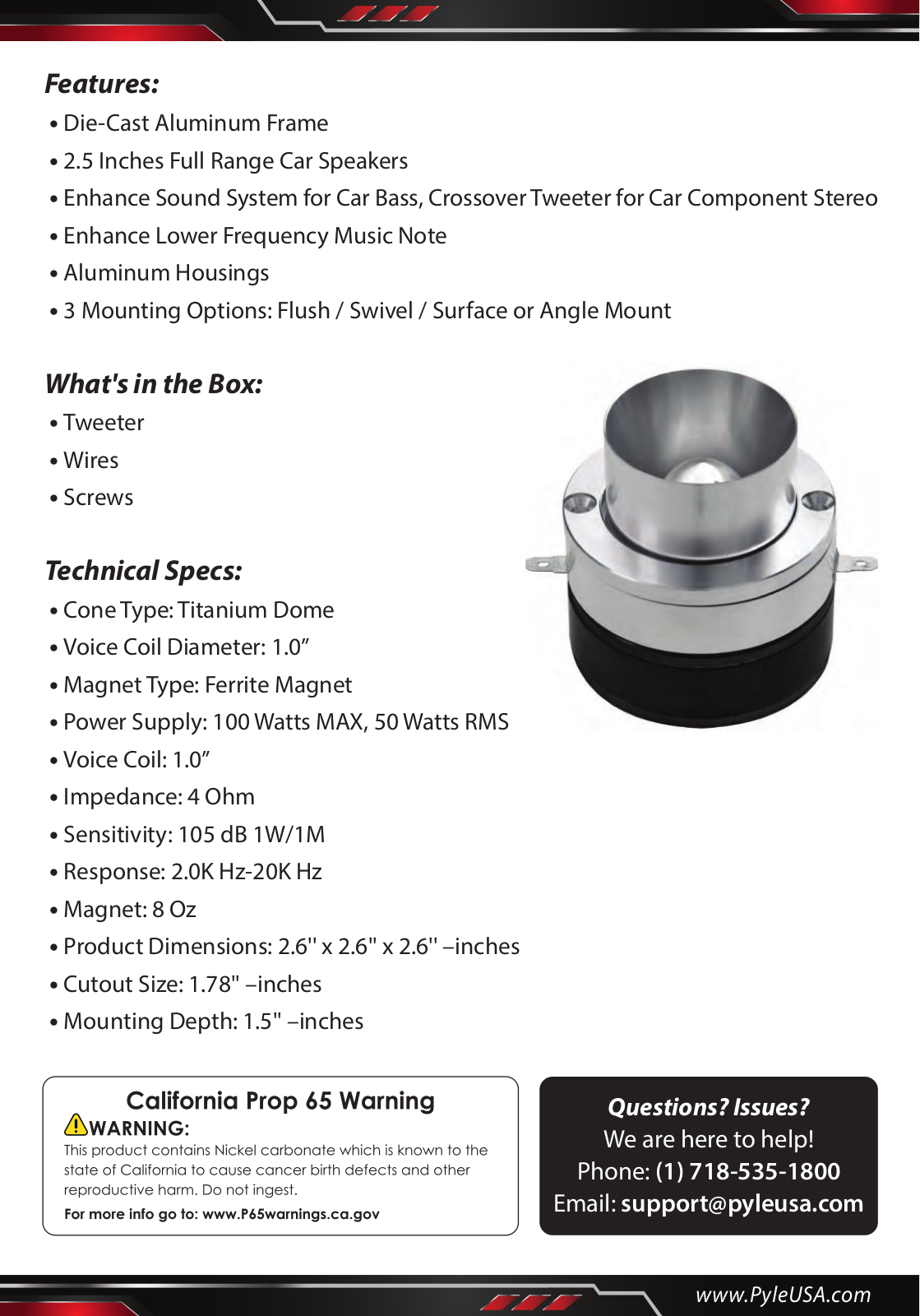

Features:

• Die-Cast Aluminum Frame

• 2.5 Inches Full Range Car Speakers

• Enhance Sound System for Car Bass, Crossover Tweeter for Car Component Stereo

• Enhance Lower Frequency Music Note

• Aluminum Housings

• 3 Mounting Options: Flush / Swivel / Surface or Angle Mount

What's in the Box:

• Tweeter

• Wires

• Screws

Technical Specs:

• Cone Type: Titanium Dome

• Voice Coil Diameter: 1.0”

• Magnet Type: Ferrite Magnet

• Power Supply: 100 Watts MAX, 50 Watts RMS

• Voice Coil: 1.0”

• Impedance: 4 Ohm

• Sensitivity: 105 dB 1W/1M

• Response: 2.0K Hz-20K Hz

• Magnet: 8 Oz

• Product Dimensions: 2.6'' x 2.6'' x 2.6'' –inches

• Cutout Size: 1.78'' –inches

• Mounting Depth: 1.5'' –inches
