Pyle PDA22BT User guide

PDA22BT

Desktop Wireless BT Audio Amplifier

Compact Mini Blue Series Stereo Power Amplifier

(2 x 100 Watt MAX)

Read through this user manual before using the product to ensure

its correct use. Keep this manual for future reference.

Quick Setup:

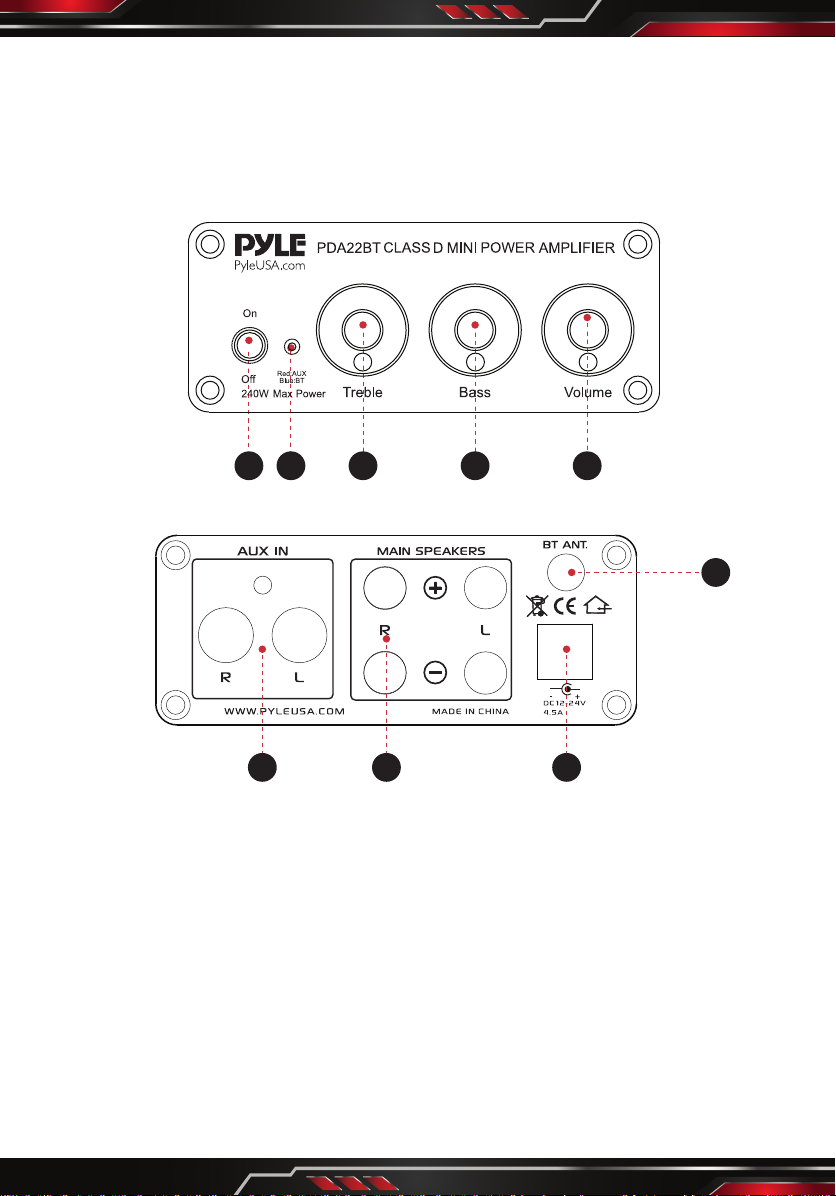

Front Panel

1 5 2 3 4

Rear Panel

9

6 7 8

1. Main Power ON Switch: Switch ON/OFF the amplier by using this switch.

2. TREBLE KNOB: Adjust to boost or cut HIGH frequencies.

3. BASS KNOB: Adjust to boost or cut LOW frequencies

4. Master Volume: Adjusts main audio system volume level.

5. Input LED: RED--AUX input model
Green--Wireless BT input model.

6. RCA L/R LINE Input: Lets you connect the desired LINE input source.

7. Banana Type Speaker L/R Terminals: Lets you easily connect speaker wires
directly to the Amplifer.

8. POWER In Jack: Connect the adaptor DC.

9. Wireless BT Antenna: Wireless BT Streaming receiver

www.PyleUSA.com

2

Setup and pairing (Wireless BT ampliers) are really easy. The following
instructions will help you connect Audio Ampliers to your music system or
pair with your tablet, computer, or smartphone.

1. Connecting the Speaker Wire

Audio stereo power ampliers that will power one pair of passive speakers
between 4 and 8 ohms (or subwoofer if you got the 2.1 CH amp or subwoofer
amp). To connect the amplier to your speakers you will need 2-conductor
stranded speaker wire. The ampliers use high-quality binding posts that will
accept heavy gauge bare wire banana plugs, spade lugs, or pin terminators.
If you use your own speaker wire we recommend using at least 16 gauge wire
and using the same length of wire from the amplier to each speaker It's also a
good idea to turn o your amplier before connecting power, audio sources or
speakers.

Preparing the Speaker Wire

1. Separate the last 3" of each speaker wire conductor.

2. Strip 1/2" of insulation from the end of each wire.

3. Twist the exposed copper strands with your ngers 3 or 4 times so the strands
stay together.

NOTE:

As you make your connections, be sure to connect the positive (+) terminals on
your amplier to the positive (+) terminals on your speakers. Even if your wire does
not have (+) or (-) markings, most 2-conductor speaker wire has printing on one
side to help you dierentiate between the wire pairs.

If you are Using Bare Wire

1. Use your thumb and nger to unscrew the binding post connectors on the back
of each speaker.

2. Insert each speaker wire into the holes on the side of the binding post connectors,
observing proper polarity.

3. Retighten the binding posts with your ngers.

4. The stripped portion of the wire should be secured rmly in each connector.

5. Make sure that none of the speaker wire strands have come in contact with an
adjoining terminal.

www.PyleUSA.com

3

2. Connecting the Power Supply

Be sure that the volume/power switch on the front panel is in the OFF position
by rotating it counter clockwise.

Connect the cable with the round end from the power supply to rear panel
power connector. Connect the AC power cable from the power supply to a power
outlet and verify that the indicator light on the power supply is illuminated.
We recommend using a high-quality surge suppressor and/or AC line later on
all electronics equipment.

3. Connecting Audio Sources

Using the appropriate audio cable (RCA cable), connect your audio source
(computer, iPod, etc.) to the amplier audio inputs.

If you got the Wireless BT amplier and want to connect the amplier to the
audio source via Wireless BT, you can pair them when the amplier is turned on.
Audio Wireless BT ampliers can connect to only one device at a time, however,
they will remember the devices they connected, they will auto-paired at next
time.

NOTE:

Audio Wireless BT ampliers have the "BT" and "AUX" selector, you can choose the
input way when you connect the audio source. The RCA input will interrupt, so if
you want to connect the amplier with RCA input, you need interrupt the Wireless
BT connection from your Wireless BT device.

4. Operation

Turn on the amplier volume/power knob and set the volume control to an
initial setting of about 3 o'clock. The front panel power indicator will be
illuminated. Turn on your audio input source and adjust the volume to your
desired listening level.

www.PyleUSA.com

4

Features:

• Compact and Powerful Mini Amp System

• With bass and treble volume control

• BT Receiver for Wireless Audio Streaming Ability

• RCA (L/R) Audio Input

• Connect & Stream Audio from External Devices

• Banana Speaker L/R Terminals

• Front Panel Rotary Controls

• Antenna for Extended Wireless BT Range

• Power ON / OFF Switch

Wireless BT Connectivity:

• Simple & Hassle-Free Pairing Ability

• Works with All of Today’s Latest Devices

(Smartphones, Tablets, Laptops, Computers, etc.)

• Wireless BT Network Name: ‘PYLEUSA’ or ‘BT’

• Wireless BT Version: 5.0

• Wireless Range: 30’+ ft.

What's in the Box:

• Stereo Amplier System

• 24V/4.5A Adaptor

• Wireless BT Antenna

• AC Power Cord

Technical Specs:

• Construction Material: Aluminum

• Power Output: 100W + 100W;

• Power Supply: 24V 4.5A

• Power Supply Range: 12v-25v;

• THD: ≤ 0.5%.

• Frequency Range: 20Hz - 20kHz (±1 dB);

• SNR: ≥ 95dB;

• Input sensitivity: ≤ 280mV;

• Wireless BT transmission distance: 30ft;

• Terminating impedance: 2Ohm - 8Ohm;

• Power Cord Length: 4.9 ft

• Product Dimension: 5.24'' x 3.62' x 1.62'' -inches

www.PyleUSA.com
