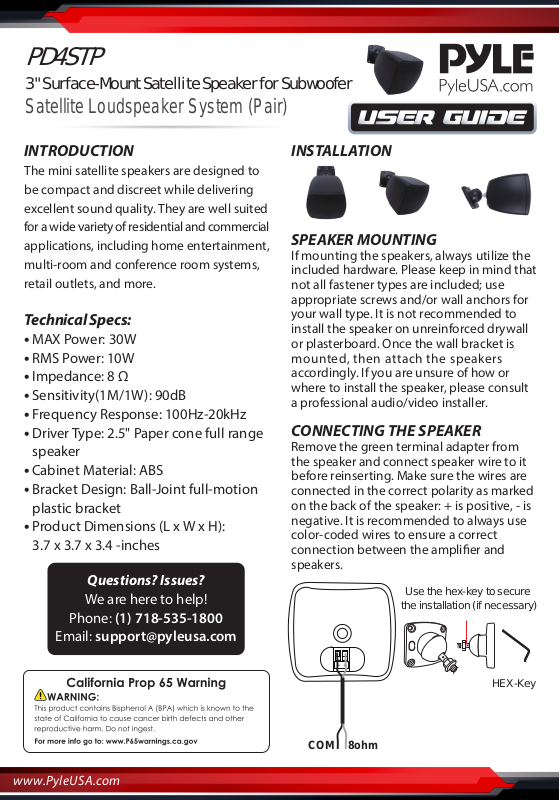

Page 1
PD4STP
3'' Surface-Mount Satellite Speaker for Subwoofer
Satellite Loudspeaker System (Pair)
INTRODUCTION
The mini satellite speakers are designed to
be compact and discreet while delivering
excellent sound quality. They are well suited
for a wide variety of residential and commercial
applications, including home entertainment,
multi-room and conference room systems,
retail outlets, and more.
Technical Specs:
MAX Power: 30W
•
• RMS Power: 10W
• Impedance: 8 Ω
• Sensitivity(1M/1W): 90dB
• Frequency Response: 100Hz-20kHz
• Driver Type: 2.5" Paper cone full range
speaker
• Cabinet Material: ABS
• Bracket Design: Ball-Joint full-motion
plastic bracket
• Product Dimensions (L x W x H):
3.7 x 3.7 x 3.4 -inches
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
INSTALLATION
SPEAKER MOUNTING
If mounting the speakers, always utilize the
included hardware. Please keep in mind that
not all fastener types are included; use
appropriate screws and/or wall anchors for
your wall type. It is not recommended to
install the speaker on unreinforced drywall
or plasterboard. Once the wall bracket is
mounted, then attach the speakers
accordingly. If you are unsure of how or
where to install the speaker, please consult
a professional audio/video installer.
CONNECTING THE SPEAKER
Remove the green terminal adapter from
the speaker and connect speaker wire to it
before reinserting. Make sure the wires are
connected in the correct polarity as marked
on the back of the speaker: + is positive, - is
negative. It is recommended to always use
color-coded wires to ensure a correct
connection between the amplier and
speakers.
Use the hex-key to secure
the installation (if necessary)
www.PyleUSA.com
HEX-Key
COM 8ohm
