Page 1
PD1000BA - PD3000BA
Home Theater Wireless BT Streaming
Preamplifier Receiver
Wireless BT Streaming Home Theater Preamplifier
Receiver Audio/Video System CD/DVD Player
AM/FM Radio, MP3/USB Reader
Page 2
BEFORE USE
TABLE OF CONTENTS
Safety Precautions
-------------------------- 2
Important Safety Instructions
Notice and Disc Protection
------------- 4

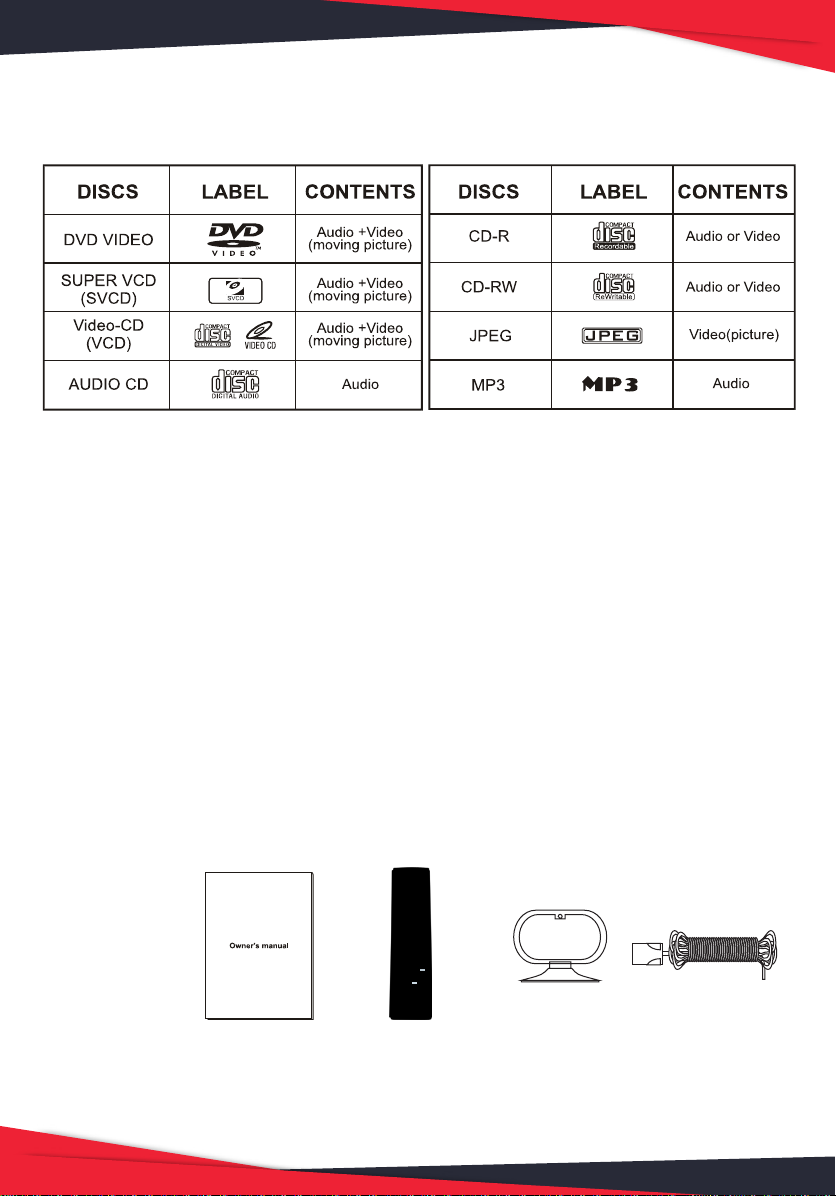

Playable Discs and Accessories
CONTROL AND CONNECTION
Front panel, Rear Panel
and LED Display
REAR PANEL FUNCTION
Remote Device Function
REAR PANEL CONNECTION
Basic connection
------------------------------ 9
----------------- 10
------------------- 11
-------------- 13
-------------------------------- 14
BASIC PLAYBACK
Preparations
Basic Playback
Pause/Step Playback
Previous and Next
---------------------------------------- 15
------------------------------------ 15
----------------------- 16
---------------------------- 16
Fast Forward and Fast Reverse
Stop Playback
STANDBY
------------------------------------- 16
----------------------------------------------- 16
ADVANCED PLAYBACK
Reception of a radio
USB/DVD
TIME
OSD
ZOOM
SUBTITLE
--------------------------------------------- 19
------------------------------------------------------ 20
------------------------------------------------------- 20
--------------------------------------------------- 20
---------------------------------------------- 20
------------------------ 17
--------- 3
-------- 8
------- 16
PROGRAM
TITLE/PBC
LANGUAGE
VIDEO
----------------------------------------------------------- 21
P/N
REPEAT
A-B REPEAT
VOLUME AND MUTE
MENU
----------------------------------------------- 20
---------------------------------------------- 20
--------------------------------------------- 21
----------------------------------------------------- 21
---------------------------------------------------- 21
--------------------------------------------- 21
---------------------------- 21
------------------------------------------------------ 21
SPECIAL FUNCTIONS PLAYBACK
JPEG Disc Playback
MP3 Playback
------------------------------- 22
---------------------------------------- 22
MPEG4 Disc Function lntroduction
Kodak Picture CD Playback
USB 2.0
---------------------------------------------------- 24
-------------- 23
Divx And Xvid Video Compatibility
PC-Created Disc Compatibility
---------- 24
REFERENCE
System Setup
Troubleshooting
DVD Special Function
SPECIFICATIONS
----------------------------------------- 25
----------------------------------- 32
-------------------------- 33
------------------------------------ 34
-- 22
-- 24
www.PyleUSA.com
1
Page 3
SAFETY PRECAUTIONS
The lightning ash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product's enclosure that may be of sucient
magnitude to constirute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
The symbol for CLASS II (Double Insulation).
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE, AS DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION: When replacing the direct plug in power supply or a separable, cord-
connected power supply, the replacement must be exact duplicate, or
one recommended by the manufacturer
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
AND FULLY INSERT.
This Digital VIdeo Disc player employs a laser System.
Use of controls, adjustments or the performance of procedures than those
specied may result herein hazardous radiation exposure. To prevent direct
exposure to laser beam, do not try to open the enclosure. Visible laser may radiate
when the cabinet is opened or the interlocks are defeated.
DO NOT STARE INTO BEAM.
2
www.PyleUSA.com
Page 4
SAFETY PRECAUTIONS
This product incorporates copyright protection technology
that is protected by Macrovision method claims of certain U. S.
Patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly
is prohibited.
Manufactured under license from Dolby Laboratories. "Dolby"
and the doubIe-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright1992-1997 Dolby
Laboratories. All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS
GIVEN IN THIS MANUAL AND THOSE MARKED ON THE UNIT. RETAIN THIS
BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper
use can result in electric shock or re hazard. The safeguards incorporated in this
unit will protect you if you observe the following procedures for installation, use
and servicing. This unit is fully transistorized and does not contain any parts that
can be repaired by the user.
DO NOT REMOVE THE CABINET COVER OR YOU MAY BE EXPOSED TO
DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
ONLY.
1. Read these manuals
After unpacking this product. read the manual carefully. Follow all the operating
and other instructions.
2. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure
operation of the product. These protect it from overheating. These openings
must not be blocked or covered. The openings should never be blocked by
placing the product on bed, sofa, rug or other.
3
www.PyleUSA.com
Page 5
3. Heat
The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including amplifiers ) that produce heat.
4. Water and Moisture
Do not use this product near water for example, near a bathtub, wash bowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a dry cloth for cleaning.
7. Lightning
For added protection for this product during storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet. This will
prevent damage to the product due to lightning and power-line surges.
8. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
9. Attachments
Do not use attachments not recommended by the product manufacturer as they
may cause hazards.
10. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or
table. The product may fall causing serious injury to a child or adult, and
serious damage to the product. Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer, or sold with the product. Any
mounting of the product should follow the manufacturer‘s instructions and
should use a mounting accessory recommended by the manufacturer. A
product and cart combination should be moved with care. Quick stops,
excessive force and uneven surfaces may cause the product and cart
combination to overturn.
11. Disc Tray
Keep your fingers well clear of the disc tray as it is closing. Neglecting to do so
may cause serious personal injury and damage to the product.
12. Burden
Do not place a heavy object on or step on the product. The object may fall
causing serious personal injury and serious damage to the product.
4
www.PyleUSA.com
Page 6
13. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will oflen require extensive work by a qualified technician to
restore the product to its normal operation.
e. If the product has been dropped or damaged in anyway.
f. When the product exhibits a distinct change in performance; this indicates a
need for service.
14. Servicing
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
15. Replacement Parts
When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteris
tics as the original part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
16. Safety Check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper
operating condition.
NOTICES AND DISC PROTECTION
NOTES ON HANDLING
• The top and rear panels of the unit may become warm after a long period of use.
This is not a malfunction.
• When the unit is not use, be sure to remove the disc and turn OFF the power.
• If you will not use the unit for a long period, the unit may not function properly in
the future. Turn ON and use the unit occasionally.
• Do not place foreign objects on the tray.
5
www.PyleUSA.com
Page 7
LOCATION
Do not locate the unit in places such as:
• Near heating devices orin enclosed car.
• High temperature (47°C/116.6°F or higher) or high humidity (90% or higher).
• Dirty places.
• Avoid direct exposure to sunlight
DISTURBANCE
• When you place this unit near a TV, radio or VCR the playback picture may
become poor and the sound may be distorted. In this case, place the unit away
from the TV, radio orVCR.
NOTES ON MOISTURE CONDENSATION
The pickup may be condensed with water under the following situation.
• When you bring the unit directly from a cold place to a warm place.
• When you use the unit in a room where you just turned on the heater, or a place
where the cold air from the air conditioner directly hits the unit.
• During the summer, when you use the unit in a hot and humid place just after you
move the unit from an air conditioned room.
• The room is vaporous or damp.
If condensation exists, the unit will not operate properly. Remove the disc, connect
the power cord of the unit to the wall outlet, turn on the unit, and leave it for two or
three hours. After two or three hours, the unit will have warmed up and evaporated
any moisture. Keep the unit connected to the wall outlet and moisture
condensation will seldom occur.
ON HANDLING DISCS
• Do not touch the playback side of the disc.
• Do not attach paper or tape to disc.
6
www.PyleUSA.com
Page 8
ON CLEANING DISCS
• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the
disc from the center outwards with a soft cloth. Always keep the disc clean.
• If you cannot wipe o the dust with a soft cloth, wipe the disc lightly with a
slightly moistened soft cloth and finish with a dry cloth.
• Do not use any type of solvent such as thinner, benzine, commercially available
cleaners or antistatic spray for vinyl Lps. It may damage the disc.
ON STORING DISCS
• Do not store discs in a place subject to direct sunlight or near heat source.
• Do not store discs in place subject to moisture and dust such as a bathroom or
near a humidifier.
• Store discs vertically in a case. Stacking or placing object on discs outside or their
case may cause warping.
STRUCTURE OF DISC CONTENTS
• Normally, DVD discs are divided into titles, and the titles are sub-divided into
chapters. Audio CD5 are divided into tracks.
Each title, chapter, or track has an assigned number, which is called title number,
chapter number or track number respectively. There may be discs that do not have
these number.
7
www.PyleUSA.com
Page 9
PLAYABLE DISCS AND ACCESSORIES
The following discs can be played:
• Discs than those listed above cannot be played.
• Non-standardized discs, even if they may be labeled as above cannot be played.
• The performance of a recorded disc depends on the method and quality of disc
burning. In some cases, the disc may not be played.
ACCESSORIES
• Audio/Video cable 1
• User's manual 1
• Remote control 1
• AM Antenna 1Piece
• FM Antenna 1Piece
Audio/Video
cable
User's manual Remote control AM Antenna FM Antenna
USB/DVD
TITLE
8
www.PyleUSA.com
Page 10
FRONT PANEL AND LED FUNCTION
1. LIGHT: Light indicates signal intensity
2. MEMORY: After a station has been found, you can store the station by pressing
the MEMORY button, and the screen will displays MEM above a channel
number, then you can press the number knob to save the station, when the
channel number displayis moving from right to left, it means the station has
been saved.
3. ST/MONO: Stereo and Mono selector.
4. INPUT: This is used to select the input sources DVD/CD/USB, TUNER, IPOD/MP3
AUX
5. MENU CONTROL: This is used to increment and decrement level for the selected
function of Master Volume, Bass, Treble, Balance, Auto Station seek.
6. AM/FM: Press it to selectAM/FM when it is tuning
7. A/B SPEAKERS OUTPUT SELECTOR: Three mode: A, B, A+B
8. TUNING- / TUNING+: The two keys are used to adjust to the best signal of the
stations.
9. FUNCTION DISPLAYED FLUORESCENT WINDOW
10. REMOTE SENSOR WINDOW
11. OPEN/CLOSE CONTROL: Press this key at any play mode will always turn to
disc play mode
12. PLAY/PAUSE: Play and pause control
13. REV,FR: Quick/backward search the set
14. NUMBER KEYS: While in radio status, you can choose the music number
directly for example choose “28”, press “10+” key twice, then press “8”, you can
get “28” music or station.
www.PyleUSA.com
9
Page 11
15. FWD.FF: It is quick to enterlfonivard search the set
16. PREV, SKPR: Top a songltop a set
17. STOP: Stop control
18. NEXT, SKPF: Next song/next set
19. PRESS SWITCH: Press to switch the power unit ON or OFF
20. IPOD/MP3 JACKS: IPOD/MP3 connect to these jacks
21. HEADPHONE JACKS: Headphone connect to these jacks
22. MIC INPUT JACKS 1&2: KARAOKE Mic connect to thesejacks
23. ECHO CONTROL: Turn the knob to adjust the MIC echo level
24. MIC TREBLE: Adjusts the treble of Mic
25. MIC BASS: Adjusts the bass of MIC
26. MIC VOLUME: Adjusts the volume level. Turn the knob clockwise to increase
the MIC volume
27. SUB.OUT VOLUME CONTROL
28. MASTER VOLUME CONTROL: Adjusts the volume level. Turn the knob. Clock
wise to increase the volume
29. USB INPUT JACKS: Please note that this USB only can read MP3 files and do
not support PWA files. In case of any damage to this unit, when you take USB
out, please select the button “PAUSE” or other input source.
REAR PANEL FUNCTION
10
www.PyleUSA.com
Page 12
1. TUNER ANT: Connect for AM and FM antennas.
2. A SPEAKER OUTPUT TERMINALS: Connect your speaker system to these
terminals.
3. B SPEAKER OUTPUT TERMINALS: Connect your other speaker system(s) to
these terminals.
4. COOLING FAN
5.6. R/L OUTPUT
7.9. DIGITALAUDIO OUTPUT: One coaxial one optical, this output can connect to
the amplier with dolby digital or DTS decoder to play the movie with
correspondent records.
8.10.11.12.13. VIDEO OUTPUT, S-VIDEO OUTPUT, COMPONENT VIDEO OUTPUT
Press the “relevant” key on remote control to choose the output mode.
14. AUDIO INPUT JACKS: Connect the audio ouput jacks of MP3, AUX to these jacks.
15. SUB-WOOFER OUTPUT JACKS 1&2
16. COOLING FAN
17. 120V/240V SWITCH: According to power voltage, push this button to the
station of the 120V or 240V.
18. POWER CORD: Connect to AC 120V/60Hz & 240V/50Hz outlet.
REMOTE DEVICE FUNCTION
Remote Control Operation
1. Remote control should be operated within 6 meter and the scope of 30° in front
of receiver.
2. Make sure that there is no big obstacle between remote control and machine.
3. Remote sensor should be far away from the light. High amounts of light can
aect its performance.
11
www.PyleUSA.com
Page 13
POWER STANDBY Button
A/B SPEAKERS OUTPUT
SELECT Button
EJECT Open/Close
Button
Number Button
MUTE Button
PAL/NTSC
Switch Button
TIME Select Button
UP/DOWN/RIGHT
Play/Enter Button
SETUP Button
PREV/CH- Button
NEXT/CH+ Button
Frequency DOWN Button
Frequency UP Button
PROGRAM Button
LANGUAGE Button
Subtitle Button
A-B Repeat Button
ZOOM Button Select Input Model Button
Repeat Button
TITLE
USB/DVD
VIDEO Mode Button
MENU Button
Channel L/R Button
PBC MENU Button
VOLUME+ Button
DISPLAY Button
Volume- Button
STOP Button
PLAY/PAUSE Button
USB/DVD Button
MEMORY Button
MENU Control Button
AM/FM Button
TITLE Button
Auto Button
12
www.PyleUSA.com
Page 14
REAR PANEL CONNECTION
Connecting to Amplifier
SAFETY INSTRUCTIONS
1. Make sure that all connections are properly connected and the main volume is
set to minimum level before turning ON the unit.
2. When more then one pair of speakers are used, (specially the main speaker
output) make sure that the speakers used have the same wattage and impedance,
otherwise the unit maybe damaged under high power or long term operation.
3. To avoid humming sounds and unwanted noise, make sure that all the wires are
properly inserted.
4. For speaker cords, strip o the vinyl coating and twist the wire tip. Push down the
pink jack or loosen the screw terminal, before inserting the wire tip, then fasten it
and tighten the screw. Be careful not to let the wires stick out of the terminal
otherwise this may cause a short circuit when wires of dierent terminal contact
each other.
5. After the unit is turned ON, adjust the main volume to the desired level same
with the bass and treble volume, etc.
13
www.PyleUSA.com
Page 15
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
• If the TV has an S-video input, connect the DVD player with an S-video cable.
When using an S-video cable, do not connect the yellow video cable.
Note:
The volume adjusting only works when it's connected to a power amplier. While it's
connected to TV set without speakers, the volume cannot be adjusted on this
device. You can only adjust the volume on the TV set.
Connecting to an Audio System
14
www.PyleUSA.com
Page 16
Connecting to an Amplier Equipment
BASIC PLAYBACK
Preparations
• When you want to view a disc, turn on the TV and select the video input
connected to the unit
Basic Playback
1. Press POWER switch in the front panel to ON, the unit turns on and the TV screen
will display the start logo. If a disc is already in the tray, it will begin to play once
the power is ON.
2. Press OPEN/CLOSE to open the disc tray, place a disc on the disc tray.
• There are two dierent disc sizes. Place the disc In the correct guide on the
disc tray. If the disc is out of the guide, it may damage the disc and cause the
unit to malfunction.
• Do not place disc which is unplayable in this unit.
3. Press OPEN/CLOSE to close the disc tray, the playback will automatically start.
• Some disc may not playback automatically, you can press PLAY button to
start playback.
4. Some disc may start playback with a menu, use the cursor button on the remote
controller to select menu options and press PLAY to start, or press digits to select
a menu options directly.
www.PyleUSA.com
15
Page 17
Pause/Step Playback
1. Press PAUSE/STEP rst time to pause play back (still mode). The sound will
be muted during still mode.
2. Press STEP continuous to single step forward to the next frame in the video.
3. Press PLAY to resume normal playback.
Previous and Next
While playing, press PREV key to play back previous chapter. Press until you
reach the rst chapter. Each press of NEXT key while playing will skip the
current chapter and play the next one.
Fast Forward and Fast Reverse
1. Press FWD to fast forward through the disc. Each time the FWD button is
pressed, the fast forward motion speed changes.
2. Press ENTER/PLAY to resume normal playback.
3. Press REV to fast reverse through the disc. Each time the REV button is
pressed, the fast reverse motion speed changes.
4. Press ENTER/PLAY to resume normal playback.
Stop Playback
1. Press STOP button to stop mode, the TV screen will show the start logo. As
some disc the unit can recall the location where it stopped such as DVD’s and
audio CD’s.
2. Press PLAY to playback to resume play-back from the location where playback
stopped or from the beginning of the disc.
3. Press STOP twice to stop completely.
Standby
Press STANDBY key on remote control to switch player to standby mode or to
power ON.
NOTES:
1. "INVALID KEY" may appear on the TV screen during operation. A "INVALID KEY"
means that the operation is not permitted by the unit or the disc.
2. This unit can be controlled by CPU under setting mode. While in screen saver,
press any key to activate the unit. If you cannot use this function, you can set
SCREEN SAVER to OFF in SYSTEM SETUP PAGE of SYSTEM SETUP.
16
www.PyleUSA.com
Page 18
LISTEN TO RADIO, LINE INPUT OPERATION ADVANCED PLAYBACK
• MP3, AUX EXTERNAL CONNECTION OF AUDIO SIGNAL INPUT
Press INPUT key on the remote control or on the unit’s panel. The unit can input
MP3/AUX and AM/FM external connection audio signal, the display shows the
status. Audio signal of any equipment can be connected.
• INPUT TRANSFER TO MP3, AUX
Press INPUT key on the remote control or on the unit’s panel. The unit can input
MP3/AUX and AM/FM external connection audio signal, the display shows the
status. Audio signal of any equipment can be connected.
• LISTEN TO RADIO
• FM/AM
Press INPUT key to transfer the radio reception, then press [FM/AM] key on the
machine or in the remote control. The machine will turn into FM/AM mode, and
the display shows the frequency and the channel number of the current radio
station.
• MANUAL SCAN
Press [ /FRE] or [ /FRE+] key on the unit’s panel or on the remote control to
carry out manual scan to search for your need
• AUTO SCAN
Press AUTO key on the unit’s panel or on the remote control, then the machine
itself will scan within the frequency range once completely automatically
17
www.PyleUSA.com
Page 19
NOTES:
The machine will store the radio station into current channel number when the
machine receives one. The eect is much related to the intensity of the signal. If
there are no signal or immethodical signal, you'd better choose manual scan or
frequency selection scan.
• FREQUENCY SELECTION SCAN
Press [TIME] key on the remote control, the display shows the status. Then you
can input the frequency of the radio station you want to listen to.
A. FM frequency range: 87.5-108.0MHz
B. AM frequency range: 530-1620KHz
• CHANNEL SELECT
Press [ /Ch] and [ /CH+] key on the remote control or on the panel, then you
can select the channel you have already stored.
NOTES:
You can store your favorite radio stations in continuous channels.
• MONOPHONY/STEREO MODE SELECT
Press [L/R] key on the remote control to select monophony or stereo mode to
listen to the radio.
NOTES:
We advise you to select monophony mode when the signal of the radio station
you've chosen is not good enough.
18
www.PyleUSA.com
Page 20
• AUTO STORE RADIO STATIONS
After starting AUTO SCAN function, the machine will store the radio stations
received into ordinal channels.The current frequency will be stored into current
channel number automatically.
• MANUAL STORE RADIO STATIONS
Press [ /FRE] or [ /FRE+] key to select the radio station you want to listen to,
then press [MEMORY] key to store the current radio station into the channel
number you want until the signal intensity is strong enough.
TIPS:
If the reception is not good or there’s noise and it doesn't become better even after
changing into monophony mode, you should suitably adjust the antenna to a good
position until you get the best reception.
ADVANCED PLAYBACK
USB READER FUNCTION
• The machine will play USB the same as disks when there is only a single form of
playable le in the USB disk or in the triple card.
• MP3 and WMA les have the priority cover others to be played after the machine
has scanned if the USB disk contains several forms of playable les.
USB/DVD
When the device is playing DVD, you can press [USB/DVD] key, then the screen will
display READ USB after pressing [ENTER] key to turn to USB status. The same when
playing USB and you can change into DVD status by following above operation.
USB COPY SUBTITLE KEY FUNCTION
• You can insert USB equipment when the machine is playing MP3,CD or MPEG4.
Documents will be copied into the USB after you press [SUBTITLE] key on the
remote control.
1. When playing MP3 disk, press [SUBTITLE] key to copy the les into the USB.
2. When playing CD disk, press [SUBTITLE] key to copy the songs into USB then
change them into MP3 le. (select single le or all les to transfer)
NOTES:
It only works when the USB equipment's capacity is large enough. Some styles of
the machine don't have the function.
19
www.PyleUSA.com
Page 21
ADVANCED PLAYBACK
IMPORTANT NOTE:
THE FOLLOWING FUNCTION DESCRIPTIONS ARE FOR DVDS OPERATION AND
DISPLAY ON SCREEN MAY BE DIFFERENT FOR OTHER DISC FORMATS.
TIME
Once the TIME button is pressed, the screen will display massages. Use the LEFT/
RIGHT cursor button to select your preference. Press ENTER/PLAY to conrm.
OSD
Pressing this button will display "DVD TT XX/XX CH XX/XX 00:00:05 (chapter
elapsed)," 1/3 ENG 5.1CH 1/4 ENG OFF", "DVD TT XX/XX CH XX/XX
-00:00:00 (chapter remain)", "DVD TT XX/XX CH XX/XX -00:00:00 (title elapsed)",
"DVD TT XX/XX CH XX/XX -00:00:00 (title remain)", the sixth will cancel function.
ZOOM
Press this button to zoom into the picture.
Each time the button is pressed, the magnication level will change.
SUBTITLE
1. Press this button and the screen will display:
" [1XX]", "XX" indicates the language of country. (the number of language
depends on disc).
PROGRAM
Press this key can store your favorite picture as starting frame. If you have chosen
several pictures, the latest picture willbe the starting frame. You can cancel it by
pressing [SETUP], then press [ENTER] key after selecting [RESTORE] key of [LOGO
SELECT] under system settings and the system will restore to the original frame.
TITLE/PBC
For DVD discs - Press this button to display the title menu. Press the digits to select
your preferred chapter.
For SVCD and VCD - Follow the menu instructions on screen. Press the digits
during PBC playback.
A/B SPEAKERS OUTPUT SELECT
20
www.PyleUSA.com
Page 22
LANGUAGE
Press this button on remote control to change the mode of audio.
For example: [1 XX 5.1CH], "XX" indicates the language of country.
(the number of language depends on disc).
VIDEO
In play or stop status press VIDEO key on the remote control, the device will switch
its video-output Intarface:TV-RGB, P-SCAN, S-VIDEO, INTERLACE YUV.
P/N
Press the key to switch between NTSC, PAL and AUTO
REPEAT
Press once to repeating CHAPTER.
Press twice to repeat TITLE.
Press thrice to repeat ALL.
Press 4 times to cancel the repeat.
A-B REPEAT
Press A-B to begin start-point, press again to set an end point and complete setting.
The selected section A-B will be repeated. The third press will cancel this function.
VOLUME AND MUTE
Press "+" at the right of the VOLUME to increase volume, "-" to decrease volume.
The rst press is MUTE which will display Mute no voice, the second press will
retum to normal.
MENU
This Is used to increment and decrement level for the selected function of
Master Volume, Bass, Treble, Balance, AutoStatlon seek.
By pressing MENU key you can select the functions above. If you want to adjust
bass, press MENU key to select bass, then press (master volume+) or (master
volume-) on the remote control you can increase or decrease bass. If you want to
adjust treble, press MENU key to select treble, then press (master volume+)
or (master volume-) on the remote control you can increase or decrease treble.
Others function above can also be adjusted in the same way.
21
www.PyleUSA.com
Page 23
SPECIAL FUNCTION PLAYBACK
JPEG DISC PLAYBACK
When playing JPEG disc, a navigation menu will be displayed automatically if the
disc is loaded in succession. In the menu, use UP or DOWN cursor button to select a
le, then press "ENTER/PLAY" to be played as a slideshow. Press PREV or NEXT to
select the previous or the next picture. Press PAUSE to pause the current picture for
viewing, press ENTER/PLAY, to return to normal playing. Press ZOOM to start zoom
function, when ZOOM function is on, press PREV or NEXT to switch between
pictures. Pressing the CURSOR key can move the enlarged picture and the picture
display direction can be changed by pressing "PROG" key, including RANDOM,
WIPER L, WIPER R, UP-DOWN, LEFT-RIGHT, WINDOW V, EDGE TO CENTER, etc.
MP3 PLAYBACK
Place MP3 disc on the disc tray, the DVD player will begin to play once.
Simultaneously, a navigation menu will be displayed automatically if the disc is
loaded In succession. In the menu, use UP or DOWN cursor button to choose folder.
Press "ENTER/PLAY" button to conrm. ln the folder, use the UP or DOWN button to
select the le, then press "ENTER/PLAY" to play this le. In this page, using the LEFT
cursor button will return to the previous menu. Press PREV or NEXT to go back to
the previous or next page.
MPEG-4 DISC FUNCTION INTRODUCTION
MPEG-4 is the forth video and audio encoding standard released by MPEG
(The abbreviation of "Moving Pictures Experts Group").VCD is based on MPEG-1
technology and DVD is based on MPEG-2. MPEG-4 takes advantage of narrow
bandwidth, pursuing the best picture quality by compressing and transmitting the
data in frame reconstructed technology. The audio data Is compressed by WMA
standard. MPEG-4 is the most advanced compression technology standard in AV
eld. It has the highest compression rate.
22
www.PyleUSA.com
Page 24
By MPEG-4 technology, we can encode and compress a DVD lm into one or two
CD-R disc with pretty good picture quality, or can burn several lms that has same
quality as VCD into one CD-R disc, or burn several lms that has similar quality
to DVD into DVD-ROM disc.
Note:
1. The MPEG-4 discs available in the market now have many dierent formats, such
as Xvid, AVI, RM etc. But some discs with "MPEG-4" logo in market are not
encoded by MPEG technology. It is normal that some of the disc cannot function
properly in this player because of the incorrect encoding standard.
2. The MPEG-4 les are displayed as a list in the screen, choose the icon using the
cursors and press "ENTER/PLAY' button to playback the movie.
3. As AVI is the MPEG-4 format, and MPEG is MPEG-1 format, please do not combine
AVI and MP3/JPEG together into a disc. The player will only recognise MP3 or
JPEG in that instance. However MP3 and JPEG can be included into one disc
together.
SPECIAL FUNCTION PLAYBACK
Kodak Picture CD Playback
Playback (Normal)
When a Kodak Picture CD is inserted into the unit, an automatic slide show is
launched. Each picture in the Kodak Picture CD will be displayed consecutively in a
slide-show fashion and will be scaled to t in the whole TV screen. Some slide-show
transition modes are provided, use "PROG" key to select. You can set transition
eects for each picture. To display an image indenitely, press the "PAUSE" key.
To view the next or previous picture, press "NEXT" or "PREV" key. To resume the
slide show, press the "ENTER/PLAY" key.
Image Rotation
There are four modes to rotate a picture: "Invert", "Mirror", Left", and "Right".
These operations are allowed only when a picture is being displayed normally and
will be cancelled automatically when a new picture is displayed. The arrow key is
used to select the dierent rotation modes:
23
www.PyleUSA.com
Page 25
ZOOM
The "ZOOM" key is used to turn on or o this function. When this mode is on, any
picture will be displayed at the last ratio selected by the user. A message on the
screen will Indicate the current zoom ratio. If zoom mode is on, "ZOOM" key are
used to control the ratio of zoom in/out. With ZOOM mode o, a picture is scaled to
t the whole TV screen.
Notes:
During zoom function, slide-show transition and image rotation are disabled.
To cancel the zoom function press the "ZOOM" key again to resume the slide-show.
IMPORTANT NOTE:
Quality of pictures displayed on the screen is highly dependent on the viewing
device.
USB 2.0
USB 2.0 allows data transfers of 480 Mb/s.
Divx and Xvid Video Compatibility
1. Plays most version of DivX and Xvid Video with standard playback of DivX and
Xvid media les.
2. File Extensions: .avi and .divx (these must be used for the player to recorgnize
DivX video les).
Note that all les with the .avi extension are recognized as Mp4, but not all of
these are necessarily DivX video les and therefore may not be playable on this
player.
PC-Created Disc Compatibility
Discs recorded using a personal computer may not be playable in this unit due to
the setting of the application software used to create the disc. In these particular
instances, check with the software publisher for more detailed infonmalion.
Discs recorded in packet write mode (UDF format) are not compatible with this
player. Check the DVD-R/RW or CD-R/RW software disc boxes for additional
compatibility information.
24
www.PyleUSA.com
Page 26
SYSTEM SETUP
• When you press SETUP button on the remote control, the setup menu will be
displayed. It will include “SYSTEM SETUP”, “LANGUAGE SETUP”, “AUDIO SETUP”,
“VIDEO SETUP”, “SPEAKER SETUP”, 'DIGITAL SETUP".
1. Within the setup menu, you can use UP, DOWN, LEFT and RIGHT buttons on the
remote control to move the cursor, and then press ENTER/PLAY button to make
your selection. Press LEFT to return to the previous menu.
2. To exit setup menu, you can select the exit setup menu or press SETUP button.
1. SYSTEM SETUP PAGE
Setup TV screen format, video type and all DVD functions.
1.1 SOURCE
SOURCE:
This system will automatically read the USB if there is no playble disc loaded.
Use the source menu to select and read from either disc and USB directory.
1.2 TV SYSTEM
TV SYSTEM:
This player supports dierent TV output, including AUTO, NTSC, and PAL systems.
• If your TV supports only NTSC or PAL and had you inadvertently selected the
wrong TV system, theTV screen will icker and only black and white colours will
be display. In this case, you should press the SETUP button to set as following
Note.
25
www.PyleUSA.com
Page 27
Note: How to Sat the TV Type?
• You may switch the NTSC/PAL setting of the DVD player to match the video signal
of your TV.
• The table below shows what kinds of disc are compatible with each setting
(AUTO, PAL and NTSC)
1.3 VIDEO
VIDEO: Sets the video output.
1.4 TV DIDPLAYTYPE
The TV TYPE will select the dierent ratio of display TV screen format. There are
various types of display on screen for dierent matches between Disc and TV
(Please see Multi-image ratio mode page).
Note:
• No matter which display format is selected, a picture recorded in standard 4:3
format always displays in the 4:3 aspect ratio.
• The display format of DVD titles may vary; please refer to the information that
accompanies your specic DVD title.
• If the DVD title is recorded in 16:9 wide display format while the TV is a standard
4:3 screen, horizontal compression of the image will result.
• Some DVD titles may be recorded in special formats. In such cases, the DVD titles
will always appear on the screen in their original format, regardless of which TV
display format you select.
26
www.PyleUSA.com
Page 28
SYSTEM SETUP
1.5 PASSWORD CHANGE
PASSWORD CHANGE: You can change the password, please type 4 numerals as
new password. The initial password is 0000.
1.6 RATING
RATING: The rating control function works in conjunction with the dierent
censorship classes assigned to DVDs. These classes help to control the types of
DVDs that the family watches. There are up to 8 censorship classes for DVDs.
1.7 SCREEN SAVER
SCREEN SAVER: If the screen saver is on, then there will be an animated picture on
the screen whenever the DVD player is idle for a certain time.
1.8 RESUME
RESUME: This setup can realize the memory playback. When this setup is on, the
player will recall the memory where the player stopped under the circumstances of
power o or withdrawing the discs. That is to say, when you replay the disc, it will
be played from there it stopped last time.
Note: With this function, each disc of dierent formats can be memorized.
1.9 DEFAULT
DEFAULT: Resets to all the manufacturer's original settings for this DVD player
Press ENTER/PLAY to perform the reset
27
www.PyleUSA.com
Page 29
2. LANGUAGE SETUP PAGE
2.1 OSD LANGUAGE
On Screan Display (OSD) Language: Users can select the whole setup menu and
on-screen display language.
2.2 AUDIO LANG
AUDIO: Sets the prafenrad audio language as the default when playing DVD. (If
DVD support these languages)
2.3 SUBTITLE LANG
SUBTITLE: Sets the preferred subtitle language as the default when playing DVD.
(If DVD supports these languages)
28
www.PyleUSA.com
Page 30
SYSTEM SETUP
2.4 MENU LANG
MENU LANG: Sets the preferred menu
language as the default when playing
DVD. (If DVD supports these languages)
3. AUDIO SETUP PAGE
3.1 AUDIO OUTPUT
AUDIO OUT: Sets the audio outputs.
4. VIDEO SETUP PAGE
4.1 BRIGHTNESS
BRIGHTNESS: Sets the brightness level
of video output.
4.2 CONTRAST
CONTRAST: Sets the contrast level of
Video output.
3.2 KEY
KEY :Use the Up and Down arrow
button to move the scroll and adjust
the key.
www.PyleUSA.com
4.3 HUE
HUE: Sets the hue value of the Video.
29
Page 31
SYSTEM SETUP
4.4 SATURATION
SATURATION: Sets the saturation of
the video.
4.5 SHARPNESS
SHARPNESS: Sets the sharpness of
the video
5. SPEAKER SETUP
5.1 SPEAKER SETUP PAGE
DOWNMIX MODE: Sets front speakers
to LT/RT STEREO, V SURR or 5.1CH.
• The rst 3 settings (LT/RT. STEREO, V
SURR) downmix the sound Signal for
2-Speakers. This setting allows you to
enjoy a surround sound eect with
only two speakers. For this reason a
setup for additional speakers
(described in the following sections) is
disabled when DOWNMIX MODE is
set to these settings.
• You have to set the DOWNMIX MODE
to 5.1CH if you have selected the
Dolby Digital connection and you
would like to enjoy true Dolby Digital
surround sound.
6. DIGITAL SETUP PAGE
6.1 OPMODE
OP MODE: This can set the type of
output and adjust audio frequency.
30
www.PyleUSA.com
Page 32
SYSTEM SETUP
6.2 DYNAMIC RANGE
DYNAMIC RANGE: When LINE OUT is selected, choose this setting to adjust the
line out ratio and get dierent eect. If adjusting to FULL, the audio signal peak
value will be the minimum; while adjusting to OFF, maximum.
6.3 DUAL MONO
DUAL MONO: If your amplier/decoder has Dolby Digital output, you may select
stereo, left mono, right mono, or mixed mono mode for your amplier decoder.
www.PyleUSA.com
31
Page 33
TROUBLESHOOTING
Before calling for service, you can perform the checks described in the
troubleshooting guide for immediate solutions.
The unit doesn’t turn ON
32
www.PyleUSA.com
Page 34
DVD SPECIAL FUNCTION
SETTING THE TV SCREEN SIZE
Multi-aspect ratio suit to dierent TV screen size.
Functions Supported by DVD discs
There are many functions available on DVD discs and the functions vary per player
and per manufacturer
www.PyleUSA.com
33
Page 35
SPECIFICATION
PD1000BA PD3000BA
Home Theater Wireless BT Streaming Preamplier Receiver
Wireless BT Streaming Home Theater Preamplier Receiver Audio/Video System
CD/DVD Player AM/FM Radio, MP3/USB Reader
MODEL
USB Flash Drive Reader
MP3 Digital Audio File
Compatibility
MAX Output Power 1000 Watt 3000 Watt
Features:
PD1000BA
200 Watts x 2 @ 8 Ohm
360 Watts x 2 @ 4 Ohm
450 Watts x 2 @ 2 Ohm
PD3000BA
300 Watts x 2 @ 8 Ohm
550 Watts x 2 @ 4 Ohm
800 Watts x 2 @ 2 Ohm
• Audio + Video Home Theater System
• Built-in Bluetooth for Wireless Audio Streaming
• MP3 Digital Audio File Playback
• SD Memory Card & USB Flash Drive Readers
• Connects to TVs Soundbars Speaker Systems
• Front Loading CD/DVD Player
• 4-Channel Receiver System
• Powers up to (4) Loud Speakers
• AM/FM Radio with 50 Station Memory Presets
• Aux (3.5mm) Input Jack
• (4) Pair Speaker Terminal Binding Posts
• (2) Pair RCA (L/R) Audio Inputs
• Subwoofer RCA (L/R) Output
• Optical (Digital) Audio Output
• (2) 1/4'' Microphone Inputs
• 1/4'' Headphone Jack
• Video Outputs: S-Video RCA YPbPr (Component Video)
• VFD Display
34
www.PyleUSA.com
Page 36
• Front Panel Control Center
• Output dB (Decibel) Level LED Display
• Mic Echo Treble Bass Volume Subwoofer Controls
• Built-in Ventilation Cooling Fan
• Rack Mountable System
Bluetooth Connectivity:
• Built-in Bluetooth for Wireless Music Streaming
• Works with All of Your Favorite Devices
(iPhone, Android, Smartphone, iPad, Tablet, Computer, etc.)
• Bluetooth Wireless Network Name: PYLE
• Bluetooth Version: 3.0
• Bluetooth Wireless Range: Up to 35’ ft.
What's in the Box:
• Preamplier Receiver
• Remote Control
• Detachable Rack Mount Brackets
• RCA Connection Cables
• AM + FM Antennas
• Power Cable
Technical Specs:
• MAX Output Power: 1000 Watt
• Impedance: 8 Ohm
• Aspect Ratio: 4:3/16:9
• Video System: PAL/NTS
• Audio S/N Ratio: >90dB
• Frequency Range: +/-14 dB
• Integrated IC Radio Tuner
• CD/DVD Disc Compatibility: DVD/CD/VCD/CD-R/CD-RW/MP4
• Power: 120/240 Volt Switchable
• Dimensions (L x W x H): 16.9'' x 14.6'' x 5.7'' -inches
35
www.PyleUSA.com
Page 37
Loading...
