LED LIGHTING
QUICK GUIDE
MODELS:
PLEDRD27, PLEDSQ27, PLEDRD42, PLEDSQ48, PLED32B180, PLED42B240, PLED52B300, PCLED28B180, PCLED36B234,
PCLED44B288, PCVLED42B240, PCVLED50B288, PCVLED52B300
INSTALLATION: Mount the light bar in a desired location, keep the bottom base nuts snug but don’t
tighten immediately. First, adjust the bar so it is centered on your o road vehicle (or wherever you’re
deciding to mount), then tighten the bolt on the bottom of the bracket
MAY BE USED FOR: Vehicles-4x4, SUV, Jeep, Truck, Tractor, Rhinos And Other Multipurpose Vehicles such
As Excavator, Forklift And Golf Cart - Others-Indoor & Outdoor uses, O Road Lighting, Trailer Interior &
Exterior Lighting, Construction Lighting, Garden, Backyard Lighting, Boat Lighting, Hotels, City Squares
Public Building, Mining, Outdoor Billboards' Lighting, Outdoor Landscape Lighting, etc.
MODEL
LED
Power
Operating
Voltage
Waterproof
Rating
Bulbs Lumen
Color
Temp
Material
Lens
Material
Mounting
Bracket
Beam
Typ e
Dimensions Life
PLEDRD27 27W 10-30V DC IP 67
9pcs*3w high intensity
Epistar LEDs
1,890 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Flood beam
(60°)
113*113*50mm > 30,000 Hrs
PLEDSQ27 27W 10-30V DC IP 67
9pcs*3w high intensity
Epistar LEDs
1,890 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Flood beam
(60°)
108*108*50mm > 30,000 Hrs
PLEDRD42 42W 10-30V DC IP 67
14pcs *3W Epistar High
intensity LEDs
2,940 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Flood beam
(60°)
113*113*63mm > 30,000 Hrs
PLEDSQ48 48W 10-30V DC IP 67
16pcs *3W Epistar High
intensity LEDs
3,360 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Flood beam
(60°)
108*108*62mm > 30,000 Hrs
PLED32B180 180W 10-30V DC IP 67
60pcs *3W Epistar High
intensity LEDs
12,600LM 6000K
Diecast
Aluminum
PC Alu rm bracket
Combo
30° + 60°
810 *85*80mm > 30,000 Hrs
PLED42B240 240W 10-30V DC IP 67
80pcs *3W Epistar
High intensity LEDs
16,800 LM 6000K
Diecast
Aluminum
PC Alu rm bracket
Combo
30° + 60°
1060*85*80mm > 30,000 Hrs
PLED52B300 300W 10-30V DC IP 67
100pcs *3W Epistar
High intensity LEDs
21,000 LM 6000K
Diecast
Aluminum
PC Alu rm bracket
Combo
30° + 60°
1320.2*85*80mm > 30,000 Hrs
PCLED28B180 180W 10-30V DC IP 67
60pcs *3W Cree High
intensity LEDs
15,300 LM 6000K
Diecast
Aluminum
PC Alu rm bracket
Combo
30° + 60°
710*80*65mm > 30,000 Hrs
PCLED36B234 234W 10-30V DC IP 67
78pcs *3W Cree High
intensity LEDs
19,890 LM 6000K
Diecast
Aluminum
PC Alu rm bracket
Combo
30° + 60°
913*80*65mm > 30,000 Hrs
PCLED44B288 288W 10-30V DC IP 67
96pcs *3W Cree High
intensity LEDs
24,480 LM 6000K
Diecast
Aluminum
PC Alu rm bracket
Combo
30° + 60°
1120*80*65mm > 30,000 Hrs
PCVLED42B240 240W 10-30V DC IP 67
80pcs *3W Cree High
intensity LEDs
16,800 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Combo
30° + 60°
1065*87*80mm > 30,000 Hrs
PCVLED50B288 288W 10-30V DC IP 67
96pcs *3W Cree High
intensity LEDs
20,160 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Combo
30° + 60°
1270*87*80mm > 30,000 Hrs
PCVLED52B300 300W 10-30V DC IP 67
100pcs *3W Cree High
intensity LEDs
21,000 LM 6000K
Diecast
Aluminum
PC
Stainless
Steel
Combo
30° + 60°
1320*87*80mm > 30,000 Hrs
SPECIFICATIONS:

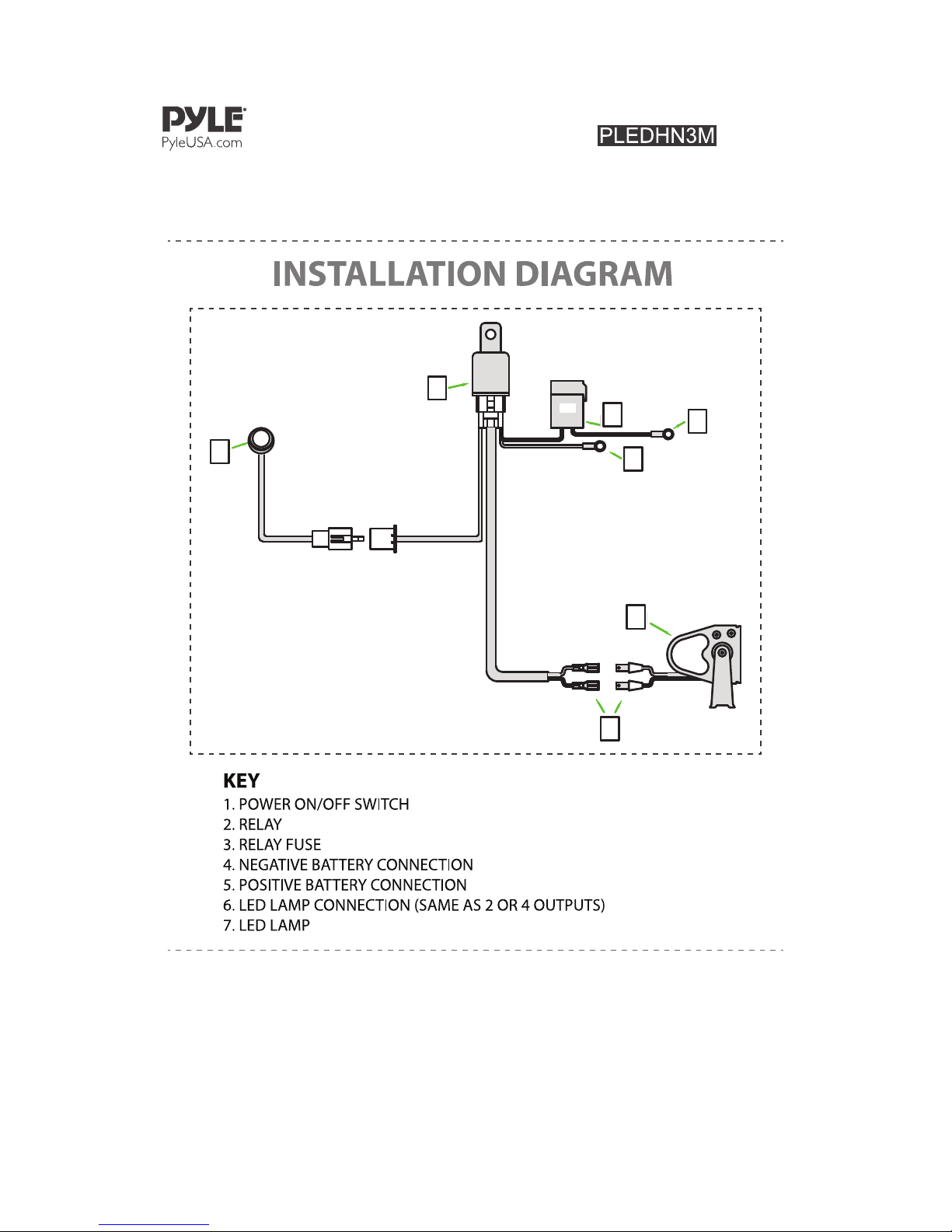

** Optional, recommended power supply connection cable (PLEDHN3M) shown in wiring diagram (next page)
NOTE: Wiring Harness not included and sold separately
OPTIONAL WIRING HARNESS ACCESSORY (NOT INCLUDED)
/w Marine Grade Power Switch and Fused Power Supply
14 GAUGE WIRING HARNESS
Features:
Power Supply Cable Setup Wiring
Universal Compatibility for Custom
Installation & Applications
Includes Waterproof Power ON/OFF
Switch
Coated, Rugged & Weather-Resistant
Integrated Relay Connector Tab
Universal Circlip Power Connections
Technical Specs:
Works with 10-30V DC Power Sources
Total Cable Length: 9.8’ ft.(3 Meter)
14 AWG Wire
40 Amp Integrated Power Relay
30 Amp Blade Inline Fuse
Sold as: 1
Weight: 0 lbs.
2
6
30A
3
5
4
7
1
30A
