Pyle PCLSB1BK User guide

PCLSB1BK

Portable Wireless BT Streaming Mini Speaker

IPX7 Waterproof Wireless Speaker, Supports Micro SD Card

and FM Radio for Outdoor Play, Built-in Microphone

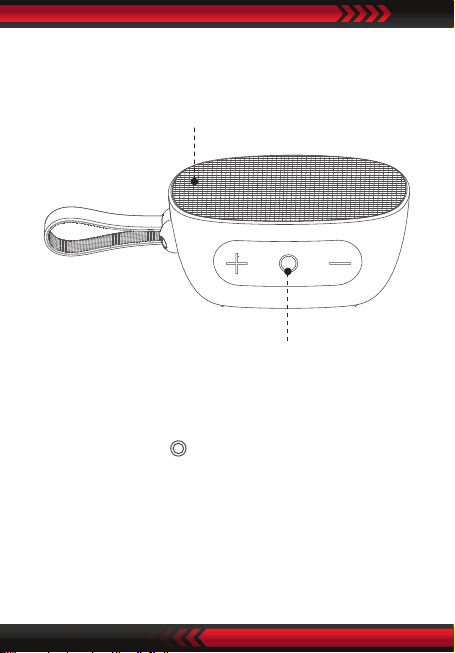

WIRELESS BT CONNECTION

Indicator light

Power button/Multi-function button

Step 1 Power ON

Press and hold " " button for 2 seconds then
you will hear a power ON prompt tone.
After that, the blue indicator light will dash
quickly and enter into the Wireless BT pairing
status.

www.PyleUSA.com2

My Device

PYLEUSA

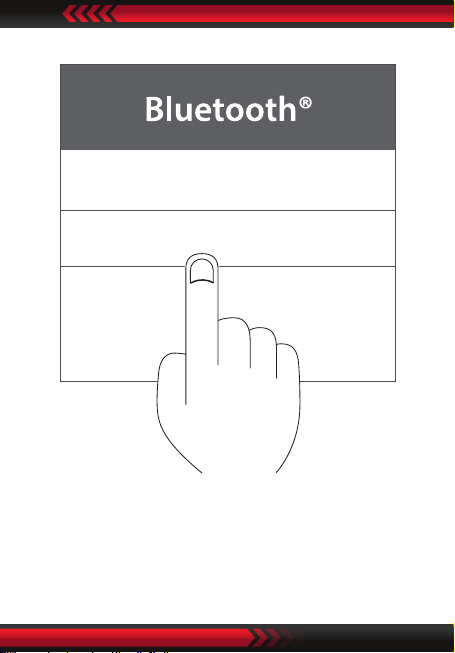

Step 2 Choose the device

Find "PYLEUSA" in your Wireless BT list and
select it.

www.PyleUSA.com 3

Indicator light

Step 3 Pairing Successfull

The indicator light will stay blue once pairing
is done, then you can play music.

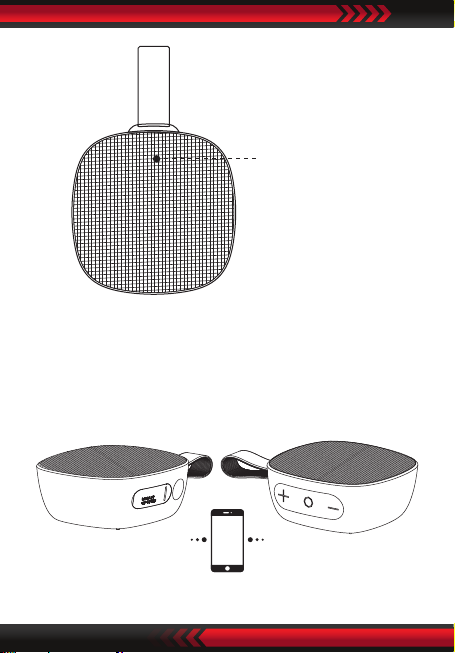

TWS FUNCTION

TWS

www.PyleUSA.com4

Operation Instruction

1. Turn on the two speakers, blue indicators
will ash.

2. Short press "+-" button at same time from
one speaker only, they will enter into tws
pairing mode with sound notication.

3. After 1-2 seconds, the two speakers will pair
automatically.There will be a "du" sound
notication when two speakers successfully
connected, Meanwhile, sub-master speaker
will stay blue and the master speaker will
keep ashing.

4. Open the setting and nd "PYLEUSA" from
your mobile, click it and your mobile will
pair with the two speakers.

5. Short press "+-" button again to disconnect
TWS.

Notice:

For TWS pairing, let the two speakers connect
rst, then connect the speakers with your
mobile phone.

www.PyleUSA.com 5

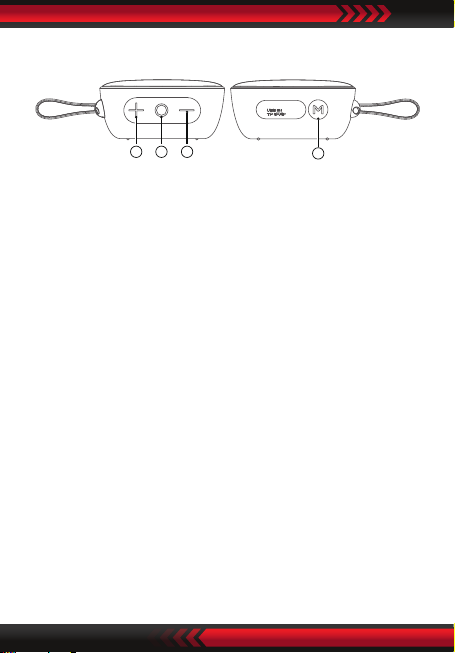

BASIC OPERATION

1

23

2. Power/Multifunction Button

• Press and hold 2 for 2s to power ON/OFF

• Short press 2 to answer an incoming call/end a

call conversation. Short press 2 twice to reject
the call.

• Short press 2 to play/pause while music is playing

• Short press 2 twice to disconnect BT.

1 & 3. Volume Buttons/Previous & Next track
Buttons

• Short press 1 to turn volume down in each mode.
Press and hold 1 to switch to previous track in
BT and TF card (Micro SD) mode.
Press and hold 1 switch to previous radio in FM
mode

• Short press 3 to turn volume up in each mode
Press and hold 3 to switch to next track in BT
and TF card (Micro SD) mode.
Press and hold 3 to switch to next radio in FM
mode.

www.PyleUSA.com6

4

4. Mode Button

• Short press 4 to switch between BT/FM/TF mode.
Press and hold 4 to search radio during FM mode

How to operate the FM function

Short press "M" button to switch to FM mode, you
will hear a prompt tone with "FM mode" Press and
hold "M" to start searching channels.
Press " " button to pause channel searching and
will start to play radio. Press and hold
channels from the ones you searched earlier.

"+-" to switch

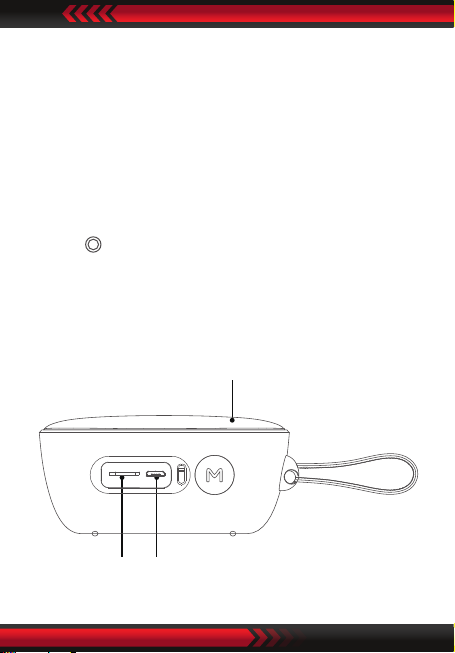

INTERFACE INSTRUCTIONS

Indicator light

(TF) card

Micro USBMicro SD

www.PyleUSA.com 7

Power ON

Blue indicator light will be ashing when powered
ON.

Wireless BT mode

• Blue indicator light be ON once connected

successfully.

• Blue indicator light keeps ashing if your BT

device is out of range. Speaker will turn OFF
automatically if no connection in 10 mins.

Micro SD (TF card) mode

Insert micro SD card, blue indicator light will ash
slowly during playing; blue indicator will stay lit
when the music is paused.

FM mode

• Blue indicator light will ash quickly during

channels searching.

• Blue indicator light will ash slowly during radio

playing.

• Blue indicator light will keep on when pause.

Charging mode

Red indicator light will stay ON when charging,
Red indicator light will turn OFF when charging is
done.

www.PyleUSA.com8

Low battery

You will hear an alert tone, LED indicator will stay

solid Blue.

Technical Specs:

• Construction Material: ABS

• Play Time: 4~6 hours at 70% Volume Level,

12~14 hours at 70% Volume Level

• Speaker Unit: 5W/4Ω

• Power Cable Length: 2.13 ft.

• Battery Type: Lithium Battery, Rechargeable

• Impedance: 4Ohms

• Frequency response: 70Hz-18kHz

• Battery Capacity: 3.7V/1200mAh

• S/N ratio: ≥70dB

• Charging Time: 2~3 hours

• Working Time: 4~6 hours (70% volume level)

• Charging Current: 5V/0.5A

• Product Dimensions (L x W x H):

5.65'' x 3.73'' x 1.8'' -inches

www.PyleUSA.com 9

Features:

• Support Micro SD or TF Cards / Line-In for MP3

Songs

• Compatible with Audio Output Devices

• Works as Loudspeaker Via Audio Cable

• With 3.5mm Audio Interface

• 40mm Full Rare-earth High Magnetic Speaker

• Clear High-pitched Sound

• Pure Alto Sound, Vigorous Bass

• Built-in Lithium Battery

• Built-in Microphone

• Supports Handsfree Function

• Ideal for Use at the Oce, Home, and Outdoor

What's in the Box:

• Wireless BT Mini Speaker

• Micro-USB Cable

• 3.5mm AUX Cable

Wireless BT Connectivity:

• Includes Wireless BT Audio Control Receiver

• Works with All of Today’s Latest Devices

(Smartphone, Tablet, Laptop, Computer, etc.)

• Wireless BT Network Name: ‘PYLEUSA’

• Wireless BT Version: 5.0

• Wireless Range: 32.8’ ft.

www.PyleUSA.com10

FREQUENTLY ASKED QUESTIONS

Q: What kind of charger should we use for the

speaker?

A: All common USB chargers can be used, while we

suggest the ones 5V/2A or above 2A.

Q: What if there’s noise or discontinuous sound

during playing?

A: The speaker can be normally used within 10m

under no obstruction environment.
If it is beyond 10m or with obstruction, there
might be noise or discontinuous sound.

Q: Why the speaker powers o automatically after

power on but no BT disconnection?

A: When there is no BT pairing in 10 minutes, the

speaker will shut down automatically to reduce
power consumption.

Q: Why does the speaker cannot connect the once-

paired cellphone?

A: First, remove the speaker's paired name from

the cellphone's BT List and then restart pairing.

Q: What is the working sequence of the speaker?
A: Default mode is BT mode but when inserted in

AUX in cabIe, it will be AUX IN mode.

www.PyleUSA.com 11

Q: The speaker doesn't start up in a normal situation.
A: Please plug-in the charger and try in a few

minutes or try to press and hold power button
10-30s to reset.

Notes:

1. Before using this product, please read this
manual carefully and keep it for future reference.

2. For the rst use, please fully charge the product.

3. Use certied adapter that has passed national
safety certication.

4. If you will not use the product for a long time, be

sure to charge it once a month at least to maintain
its performance.

5. Do not use this product in an extremely cold or

hot environment, such as temperature beyond
the range of 41°F-95°F. If using it beyond the
above range, the product may stop automatically
to protect the internal circuit.

6. When charging in a high temperature environment,
the product may automatically stop charging to
protect the battery. At this time, the charging
indicator usually ashes quickly to indicate that
the charging environmental temperature or the
product internal temperature is too high.

7. Storage environment temperature:

-41~95°F RH <70% (recommended 77°F ±5).

www.PyleUSA.com12

Important Safety Instructions:

1. Do not disassemble or repair this speaker
personally, otherwise it may cause damage or
personal injury.

2. Do not use it in dusty, humid, dry, and high­ temperature environment.

3. Do not place this product near heat source, or a
place with direct sunlight, a lot of dust, or
mechanical vibration.

4. In order to reduce the risk of re, please do not
cover this product with newspapers, table cloths,
curtains etc., during use.

5. If the product has a waterproo feature, DO NOT
exceed the nominal parameter range when using it.

6. When the product is damaged such as the power
cord or plug is damaged, liquid enters or objects fall
into the device, unable to operate normally or falls,
it must be repaired.

7. When the product is fully charged, DO NOT
connect it to the charger for further long time
charging.

8. The maximum ambient temperature should not
exceed 104°F.

www.PyleUSA.com 13
