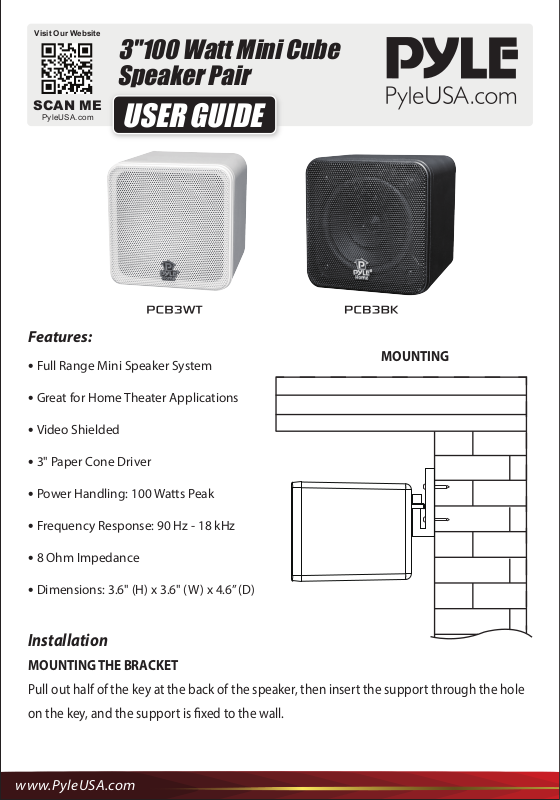

3"100 Watt Mini Cube

Speaker Pair

SCAN ME

PyleUSA.com

Features:

• Full Range Mini Speaker System

• Great for Home Theater Applications

USER GUIDE

MOUNTING

• Video Shielded

• 3" Paper Cone Driver

• Power Handling: 100 Watts Peak

• Frequency Response: 90 Hz - 18 kHz

• 8 Ohm Impedance

• Dimensions: 3.6" (H) x 3.6" (W) x 4.6” (D)

Installation

MOUNTING THE BRACKET

Pull out half of the key at the back of the speaker, then insert the support through the hole

on the key, and the support is xed to the wall.

www.PyleUSA.com

FINAL ADJUSTMENTS

1. After checking that the speaker is in phase and works correctly, angle the speaker for the

best sound.

2. Hand-tighten the bracket knobs only. Power tools may over-tighten the knob and strip

the threads of the insert.

3. Check that the entire installation is safe and secure.

Connecting Your Speakers

Connecting the speakers to your amplier

or receiver.

•

First, turn your amplier o to avoid

damage which may result from accidental

shorting of the speaker leads.

•

Correct phase polarity is critical for proper

stereo imaging and bass performance.

The red (+) terminal on your amplier or

receiver must be connected to the red (+)

terminal on your speaker; the same applies

to the black (-) terminal.

•

Connect one loudspeaker at a time to

ensure proper connection of left and right

channels. Make sure all wires are rmly

fastened.

•

If you notice a high level of bass or central

image focus, double-check your connections

for proper polarity.
