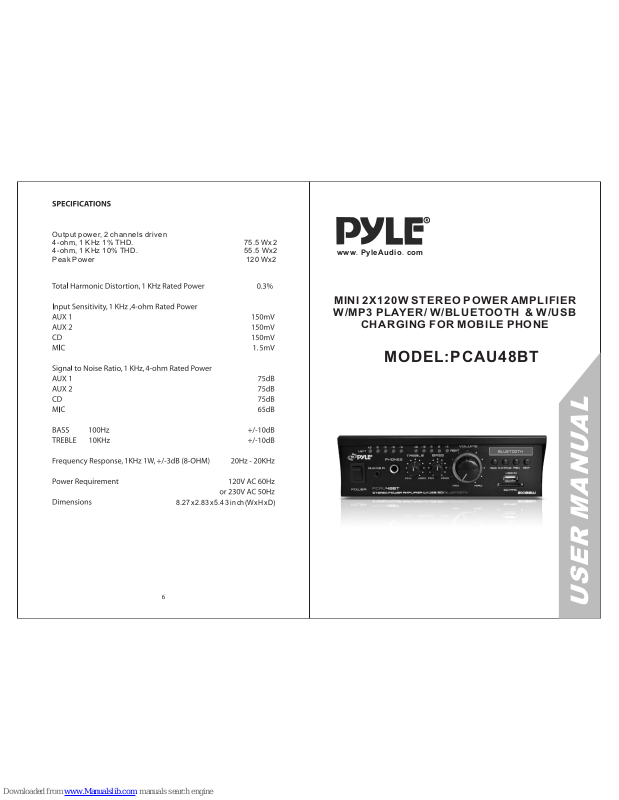

MODEL:PCAU48BT
www. PyleAudio. c om
USER MANUAL
MINI 2X120W STEREO POWER AMPLIFIER
W/MP3 PLAYER/ W/BLUETOOTH & W/USB
CHARGING FOR MOBILE PHONE
8.27x2.83 x5 .4 3 in ch (WxHxD)
Output powe r, 2 ch an ne ls d riven
4-ohm, 1 KHz 1% T HD . 75.5 Wx2
4-ohm, 1 KHz 10 % TH D. 55.5 Wx2
Peak Power 12 0 Wx 2
Page 2
!
!
FORE WORD
FEATURE S AND CONTORLS
FRONT PANEL
1.
4.
-
-
Blue L ED O utput Level Ind ic ators
2. Blue LE D Di splay Windo w fo r MP3/Bluetoo th F unction.
3. Butto ns f or Bluetoot h/ MP3(USB and SD) F un ction Control .
-MOD E Bu tt on: For audio s el ection like BLU ETOO TH /USB/
SD/L IN E IN
-PLAY/PAUSE Button : Fo r play and paus e co nt rol
-Pre v,/Next : Fo r quick backw ar d or next song
Main P ow er on Switch
The am pl ifier is switch ed O N or OFF by using t hi s sw itch.
5. Line in pu t.AUX/ CD IN
-Let s yo u easily connec t th e computeri ze d MP 3 Device
(player ) so urces, such a s PC ( CD R OM) , laptop, wal km an,
iPod , an d ce ll phone.
6. 1/4" PH ON E JACK
Acce pt s headphones wi th 1 /4" plug
7. / 8.BASS AN D TREBLE TONE CONTROL
-Lets yo u bo os t or attenuate ba ss a nd t re ble for the desir ed
sound.
9.Mas te r Volume Control
-Let s yo u adjust the over al l sound level , tu rn t he knob
cloc kw ise to increase t he v olume.
4 5 6 7 8 9 10 11
2 31
PCAU48BT
Page 3
BACK PANEL
10.USB C ha rg e Po rt & USB Reader Functio n
USB port charg es f or s ma rtphone, and also for U SB r ea de r
functi on .
11.SD/MMC Socket for playin g SD /M MC c ar ds .
12.Blu et ooth Antenn a
The an te nna is best rec ei ving for Blueto ot h operation .
13.RCA L/ R LI NE I np ut
-Let you con ne ct t o th e de si re d LI NE input sources.
14.Pus h Typ e Speaker L/R Termin al s
Let yo u ea sily connec t th e speakers' wir es d irectly to
the am pl ifier
15.110V/ 220V Sw it ch
Acco rd ing to power vo lt age, push this bu tt on to the
corr ec t station of the 110V or 220 V.
16.AC I N Po we r Co rd
-Connect t o AC 110V/60Hz or 220V/50Hz

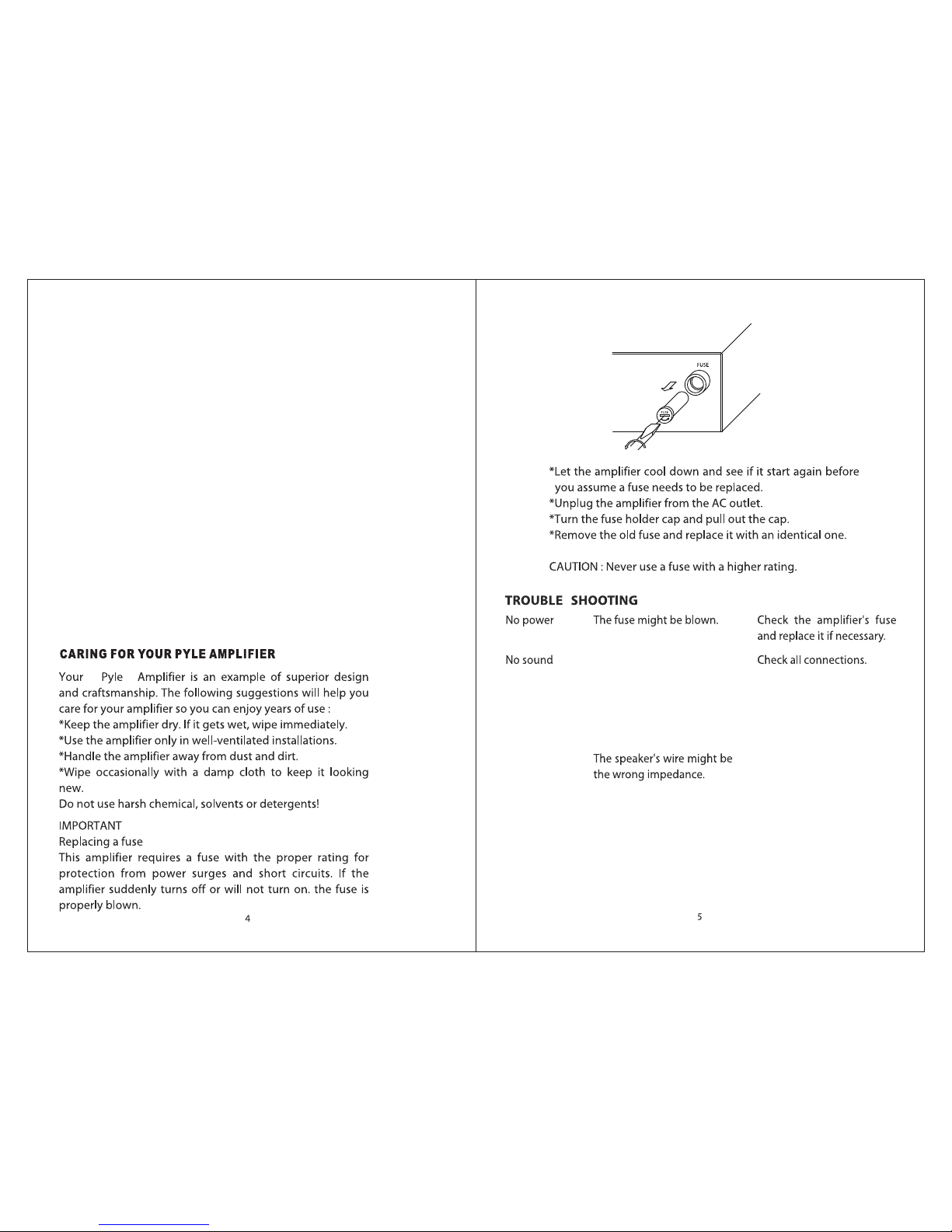

17.Fus e
The am pl ifier uses a fu se f or protection a ga inst surges
and sh or t circuit. If the a mp lifier sudd en ly turn off and
will n ot t urn on, check t he f use. If necessa ry , replace
it wit h a 1- a mp, 250-volt, fa st - acting, 5x20m m fu se
(not supp li ed)
-
-
-
-
-
12
13 1 4 15
16
17
1
2
3
4
5
6
7
8
9
10
11
1.Po wer Sta ndby Bu tton
2.Pl ay/P ause Bu tton
3.Eq uiliz ar Butt on
4.Re peat So ng Butt on
5.Mo de: Men u Contr ol Butt on
Pre ss it for a udio in put sel ectio n like Bl uetoo th/US B/SD/ LINE IN ,etc.
6.Mu te Butt on
7.Pr eviou s Song Bu tton
8.Ne xt Song B utton
9.Vol ume - & Volu me + Butt ons
10.U SB/S D Switc h Butto n
11.Nu mber Bu ttons f or Song S elect ion
REMOTE C ON TR OL F UN CT ION
Page 4
1. Be sure that the amplifi er i s po we re d on. And it’s be tt er to pull
the Blue to ot h Ant en na o n at the back of panel for better r ec ei vi ng .
Press MO DE b ut to n un ti l the display screen displa ys t he w or d
bLUE. (T he u ni t is a ut om atically ready to pair with y ou r de vi ce )
2. Turn on the B lu et oo th f un ction of your external devi ce .
3. Search for available d ev ic es w it hin range of your external
Blueto ot h de vi ce .
4. Wait for a wh il e th en f in d th e “TD301-RY” on the paired
device s li st o n yo ur e xt ernal device and select “TD 30 1- RY”,
or find th e “B T” o n th e pa ir ed devices list on your exter na l
device a nd s el ec t “B T” .
5. Your ampli fi er w il l be ep and the lights will flash on ce w he n
pairin g is a s uc ce ss .
6. You can no w pl ay m us ic a nd o ther audio on your external
device t hr ou gh y ou r am plifier.
7. The amplifier will bee p an d th e li gh ts will flash once again
when the e xt er na l de vi ce is turned off o r unpaired.
BLUE TO OT H FUNCTIO N INSTRUC TION
Extern al d ev ic es w hi ch have a built‐in Bluetooth fe at ur e ca n be
connec te d to this ampli fi er w ir el essly to pl ay t hr ough the
amplif ie r’s speakers.
Turn the amplifier off and let it
cool, make sure that the amplifier
is properly ventilated, and then
turn it back on.
Make sure that the speakers
that you have connected to
the amp are matching in
impedance.
The amplifier is shutting down
or powering off
Adjust the volume control to
a higher setting.
Sound source or speakers
may not be connected
properly.
Master volume control may
be set to a minimum.
Microphone and speakers are
to close together
Feedback Reposition the microphone and
speakers
