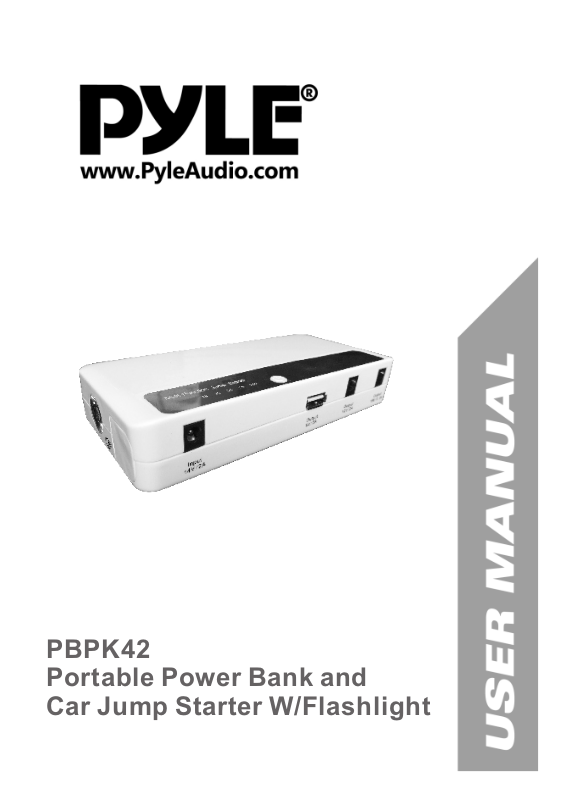

Page 1
PBPK42
Portable Power Bank and
Car Jump Starter W/Flashlight
Page 2
1.Product function display
Charging indicator light
Brigth LED light
c
j
ar
c
e
th
t
r
a
t
S
14V2A charging port
Power indicator light
k
2.Vehicle emergency starting steps
Red cla mp co nne ct“+”
Black c lam p con nect“-”
Remov e the p lug f rom
the Jum p Sta rte r Por t
Plug cl amp s int o
Jump St art er Po rt
Remov e the c lam ps
fro m th e bat ter y
Switch
19V3.5A output for laptop
12V
2A
o
ut
mi
5V2A output for mobile
phone table computer,etc
pu
n
iat
u
re el
ectr
Sra rt the ve hicle
fo
i
cal
r
car
us
e
Page 3
3.Product instructions
(1).Press the power button for 3 seconds until the blue battery
indicators light. You can then plug up to 3 electronic devices
to the battery supply. Press power button for 3 seconds to
power off.
(2).Select the appropriate voltage and connect or for
electronic equipment to charge correctly.
(3).Power display is divided into five stages
(4) Be sure to power of the power bank after each use.
(5).Please disconnect all electronic devices before using the
power bank as an automobile jump starter. Please follow
directions when disconnecting clamps.
(6).Battery indicators levels showing 1 light needs to be
recharged.
(7). Please use cigarette lighter plug or charger to recharge
power bank.
(8). Red light will shine bright during charging and turn off when
charged
(9).Fully charged,can store unused for more than 360 days.
(10).Please store this product in a cool and dry place,
and avoid direct sunlight.
Page 4
4.ATTENTION
ĈĎĆĆ ĎĊǾŇ Ĭ PB ĘǾŎŎÔÕŘŌÆ Í K ĈĈČĆÇ
(1).Storage temperature must between 20 - &140 F
(2).When starting your car please be sure that the battery
indicator lights have several lights and to not try to
jump start your car with only 1 light showing.
(3).Always be sure to connect the charger clamps to the
correct polarity battery posts to avoid sparking and
damage to charger and battery.
(4). Please keep power supply and accessories in storage
bag.
5.Product parameters
Size: 6.2” ×2.9” ×1.2” inch
Weight: 14 oz.
Output: 19V/3.5A 12V/2A 5V /2 A
Input: 14V/ 2A
Starting current: 220A
Peak current of 400A
Maximum power: 2.8KW
6.This product uses of rare earth polymer materials for
the high-capacity,high-power battery, recharging
count up to 1000 times or more, it can withstand the
automobile instantaneous large current back charge.
Pyle Audio www.pyleaud io.com
