Page 1
PBMSPG6
Portable Bluetooth Wireless BoomBox Stereo System,
Built-in Rechargeable Battery, MP3/USB/FM Radio
USER MANUAL
Page 2
For correctly operating, please read this manual carefully before using. Any
content revise of the manual won’t declare again, and we are no responsible
for consequence caused by fault or oversight of this manual
FEATURES:
1.0 Outdoor Passive HIFI Bluetooth Speaker:
Output very clear sound and dynamic sound effect;
With A2DP Bluetooth, wireless stream music from any Bluetooth-enabled
device such as your mobile phone, notebook, iPhone or iPad;
Secure simple pairing for user-friendly operating;
10 meters operating range;
With Line-in function, suitable for PC, MID, TV and other audio device;
Built-in lithium rechargeable battery 1500mAh;
With lanyard, easy to take outside.
Digital Sound Amplifier
FM Radio with Auto-Tuning
USB Flash Drive Reader
MP3 Digital Audio File Compatibility
Aux (3.5mm) Input Jack
Side Panel Button Control Center
Full Range Stereo Sound Reproduction
Ported Enclosure Design for Impressive Bass Response
What’s in the Box:
Wireless Tube Speaker
USB Charging Cable
Audio Connection Cable
Detachable Carry Strap
Pyle BT Portable Speaker
PBMSPG6 USER GUIDE
www.PyleUSA.com
Page 3

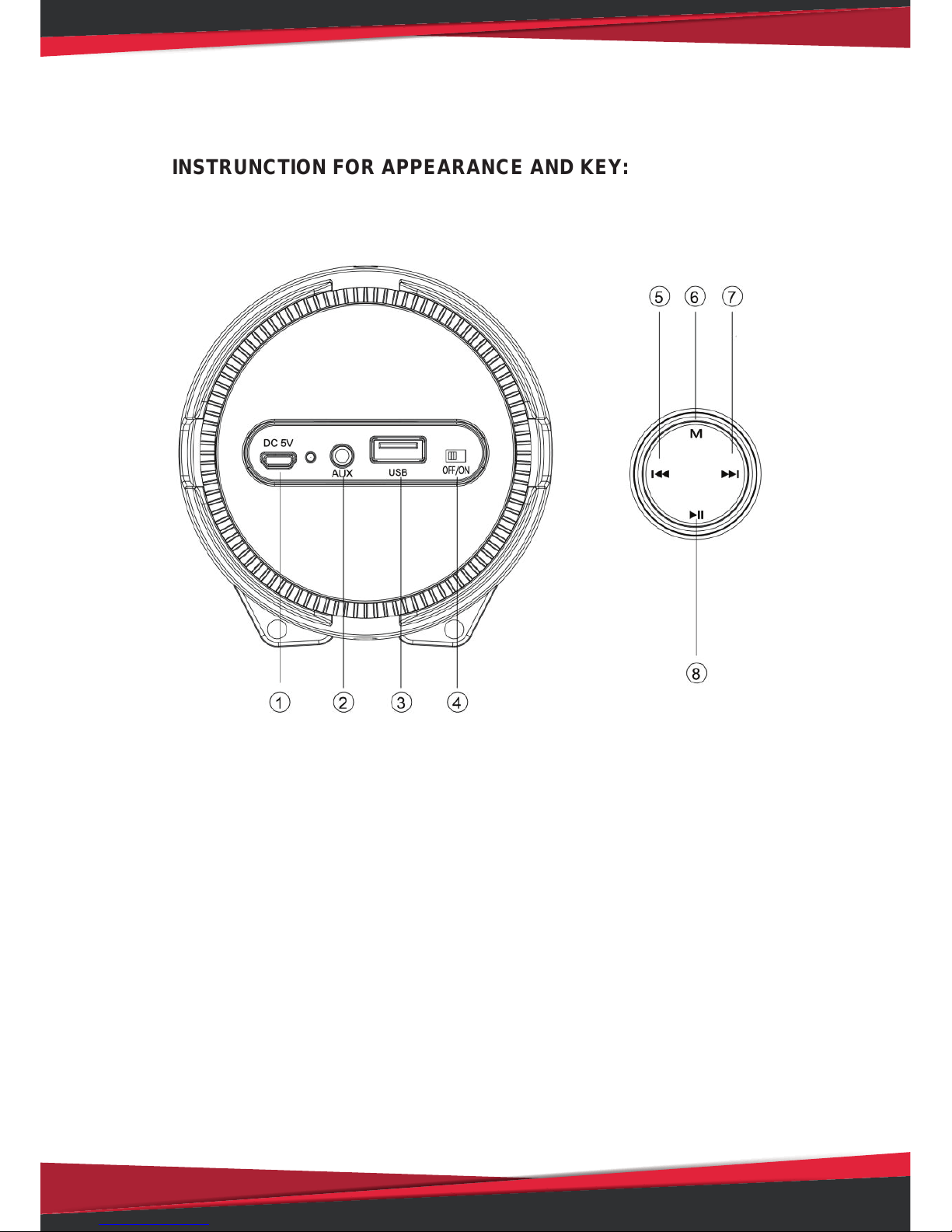

INSTRUNCTION FOR APPEARANCE AND KEY:
1. Charging jack
2. Aux-in jack
3. USB port
4. ON/OFF button
5. Backward/Volume down
6. Mode (Switch Bluetooth, USB disk, TF, FM and AUX-IN state)
7. Forward/Volume up
8. Play/Pause
www.PyleUSA.com
Page 4
Bluetooth connection:
1. Turn the power button to “ON”, The LED light turn blue and twinkle quickly
and beep twice
2. Activate Bluetooth of mobile phone and search for device name “BT
speaker” then connect it. The blue LED light will blink slowly and beep three
times once connected successfully.
3. Play the music from your mobile phone and enjoy.
4. Press Forward or Backward button on the devices or on Mobile phones to
select songs you like.
5. Press Play/pause button on the devices or on Mob
ile ph
ones to play/stop
the music
6. Use the Bluetooth device to adjust volume up and down. Or long press to
Forward or Backward button to adjust volume up and down.
Playing music from USB disk:
1. Turn the Power button to “ON”.
2. Insert USB flash disk into slot, the music stored will be played automatically
and blue LED light always keep lighting.
3. Under playing mode, short press forward or Backward button to select
songs you like, or long press to Forward or Backward button to adjust
volume up and down.
4. PL
AY/PAUSE to play or pause.
5. Please turn the Power button to “OFF” while without use.
Remark: Under Bluetooth playing mode, insert USB disk will disconnect the
Bluetooth and switch the playing from USB disk. You can press the MODE
button to switch to Bluetooth mode again.
How to Use FM Radio:
1. Under FM radio state, the audio cable provided treat as antennal.
Please insert the audio cable to get the best FM signal before using.
2. Turn the power button to “ON”, press the “MODE” button to switch to
F
M radio state.
3. Under playing mode, short press “Play/pause” button to auto search
the FM Channel and store it automatically.
4. Press Forward or Backward button to change the stored FM channel.
www.PyleUSA.com
Page 5
AUX-IN:
For other compatible music devices or your MP3/MP4 players, use the
supplied audio line cable to connect from the device’s “Line Out” to the “Aux In”
of this devices. Then press the “MODE” button to switch to AUX-IN state.
Enjoy…
When using an external device, all functions will be controlled by the external
devise except the “Play/pause” button.
Battery Charging:
1. Power off the unit, put the provided charge cable into the charge slot of unit,
connect the other end to PC or other charger with 5V outpu
t, the red
charging indicator keep lighting.
2. Charge time should be 3-5 hours. When charging full, the indicator light will
switch off.
3. In order to prolong the life of battery, please do not charge more than 8
hours.
Note:
1. The unit will operate without the wire connection using the lithium battery.
The amount of battery life depends on how hard the unit is working. Heavy,
loud, bass music will use more energy to produce than spoken word.
2. The built-in rechargeable battery is not replaceable. Do not remove or
replace it, do not throw in the trash or in the fire.
3. When cleaning the product, use a soft dry cloth. For more severe stains,
please dampen the cloth with water only. Anything else has the chance of
dissolving the paint or damaging the plastic.
www.PyleUSA.com
