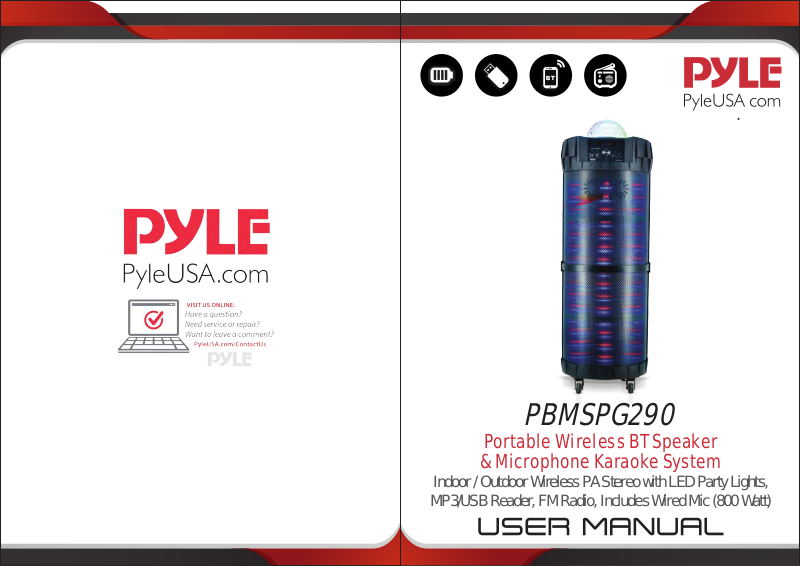

Page 1
PBMSPG290
Portable Wireless BT Speaker
& Microphone Karaoke System
Indoor / Outdoor Wireless PA Stereo with LED Party Lights,
MP3/USB Reader, FM Radio, Includes Wired Mic (800 Watt)
Page 2
FRONT PANEL FUNCTIONS
Panel Description
1. Tap for lnput selection (Line/FM/Bluetooth/USB):
Press and hold for Standby mode
2. Menu for Treble Volume/Bass Volume/Mic Volume/Echo Volume/Guitar Volume/
LED mode/Music Volume selection.
• In USB/Bluetooth mode, press and hold to play/pause the music
• In FM mode,press and hold to scan FM channels automatically.
3. Wired Mic Input
4. Guitar Input
5. Turn this knob to adjust Treble Volume/Bass Volume/Mit Volume/Echo Volume/
Guitar Volume/LED mode/ Music Volume
6. Short press for previous song /channel. Press and hold to fast backward.
7. Short press for next song/channel. Press and hold to fast forward.
8. USB Drive Input
9. Line IN: 3.5mm mini jack Input for Line IN for external audio.
10. Battery Indicator
Red light- charging
Green light- full
11. DC 15V adaptor plug
CONNECTIONS
Panel Description
1. LED Light Switch ON/OFF
2. POWER ON/OFF
REMOTE CONTROL
1. POWER OFF ONLY
2. CHOOSE SIGNAL INPUT
3. INCREASE MUSIC VOLUME
4. MENU
5. PREVIOUS LED MODE
6. DECREASE MUSIC VOLUME
7. NEXT LED MODE B.MUTE
9. REPEAT
10. PLAY / PAUSE KEY
11. PREVIOUS SONG / CHANNEL
12. NEXT SONG / CHANNEL
www.PyleUSA.com
1
www.PyleUSA.com
2
Page 3
Key Safety Measures
4. Tripping Hazard: Please ensure tha the positioning of both the power cable and
1. Power: Please only use the power supply provided for charging.
2. Electric Shock: Don't attempt to plug or unplug the Boom Box if you have wet
hands. Please keep the Boom Box away from any liquids.i.e. please don't place a
vase of owers on the Boom
the connecting cable for the Boom Box are in a safe place and don't create a
tripping hazard. Never try to remove the plug from the socket by pulling on the
cable.
Usage and Accessories
1. Adjust minimum master volume before turning ON the unit, then input audio
signal, at last, adjust the volume into suitable place.
2. If you want to use wireless microphone, wired microphone or guitar, please be
sure connect the correct jack and adjust microphone, guitar volume and echo
eect.
3. When on Mp3 mode, USB board will read Mp3 song automatically.
3. Never open or try to repair the Boom Box. If proper precautions are not taken
then the risk of serious electric shock is increased.
www.PyleUSA.com
3
Specications are subject to change without notice.
www.PyleUSA.com
4
Page 4
PBMSPG290
Portable Wireless BT Speaker & Microphone Karaoke System
Indoor / Outdoor Wireless PA Stereo with LED Party Lights,
MP3/USB Reader, FM Radio, Includes Wired Mic (800 Watt)
Features:
• High-Powered PA Speaker System
• Wireless & Portable Stereo Sound
• Bluetooth Music Streaming Ability
• Includes Wired Microphone for Karaoke Fun
• Built-in LED Flashing Party Lights for Stunning Visuals
• LED Lights Dance & Pulse to the Beat of the Music
• Built-in Rechargeable Battery
Bluetooth Connectivity:
• Built-in Bluetooth for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
(Smartphones, Tablets, Laptops, Computers, etc.)
• Bluetooth Version: 4.0
• Bluetooth Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32’ ft.
What’s in the Box:
• LED Speaker System
• Wired Microphone
• Remote Control
• Audio Cable
• Power Adapter
• 2.1 Channel Amplier Design
• FM Radio with Digital Display
• Full Range Stereo Sound Reproduction
• Ported Enclosure for Extended Bass Response
• Top Panel Button Control Center
• Volume, Bass, Treble, Echo Audio Adjustment
• Connect & Stream Audio from External Devices
• MP3 Digital Audio File Support
• USB Flash Drive Memory Reader
• Aux (3.5mm) Input
• (2) 1/4’’ Input Jacks (for Microphone / Guitar / Instrument)
• Rolling Wheels for Easy Transport
• Indoor / Outdoor Use
• Used in the Living Room & Even On-Stage Performances!
Technical Specs:
• Power Output: 800 Watt MAX
• Sound System: 10” Subwoofers+3” Speaker+1” Tweeter
• Magnet: 19 Oz
• Amplier Class: D
• Impedance: 4 Ohm
• T.H.D.: <1%
• Sensitivity: 89dB (+/-1dB)
• Mic Input Level: <10mV
• Line Input/Output Level: >210mV
• Frequency Response: 20-15kHz
• USB Interface Type: 2.0
• Construction Material: Engineered ABS, PP Housing
• Digital Media File Compatibility: MP3
• Maximum USB Flash Drive Support: Up to 16GB
• LED Lights: ON / OFF
• Built-in Rechargeable Battery: 11.1V Lead-Acid, 7500 mAh - 10.2Wh
• Battery Operated Remote Control: Requires (2) x ‘AAA’ (Not Included)
• Power Supply: 110/240V (15V Power Adapter)
• Product Dimensions (L x W x H): 15.2’’ x 15.2’’ x 43.9’’ -inches
www.PyleUSA.com
5
www.PyleUSA.com
6
