Page 1
PBMSPG200V2
Street Blaster
X Portable BoomBox Speaker Radio
with Bluetooth & NFC Wireless Streaming
Page 2
Location of Controls
9 10 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8
LIGHT
18 19
1. POWER SWITCH
2. DC IN JACK
3. USB PORT
4. AUX IN JACK
5. BATTERY INDICATOR
6. BLUETOOTH INDICATOR
7. GUITAR INPUT JACK
8. MICROPHONE INPUT JACK
9. MODE BUTTON
10. EQ/FD (EQUALIZER/ FOLDER)
www.PyleUSA.com
20
11. LIGHT ON/OFF BUTTON
12.
13.
14.
15. VOLUME LEVEL CONTROL
16. ECHO LEVEL CONTROL
17. MICROPHONE INPUT LEVEL CONTROL
18. BATTERY COMPARTMENT
19. NFC AREA
20. ANTENNA
2
Page 3
Getting Started
Charge the battery
Before using the speaker, you must fully charge the battery. When the
battery is charging, the BATTERY INDICATOR lights solidly. After the battery
has fully charged, the light switches o.
1. Connect the AC adapter to the DC IN JACK of the speaker rmly, and plug
it into a wall outlet.
2. When the battery is fully charged, rst disconnect the AC adapter from
the speaker, then from the wall outlet.
Power Source
1. Press the POWER SWITCH to turn ON the speaker.
2. Press the POWER SWITCH again to turn OFF the speaker, and pull the AC
adapter out of the wall outlet to switch o completely.
Bluetooth Function
Pair the bluetooth device
Before using your speaker with a Bluetooth device for the rst time, you
must pair and connect it to the Bluetooth device.
Press the POWER SWITCH to turn on the speaker. The display shows "HI".
Then press the MODE button to select the Bluetooth mode (F1).
The "BLUETOOTH INDICATOR" starts to ash, and the speaker is now in
pairing mode.
Pair the speaker using NFC
1. With Near Field Communication (NFC), you can easily pair and connect
the speaker to an Android device with NFC.
2. If the Android device supports NFC, activate its NFC feature, and touch
the NFC area of the speaker with the NFC area of your Android device
(F2).The speaker pairs and connects to the Android device automatically.
For details on NFC, see the user guide of the Android device.
3. For oth•er Bluetooth device, pair the speaker manually.
3
www.PyleUSA.com
Page 4
Pair the speaker manually
1. Verify that the Bluetooth function device is enabled.
2. Choose the Bluetooth menu in your Bluetooth device, and from the found
devices, select the "P137J". If you are prompted to enter the PIN code,
please enter "0000" (four zeros).
3. For more information, see the user manual for Bluetooth device.
4. After successfully pairing, play the music from the Bluetooth device.
Note:
1. You can only connect one Bluetooth device to the speaker. If the speaker
is astill connected to another Bluetooth device, the speaker will not
appear in the Bluetooth menu of your Bluetooth device.
2. When you turn OFF/ON the speaker or the Bluetooth device, the speaker
will connect to the last Bluetooth connected device automatically within
10 seconds. Otherwise, you need to connect it manually on the Bluetooth
menu in your Bluetooth device.
3. Depending on the device manufacturer, some Bluetooth devices need to
perform the pairing again.
APP Control using hPlay light
1. Please scan the QR Codes or search “hplay light” on Google Play or App
Store to download the app to your Android or IOS device.

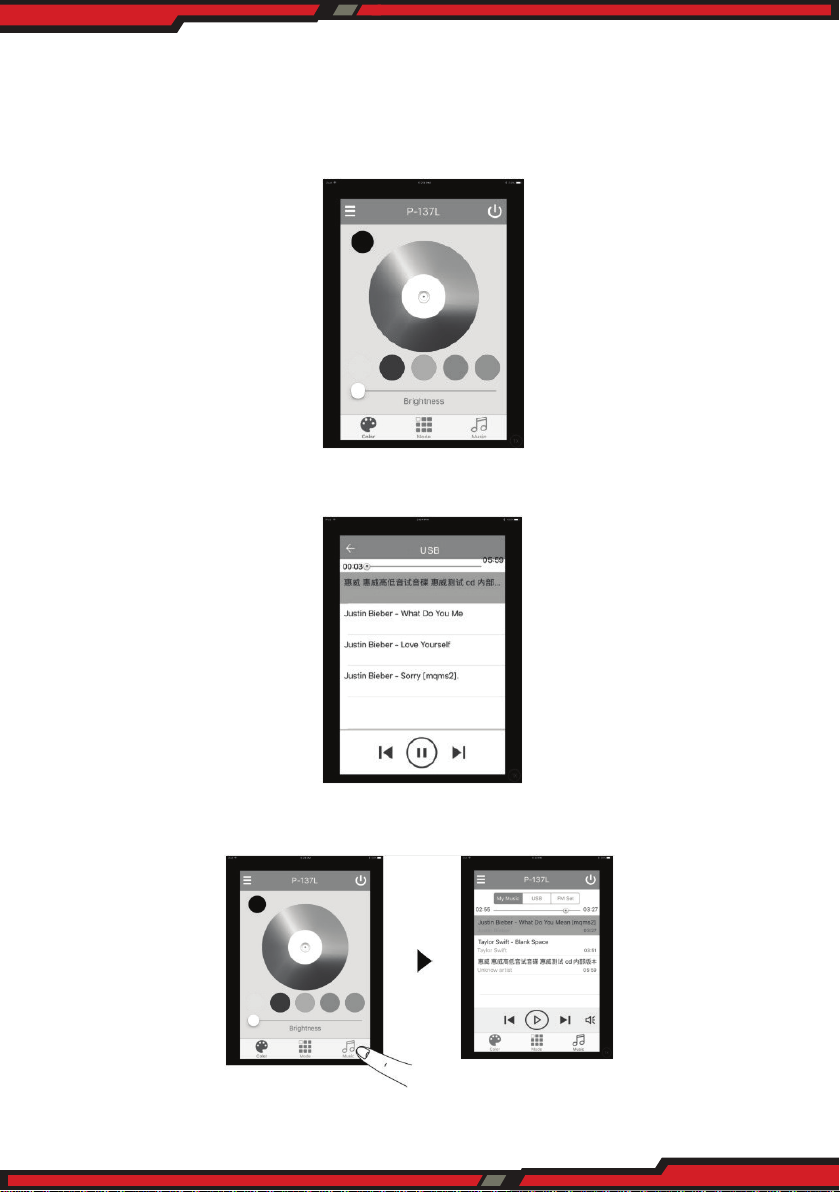

Using the app "hPlay light”
1.Tap the speaker to connect.
www.PyleUSA.com
4
Page 5
2. After connection, slide your nger on the color wheel or tap the circular
icon to change the color. Also, you can swipe the screen from left to right
on the lower bar to adjust the brightness. Tap on the power button on the
top right corner to turn ON/OFF light.
3. Tap "Music" to play local music on your mobile device- iPhone, device.
4. Tap "USB" to play music on USB drive if the USB drive is pluged in.
5
www.PyleUSA.com
Page 6
5. Tap "FM Set" to FM radio.
6. Tap "Mode" to light eect. Slide your nger upwards/downwards or tap
M+/M- to change the color mod. For each color mode, the light eect
pulses to music rhythm. Also, you can slide your nger left and right on
the lower bar to adjust the light eect speed.
Aux IN function
1. When the speaker is in Bluetooth mode, press the MODE button to select
the Aux IN mode (F3).
2. Connect an audio cable (not included) to the AUX IN JACK of the speaker
to the audio output socket on the external audio devices such as MP3
player, discman, etc.
3. Play from an external audio device.
6
www.PyleUSA.com
Page 7
Listening to FM radio
1. When the speaker is in Aux IN mode, press the MODE button to select FM
radio (F4)
2. Press / FM SCAN button to search all the FM stations.
3. When it stops searching FM stations, all the FM stations have been found
and stored automatically.
4. Press /- or /+ button to explore the found stations (F5).
5. Press the MODE button to store FM stations.
Remark: You can also use hplay _light APP to control FM radio.
For best FM reception, fully extend the FM antenna.
Playing audio via USB port
1. When the speaker is in FM radio mode, press the MODE button to select
USB mode (F6)
2. Plug the USB device into USB Port, then it will play the music le
automatically.
3. To pause the music while playing, press the / FM SCAN button once.
To re-start playback, press the / FM SCAN button again and the music
will start from the exact position where it was paused.
4. When /- or /+ button is pressed once, it will return to the previous
track or advance to the next track.
5. During play mode, when /- or /+ button is pressed and held, it will
search the track with audible high-speed backward or forward playback.
7
www.PyleUSA.com
Page 8
6. Press and hold EQ/FD button will advance to the next folder (F7).
Remark: You can also use hplay _light APP to control USB playback.
Connecting a microphone/guitar
Using a microphone or a guitar, you can mix its sound with a source sound.
CAUTION
DO NOT connect a bass guitar to the MICROPHONE / GUITAR INPUT JACK,
as it may damage the speaker.
1. Turn the MICROPHONE INPUT LEVEL CONTROL fully counterclockwise.
2. Connect a microphone or a guitar to the MICROPHONE / GUITAR INPUT
JACK of the speaker.
3. Select the Bluetooth, Aux in, FM radio or USB as the source.
4. Start playback of the sound source.
5. Turn the MICROPHONE INPUT LEVEL CONTROL to adjust the microphone
volume.
6. Turn the GUITAR OUTPUT LEVEL CONTROL of your guitar to adjust the
guitar volume.
Party Light
Press LIGHT button to turn ON/OFF the party light.
Adjust volume level and sound eect
To adjust the volume
Turn the VOLUME LEVEL CONTROL to adjust the volume of the speaker.
Control the echo
Turn the ECHO LEVEL CONTROL to adjust the echo eect.
Control the EQ
Press the EQ/FD button, the sound tone changes as below:
8
www.PyleUSA.com
Page 9
PBMSPG200V2
Street Blaster-X Portable BoomBox Speaker Radio with Bluetooth &
NFC Wireless Streaming
Features:
• Made for the Streets: Rugged, Powerful & Portable!
• Digital Boombox Stereo Speaker System
• Bluetooth Wireless Audio Streaming
• NFC (Near Field Communication) Android Support
• Built-in LED Party Lights Pulse to the Music
• Control the Lights via the Free Downloadable ‘hPlay_Light’ App
• High-Powered Portability: Built-in Rechargeable Battery
• Full Range Stereo Sound Reproduction, Impressive Bass Output
• FM Radio with Digital LCD Display
• LCD Digital Display and Touch Button Controls
• Digital Sound Processing GX Amplier
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input
• (2) 1/4’’ Microphone/Guitar Inputs
• EQ Audio Conguration Control
• Treble, Bass, Echo, Volume, Input Audio Adjustment
• Battery Level Indicator Lights
Bluetooth & NFC Connectivity:
• Simple & Hassle-Free Device Pairing
• Instant Wireless Music Streaming Ability
• Works with All of Today’s Latest Smartphone, Tablets, Laptops, etc.
• Bluetooth Version: 4.0
• Bluetooth Network Password: ‘0000’
• Wireless Range: Up to 35’ ft.
What’s in the Box:
• BoomBox Speaker
• Power Adapter Cable
• Shoulder Carry Strap
Technical Specs:
• Power Output: 1000 Watt MAX
• Digital Audio File Support: MP3, WMA
• USB Flash Drive Support: Up to 32GB Max.
• Rechargeable Battery: Lithium-ion, 6,000mAh, 7.4V
• Power: 100V-220V AC, 50/60Hz
• Unit Dimensions (L x W x H): 24.5” x 10.0” x 10.0” -inches
• Sold as: 1
9
www.PyleUSA.com
