Pyle PBKSP52 User Manual

PBKSP52

Desktop Wireless BT Bookshelf Speakers

HiFi Studio Monitor Computer Desk

Stereo Speaker System (400 Watt MAX)

Cautions:

1. All Operating Instructions should be read before using this equipment.

2. To reduce the risk of electrical shock, do not open this unit.

There are NO REPLACEABLE PARTS INSIDE.

Please refer servicing to a qualied service technician.

3. Do not expose this unit to direct sunlight or to a heat source such as a radiator or

stove.

4. This unit should only be cleaned with a damp cloth.

Avoid solvents or other cleaning detergents.

5. When moving this equipment, it should be placed in its original carton and

packaging. This will reduce the risk of damage during transit.

6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY CONTROLS OR

SWITCHES

8. Make sure All of your equipment is completely OFF and LOWER ALL VOLUME,

LEVEL & GAIN controls before connecting a sound source.

9. Only LINE LEVEL SIGNALS SHOULD BE SENT TO YOUR SPEAKER.

www.PyleUSA.com

2

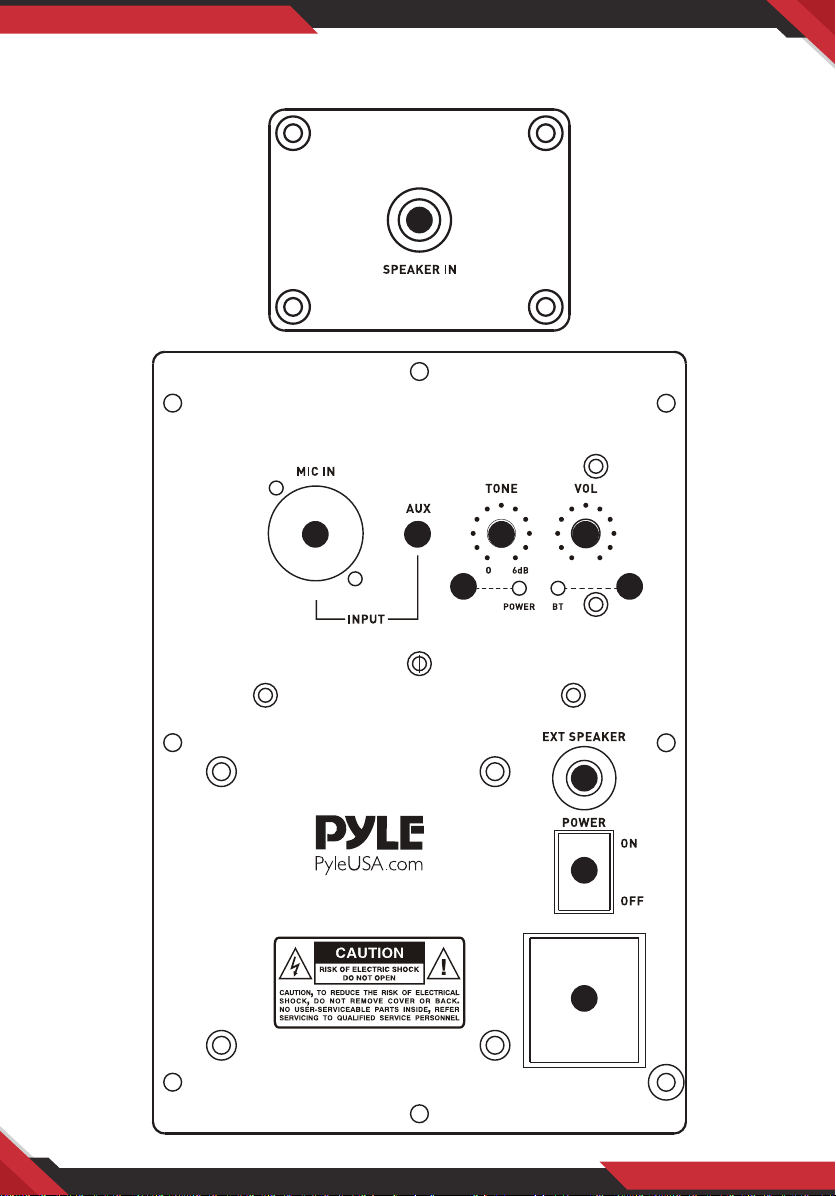

Controls and Connections

1

2 3 4 5

67

PBKSP52

8

9

10

AC1 15V/6 0HZ

www.PyleUSA.com

3

Functions

1. SPEAKER IN: To connect an active device

2. MIC IN: Connect for Mic input

3. 3.5MM AUX IN: Connect Mobile device

4. TONE: Control the volume of the mic

5. VOL: Control the volume of the unit

6. BT: Will light up when wireless BT is connected

7. POWER: The unit display will light up

8. EXT SPEAKER: To connect a passive speaker

9. POWER SWITCH: Power switch ON/OFF the unit

10. POWER CORD CONNECTOR: Connect the IEC main power cable in order to

supply the unit with the fuse 250V/3.15A

Placement Tips

• Avoid placing loudspeakers in the corners of a room.

This increases the low-frequency output and can cause the sound to be muddy
and indistinct.

• Avoid placing loudspeakers against a wall. This, too, increases the low frequency

output, though not as much as corner placement. However, if you do need to
reinforce the low frequencies, this is a good way to do it.

• Avoid placing the active speakers directly on a hollow stage oor. A hollow stage

can resonate at certain frequencies, causing peaks and dips in the frequency
response of the room. It’s better to place the speakers on a sturdy table or tripod
stands.

• Position the speakers so the high-frequency drivers are two to four feet above ear

level to the audience to maintain high frequency quality.

Wireless Bluetooth Connectivity:

• Simple & Hassle-Free Pairing

• Instantly Receives Wireless Music Streaming

• Works with all of Today’s Latest Devices

• Smartphones, Tablets, Laptops, Computers, etc.

• Bluetooth Version: 4.2

• Bluetooth Name: PyleUSA

• Wireless Range: Up to 33’+ ft.

www.PyleUSA.com

4

Features:

Bookshelf Desktop Speakers

•

• Pro Audio Studio Monitor Performance

• Powered Active + Passive Speaker System

• Hi-Fi Full Range Stereo Sound Reproduction

• Bluetooth Receiver for Wireless Audio Playback

• Built-in Digital Audio Amplier

• Connect & Stream Audio form External Devices

• Combo XLR 1/4‘’ Stereo Mic Input

• Aux (3.5mm) Input Jack

• RCA (L/R) Aux Audio Input (Active)

• Tone, Master Volume Audio Adjustment

• 2-Way Full Range Stereo Sound Reproduction

• Vented Enclosure for Impressive Bass Response

• Power ON/OFF Switch

What’s in the Box:

Active Bookshelf Speaker

•

• Passive Bookshelf Speaker

• Speaker Connection Cable

• Power Cable

Questions? Issues?

We are here to help!
Phone: [phone]
Email: [e-mail]

Technical Specs:

Power Output: 400 Watt MAX

•

• Amplier Type:Class AB

• Monitor Speaker Drivers: 5’’ -inch, Cone Type/KSV

• Tweeter Drivers: 1.0’’ -inch Dome, Cortina

• System Channel Impedance: 8 Ohm

• Frequency Response: 60Hz-20KHz

• Sensitivity: 94dB

• Speaker Connection Type: 1/4’’ -inch

• Speaker Connection Cable Length: 19.7’ ft.

• Construction Materials: Wood Housing, Metal Alloy

• Power Cable Length: 4.9’ ft.

• Power Supply: 120/240V

• Single Speaker Size: (W x D x H): 9.06’’ x 6.68’’ x 9.62’’ -inches (Each)

• Single Speaker Weight: Active, 9.35 lbs. (Passive, 6.35 lbs.)
