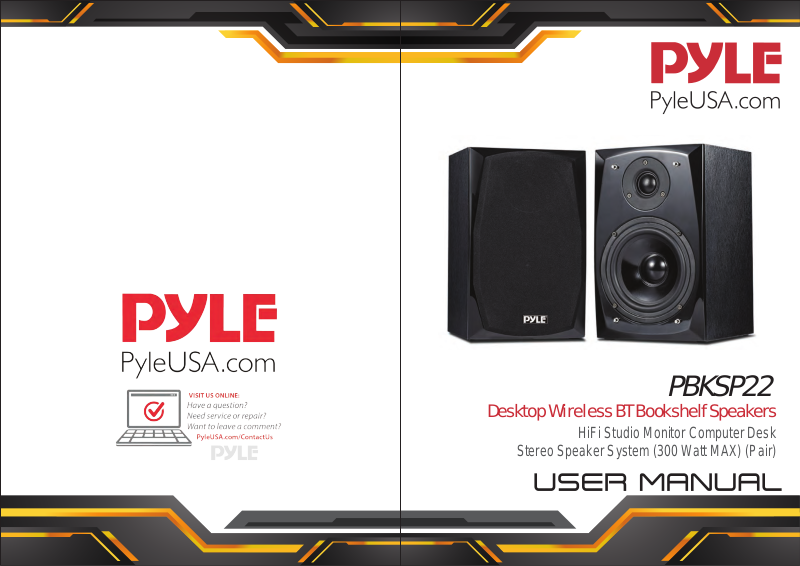

Pyle PBKSP22 User guide

PBKSP22

Desktop Wireless BT Bookshelf Speakers

HiFi Studio Monitor Computer Desk

Stereo Speaker System (300 Watt MAX) (Pair)

IMPORTANT SAFETY INSTRUCTIONS

1. Read and keep these instructions.

2. Heed all warnings.

3. Follow all instructions.

4. Do not use this apparatus near water.

5. Clean only with a dry cloth.

6. Do not block any ventilation openings. Install in accordance with the manufac
turer's instructions.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarised or ground plug:
A polarised plug has two blades with one wider than the other.
The wide blade is provided for your safety. When the provided plug does not t
into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plug,
convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long
periods of time.

13. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed t rain or moisture, does not operate normally, or
has been dropped.

14. To reduce the risk of re or electric shock, do not expose this apparatus to rain
or moisture.

15. Apparatus should not be exposed to dripping or splashing and no objects lled
with liquids, should be placed on the apparatus.

16. Use only with the battery which specied by manufacturer.

17. The power supply cord set is to be the main disconnected device.

Introduction

PBKSP22 were designed for those seeking great audio experience from their
PC speakers with limited space in mind at the same time. Provides excellent sound
performance and it’s classical outlook makes it a perfect match for any environment.
Speakers are enclosed in MDF board cabinets that oer great acoustics for the set.
Sound control panel was placed on the side of one of the satellites which provides
easy access to the knobs located on that panel.

Installation

Before you begin the installation make sure that the main power switch is in
OFF position and all control knobs are in the maximum left position
(rotate it counterclockwise).

1. Place the speakers such that the active speaker is on the right side. To achieve
best stereo eect listener and satellite speakers should form equilateral triangle
(each satellite should have the same distance from the listeners ears). Preferably
try to put the speakers in such manner that the tweeter speakers are on the same
height as your ears.

2. Connect the signal cable suitable for your sound source either with the Mini-Jack

3.5mm plug to the appropriate output port of your sound source (for example
output of your PC’s soundcard).

3. Connect the 2-wire cable to the “Speaker output” on the back of the active
speaker and to the socket on the back of passive speaker.

4. Connect the power plug to the mains socket.

5. Switch main power switch to ON position.

6. Start playing sound using your connected sound source.

7. Using the volume knob set up desired volume level.

8. You can adjust the played sound tones using the Bass and Treble knobs to suit
your personal performances.

WARNING

This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within this unit.

This symbol indicates that there are important operation and
maintenance instructions in the literature accompanying this unit.

www.PyleUSA.com

2

Wireless BT Function

The speaker connects to your compatible bluetooth-enabled device. Allowing the
system to receive your wireless Bluetooth signal and stream audio to any connected
speaker systems. Press the ‘Mode’ button on the rear panel of the speaker.
Ensure Bluetooth ability is activated on your device and search for the bluetooth
Network Named: ’PYLEUSA’ and connect. No password is required for connecting.

www.PyleUSA.com

3

PBKSP22

Desktop Wireless BT Bookshelf Speakers

HiFi Studio Monitor Computer Desk Stereo Speaker System (300 Watt MAX) (Pair)

Wireless Bluetooth Connectivity:

• Simple & Hassle-Free Pairing

• Instantly Receives Wireless Music Streaming

Features:

• Powered Bookshelf Desktop Speakers

• Pro Audio Studio Monitor Performance

• Hi-Fi Full Range Stereo Sound Reproduction

• Built-in Bluetooth Receiver for Wireless Audio Playback

• Ability to Connect & Stream form External Devices

• MP3 Digital Audio File Support

• USB Flash Drive Reader

• Active + Passive Speaker System

• Built-in Digital Audio Amplier

• Audio Processing Bass Reex Active Speaker

• Rear Panel Control Center

• RCA (L/R) Aux Audio Input (Active)

• Easy Connect Speaker Spring Terminal (Passive)

• Bass, Treble, Volume Audio Adjustment

• Power ON / OFF Switch

• Works with all of Today’s Latest Devices

Smartphones, Tablets, Laptops, Computers, etc.)

• Bluetooth Version: 4.0

• Bluetooth Network Name: ‘PYLEUSA’

• Wireless Range: 30’+ ft.

Technical Specs:

• Power Output: 300 Watt MAX

• Amplier Type: 2-Channel

• Monitor Speaker Driver: 5.25" -inch

• Tweeter Driver: 1.0’’ -inch Dome, Aluminum

• System Channel Impedance: 4-8 Ohm

• Frequency Response: 50Hz-20kHz

• Sensitivity: 88dB

• Digital Audio File Support: MP3 / WMA

Questions? Issues?

We are here to help!
Phone: [phone]
Email: [e-mail]

• Maximum USB Flash Support: Up to 16GB

• Power Cable Length: 3.9’ ft.

• Power: 120V

• Single Speaker Weight: Active, 6.37 lbs. (Passive, 5.07 lbs.)

What’s in the Box:

• Active Bookshelf Speaker

• Passive Bookshelf Speaker

• Power Cable

www.PyleUSA.com

4

• Single Speaker Size: (W x D x H): 6.7” x 7.5” x 10.6” -inches (Each)

This product can expose you to a chemical or group of checmicals, which may include

“Lead (Pb)” which is known in the state of California to cause cancer, birth defects, or

other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
