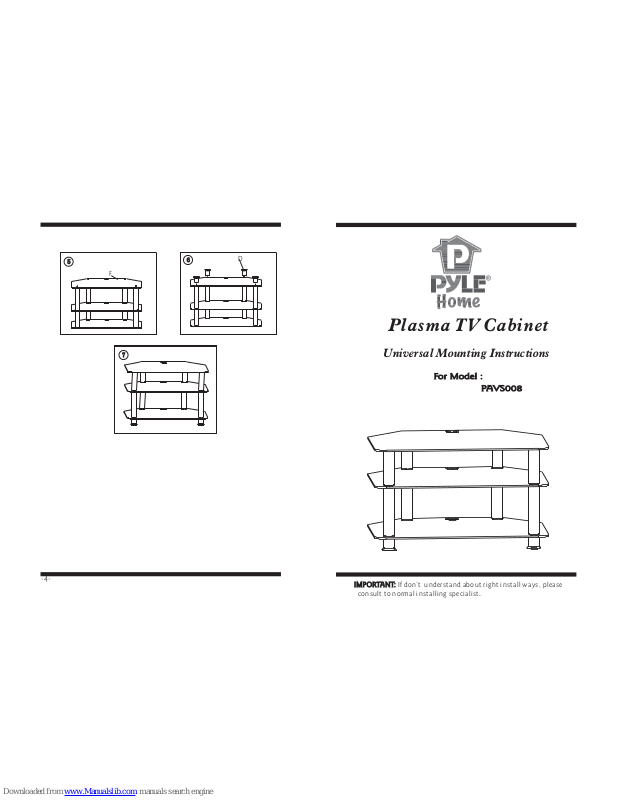

Plasma TV Cabinet
IMPORTANT: If don’t understand about right install ways, please
consult to normal installing specialist.
IMPORTANT:
-4-
For Model :
PAVS008
For Model :
PAVS008
Universal Mounting Instructions
6
D
F
1
2
3 4
-2-
WARNING
Please read this guide before installation.
Ensure the correct installation. The Max loadis 60kg/132lbs.
Keep away from high frequency or powerequipment to avoid disturbance.
Choose flat floor to put this product.
We can not be responsiblefor any damage caused by wrong installation.
Caution :This Product LCD /Plasma Wall Mount Bracket is
intended for use only with the maximum weights indicated .See apparatus
instructions .Use with products heavier than the maximum weights
indicated may result in instability causing possible injury .
Contents of the box: Hardware shown as actual size
Contents of the box: Hardware shown as actual size
Installation
A
B
C
D
E
F
4
4
4
4
1
2
Long bolt
Long joint stick
Foot support
Top glass panel
Base glass panel
Description
Letter
Qty
A
B
C
D
E
F
Short joint stick
Please refer to the figures in the process.
Fig .Opentheboxandtakeoutthe4piecesofLongbolts(A)aswellas
Top glass panels(E). Put the Top glass panel onto some flat floor, note the
surface with bolt holes up. Then put the tip of the bolt into the holes.
Fig .Insert the Short joint stick(C) at the showed position.
Fig . Carefully attach the Base glass panel(F) to the right position,
Fig . Insert the Long joint stick(B) at the showed position.
Fig . Attach the Base glass(F) to the right position,
Fig .Install the Foot support (D) .
Fig .Turnover the whole cabinet and finish the whole installation.
①
②
③
④
⑤
⑥
⑦
-3-
E
C
F
B
A
