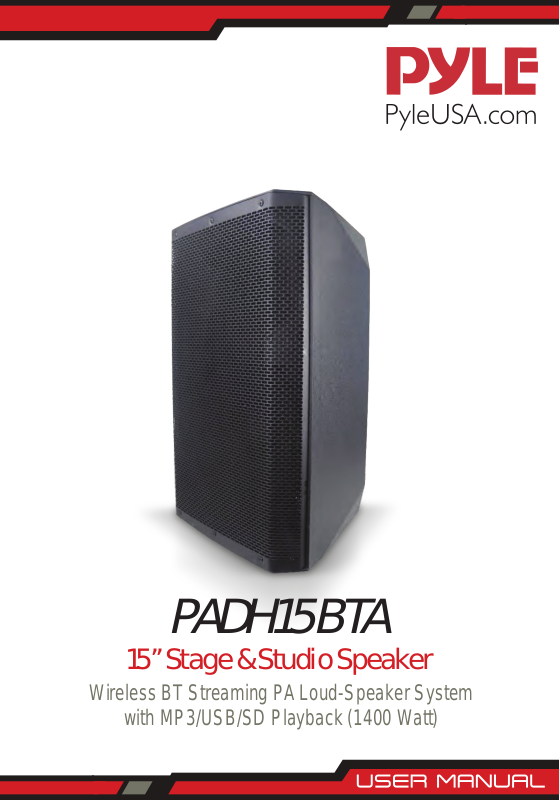

PADH15BTA
15’’ Stage & Studio Speaker
Wireless BT Streaming PA Loud-Speaker System
with MP3/USB/SD Playback (1400 Watt)
Page 2
WARNING!
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER OF THIS UNIT.
THERE ARE NO USER - SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO A QUALIFIED TECHNICIAN.
intended to alert the user to the presence of “dangerous” voltage within the
product’s enclosure that may be of sucient magnitude to constitute a risk
of Electric shock to humans. Users should exhibit extra safety when this
symbol appears in this instruction manual and follow all precautions as they
are stated.
The lighting ash with arrow head symbol within an equilateral triangle is
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in this manual.
SAFETY INSTRUCTION
1. Please read the user manual carefully before use and retain for future reference.
2. The power supply must match the demand of the device with reliable ground
wire.
3. All covering signal should be complied with the demand of device.
4. The device should be located far away from high temperature, moisture and
powerful electromagnetic eld.
5. Max operating temperature is 113°F.
6. No naked ame sources, such as lighted candles, shall be placed on the product.
7. Clean only with dry cloth – The appliance should be cleaned only as
recommended by the manufacturer.
8. When not in use, unplug the unit from the mains.
9. To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and
without distortion.
10. Only use suitable means of transportation if you want to move the speaker.
Note:
• Once the BLUETOOTH devices are paired, there is no need to pair them again.
• If the speaker is connected via Bluetooth device but does not play with sound,
please turn o nearby devices and only leave one device to re-connect with the
speaker.
• When inserting the USB/SD Card , make sure the direction you selected is correct.
Never insert violently to avoid damaging the USB/SD Card or the unit. If it doesn't
work, please check if the direction is correct.
• Turn off and pull out the USB/SD before turning off the speaker.
2
www.PyleUSA.com
Page 3
CONTROL PANELS
1. LCD MP3 Player
SD port
USB port
A. Short press: Play/Pause
In the USB mode, long press to track FOLDER
In FM mode, long press to automatically search for Radio Stations.
B. MODE: Press to switch between USB/ SD/ FM/BLUETOOTH
C. : Press to switch between RA (Repeat all)/RO(Repeat One)/RR(Repeat randomly)
D. : Short press: Switch Previous Song, Long press Voice DOWN
E. : Short press: Switch next Song, Long press Voice UP
F. : Digital Signal Processing
2. XLR Mic 1 input
3. 1/4 Connector for Line 1 input
4. Echo effect adjustment for Mic 1 Input
5. Level for Mic 1 and Line 1 input
6. XLR Mic 2 input
7. 1/4 Connector for Line 2 input
8. Echo effect adjustment for Mic 2 Input
9. Level for Mic 2 and Line 2 input
10. RCA Line input
11. RCA Line Output
12. Line and MP3 Selector
13. Level for Line and MP3 input
14. DSP: Digital Signal Processing
15. 5 band graphic equalizer
16. Echo repeat times adjustment
17. Echo period time adjustment
18. Power indicator
19. Volume control of total amplier
20. Echo level adjustment
21. VOLTAGE SELECTOR for 110V and 220V
22. Power switch
23. AC input
3
www.PyleUSA.com
Page 4
REMOTE CONTROL
1
3
6
1. Select the audio source of MP3 player:
USB device or SD memory card Bluetooth
2. Back / forward track le
2
4
5
7
8
3. Back / forward track song
4. Stop/ Play button
5. Select EQ options
6. Decrease / Increase volume
7. Directly Selector
8. Buttons Selection
Remote Control: 3 V Battery
www.PyleUSA.com
4
Page 5
PADH15BTA
15’’ Stage & Studio Speaker - Bluetooth PA Loud-Speaker System with MP3/USB/SD Playback (1400 Watt)
Features:
• Molded Cabinet PA Loud-Speaker
• High-Powered Audio Output
• Sound System: 15’’ Speakers, 1.75’’ Tweeter
• Bluetooth Wireless Music Streaming Ability
• Active 2-Way, Full Range Speaker
• MP3 Digital Audio File Support
• USB Flash & SD Memory Card Readers
• ID3 Tag Song Readout Info, Song Title, Artist
• (2) XLR 3-Pin Connectors
• 1/4'' Line Input 6.35mm connector
• (2) 1/4'' 3.5mm Microphone/Guitar/AUX
• Independent Channel Adjustable Volume & Effect Control
• 5-Band Graphic EQ
• Digital Echo Effects Control
• RCA (L/R) Audio Line Input/Output Jacks
• Cabinet Speaker Stand Mount Support, 38mm
• Rugged & Heavy-Duty Molded Cabinet Housing
• Ability to Connect Additional Microphones, Instruments, DJ Equipment
• Perfect for On-Stage Performances, Crowd Control, Public Gathering Events
Bluetooth Wireless Streaming:
• Instantly Receives Wireless Music Streaming Audio
• Works with All of Your Favorite Devices
(iPhone, Android, Smartphones, iPad, Tablet, MP3 Player, etc.)
• Bluetooth Version: 4.0
• Bluetooth Network Name: 'PyleUSA’
• Bluetooth Wireless Range: Up to 65' ft.
What's in the Box:
• 15’’ -inch PA Speaker
• Remote Control
• Power Cable
Technical Specs:
• Speaker Power Output: 1400 Watt MAX
• Subwoofer Type: 15’’ Long Throw
• Tweeter Type: 1.75" Titanium Horn Driver (44mm)
• Subwoofer Frequency: 46Hz-2500Hz (±10dB)
• Speaker Magnet: 60 oz.
• Impedance: 4 Ohm
• Speaker Sensitivity: 98+/-2dB 1W/1M
• S/N Ratio: >=85dB
• T.H.D.: 10%
• Frequency Response: 46-20Khz (±10dB)
• Maximum USB/SD Card Support: Unlimited
• Digital Audio File Support: MP3, WMA, WAV
• Power Supply: 110V/220V, Switchable
• Speaker Dimensions (L x W x H): 16.54’’ x 15.04’’ x 26.97’’ -Inches
• Sold as: 1
5
www.PyleUSA.com
