WARNING:
• For your own safety, please read and understand these
warnings and keep this user guide for future reference.
• Always make sure the cart is fully extended and locked
before use. Always make sure the cart is folded and locked
properly before lifting or transporting.
• Do not run while using this product.
• Do not use accessories other than those designed for use
with your cart.
• Keep all packing materials away from children and recycle
where possible or where required by law.
MAINTENANCE
• To clean the trolley, wipe with a soft, dry cloth.
• Car polish may be used to maintain nish.
• Lubricate moving parts every 6 months.
WARNING:
• Keep hands and ngers away from moving or sliding parts!
• Always keep control of the Golf Push Cart -
Do not let it run down hills without full control.
www.PyleUSA.com
2

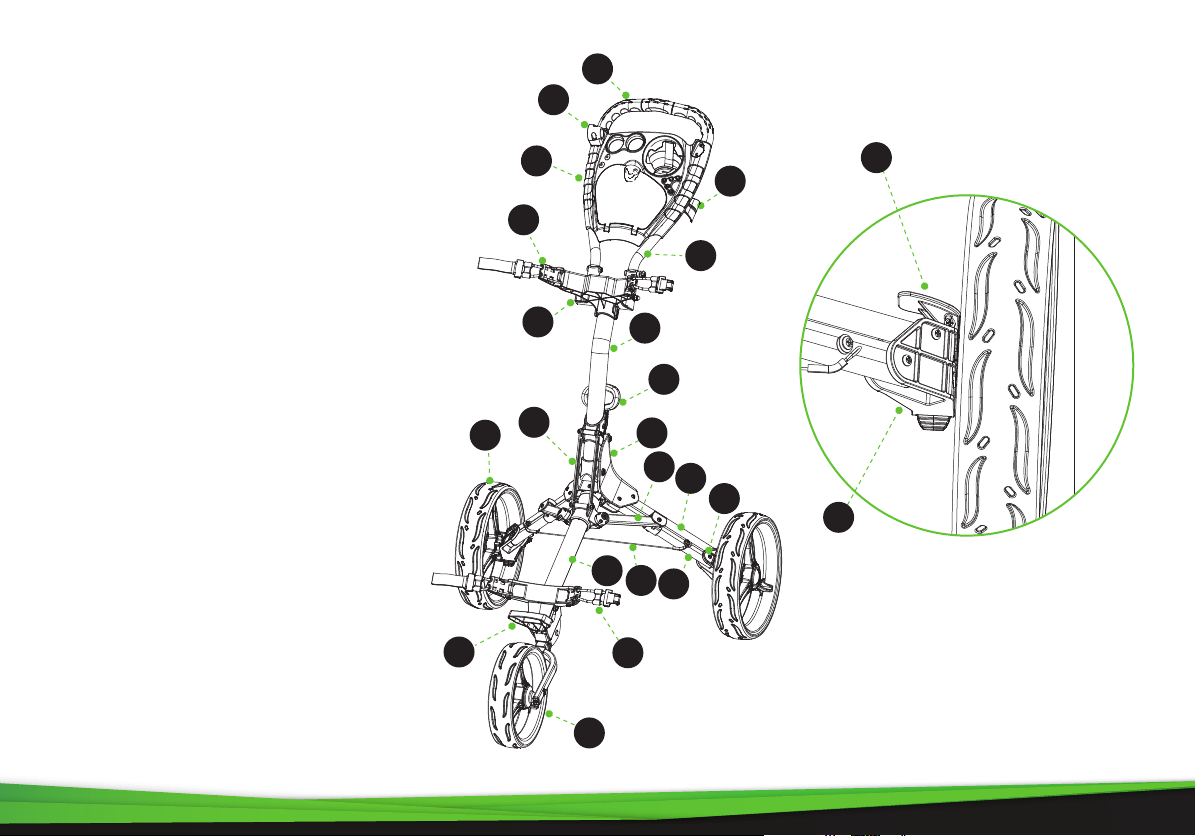

PARTS LIST
A Handle grip
B Umbrella holder dock
C Scorecard holder
D Handle tube
E Umbrella holder storage
F Upper bag holder bracket
G Adjustable handle mechanism
H Main upper frame tube
I Folding/locking buckle
J Anti-splay wire
K Leg bracket
L Connecting rods
M Main lower frame tube
N Foot brake
O Stablizer tube
P 2 holes leg frame
Q 4 holes leg frame
R Right wheel locking mechanism
R1 Left wheel locking mechanism
S Main wheel
T Adjustable bag elastic
U Lower bag holder bracket
V Front wheel assembly
A
B
C
E
F
D
G
L
S
U
H
I
K
O
P
R
M
J
Q
T
V
N
R1
www.PyleUSA.com
3
UNFOLDING STEPS
Fig. 7
Fig. 1
Loosen the elastic
rope as Fig. 1.
elastic rope
Fig.4
locking buckle
buckle
Fig. 2
Release the handle buckle to fully
extend the handle frame then lock
the locking buckle as Fig. 2.
Fig. 5
M6*40
Screw
Fig. 3
Upper tupe
Lower bag
holder bracket
Hold the upper tupe and lower bracket to open
the frame as Fig. 3
Fig. 6
M6*40
Screw
Release the wheel locking buckle, insert the wheel axel into
the wheel holder completely and then tighten the locking
buckle.
www.PyleUSA.com
4
Remove the M6*40 screw and M6 nut from the front
wheel fork as Fig. 6, then assemble the front wheel on the
steel piece of lower bag bracket and xed it by screw and
nut, completely assembly as Fig. 7.
FOLDING STEPS
Fig. 8
Fig. 9
Folding the front
wheel as Fig. 8.
Pull the folding pulling buckle and press
the handle to fold the trolley as Fig. 9 & 10.
Fig. 12
Fig. 13
Fixed the frame through eleastic rope as Fig. 13.
Folding status as Fig. 12. Pick up the trolley
using the handle and not the tubing when
lifting into car boot etc.
Folding
pulling
buckle
Fig. 10
Fig. 14
Using the brake
Press the brake pedal to
stop and press again to
release as Fig. 14.
buckle
Fig. 11
Release the buckle to fold the handle as
Fig. 11, then x the buckle.
Warning:
Pick up the trolley using the handle
and not the tubing when lifting into
car boot etc.
www.PyleUSA.com
5
FRONT WHEEL ADJUSTMENT MECHANISM
Fig. 2Fig. 1 Fig. 3
1. If during use, you nd the cart
veers to the right or left, please see
the instructions to correct this
problem. (Fig. 1)
www.PyleUSA.com
6
2. If the cart veers to the left, face the
front wheel of the cart and use the
Allen wrench provided to screw
the right bolt counterclockwise or
the left bolt clockwise until the
front wheel is centered between
the front fork. (Fig. 2)
3. If the cart veers to the right, face
the front wheel of the cart and use
the Allen wrench provided to screw
the left bolt counterclockwise or
the right bolt clockwise until the
front wheel is centered between
the front fork. (Fig. 3)

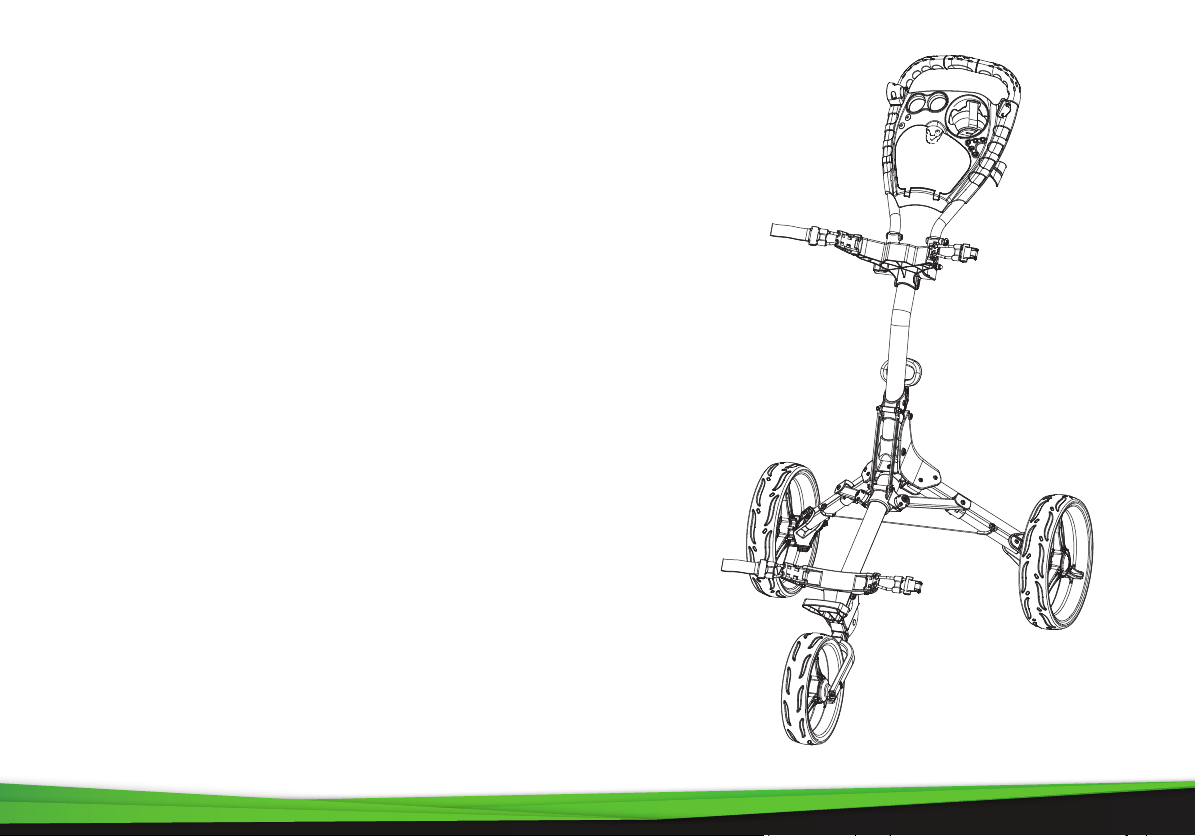

FEATURES:
• New Deluxe Scorecard Holder
• Upper and Lower Bracket with Strap
• Foam Handle Grip
• Ergonomic Padded Adjustable Handle
• Includes Scorecard Holder, and Patented Bag Holder
• Simple Quick Braking System
• Durable and Compact Size for Easy Storage and Transportation
• Easy to Fold and Unfold
• Designed for Multiple Pushing Positions
WHAT'S IN THE BOX:
• (1) 3-Wheel Golf Push Cart
TECHNICAL SPECS:
• Construction Material: AL Frame
• Max. Load Capacity: 33.1 lbs.
• Front Wheel Size: 9.5'' -inches
• Rear Wheels Size: 11.5'' -inches
• Folded Product Dimension (L x W x H): 14.4" x 19.1" x 23.1" -inches
• Unfolded Product Dimension (L x W x H): 28" x 47.3" x 45.1" -inches
www.PyleUSA.com
7
Questions? Comments?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
