PT-SP-HD28DA

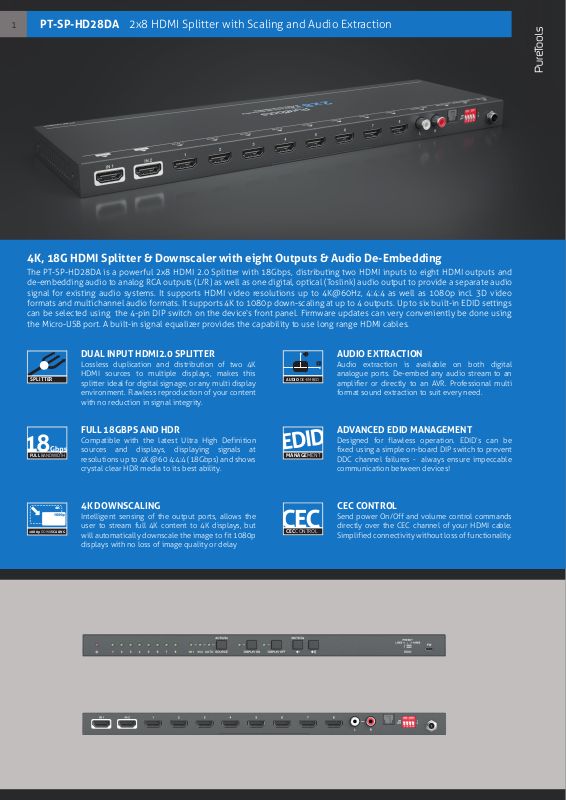

PT-SP-HD28DA 2x8 HDMI Splitter with Scaling and Audio Extraction
4K, 18G HDMI Splitter & Downscaler with eight Outputs & Audio De-Embedding
The PT-SP-HD28DA is a powerful 2x8 HDMI 2.0 Splitter with 18Gbps, distributing two HDMI inputs to eight HDMI outputs and
de-embedding audio to analog RCA outputs (L/R) as well as one digital, optical (Toslink) audio output to provide a separate audio
signal for existing audio systems. It supports HDMI video resolutions up to 4K@60Hz, 4:4:4 as well as 1080p incl. 3D video
formats and multichannel audio formats. It supports 4K to 1080p down-scaling at up to 4 outputs. Up to six built-in EDID settings
can be selected using the 4-pin DIP switch on the device‘s front panel. Firmware updates can very conveniently be done using
the Micro-USB port. A built-in signal equalizer provides the capability to use long range HDMI cables.
SPLITTER
FULL BANDWIDTH
4K
1080p DOWNSCALING
DUAL INPUT HDMI2.0 SPLITTER
Lossless duplication and distribution of two 4K
HDMI sources to multiple displays, makes this
splitter ideal for digital signage, or any multi display
environment. Flawless reproduction of your content
with no reduction in signal integrity.
FULL 18GBPS AND HDR
Compatible with the latest Ultra High Definition
sources and displays, displaying signals at
resolutions up to 4K @60 4:4:4 (18Gbps) and shows
crystal clear HDR media to its best ability.
4K DOWNSCALING
Intelligent sensing of the output ports, allows the
user to stream full 4K content to 4K displays, but
will automatically downscale the image to fit 1080p
displays with no loss of image quality or delay
AUDIO DE-EMBED
MANAGEMENT
CECCONTROL
AUDIO EXTRACTION
Audio extraction is available on both digital
analogue ports. De-embed any audio stream to an
amplifier or directly to an AVR. Professional multi
format sound extraction to suit every need.
ADVANCED EDID MANAGEMENT
Designed for flawless operation. EDID‘s can be
fixed using a simple on-board DIP switch to prevent
DDC channel failures - always ensure impeccable
communication between devices!
CEC CONTROL
Send power On/Off and volume control commands
directly over the CEC channel of your HDMI cable.
Simplified connectivity without loss of functionality.
Page 2
PT-SP-HD28DA 2x8 HDMI Splitter with Scaling and Audio Extraction
VIDEO INPUT
Input 2x HDMI
Input Connectors 2x HDMI-A female
HDMI Input Resolution Up to UltraHD / 4K / 2160p @60Hz, 4:4:4, 8bit
VIDEO OUTPUT
Output 8x HDMI
Output Connectors 8x HDMI-A female
HDMI Output Resolution Up to 4K / UltraHD / 2160p @60Hz, 4:4:4, 8bit
CONTROL
Control Ports 5x Control buttons, 2x EDID DIP switch, 1x Micro USB
Control Connectors 1x EDID 3-pin DIP switch, 1x EDID 4-pin DIP switch, 1x Micro USB port
GENERAL
HDMI Standard HDMI 2.0, HDCP 2.2
Transmission Mode HDMI
HDMI Transmission
Distance
Operation Temperature -5°C ~ +55°C
Storage Temperature -25°C ~ +70°C
Relative Humidity 10% ~ 90%
AC Adapter Input Power 100V~240V AC, 50/60Hz
Input Power 12V DC 1A
Power Consumption max. 12W
Dimensions 324mm x 20mm x 100mm
Net Weight 900g
4K@60Hz 4:4:4 in up to 5m, 4K@60Hz 4:2:0 in up to 15m, FullHD / 1080p in up to 20m
2

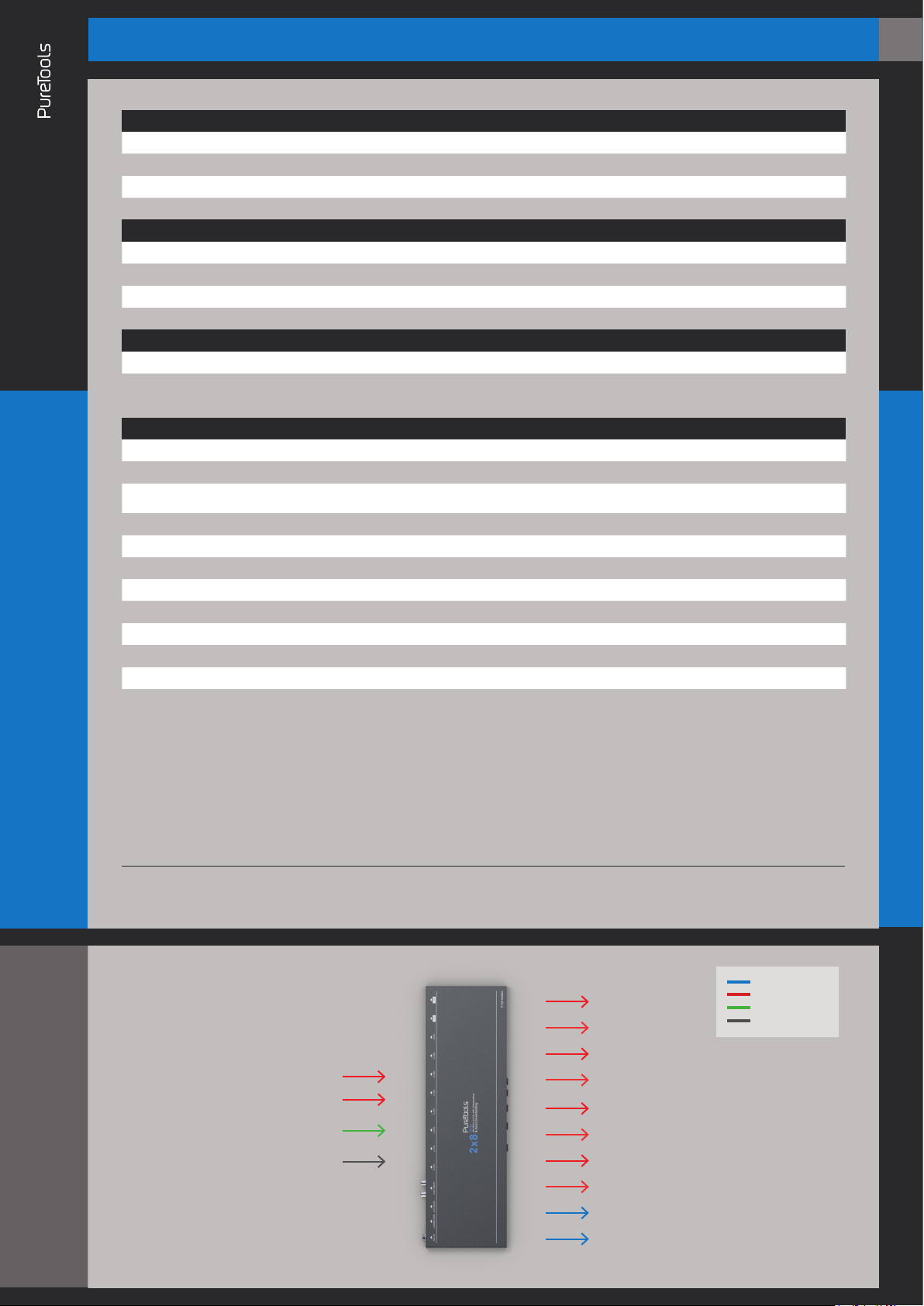

CONNECTION DIAGRAM DETAILED TECHNICAL SPECIFICATION
HDMI
HDMI
FW port (USB Micro)
Power (DC Barrel Jack)
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
Stereo Audio (L/R RCA)
Digital Audio (Toslink)
Audio
Video
Control
Power
VERSION 1.0 | 2019-02
