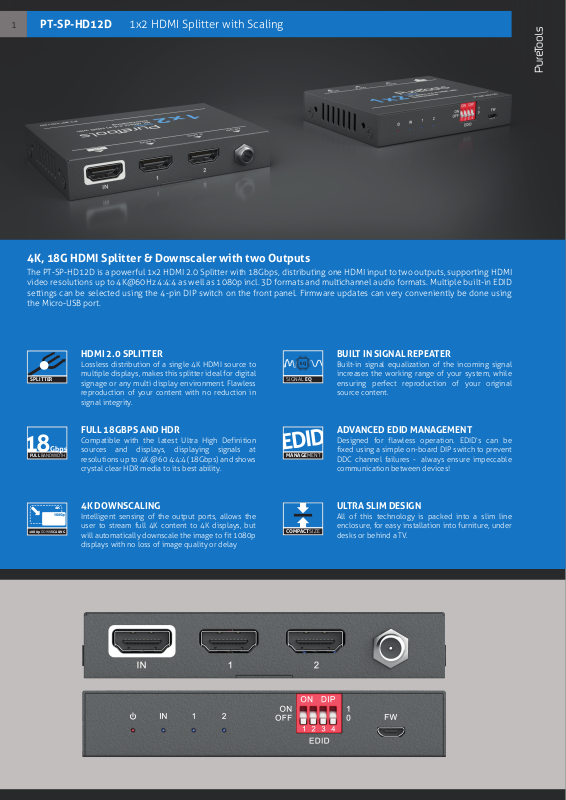

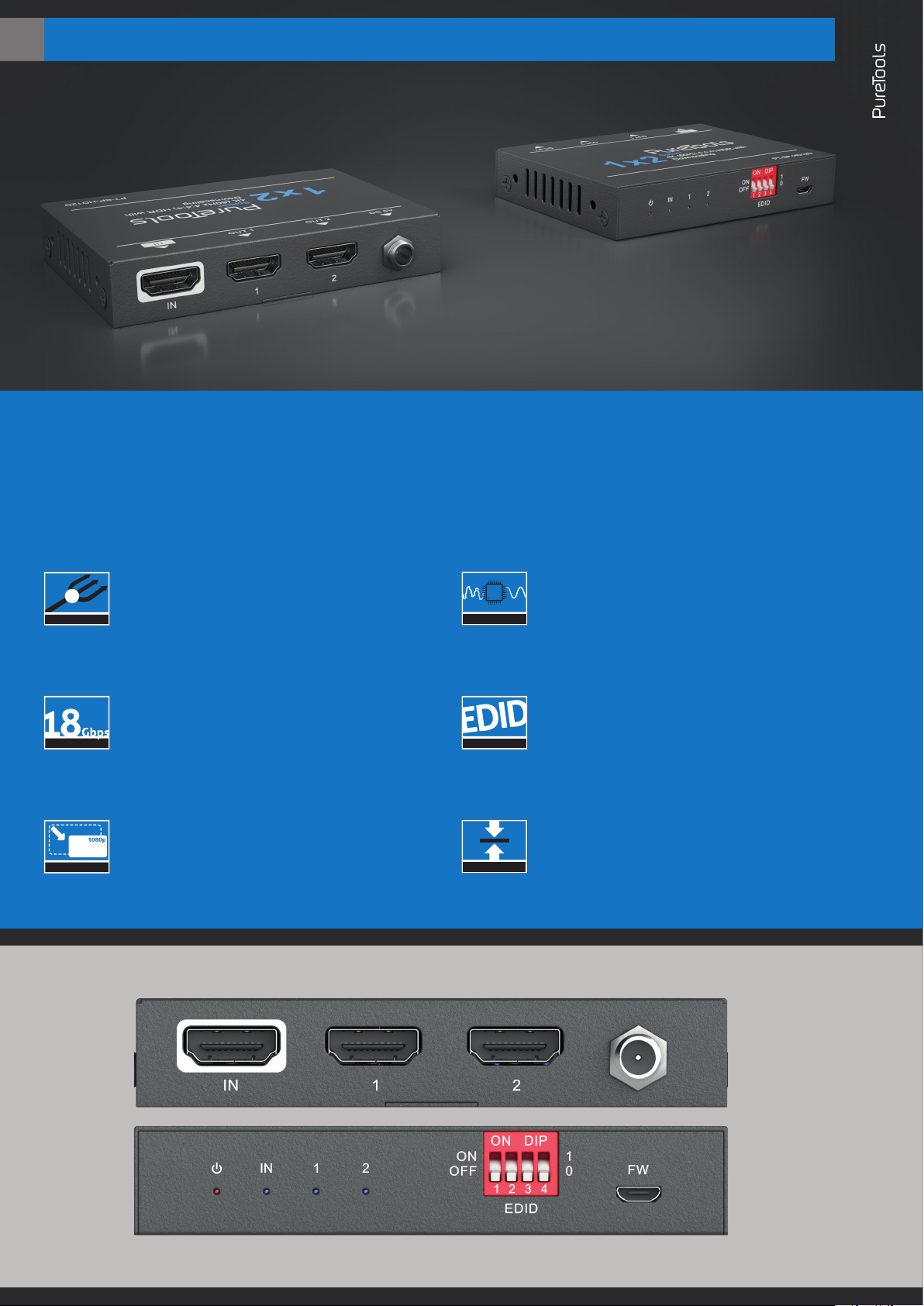

PT-SP-HD12D
PT-SP-HD12D 1x2 HDMI Splitter with Scaling
4K, 18G HDMI Splitter & Downscaler with two Outputs
The PT-SP-HD12D is a powerful 1x2 HDMI 2.0 Splitter with 18Gbps, distributing one HDMI input to two outputs, supporting HDMI
video resolutions up to 4K@60Hz 4:4:4 as well as 1080p incl. 3D formats and multichannel audio formats. Multiple built-in EDID
settings can be selected using the 4-pin DIP switch on the front panel. Firmware updates can very conveniently be done using
the Micro-USB port.
SPLITTER
FULL BANDWIDTH
4K
1080p DOWNSCALING
HDMI 2.0 SPLITTER
Lossless distribution of a single 4K HDMI source to
multiple displays, makes this splitter ideal for digital
signage or any multi display environment. Flawless
reproduction of your content with no reduction in
signal integrity.
FULL 18GBPS AND HDR
Compatible with the latest Ultra High Definition
sources and displays, displaying signals at
resolutions up to 4K @60 4:4:4 (18Gbps) and shows
crystal clear HDR media to its best ability.
4K DOWNSCALING
Intelligent sensing of the output ports, allows the
user to stream full 4K content to 4K displays, but
will automatically downscale the image to fit 1080p
displays with no loss of image quality or delay
EQ
SIGNAL EQ
MANAGEMENT
COMPACTSIZE
BUILT IN SIGNAL REPEATER
Built-in signal equalization of the incoming signal
increases the working range of your system, while
ensuring perfect reproduction of your original
source content.
ADVANCED EDID MANAGEMENT
Designed for flawless operation. EDID‘s can be
fixed using a simple on-board DIP switch to prevent
DDC channel failures - always ensure impeccable
communication between devices!
ULTRA SLIM DESIGN
All of this technology is packed into a slim line
enclosure, for easy installation into furniture, under
desks or behind a TV.
Page 2

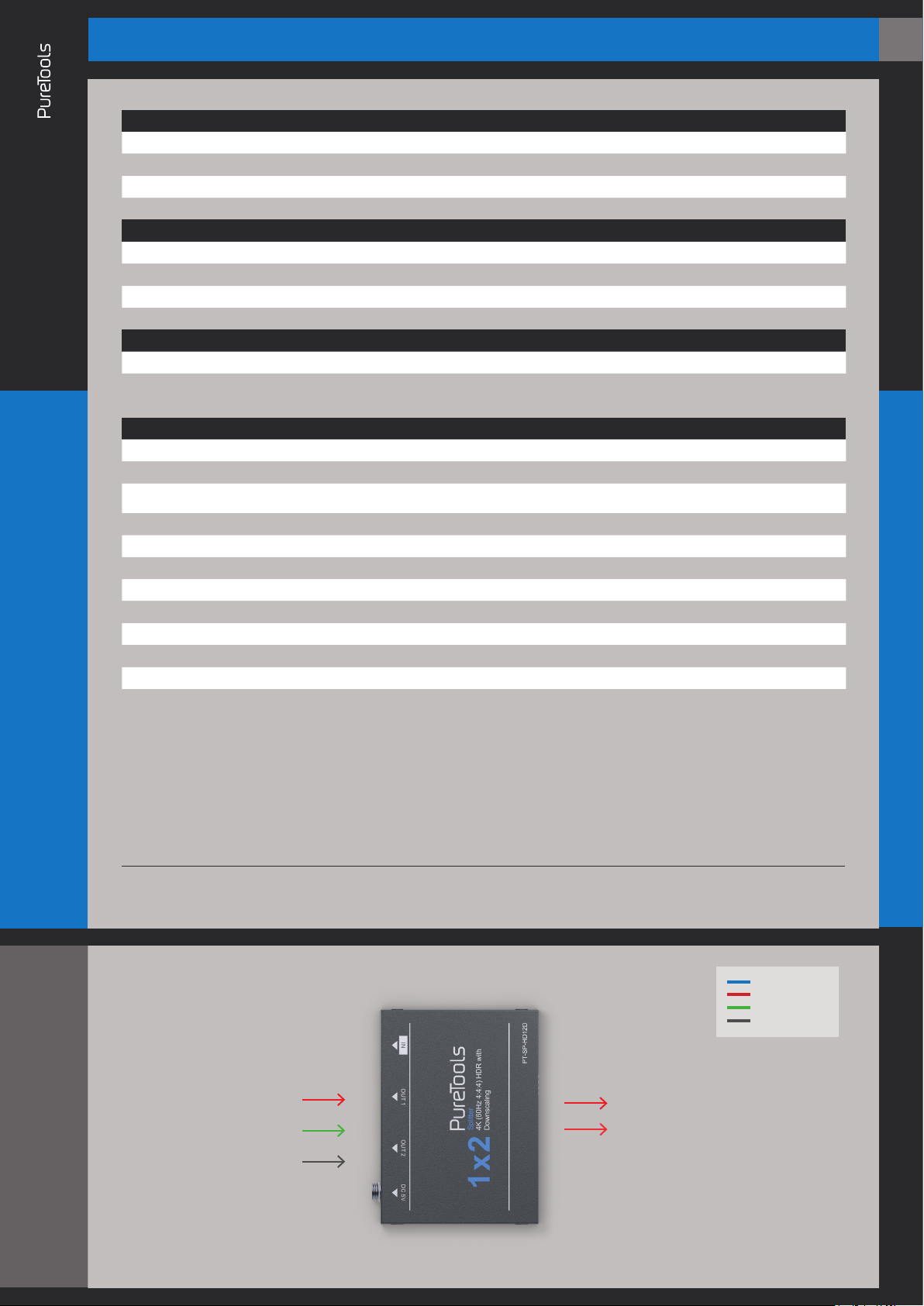

PT-SP-HD12D 1x2 HDMI Splitter with Scaling
VIDEO INPUT
Input 1x HDMI
Input Connectors 1x HDMI-A female
HDMI Input Resolution Up to UltraHD / 4K / 2160p @60Hz, 4:4:4, 8bit
VIDEO OUTPUT
Output 2x HDMI
Output Connectors 2x HDMI-A female
HDMI Output Resolution Up to 4K / UltraHD / 2160p @60Hz, 4:4:4, 8bit
CONTROL
Control Ports 1x EDID DIP-switch, 1x Micro USB
Control Connectors 1x EDID 4-pin DIP switch, 1x Micro USB port
GENERAL
HDMI Standard HDMI 2.0, HDCP 2.2
Transmission Mode HDMI
HDMI Transmission
Distance
Operation Temperature -5°C ~ +55°C
Storage Temperature -25°C ~ +70°C
Relative Humidity 10% ~ 90%
AC Adapter Input Power 100V~240V AC, 50/60Hz
Input Power 5V DC 1A
Power Consumption max. 1.5W
Dimensions 96mm x 17.6mm x 70.4mm
Net Weight 185g
4K@60Hz 4:4:4 in up to 5m, 4K@60Hz 4:2:0 in up to 15m, FullHD / 1080p in up to 20m
2
CONNECTION DIAGRAM DETAILED TECHNICAL SPECIFICATION
HDMI
FW port (USB Micro)
Power (DC Barrel Jack)
Audio
Video
Control
Power
HDMI
HDMI
VERSION 1.0 | 2019-02
