PureTools PT-SP-HD12S User Manual

User Manual

PT-SP-HD12S

User Manual

HDMI Splitter 1x2 4K (60Hz 4:2:0)

Model PT-SP-HD12S

Designed in Germany

© 2017 PureLink GmbH All rights reserved. VersionV1.0

User Manual

PT-SP-HD12S

Preface

Read this user manual carefully before using this product. Pictures shown in this
manual are for reference only. Different model layouts and specifications are subject
to the physical product.

This manual is for operation instructions only, not for any maintenance usage.
In the constant effort to improve our product, we reserve the right to make changes in

functions or parameters without prior notice or obligation.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.

Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.

Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

User Manual

PT-SP-HD12S

REACH | 1907/2006/EU

ROHS | 2011/65/EU

PureLink hereby declares that this product PureTools PT-SP-HD12S complies with

Directives 1907/2006/EU und 2011/65/EU.

EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)

PureLink GmbH hereby declares that this product PureTools PT-SP-HD12S

complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU

Declaration of Conformity is available at the following Internet address:

http://www.purelink.de/ce/4251364706923_CE.pdf

User Manual

PT-SP-HD12S

SAFETY PRECAUTIONS

To insure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.

 Unpack the equipment carefully and save the original box and packing

material for possible future shipment

 Follow basic safety precautions to reduce the risk of fire, electrical shock and

injury to persons.

 Do not dismantle the housing or modify the module. It may result in electrical

shock or burn.

 Using supplies or parts not meeting the products’ specifications may cause

damage, deterioration or malfunction.

 Refer all servicing to qualified service personnel.
 To prevent fire or shock hazard, do not expose the unit to rain, moisture or

install this product near water.

 Do not put any heavy items on the extension cable in case of extrusion.
 Do not remove the housing of the device as opening or removing housing may

expose you to dangerous voltage or other hazards.

 Install the device in a place with fine ventilation to avoid damage caused by

overheat.

 Keep the module away from liquids.
 Spillage into the housing may result in fire, electrical shock, or equipment

damage. If an object or liquid falls or spills on to the housing, unplug the
module immediately.

 Do not twist or pull by force ends of the optical cable. It can cause

malfunction.

 Do not use liquid or aerosol cleaners to clean this unit. Always unplug the

power to the device before cleaning.

 Unplug the power cord when left unused for a long period of time.
 Information on disposal for scrapped devices: do not burn or mix with general

household waste, please treat them as normal electrical wastes.

User Manual

PT-SP-HD12S

1

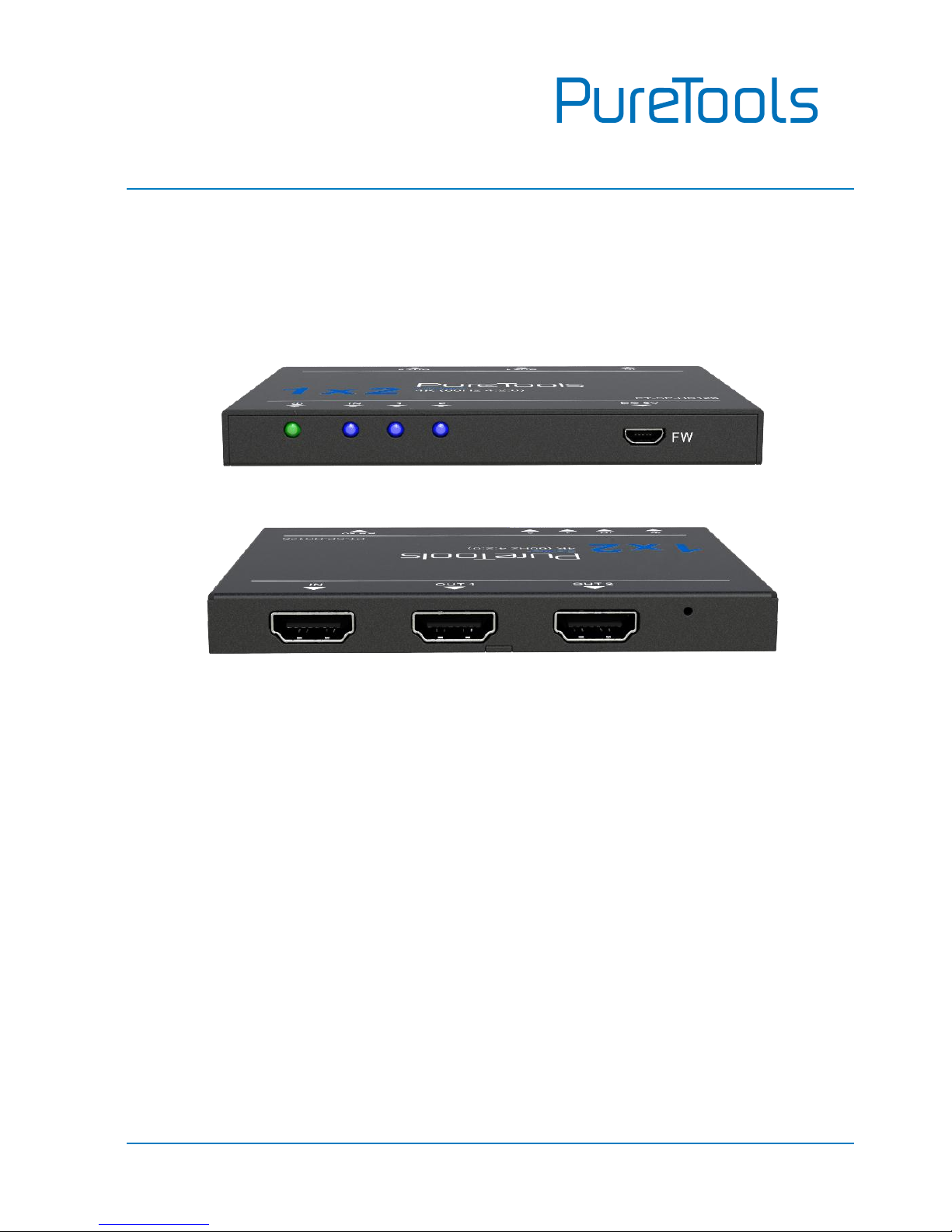

Introduction to PT-SP-HD12S

The PT-SP-HD12S is an ultra slim splitter. It provides a cost-effective mean of lossless
duplication and distribution of a single HDMI source to 2 connected displays for
simple, flexible and reliable content replication to multiple display devices
supporting resolutions up to 4K@60Hz 4:2:0.

Automatic HDCP and EDID management continuously negotiates and authenticates
communication between connected devices, ensuring simultaneous distribution of
source content to all outputs, while also maintaining signal integrity via internal
equalization and amplification to output devices.

Feature

 11mm ultra-slim design
 2 simultaneous HDMI outputs
 Supports HDMI 1.4, 4Kx2K/60Hz 4:2:0
 Powered by Micro USB
 Smart EDID management

Package Content

Please take an inventory of the package contents to ensure you have all the items
listed below. If anything is missing or damaged, please contact your distributor for a
replacement.

 1 x PT-SP-HD12S

 1 x Power Adaptor (5VDC,1A)

 1 x Velcro Tape

 1 x User Manual

User Manual

PT-SP-HD12S

2

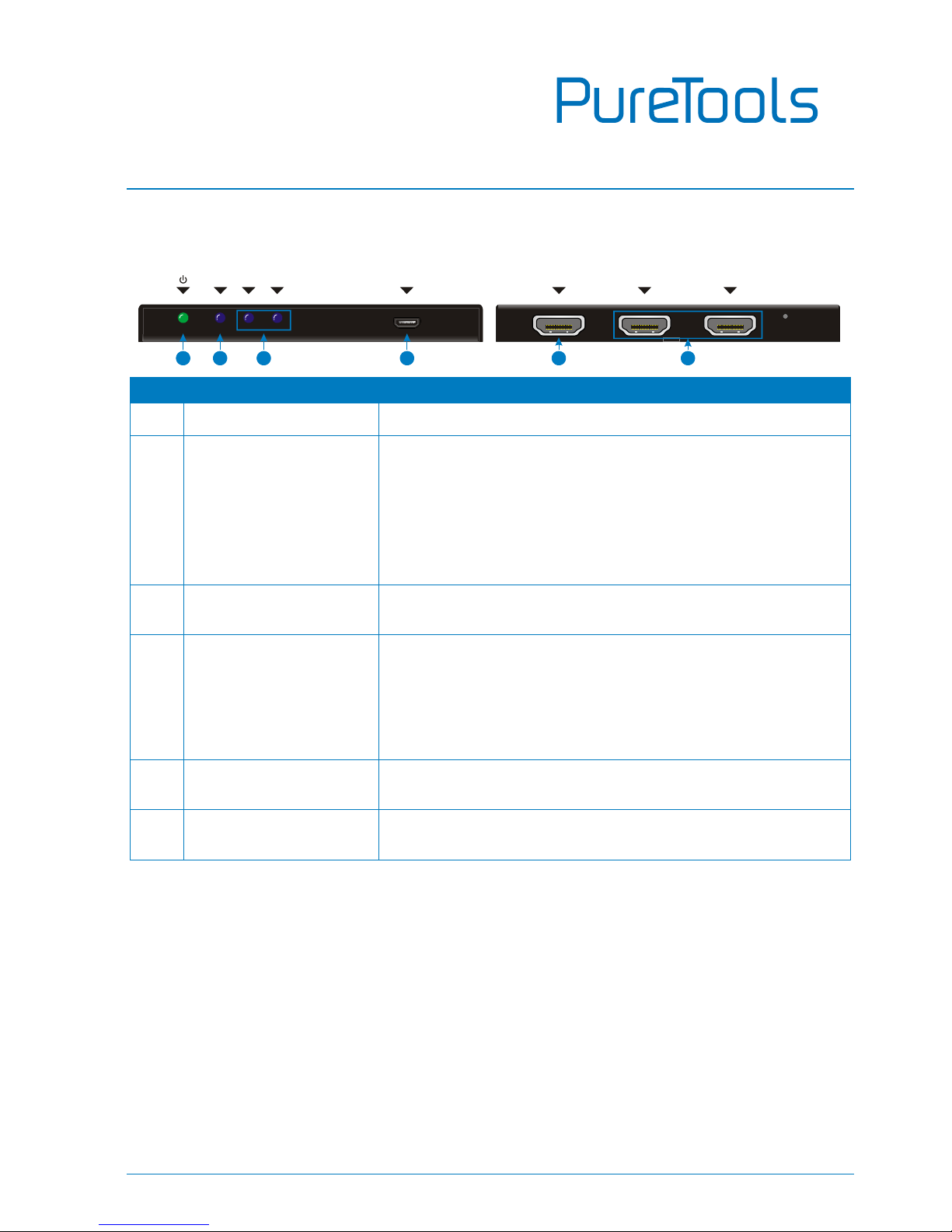

Panel Description

No.

Name

Description

①

Power LED

Illuminate green once powered on.

②

HDCP LED

Indicate the HDCP compliant status of the input
signal

 OFF: No HDMI traffic (no emage) or abnormal link.
 BLUE: Traffic with HDCP
 Blinking BLUE: Traffic without HDCP

③

Output LED

Illuminate blue when there is HDMI output,
correspond to HDMI OUTPUT 1~2 separately

④

DC 5V

Micro USB port, plug the included power adapter for
power supply or plug a U-disk to update firmware.
Note: Firmware updated need auxiliary equipment,
please contact with our after-sales department for
more details.

⑤

IN

HDMI input port, connect with source device such as
Blu-ray DVD.

⑥

OUT1& OUT2

HDMI output ports, connect to HDMI displays,
automatically capture the input resolution.

EDID Management

The Extended Display Identification Data (EDID) is used by the source device to match
its video resolution with that of the connected display. The EDID setting for the PT­SP-HD12S is defined by the first detected display.

For example, the display on Out 1 supports 4K video. When the source plays 4K
content, it will pass to all displays. If a display does not support the video content,
there will be no video output on the display.

OUT 2

OUT 1

IN

IN 21

DC 5V

FW

1

2

3 4 5

6

User Manual

PT-SP-HD12S

3

Specification

Video Input

Input

(1) HDMI

Input Connector

(1) female type A HDMI 1.4

Video Output

Output

(2) HDMI

Output Connector

(2) female type A HDMI 1.4

Video General

Max data rate

10.2Gbit/s

Max Resolution

4Kx2K@60Hz 4:2:0

HDCP

Compliant with HDCP1.4

EDID

In-built EDID management

HDMI Embedded Audio

Support Dolby D (True HD)/ DTS (HD-Master Audio)/
PCM

General

Temperature

-10~ 55℃

Reference Humidity

10% ~ 90%

Power Consumption

2.5 W (Max)

Power Supply

Input: 100VAC~240VAC, 50/60Hz; Output: 5VDC 1A

Dimension (W*H*D)

102.4mm x11.0mm x 70.4mm

Net Weight

175g

User Manual

PT-SP-HD12S

4

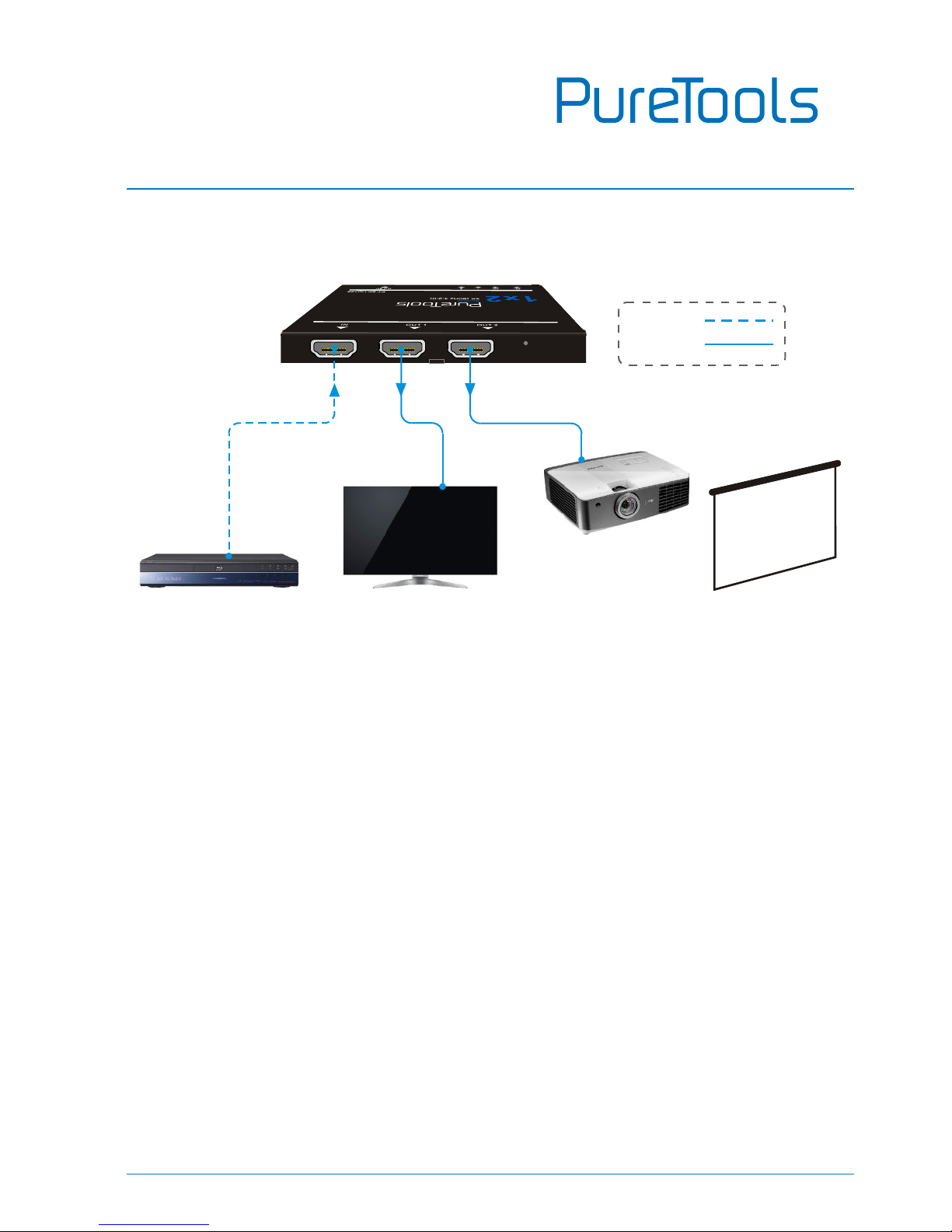

System Diagram

4K Blu-ray

HDTV

Projector

Screen

HDMI IN:

HDMI OUT:

User Manual

PT-SP-HD12S

5

After-Sales Service

If there appear some problems when running the product, please check and deal with
the problems referring to this user manual. Any transport costs are borne by the users
during the warranty.

1) Product Limited Warranty: This product will be free from defects in materials and

workmanship for two years (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is

evidence that the unit is within the Warranty period must be presented to obtain
warranty service.

2) What the warranty does not cover (servicing available for a fee):

 Warranty expiration.
 Factory applied serial number has been altered or removed from the product.
 Damage, deterioration or malfunction caused by:

 Normal wear and tear.
 Use of supplies or parts not meeting our specifications.
 No certificate or invoice as the proof of warranty.
 The product model showed on the warranty card does not match with the

model of the product for repairing or had been altered.

 Damage caused by force majeure.
 Servicing not authorized by distributor.
 Any other causes which does not relate to a product defect.

 Delivery, installation or labor charges for installation or setup of the product.

3) Technical Support: For any questions or problems, contact your distributor or

reseller and tell them the respective product name and version, the detailed
failure situation as well as the formation of the cases.

User Manual

PT-SP-HD12S

User Manual

PT-SP-HD12S

User Manual

PT-SP-HD12S

Asking for Assistance

Technical Support:

Phone: [phone] - 0
Fax: [phone] – 99

Technical Support Hours:

8:30 AM to 5:00 PM Monday thru Thursday
8:30 AM to 4:00 PM Friday

Write to:

PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
www.purelink.de

[email protected]
