Page 1
INSTALLATION AND OPERATION MANUAL
Caution: Please read this manual carefully before operating.
Damage caused by misuse is not covered by the warranty.
Page 2
SAFETY PRECAUTIONS
� Be sure to read the instructions in this section carefully before use.
� We also recommend you keep this instruction manual handy for future reference.
SAFETY SYMBOL AND MESSAGE CONVENTIONS
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could result in
WARNING!
CAUTION!
death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could result in
moderate or minor personal injury, and/or property damage.
WARNING!
WHEN INSTALLING THE UNIT
� Do not expose the unit to rain or an environment where it may be splashed by water or other liquids.
� Do not cut, kink, otherwise damage nor modify the cable. In addition, avoid using the cable in close prox-
imity to heaters, and never place heavy objects -- including the unit itself -- on the cable.
� Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface.
Doing so may result in the unit falling down, causing personal injury and/or property damage.
WHEN THE UNIT IS IN USE
� Should the following irregularity be found during use, immediately switch off the unit, disconnect the cable
and contact your dealer. Make no further attempt to operate the unit.
• If you detect smoke or a strange smell coming from the unit.
• If water or any metallic object gets into the unit
• If the unit falls, or the unit case breaks
• If the cord is damaged (exposure of the core, disconnection, etc.)
• If it is malfunctioning.
� Never open nor remove the unit housing. Refer all servicing to your nearest dealer.
� Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit.
Page 3
CAUTION!
WHEN INSTALLING THE UNIT
� Never plug in nor remove the cable with wet hands, as doing so may cause electric shock.
� When unplugging the cable, be sure to grasp the connector; never pull on the cord itself. Operating the
unit with a damaged cable may cause a fire or electric shock.
� When moving the unit, be sure to unplug the cable. Moving the unit with the cable connected may cause
damage to the cable, resulting in fire or electric shock. When removing the power cord, be sure to hold its
connector to pull.
� Do not block the ventilation slots in the unit's cover. Doing so may cause heat to build up inside the unit
and result in fire.
� Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the
heaters, or in locations generating sooty smoke or steam.
WHEN THE UNIT IS IN USE
� Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.
� Make sure that the volume control is set to minimum position before power is switched on. Loud noise
produced at high volume when power is switched on can impair hearing.
� Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate and result in a fire.
� Contact your dealer as to the cleaning. If dust is allowed to accumulate in the unit over a long period of
time, a fire or damage to the unit may result.
� If dust accumulates on the cable or connector, a fire may result. Clean it periodically. In addition, insert the
connector securely.
� Switch off the unit, and unplug the cable for safety purposes when cleaning or leaving the unit unused for
10 days or more. Doing otherwise may cause a fire or electric shock.
Page 4
DESCRIPTION
The Pure Resonance Audio PTT1 provides excellent performance and reliability from a desktop push to talk microphone
for paging, announcements, general public address, and communication applications. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, momentary locking switch, 5-foot cable, and three-pin male XLR
connector. The durable gooseneck and metal table-stand ensure the PTT1 paging microphone can withstand even the
toughest daily use in commercial environments.
FEATURES
1. Reliable and durable to withstand daily commercial use
2. Ideal for paging and announcements
3. Uni-directional dynamic gooseneck microphone
4. Die-cast zinc alloy metal table-stand
5. Dual momentary and locking push to talk switch
6. Three-pin male XLR connector
SPECIFICATIONS
Microphone Type Dynamic
Polar Pattern Uni-directional
Frequency Response 80~12,000Hz
Impedance 600Ω±30%
Sensitivity -72dB±3dB
Connector 3-pin male XLR
Housing Die-Cast Zinc
Cable 1.5M (approx. 5’)
Dimension 6.38” (162mm) x 4.8” (122mm) x 14.49” (368mm)
Weight 1.87 lbs (0.85 kg) (Without Cable)
Page 5

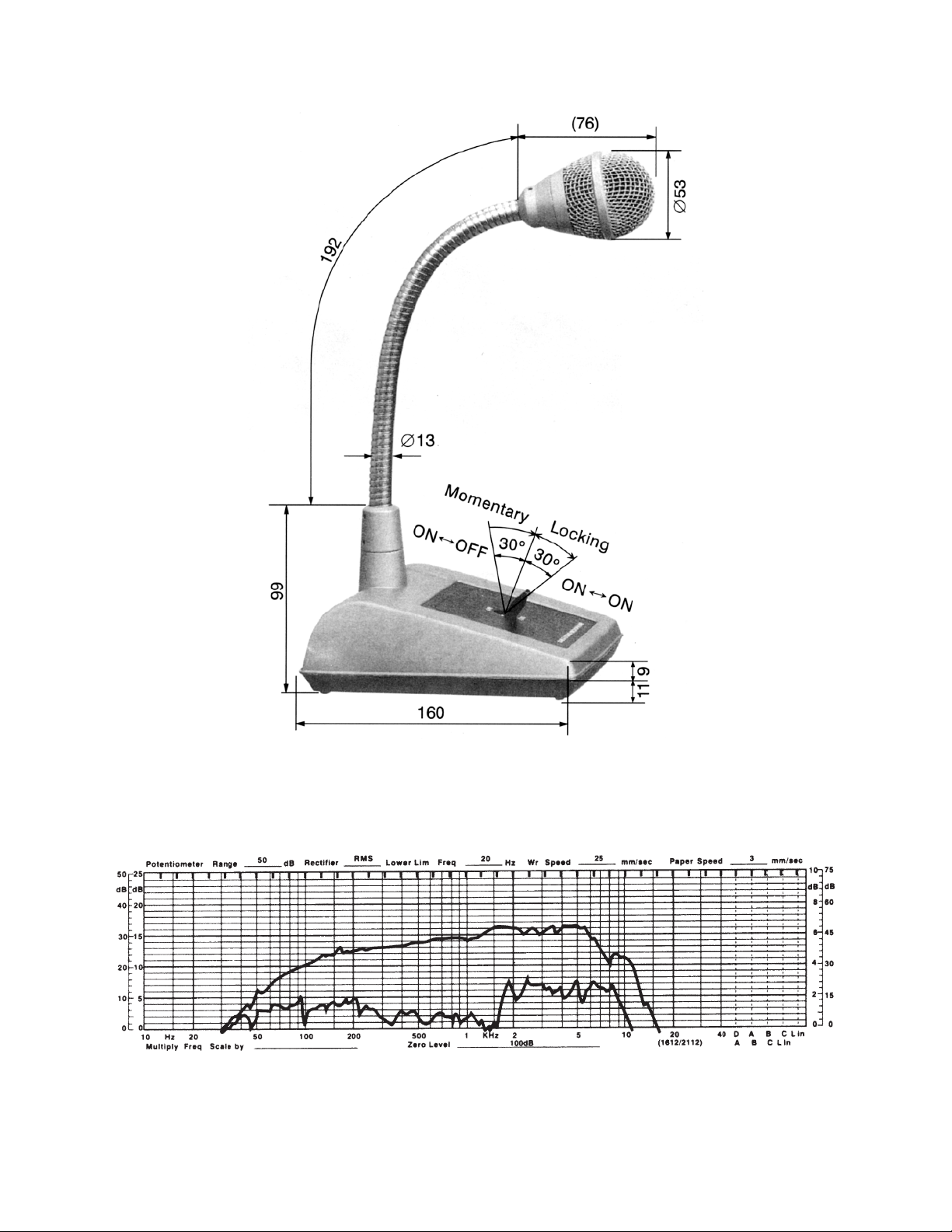

DIMENSIONS
TYPICAL FREQUENCY RESPONSE
Page 6
SERVICE
Ensure the problem is not related to operator error or system devices that are external to this unit. Information provided in the troubleshooting portion of this manual may help with this process. Once it is certain that
the problem is related to the product, contact your warranty provider as described in the warranty section of
this manual.
LIMITED WARRANTY
PRO ACOUSTICS, LLC. ("PRO ACOUSTICS") warrants this product to the original purchaser to be free from
defects in materials and workmanship (subject to the terms set forth below), for the following periods from
the date of purchase.
THIS WARRANTY COVERS THE LISTED PRODUCTS AGAINST DEFECTS IN MATERIALS OR
WORKMANSHIP FOR THE FOLLOWING PERIOD
Warranty Terms
Speakers
Amplifiers & Electronics
Microphones
Accessories
PRO ACOUSTICS will repair or replace (at PRO ACOUSTICS's option) this product or any defective parts
(excluding electronics and amplifiers) in this product.
2 Years
1 Year
1 Year
1 Year
Your authorized PRO ACOUSTICS dealer will inspect the product and, if your dealer is not equipped to
perform the repair of your PRO ACOUSTICS product, they will replace your product or return it to PRO
ACOUSTICS for repair, at their discretion. Proof of purchase in the form of a bill of sale or receipted invoice,
which is evidence that this product is within the warranty period, must be presented to obtain warranty
service.
This warranty is invalid if the factory applied serial number has been altered or removed from this product.
This warranty is invalid if this product was not purchased from a PRO ACOUSTICS authorized dealer. Cosmetic damage or damage due to accident, acts of God, misuse, abuse, negligence, commercial use, or
modification of, or to any part of, the product are not covered in this warranty. This warranty does not cover
damage due to improper operation, maintenance or installation, or attempted repair by anyone other than
PRO ACOUSTICS or a PRO ACOUSTICS dealer which is authorized to do PRO ACOUSTICS warranty work.
Any unauthorized repairs will void this warranty.
This warranty does not cover products sold as is.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF
THE CONSUMER/PURCHASER. PRO ACOUSTICS U.S.A. SHALL NOT BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS
PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU
OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO,
THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.
This warranty gives you specific legal rights. You may have other rights which vary from state to state.
Specifications may change without notice.
PURE RESONANCE AUDIO
(866) 676-7804
www.PureResonanceAudio.com
®
