S800-Direct Flow
REV ERS E OSMOS IS SYST EM
15
Type of product
Date of purchase
Name Tel
Address

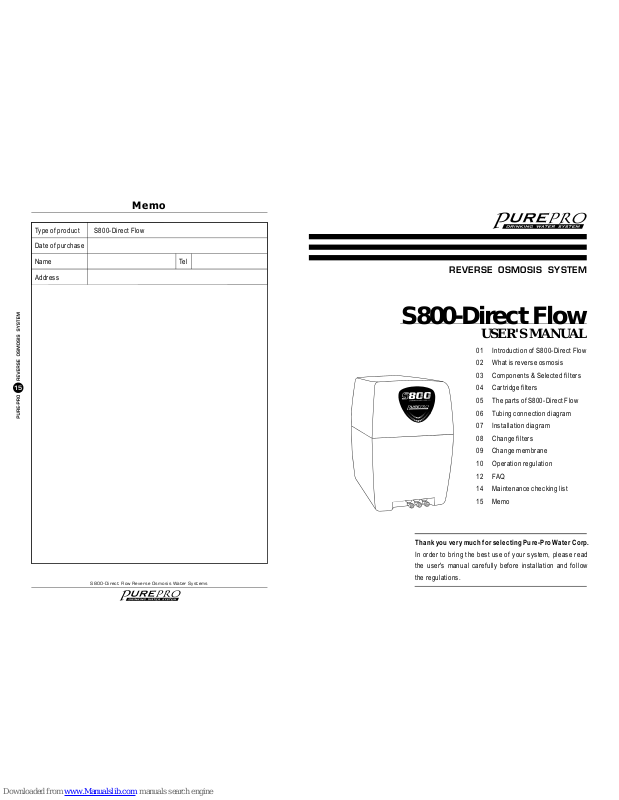

USER'S MANUAL
01 Int roduct io n of S800-Direct F low
02 What is re verse os mosis
03 Components &
04 Cartridge filters
05 The p art s of
06
07
09
10
12
14
15
Selected filters
S800-Dire ct Flow
Tubing conn ection d iag ram
Ins talla tion diagr am
08 Change filters
Change membrane
Operation reg ula tion
FAQ
Maintenan ce chec king list
Memo
Thank you very much fo r select ing Pur e-P ro Water C orp.
In order to bring the bes t use o f you r system , please r ead
the user's man ual ca ref ully b efo re insta lla tio n a nd follow
the reg ula tions .
Memo
S800-Dire ct Flow
S800- Direct Fl ow Rever se Osmos is Water Syst ems
Page 2
01 14
Introduction of S80 0-Direct Flow
S800-Direct Flow-Unlimited direct flow of fresh water
Enjoy a n un lim ite d flow of fre sh p uri fied water wit h the PurePro S800-D ire ct Flow
RO syst em. The S800-Direct Flow with it s aw ard -wi nni ng d esi gn and qu ali ty
provides a maximu m direct flo w of fresh wat er. P ure Pro New S800-Direct F low
system t hat has been carefully des ign ed with h eal th consciousness , eff ici ency,
high performance and co nve nie nce in mi nd.
Unlimited direct flow of fresh wa ter
Dir ect c ontinuous high quality pure wa ter
Water purifier with h igh f low rat e and n o sto rag e tank
A comp act u nder th e count er filtrat ion unit
‧
‧
‧
‧
Maintenance ch ecking list
‧
‧
‧
‧
‧
Production: 40 0 GPD / 1512 LPD
Wit h a high flow booster pump:
-In put in AC 110Volt, 220Volt o r 240 Volt ( 50/ 60Hz).
Ope ration pressure: 1 0 -80 p si
Dim ensions: (cm)47 (L) x 40( H) x 27 (W)
Weight : 11.5 k g
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
Specifications
Features
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
‧
The c lean lin es and graceful contours of t he br igh t white ca binet
No need of tank. No bacteria breedi ng
Complete 5 st age rev erse os mosis water filter system
Eas y-o pen lid for e asi ly ca rtridge filters replaced
Use t wist and quick-change c art rid ge de sig n makes filter changes fa st, c lean and e asy
Ele ctr onic shut-off v alve
Flo w restrictor, stainles s ste el ch eck v alve
Eur opean de signer faucet
Fee d water connector & deliv er va lve
Dra in sa ddle valve
Qui ck- conne ct fitting for easy installati on
Completely assembled & wat er le aki ng te sti ng
100 % factory tested and sterili zed r ead y for i nstallation
Hig h flow booster pump
Date
Filters
1st stage 2nd stage 3rd stage 4th stage 5th stage 6th stage
Page 3
Reverse osmosis was originally desi gne d to mak e s ea w ate r drinkable for the
nav y. It is ideal for a nyone on a low sodium die t. A n R .O. membr ane h as a pore
size m uch smaller than bac ter ia virus, or the c ryptosporidium pa ras ite . When
fun ctioning properly it wi ll re mov e all mic roo rgani sms f rom tap w ate r and p roduce
steril e wate r. Re ver se o smo sis is the r eversa l of the natural flow of o smo sis . In a
water pur ifi cation sy ste m, the go al is n ot to dilute th e salt so lut ion , but to
sep arate the pu re water from t he salt and o ther contaminants. W hen the natural
osm otic flow is reverse d, wa ter f rom t he sa lt solution i s for ced t o pass through the
mem brane i n the o pposi te directi on by a ppl ication of p res sure-t hus t he t erm
REV ERS E OSM OSI S. Throu gh thi s p roces s, we are a ble t o p rod uce pure wa ter
by sc reening out the sal ts an d other contaminants.
13 02
What is rev erse osmosis
Rever se Osmosis
Pressure
Mem brane
Water flow
Q: How will the Pure-Pro se ries water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee an d still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water a s well,
since many people drink soda, Kool- Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, Pure-Pro eliminates most of th e lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will you find the white scum on the i nside of pans after boiling water.
Q: How much water does the Pure-Pro system produce ?
Q: Don't people need minerals removed from the water ?
Q: What is the maintenance schedule for the Pure-Pro System ?
Under ideal conditions, the RE1812-200 TFC membrane is rated at 400gallons
of production per day (400gpd a t 80psi). Under the average conditions, the
consumer can expect 70-9 5 gallon s of pro duct wa ter per day. But that's still a lot
of water for the average household's drinking and cooking requirements.
Most of th e minerals that we receive are from the foods we eat. Only a very
small percentage comes from the water we drink.
The three pre-filter cartridges shou ld be c hanged every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some sy stems comes with the
Extruded carbon filter.) Failure to chang e the cartridge every 6 months may
cause chlorine to destroy the membrane.
FAQ
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
Page 4
03 12
Components & Selected fil ters
Delive r-val ve Water suppl y con nec tor
Dra in sa ddleTubi ng
Selected filters
Components
Inf ra-red cartridge f ilt er
Q: What is the guarantee on the Pure-Pro sys tem ?
Q: What factors affect t he quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved S olid s (TDS)
Mem brane
Q: Can the Pure- Pro system be connected to an extra faucet?
Q: What does the Pure-Pro series drinking water taste like?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown. The membrane has one year pro-rated gua rantee.
There are four major variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water tem perature for R. O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommended is 85 F.
3. -The higher the a mou nt of dissol ved
contaminants in the water, the low er the q uantity of water produced. A high
level of TOTAL DISSOLVED SOLID S can b e overcome wi th addit ional water
pressure.
4. -Different membranes have different c haracteristics. So me
produce more water than others; some have be tter contaminant rejection
capabilities; some h ave greater resistance to chemical abrasion for longer life.
Pure-Pro system includes RE1812-200 The T hin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
It only takes a 1/4" te e and t ubing to run the water to a refrigerator or a extra
fauce t. Some families run Pure-Pro system to all of their bathrooms.
The taste of the Pur e-Pro water depends on the amount of c ontaminants in the
tap water originally. If 95% o f dissolved mine rals and chemicals are removed,
the R.O. wate r may taste like distilled water (no minerals), bottled water (low
mineral), or na tural sp ring wat er (moderate mineral content).
0 0
0
0
FA Q
Fau cet
UVC-LIGHTING
ULTRAVIOLET WATE R STERIL IZER
Min eral cartridge filter
UV water sterilizer
TDS mete r
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
Infra-Red
Mineral
RO me mbrane x 2
Page 5
11 04
6 Mon ths
2 Years
1 Year
Cart ridge Filters
Stage 1
Stage3
Stage 2
GAC Car bon Filt er
Stage 4
TFC Membrane
Stage 6
Post Carbon Fil ter
Cartridge Filters Fil ter Desc ription
6 Mon ths
6 Mon ths
S300ST
Wit h o nly fi ve micron rating. It is effecti ve in
rem oving d irt, ru st and sa nd part icles .
S300ND
It tak es out 99 % of the chlori ne an d org anic
che mical s. I t pr ovide s en hance d re ducti on of
tas te, odo r, and col or.
200 Gallon Per Da y Mem brane s are no w ava ilabl e
in re sid enti al s izes . De sign ed to pe rfor m in
ope ratin g condi tions sim ilar to mos t st andar d
und er-th e-cou nter ho me R O units, th e TW 30181 2-200 fo rms a ti ght fit in mo st s tanda rd
res ident ial hou sings .
Thi s car bon p ost f ilter re moves ob jecti onabl e
tas tes and o dors to enha nce the qua lity of y our
dri nking wa ter. We are usi ng NS F appro ved p ost
car bon to gu arant ee the ta ste of wa ter.
5 Mic ron
Sed iment Filter
A. With everything connect ed, t urn o n the wat er ch eck f or leaks.
B. Make sure th e sto rage tank shut- off va lve is "OFF". O pen the sink
top faucet .
C. Within a few minut es (u p to 15 ) t he water wil l sta rt to run from the
faucet slowly.
D. Let the water run fo r a t lea st 30 minutes . This f lushes the carbon
fi lters on firs t tim e use.
E. Begin initial flushing.
F. Close the sin k top f auc et. The sy stem is n ow read y for u se.
G. Change filters r egula rly ever y 6 to 12 mon ths and hav e the
mem bra ne chec ked annually.
Caution
1.Do not use hot water (over 45 C)!
2.Do not freeze the machi ne!
3.Switch off e lectricit y an d water s our ce if awa y fo r more than 5 days,
and d rain out p ure w ate r.
0
Operation regu lat ion
Service Life
GAC Car bon Filt er
S300RD
It tak es out 99 % of the chlori ne an d org anic
che mical s. I t pr ovide s en hance d re ducti on of
tas te, odo r, and col or.
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
2 YearsStage 5
TFC Membrane
200 G allon Per Day Membranes are now ava ilable
in resid ent ial s izes. Designe d to p erform i n
ope ratin g co nditi ons sim ilar to m ost sta ndard
und er-th e-cou nter ho me RO u nits, the TW30181 2-200 fo rms a tig ht fit in most stand ard
res ident ial hou sings .
Page 6
3 Let t he wate r run f or at least 30
min utes. Th is fl ushes t he carbon
filter s on first time use.
05 10
Operation regulat ionTh e parts of S800-Direct Flow
The 1st stage filt er
DRAIN OUTLET INLE T
S300S TS300NDS300RD
The 3rd stag efil ter
The 2nd stag e filter
In LetDrain
Out Let
1 Plug in el ectricity.
2 Turn on water sour ce.
To RO sys tem
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
RO membran ehou sing
Pos t carbo n filte r
Housing
bracket white
Pum p
Tran sform er
Solenoid valv e
High press ure
protector
RO membran ehou sing
Page 7
Jaco
0609
Tubing connection diagram
Faucet
Drain
Input water
CON NECTI NG THE COLOR TUBING:
A. Connect the WHITE tubing to the wa ter s upp ly connector.
B. Connect the BLUE tubin g to the sin k top faucet.
C. Connect the BLACK tubi ng to t he dr ain s addle.
A
B
C
3 Loose the Jaco fitting anticlockwise. 4 Rem ove the membrane housin g
cap a nticlockw ise.
5 Remove the membrane by a pincer.
6 Install the mem bra ne by caref ull y
pushin g the spigot end into t he
socket a t the far end o f the h ousing
until co mple tely in.
Change membrane
DRAIN OUTLET INLET
S300STS300NDS300RD
c
PUREPROUSACORP., ILLI NOIS, U.S.A.
S8
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
2 Turn off water source.
To RO sys tem
1 Unplug electricity.
Page 8
07 08
Install dr ain sadd le :
Dri ll a 1/4" h ole int o
the d rain pi pe.
Mou nt drai n
sad dle ali gning
hol es.
Installation diagram
5 Dra in out 1 Gall on of w ater to
purify rep lacem ent filters.
Change filters
2 Turn off water sour ce.
To RO sys tem
Assemble membrane :
1.Remove the m embrane housing cap.
2.Replace the m embrane.
Inp ut water :
To RO sys tem
Del iver va lve
To fauc et
To wate r sourc e pipe
S300STS300NDS300RD
S300ST
3 Loose the used pre-fi lter c lockwise
and remove it.
S300STS300NDS300RD
S300ST
4 Screw in and inst all the ne w filter
anticloc kwise.
1 Unp lug elec tricity.
S800- Direct Fl ow Rever se Osmos is Water Syst ems S800- Direct Fl ow Rever se Osmos is Water Syst ems
Ins tall European c eramic faucet :
Loading...
