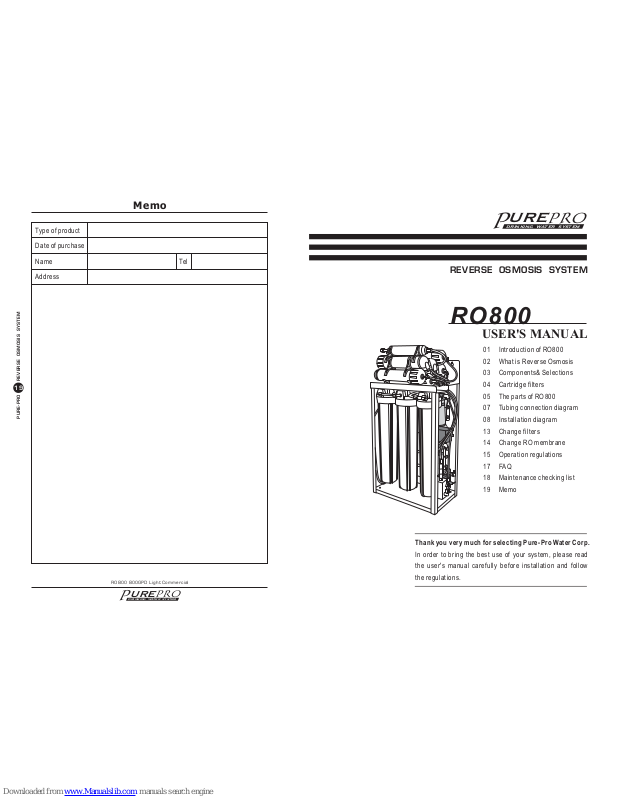

PurePro RO800 User Manual
RO800
PRO
P
URE
DRINKING WATER SYSTEM
REVERSE OSMOSIS SYSTEM
19
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO800 800GPD Light Commercial
Type of product
Date ofpurchase
Name Tel
Address
Memo
01 Introduction ofRO800
02 What isReverse Osmosis
03 Components& Selections
04 Cartridge filters
05 The parts of RO800
08 Installation diagram
13 Change filters
14 Change ROmembrane
15 Operation regulations
17 FAQ
18 Maintenance checkinglist
19 Memo
07 Tubing connection diagram
USER'S MANUAL
Thank youvery much forselecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
01
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
18
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO800 800GPD Light Commercial RO800 800GPD Light Commercial
Introduction of RO800
¨¨RO800
Small in size, but big in capacity. This free standing RO system is only 30 inch in
height. butit can produce800 gallons perday of pure water.
This system is economical and designed for commercial and residential
application. Providesafe, pure water. It is suitable for manufacturing, restaurants,
food processingindustries, shopping centers, schools and hotels.
RO800 improvesboth thetaste andquality ofyour water. It reduces up to +99% of
the chlorine, as well as objectionable odors and sediment. RO800 also reduces
the following hard water contaminants that may be present in your water: lead,
cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate,
and selenium. With your own RO water filter system under your sink working for
you twenty-four hours a day, you can have as much purified water at the touch of
a finger whenever you want it. Free to use all you want, clean, safe water on tap,
and nomore trips tothe store.
Specifications
Production: 800GPD
NSF Standardswater storage tank:20 gallons
Operation pressure: 10 -125 psi
Available in : 110 volt, 220volt, 240volt. ( 50 / 60 Hz)
Completely assembled,100% factory testedand sterilized ready for installation
Auto-micro highpressure controller
Electronic solenoidvalve
Build inelectrical shut off valve
Self-piercing saddlevalve
Drain saddlevalve
Feed waterconnector & deliver valve
Flow restrictor
1/4 inchtubing for systemconnection
Long reachattractive faucet
Weight (system & tank) : 59 kg
Dimensions: (cm)50 (L) x25 (W) x 90 (H)- System
(cm) 40(L) x 40(W) x 80(H)- 20G Tank
Date
Filters
1st stage 2nd stage 3rd stage
4th stage
12th stage
Other items
Maintenance checking list
11th stage
~
17
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
02
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO800 800GPD Light Commercial RO800 800GPD Light Commercial
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properlyit will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flowis reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screeningout the saltsand other contaminants.
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Q: What isthe guarantee on the PurePro system ?
Q: What factorsaffect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q:
Q:
The PurePro System (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
There are fourmajor variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced.Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommendedis 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane inthe world.
0 0
0
0
My RO systemis not makingany water.What should Ido?
1.Make sure youplug in electricity.
2.Check thewater supply. Make sureit's on.
3.Check ifpumps work well.
If none of above occur, please contact a technician at the nearest shop for
assistance.
1.Switch off the water supply and turn on the faucet.
2.Check the water flow from the faucet. If water stop coming out, check the
water storagetank.
Water tank still has water: the tank water pressure is under regular water
pressure give pressureto thetank.
Why can't mywater storage tank make enough water?
FAQ
