01 Introduction ofRO600
02 What isReverse Osmosis
03 Components& Selections
04 Cartridge filters
05 The parts of RO600

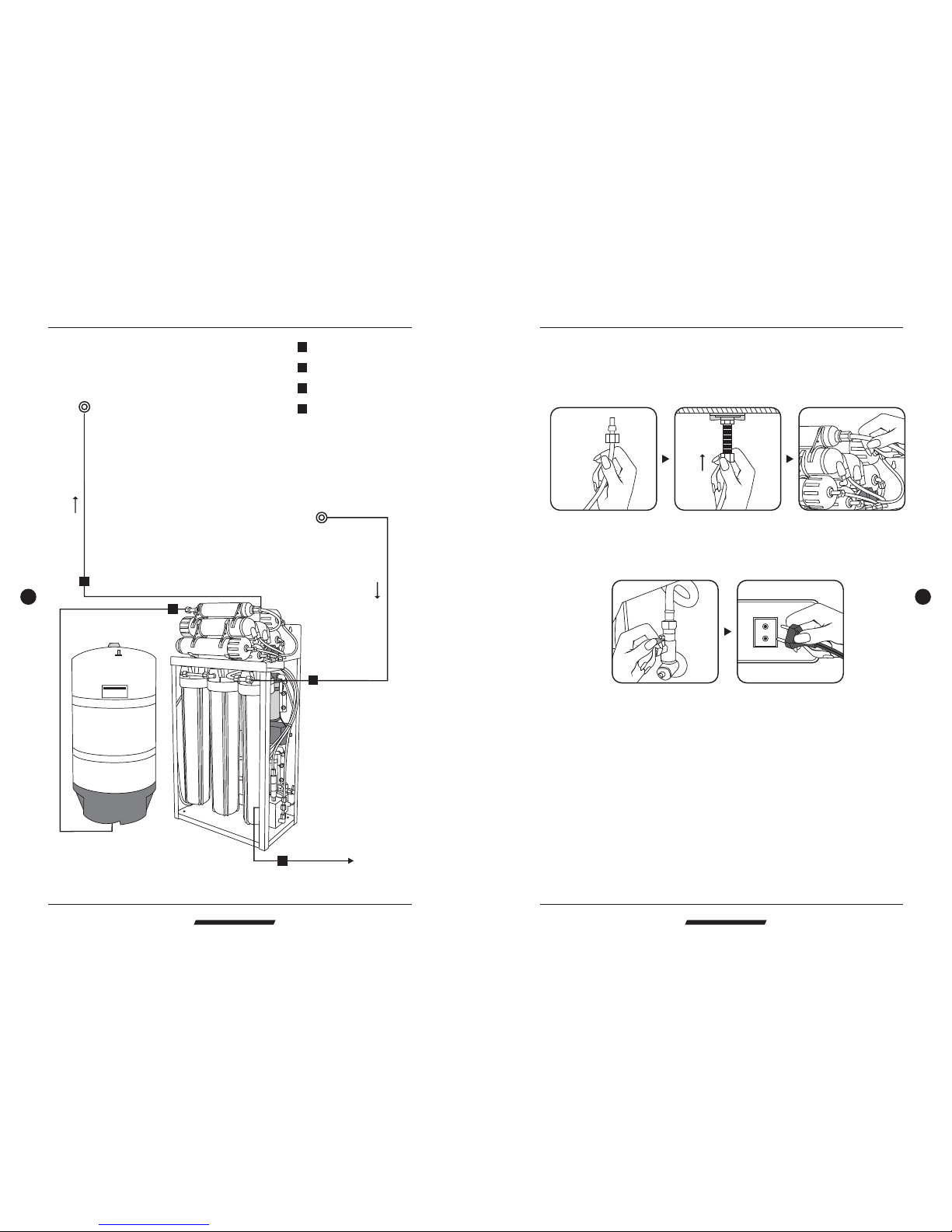

08 Installation diagram
13 Change filters
14 Change ROmembrane
15 Operation regulations
17 FAQ
18 Maintenance checkinglist
19 Memo
07 Tubing connection diagram

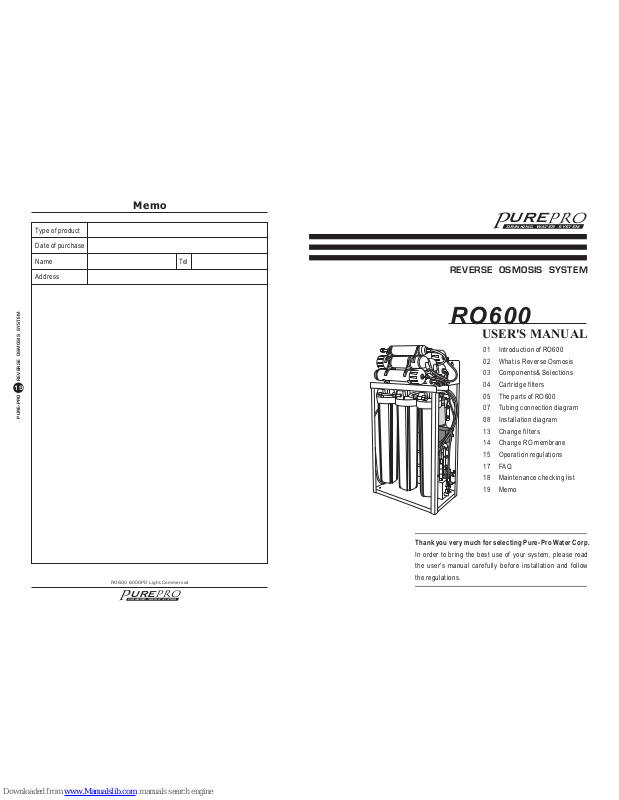

USER'S MANUAL
Thank youvery much forselecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Page 2
01
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
18
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
Introduction of RO600
Production: 600GPD
NSF Standardswater storage tank:20 gallons
Operation pressure: 10 -125 psi
Available in : 110 volt, 220volt, 240volt. ( 50 / 60 Hz)
Completely assembled,100% factory testedand sterilized ready for installation
Auto-micro highpressure controller
Electronic solenoidvalve
Build inelectrical shut off valve
Self-piercing saddlevalve
Drain saddlevalve
Feed waterconnector & deliver valve
Flow restrictor
3/8 inchtubing for systemconnection
Long reachattractive faucet
Weight (system & tank) : 50 kg
Dimensions: (cm)55 (L) x40 (W) x 97 (H)- System
(cm) 40(L) x 40(W) x 80(H)- 20G Tank
Date
Filters
1st stage 2nd stage 3rd stage
4th stage
10th stage
Other items
Maintenance checking list
9th stage
~
¨¨RO600
Small in size, but big in capacity. This free standing RO system is only 30 inch in
height. butit can produce600 gallons perday of pure water.
This system is economical and designed for commercial and residential
application. Providesafe, pure water. It is suitable for manufacturing, restaurants,
food processingindustries, shopping centers, schools and hotels.
RO800 improvesboth thetaste andquality ofyour water. It reduces up to +99% of
the chlorine, as well as objectionable odors and sediment. RO600 also reduces
the following hard water contaminants that may be present in your water: lead,
cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate,
and selenium. With your own RO water filter system under your sink working for
you twenty-four hours a day, you can have as much purified water at the touch of
a finger whenever you want it. Free to use all you want, clean, safe water on tap,
and nomore trips tothe store.
Specifications
Page 3
17
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
02
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial

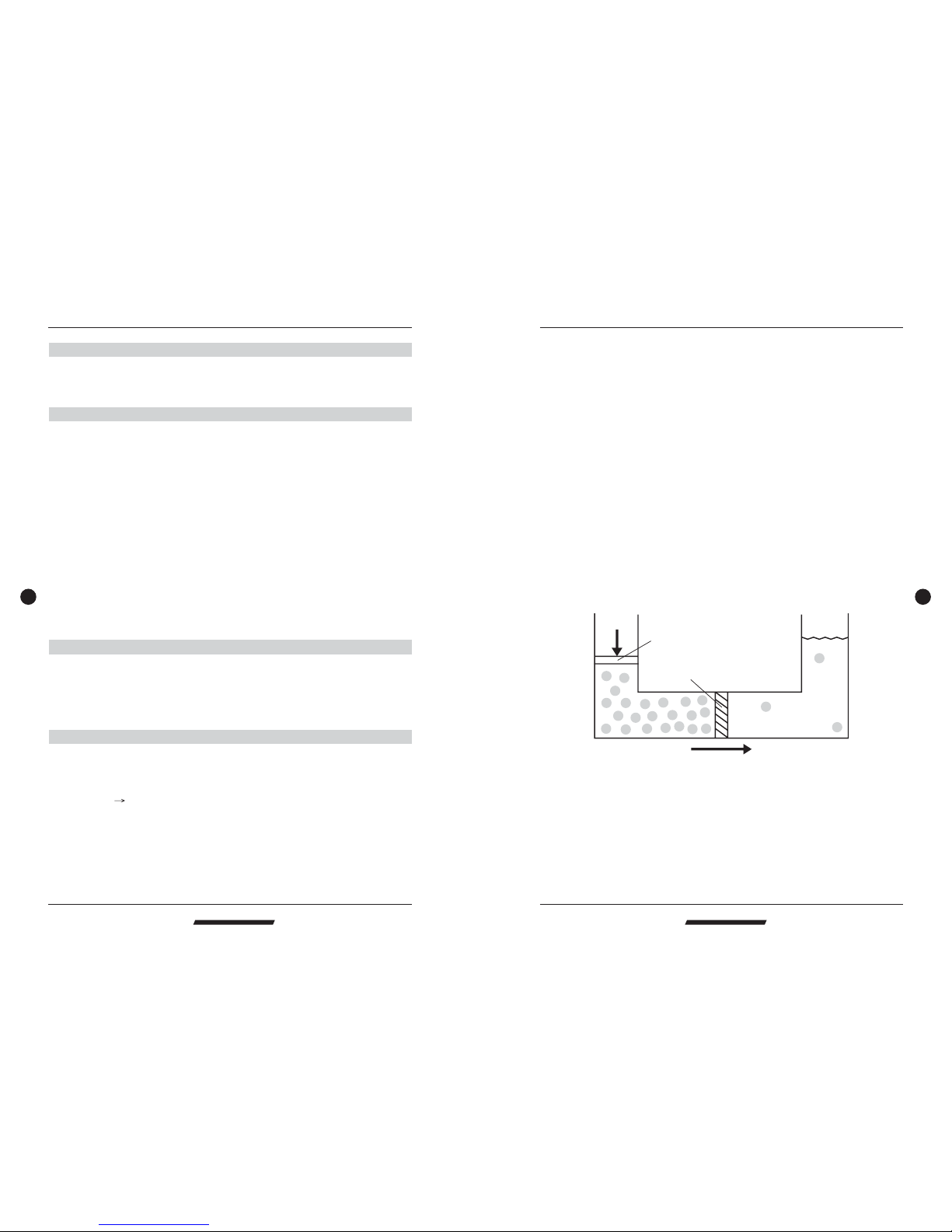

Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properlyit will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flowis reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screeningout the saltsand other contaminants.
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Q: What isthe guarantee on the PurePro system ?
Q: What factorsaffect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q:
Q:
The PurePro System (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
There are fourmajor variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced.Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommendedis 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane inthe world.
0 0
0
0
My RO systemis not makingany water.What should Ido?
1.Make sure youplug in electricity.
2.Check thewater supply. Make sureit's on.
3.Check ifpumps work well.
If none of above occur, please contact a technician at the nearest shop for
assistance.
1.Switch off the water supply and turn on the faucet.
2.Check the water flow from the faucet. If water stop coming out, check the
water storagetank.
Water tank still has water: the tank water pressure is under regular water
pressure give pressureto thetank.
Why can't mywater storage tank make enough water?
FAQ
Page 4
3/8 deliver-valve
03
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
16
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial

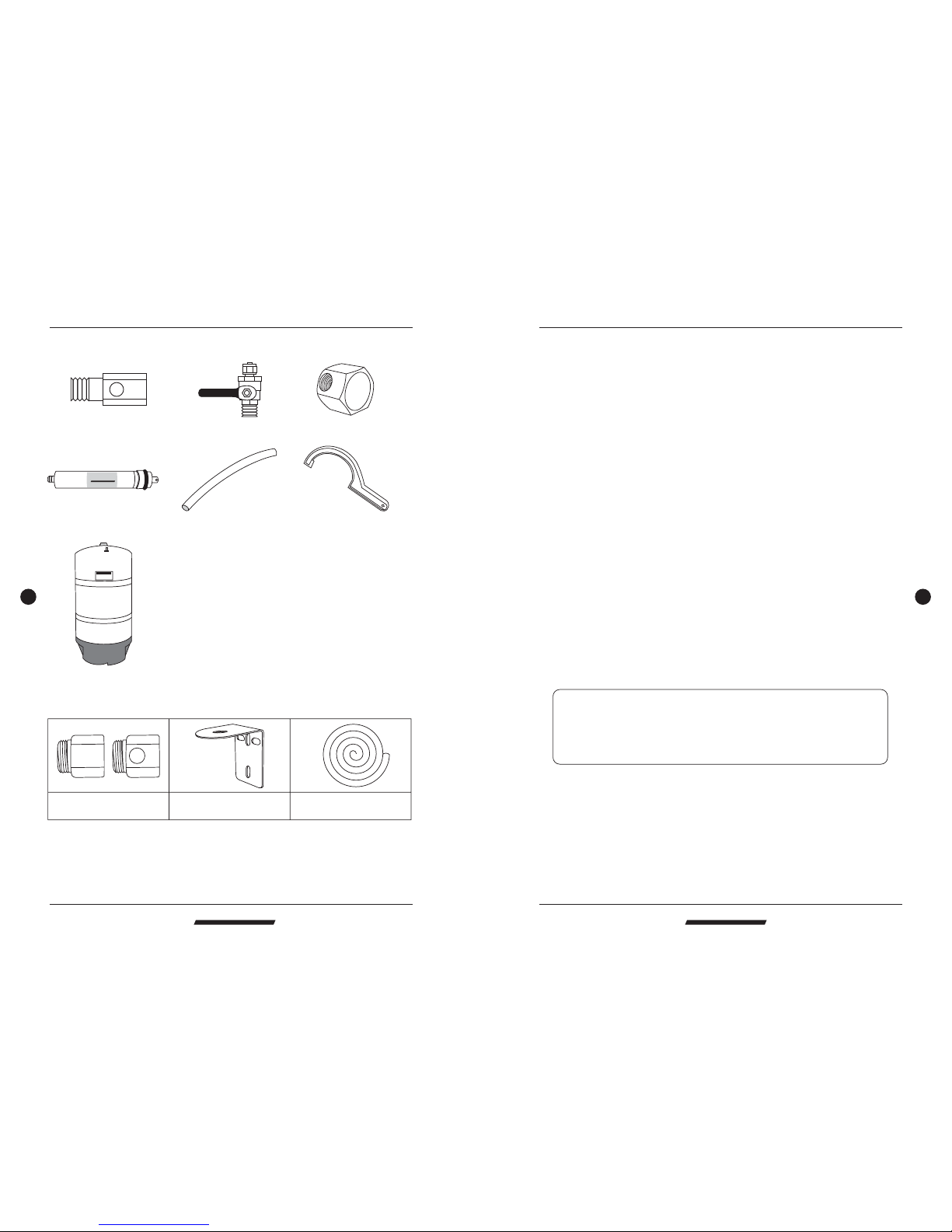

Components & Selections
20G waterstorage tank
Housing wrenchC-type
Feed waterconnector
7 meterstubing white
Tankball valve
RO membranex 6
¨Components
¨Selections
1. 6/8hot &cold water
deliver-valve
2. standingfaucet
bracket
3. 3/8extended RO
tubing white
A.With everythingconnected, turn onthe water checkfor leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters onfirst time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sinktop faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DONOT USE FIRST TANK OFWATER.***
G.Close thesink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checkedannually.
Caution
1.Do notuse hot water(over 45 C)!
2.Do notfreeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drainout pure water.
0
Operation regulation
Page 5
15
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
04
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
3 Months
1 Year
1 Year
Stage 1
Stage3
Stage 2
Stage 4~9
100GPD TFC
membrane 8pcs
Stage 10
12" InlinePost
Carbon Filters
Cartridge Filters
Filter Description
3 Months
3 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts,particles and rusts.
This granular activated carbon filter is composed
of high-performance activated carbon that
removes free chlorine, odor, organic
contaminants, pesticides and chemicals that
contributed totaste and odor.
This block carbon filter is composed of highperformance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals thatcontributed to tasteand odor.
Made in USA. High rejection TFC type membrane
with the capacity of producing 80 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium,chromium, mercury, sodium,
cadmium, fluoride,nitrite, nitrate, andselenium.
NSF approved.This postcarbon filter is designed
to improve taste. It removes any residual
impurities and odors from the tank and provides a
finer conditioningof pure water.
20" lengthBlock
Carbon Filter
Service Life
Cartridge Filters
20" length5 micron
Spun-polypropylene
Sediment Filter
20" length
Granular Activated
Carbon Filter
Operation regulation
5 For the first time operation when
changing thefilters, water should
run forat least 20minutes before
drinking it.
1 Plug in electricity.
2 Turnon watertank supply.
3 Turnon watertank
supply
4 Pumps start to function
booster
pump x3
ToRO system
Page 6
05
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
14
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
NG
WATER
SYSTEM
Jaco nuts
IN
OUT
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
IN

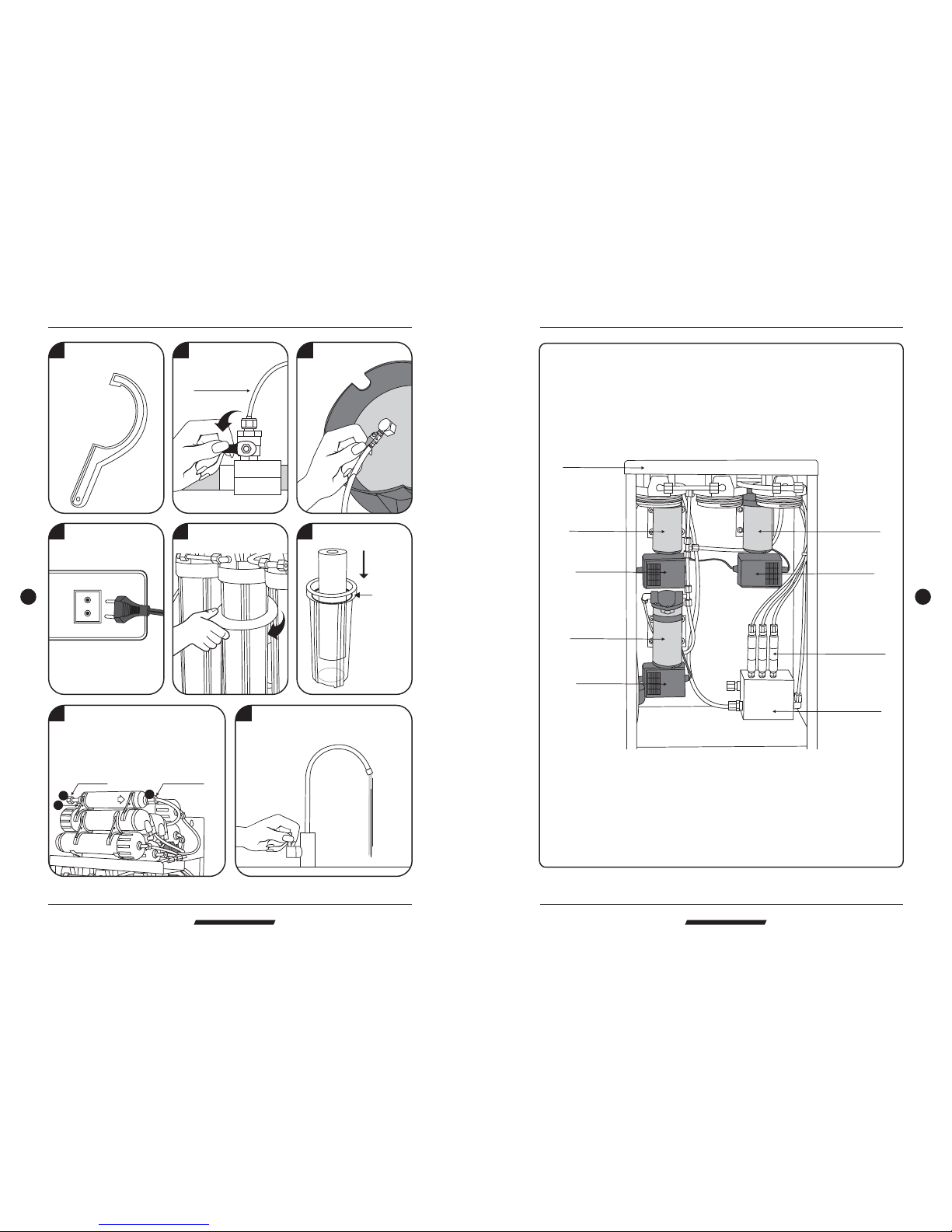

ThepartsofRO600
RO membranehousing
RO systemmain
housing bracket
Low-pressure switch
1st stagefilter housing
2nd stagefilter housing
3rd stagefilter housing
Electronic solenoidvalve
Post carbonfilter
RO membranehousing
RO membranehousing
RO membranehousing
RO membranehousing
RO membranehousing

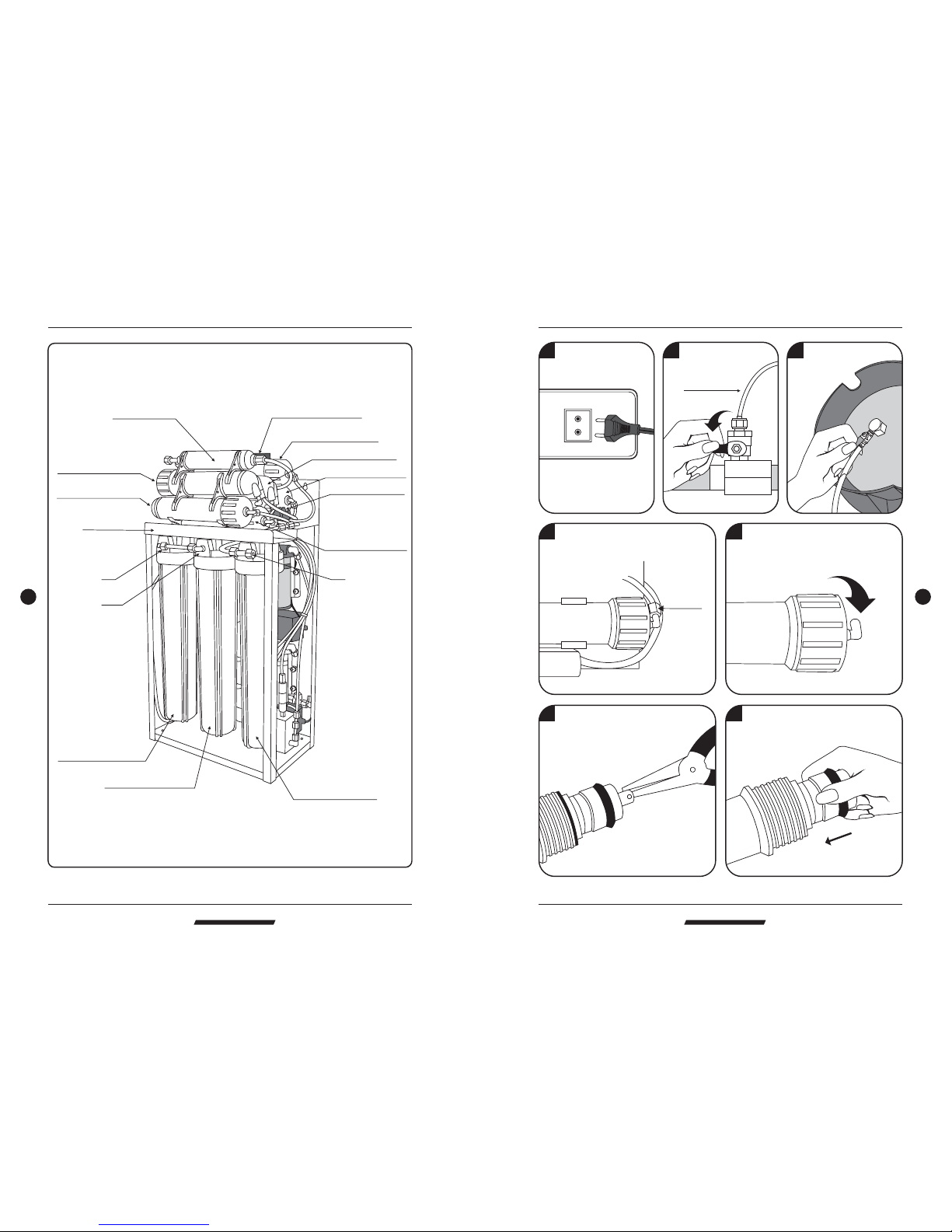

Change membrane
4 Loose the Jaco fitting anti-clockwise.
5 Open the RO membrane housing
anti-clockwise.
6 Take out the old RO membrane with
a handy tool.
7 Insert a new RO membrane.
1 Unplug electricity.
2 Switch offwater
supply.
3 Turn off water tank
supply.
ToRO system
Page 7
Totank
2
Tofaucet
1
FLOW
3
ToRO system
2 Switch off water
supply.
4 Unplug electricity.
7 Loose the fitting nuts at point 1,2,3.
Takeout the jaco fittings, and seal
it up withthe Teflon tape again.
Replace the newpre-filters.
5 Open the housings
clockwise.
3 Turnoff water tank
supply.
6 Insert new filter.
06
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
13
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
8 After changing filters, let water run
for about 15minutes to clear the
filters.
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
Booster pump
Transformer
Flow restrictor
PE brick
( fordrain out)
Booster pump
Booster pump
Transformer
Transformer
RO systemmain
housing bracket
ThepartsofRO600

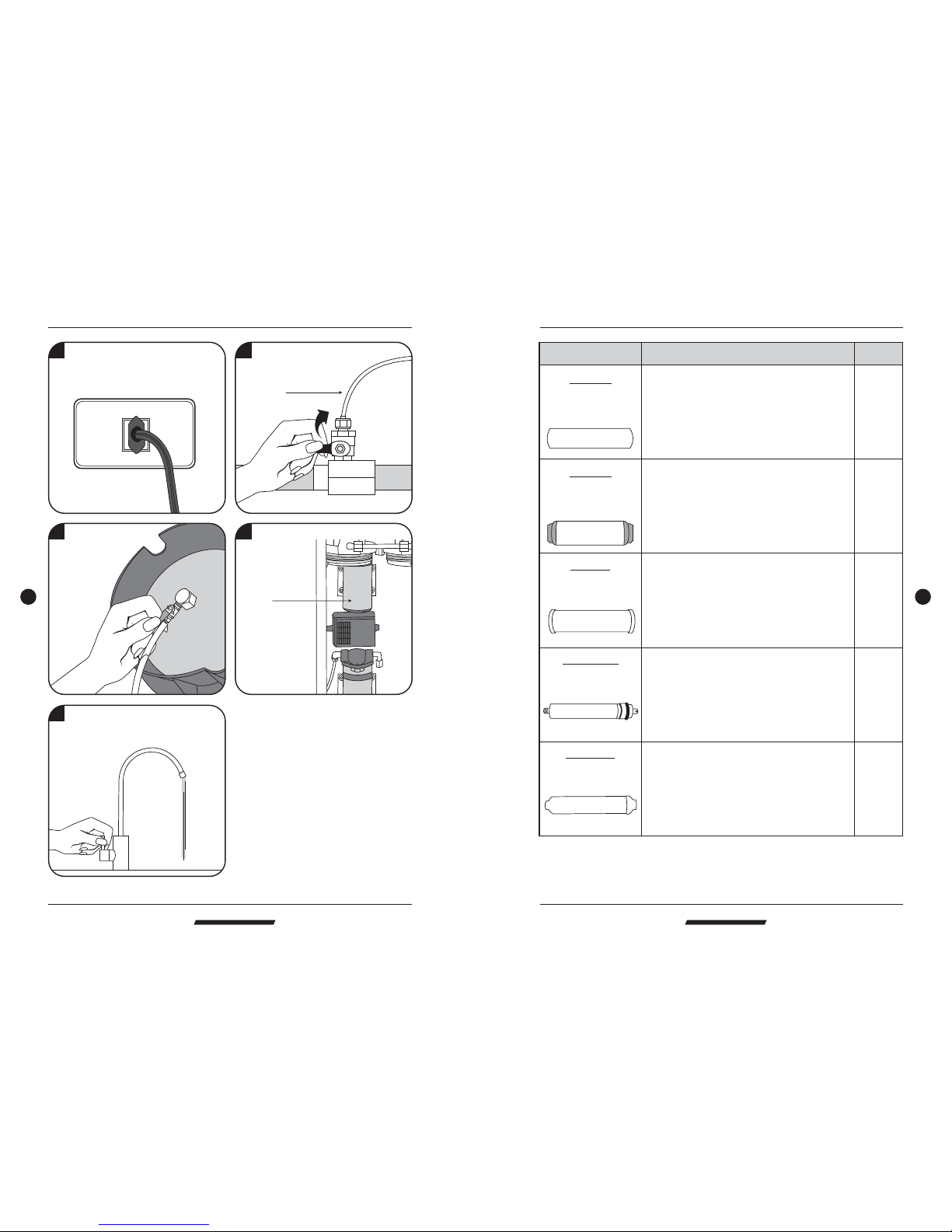

Change filters
1 Have a C-type
housing wrench
ready.
Be surethe
rubber gasket
is attached
on thehousing
Page 8
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
07 12
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
4
2
1
3
11.Take tubing white. Wear the concave type screwon tubing white and insert the
tubing shroud as shown in the picture. Connect the tubing top with the faucet
end. Then connect the tubing end to the last stage filter(as point4 onpage 07)
12.Make sure that you complete No. 1 to No. 11. If so, switchon water supply and
plug inelectricity.
PS. Donot use drinkwater from thefirst made waterin the tank.
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
Tubing connection diagram
1
2
3
4
In
Towater storage tank
Drain out
Tofaucet
Faucet
Tank
Drain out
Input water
Installation diagram
Page 9

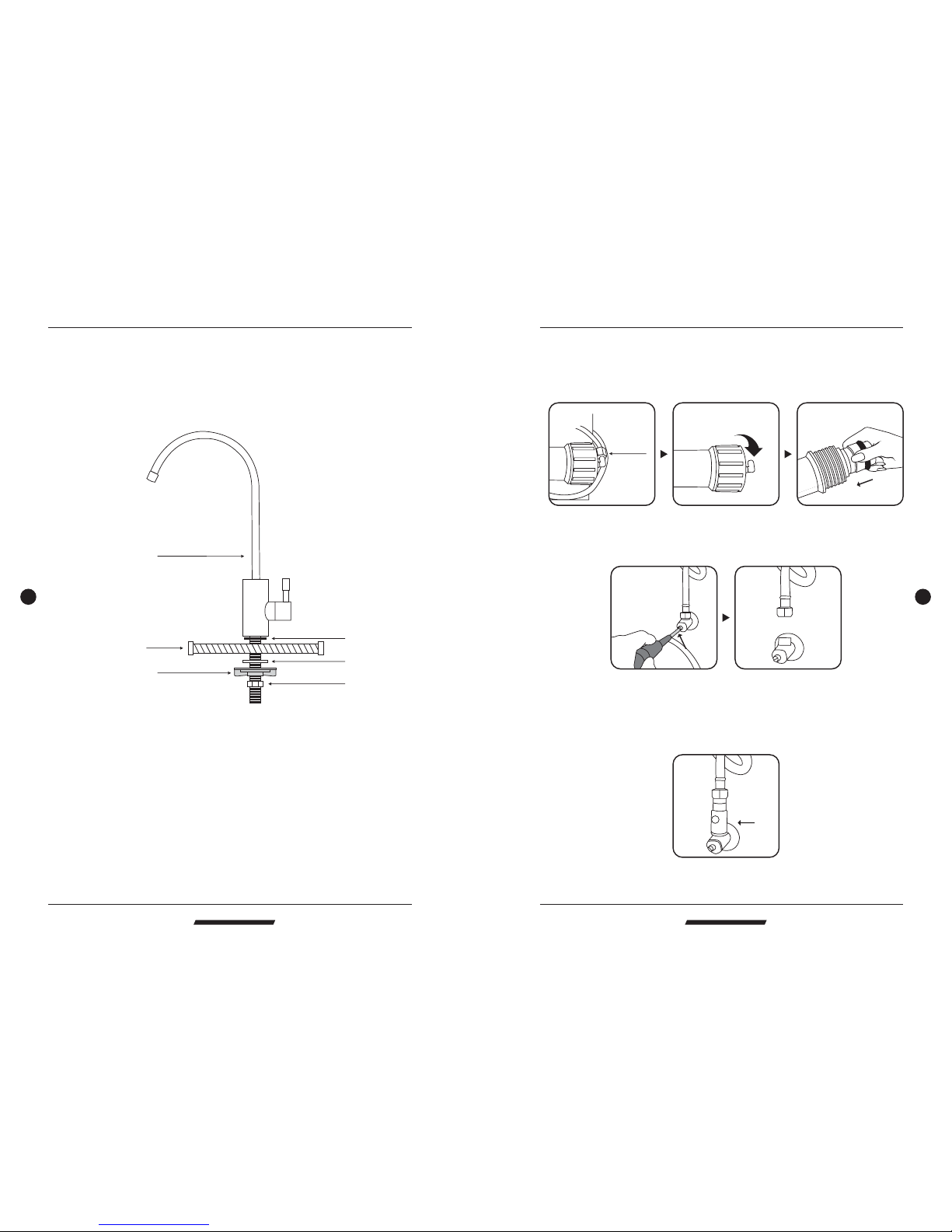

10.Take out the faucet and its components. Install the faucet and the rubber
gasket to the kitchenware table. Install the rest of component as shown in the
picture.
PRO
P
URE
DRINKING WATER SYSTEM

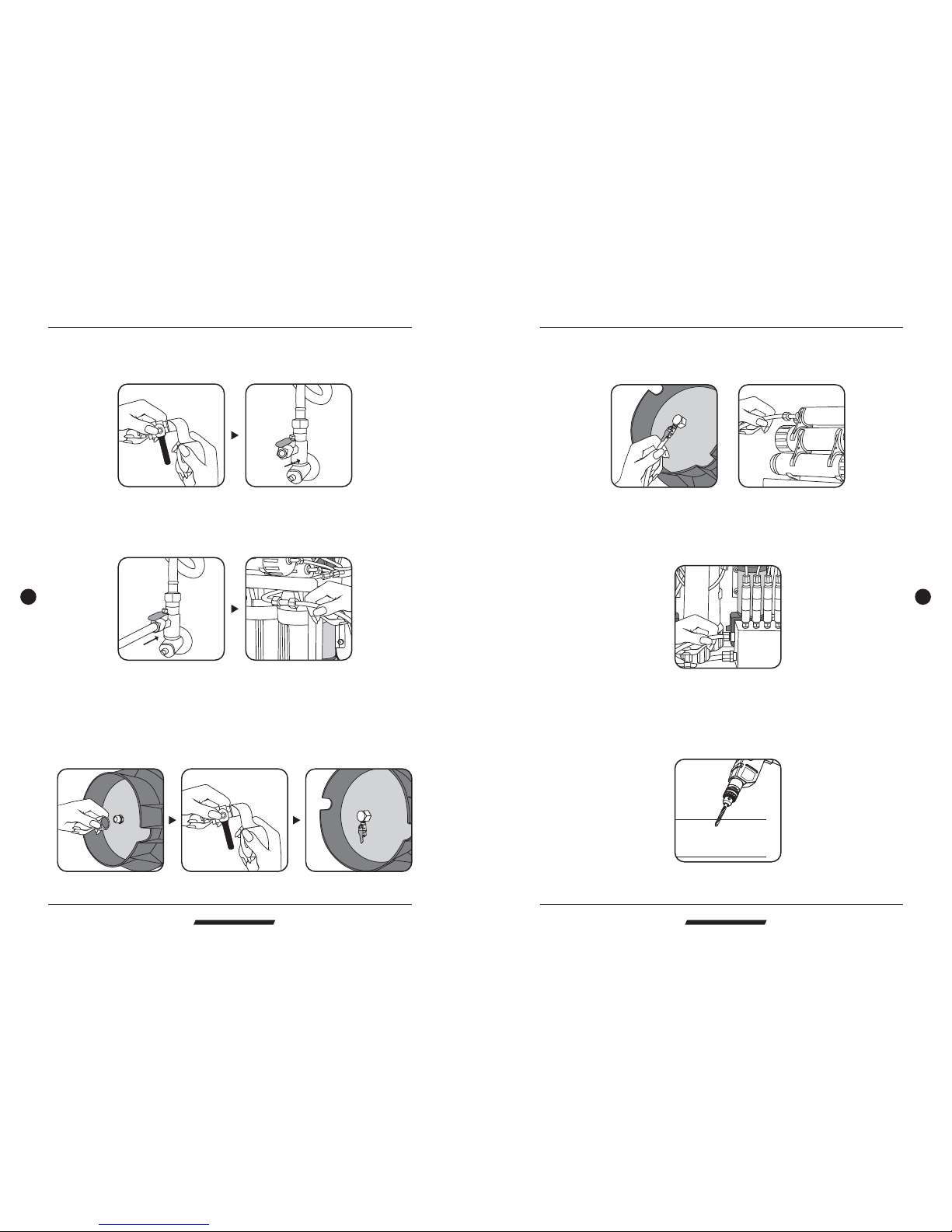

1.Loosen the fitting nuts and the cap from the RO membrane housing as shown in
the picture. Unpack the RO membrane and insert to its housing (rubber gasket
towards to the open end). When completed, tighten up the cap with the RO
membrane housingand the jacofittings.
2.Turn off the water supply. Loosen the stainless steel pipe connector.
PRO
NG
WATER
SYSTEM
3.Get feed water connector and connect it to the stainless steel pipe as in the
picture 2.
PRO
P
URE
DRINKING WATER SYSTEM
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
11 08
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
Jaco nuts
Cold
Installation diagramInstallation diagram
Faucet
Kitchenware table
Twisted plastic locker
Rubber gasket
Flat metalpiece
Screw locker
PS. To suit your kitchenware table, you can choose to have twisted plastic locker
or screwlocker to be installed for yourfaucet.
Page 10
6.a.Unpack water storage tank. Take tank ball valve and deliver valve. Seal the
female jacofitting as attachedon the watertank with Teflon tape for 15 circles.
(picture 1).Take tank ball valve and tighten it up with the femalejaco fitting.
b.Use Telfon tape again to seal the another deliver valve. (picture 2). Then
tighten itup with thetank ball valve.
8.Taketubing white again,connect it withthe drain out(as point 3on page 07)
4.Get deliver valve and seal it with Teflon tape for 14 circles. Then connector it
with thefeed water connector.
5.Get tubing white, connect it with deliver valve and the inlet water supply (as
point 1on page 07)
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
7.Take tubing white, connect it to the deliver valve and the inlet water to storage
tank (aspoint 2 onpage 07)
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
09 10
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
RO600 600GPD Light Commercial RO600 600GPD Light Commercial
9.Use an electric drill and drill an approximately 1 cm hole through the
kitchenware table.
Installation diagramInstallation diagram
Loading...
