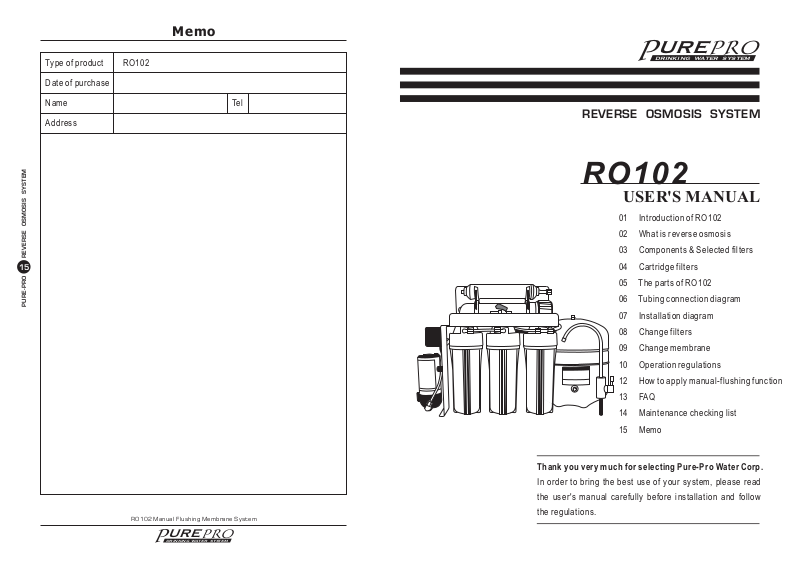

USER'S MANUAL
01 Introduction of
02 What is reverse osmosis
03 Components &
04 Cartridge filters
05 The parts of
06
Tubing connection diagram
07
Installation diagram
RO102
Selected filters
RO102
RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
08 Change filters
09
Change membrane
10
Operation regulations
12 How to apply manual-flushing function
13 FAQ
14
Maintenance checking list
15
Memo
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Introduction of RO102
Maintenance checking list
¨¨RO102 Manual Flushing Membrane System
Comply with unique RO technology and built-in manual flushing membrane,
RO102 brings you premium water quality at your finger tips! With this special
easy-operated built-in manual flushing membrane function that can extend the
service life of the membrane and wash away carbon fines when changing filters.
RO102 provides a quickest way to know the quality of your water. It is capable to
remove over 95% of total dissolved solids, +99% of all organics, and +99% of all
bacteria. RO105 meets all different water quality needs.
-
Specifications
Production: 80 GPD / 302 LPD
Available in 110Volt, 220Volt Or 240Volt (50/60Hz) with a transformer
Safety approval: TUV(EN60950) & CE MARK
Special technical designs (Patented No.068018. flush membrane )
100% factory tested and sterilized ready for installation
EVERSE OSMOSIS SYSTEM
R
01
Operation pressure: 5 -80 PSI
3.2 gallons NSF standards water storage tank
FDA approved polypropylene made flat cap housing(double O'ring)
Safety Approval: TUV (EN60950) & CE MARK
PURE-PRO
Automatic shut-off valve
Flow restrictor
Stainless steel check valve
Long reach attractive faucet
Feed water connector & deliver valve
Drain saddle valve
Four color coded 1/4 inch tubing for system connection
Completely assembled & water leaking testing
Dimensions: (cm) 47 (L) x 20 (W) x 42(H) - System
(cm) 28 (L) x 35 (W) x 28(H) - Tank
Weight: 12 Kg- System
4Kg-Tank
Filters
Date
1st stage 2nd stage 3rd stage
4th stage 5th stage
Other items
EVERSE OSMOSIS SYSTEM
R
14
PURE-PRO
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
URE
DRINKING WATER SYSTEM
P
PRO
FAQ
What is reverse osmosis
Q: What is the guarantee on the Pure-Pro system ?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect the quantity and the quality of the water production?
There are four major variables to consider:
Pressure
1. -The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
Temperature
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommended is 85 F.
Total Dissolved Solids (TDS)
3. -The higher the amount of dissolved
0 0
0
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
EVERSE OSMOSIS SYSTEM
R
13
pressure.
Membrane
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PURE-PRO
Pure-Pro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tapwater and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
0
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
EVERSE OSMOSIS SYSTEM
R
02
Reverse Osmosis
Pressure
Membrane
PURE-PRO
Q: Can the Pure-Pro system be connected to an extra faucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run Pure-Pro system to all of their bathrooms.
Q: What does the Pure-Pro series drinking water taste like?
The taste of the Pure-Pro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water (moderate mineral content).
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
Water flow
URE
DRINKING WATER SYSTEM
P
PRO

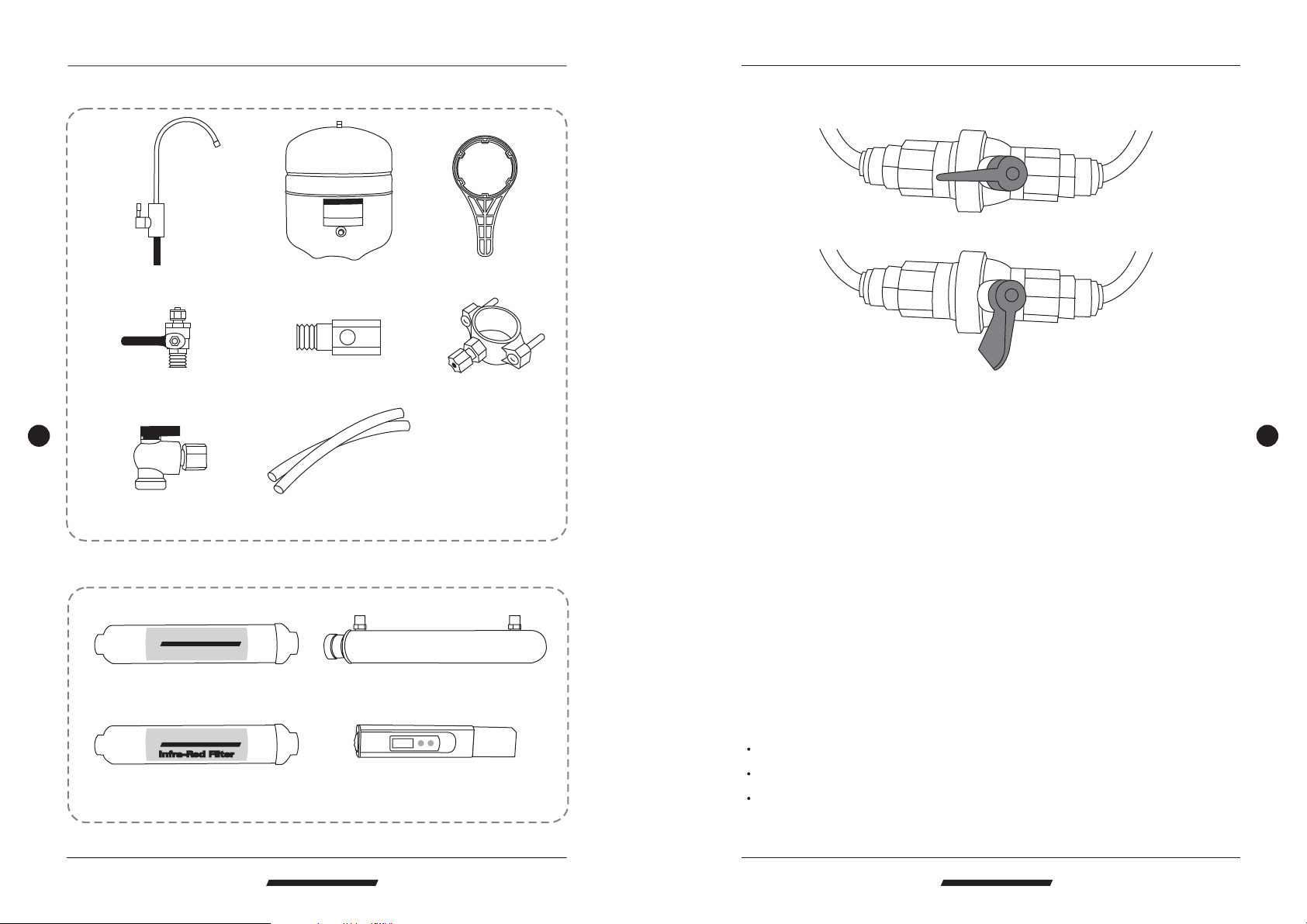

Components & Selected filters
¨Components
How to apply manual-flushing function
Open
European ceramic faucet
Deliver-valve
EVERSE OSMOSIS SYSTEM
R
03
PURE-PRO
Tank ball shut-off valve Four color coded 1/4 inch
¨Selected filters
tubing for system connection
URE
PRO
DRINKING WATER SYSTEM
P
Mineral Filter
Mineral cartridge filter
3.2G water storage tank
Water supply connector
UVC-LIGHTING
ULTRAVIOLET WATER STERILIZER
UV water sterilizer
Housing wrench
Drain saddle
Close
When need to apply this function, simply turn manual flushing switch on.
Flushing for 30 seconds then turn switch back.
Suggestion for applying manual flushing function
We suggest youapply manual flushing function when:
A.This is the first time you start to use RO102 system.
B.It's time to change filters.
Applying manual flushing function regularly (once a week) is also recommended.
*Cautions!
EVERSE OSMOSIS SYSTEM
R
12
PURE-PRO
URE
PRO
DRINKING WATER SYSTEM
P
Infra-Red Filter
Infra-red cartridge filter
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
P
URE
DRINKING WATER SYSTEM
PRO
T.D.S
TDS meter
Keep the system running when manual flushing function is on.
Have manual flushing function on for 30 seconds.
Do remember to turn the manual flushing switch back after finishing flushing.
URE
DRINKING WATER SYSTEM
P
PRO
Operation regulation
Cartridge Filters
EVERSE OSMOSIS SYSTEM
R
11
PURE-PRO
A.With everything connected, turn on the water check for leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink top faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOT USE FIRSTTANK OF WATER.***
G.Close the sink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
1.Do not use hot water (over 45 C)!
0
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.

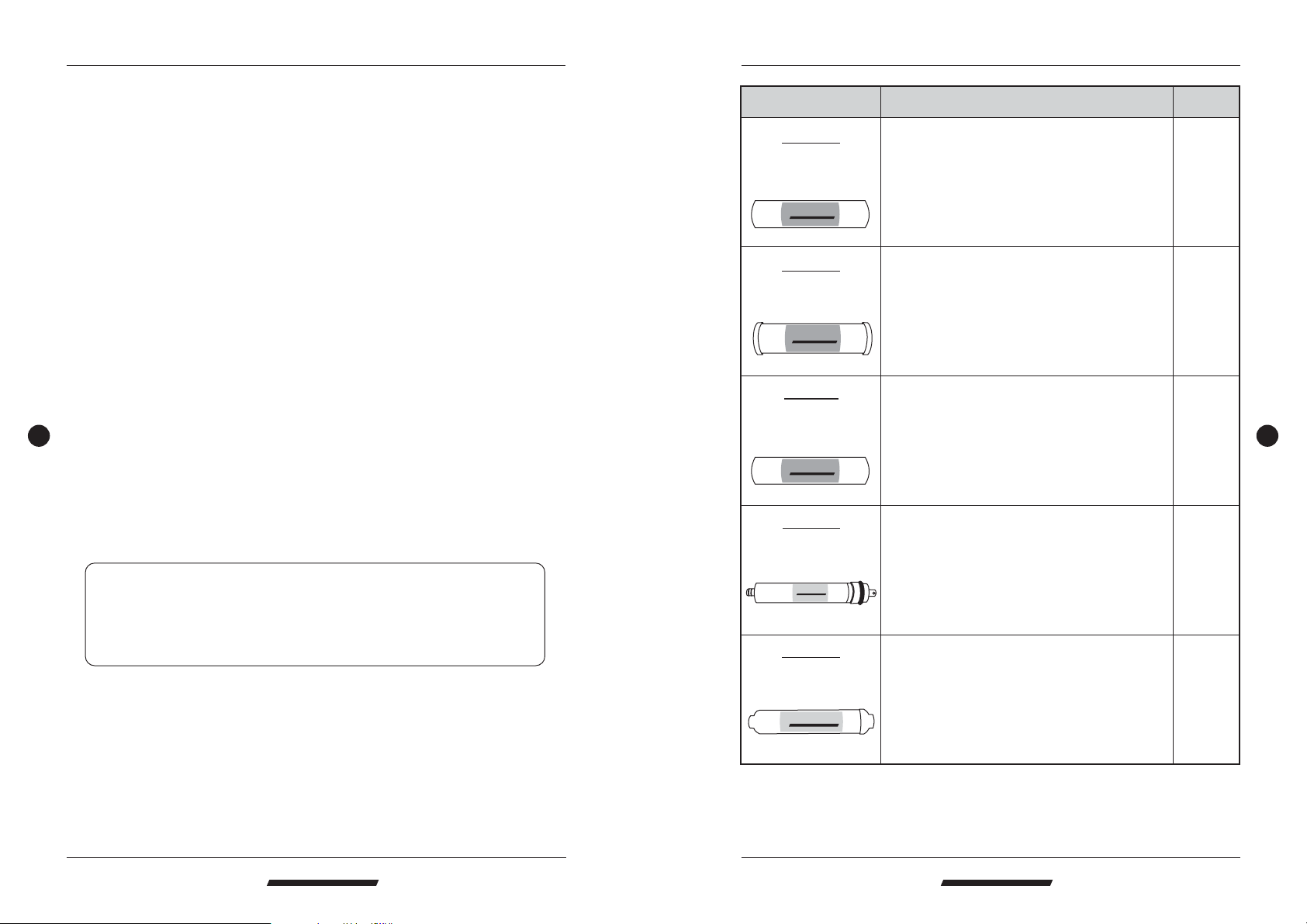

Cartridge Filters
Stage 1
5 Micron
Sediment Filter
URE
PRO
DRINKING WATER SYSTEM
P
Stage 2
Block Carbon Filter
URE
PRO
DRINKING WATER SYSTEM
P
Stage3
1 Micron
Sediment Filter
URE
PRO
DRINKING WATER SYSTEM
P
Stage 4
TFC Membrane
URE
PRO
DRINKINGWATER SYSTEM
P
Stage 5
Post Carbon Filter
URE
PRO
DRINKING WATER SYSTEM
P
Filter Description
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particlesand rusts.
This block carbon filter is composed of highperformance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals that contributedto taste and odor.
This 1micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particlesand rusts.
Made in USA. High rejection TFC type membrane
with the capacity of producing 80 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium, chromium, mercury, sodium,
cadmium, fluoride, nitrite,nitrate, and selenium.
NSF approved. This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors from the tank and provides a
finer conditioning ofpure water.
Service Life
6 Months
6 Months
6 Months
4 Years
1 Year
EVERSE OSMOSIS SYSTEM
R
04
PURE-PRO
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
URE
DRINKING WATER SYSTEM
P
PRO
Micro
FUL

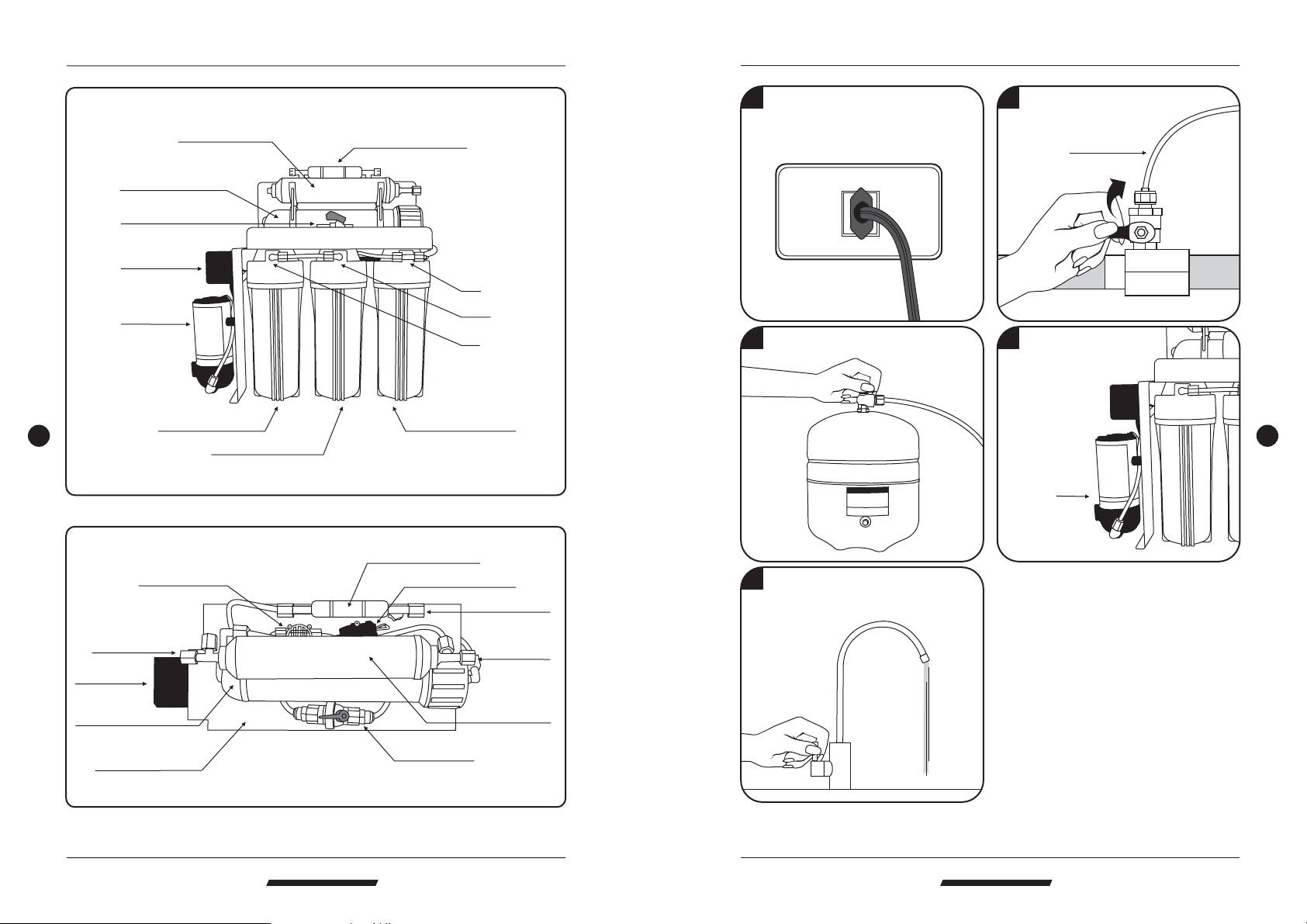

ThepartsofRO102
Operation regulation
EVERSE OSMOSIS SYSTEM
R
05
PURE-PRO
Post carbon filter
RO membrane housing
Manual flushing
Transformer
Pump
The 3rd stage housing
The 2nd stage housing
Flow restrictor 300ml
The 1st stage housing
IN
OUT
IN
1 Plug in electricity.
3 Switch on water tank.
2 Turn on water source.
To RO system
4 Pump starts to function.
Pump
EVERSE OSMOSIS SYSTEM
R
10
PURE-PRO
Auto shut-off valve
To the faucet
Transformer
RO membrane housing
Housing bracket white
Flow restrictor 300ml
High pressure protector
To drain out tube
To the tank
Manual flushing
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
Post carbon filter
5 Let the water run for at least 30
minutes. This flushesthe carbon
filters on first time use.
P
URE
DRINKING WATER SYSTEM
PRO
Joco
PRO
WATER
SYSTEM
To RO system

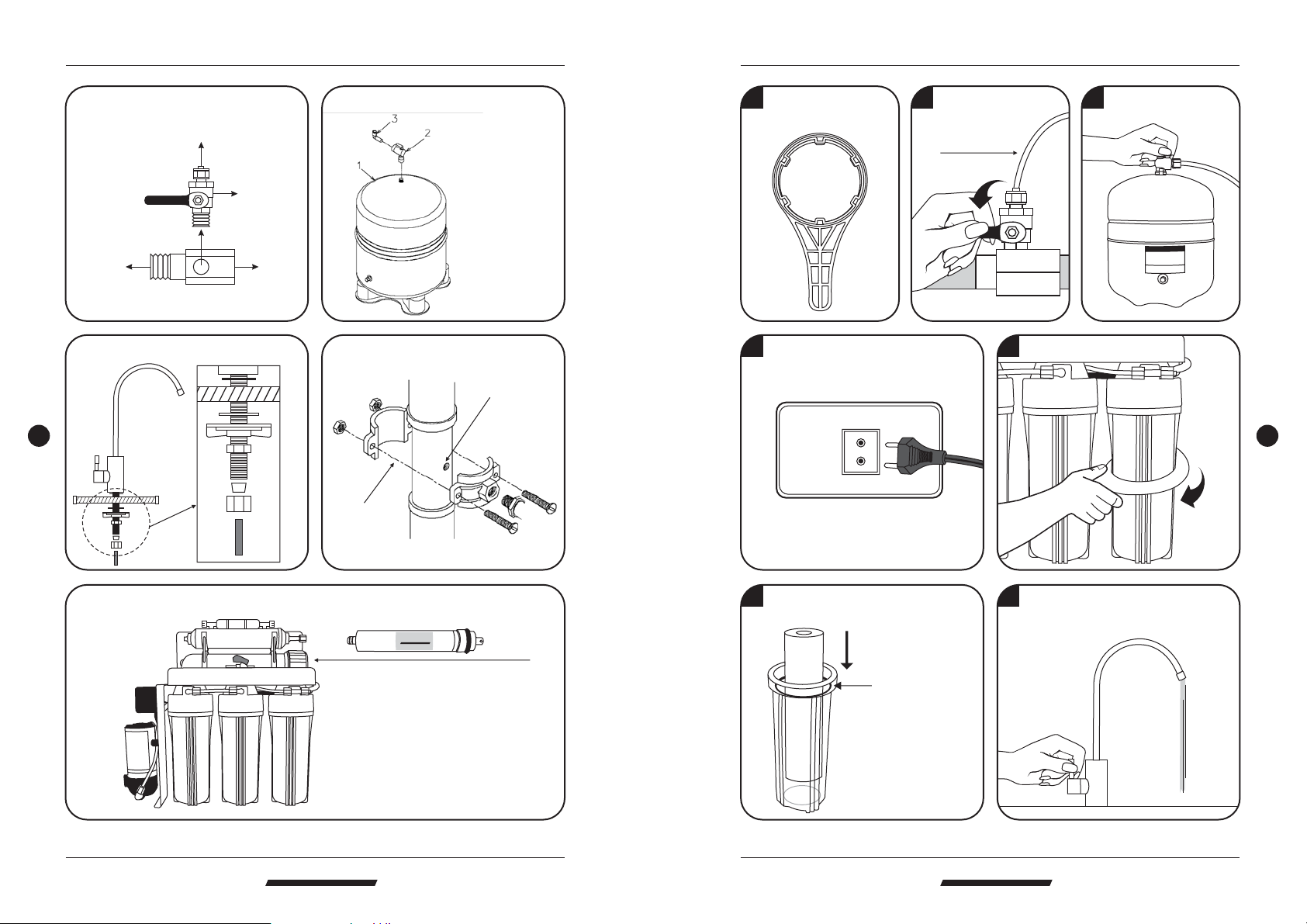

Change membrane

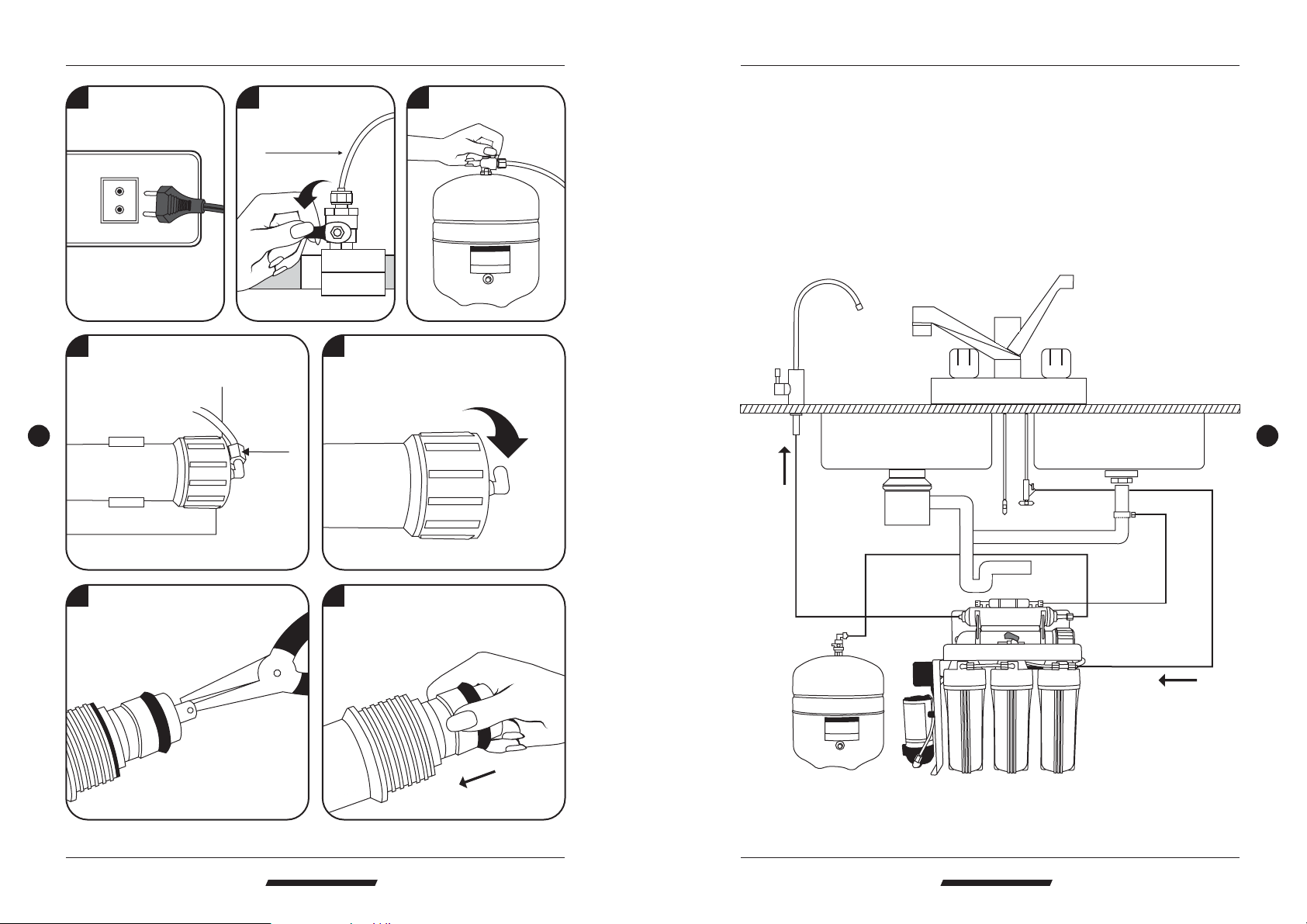

Tubing connection diagram
EVERSE OSMOSIS SYSTEM
R
09
PURE-PRO
1 Unplug electricity.
2 Turn off water source. 3 Switch off water tank.
4 Loose the Joco fitting anticlockwise.
6 Remove the membrane by a pincer.
5 Remove the membrane housing
cap anticlockwise.
7 Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
D. Connect the RED tubing to the storage tank.
Faucet
B
Tank
D
Drain
C
Input water
EVERSE OSMOSIS SYSTEM
R
06
PURE-PRO
A
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
URE
DRINKING WATER SYSTEM
P
PRO
Installation diagram
To RO system
Change filters
Input water : Install water tank :
To RO system
Deliver valve
To faucet
To water source pipe
Install European ceramic faucet :
EVERSE OSMOSIS SYSTEM
R
07 08
PURE-PRO
Install drain saddle :
Mount drain
saddle aligning
holes.
Hand tighten plastic
shut-off valve to tank.
Then connect color
tubing.
Drill a 1/4" holeinto
the drain pipe.
1 Prepare a housing
wrench.
4 Unplug electricity.
2 Turn off water
source.
5 Open housings clockwise with a wrench.
3 Switch off water tank.
EVERSE OSMOSIS SYSTEM
R
PURE-PRO
Assemble membrane :
6 Put the replacement filters in the
housings and double O' ring.
URE
PRO
DRINKINGWATER SYSTEM
P
1.Remove the membrane housing cap.
2.Replace the membrane.
RO102 Manual Flushing Membrane System RO102 Manual Flushing Membrane System
URE
DRINKING WATER SYSTEM
P
PRO
Be sure tighten with
O-ring to prevent
from leaking.
URE
DRINKING WATER SYSTEM
P
7 Drain out 1 Gallon of water to
purify replacement filters.
PRO
Loading...
