RO101 Standard Type Water Purification System
PRO
P
URE
DRINKING WATER SYSTEM

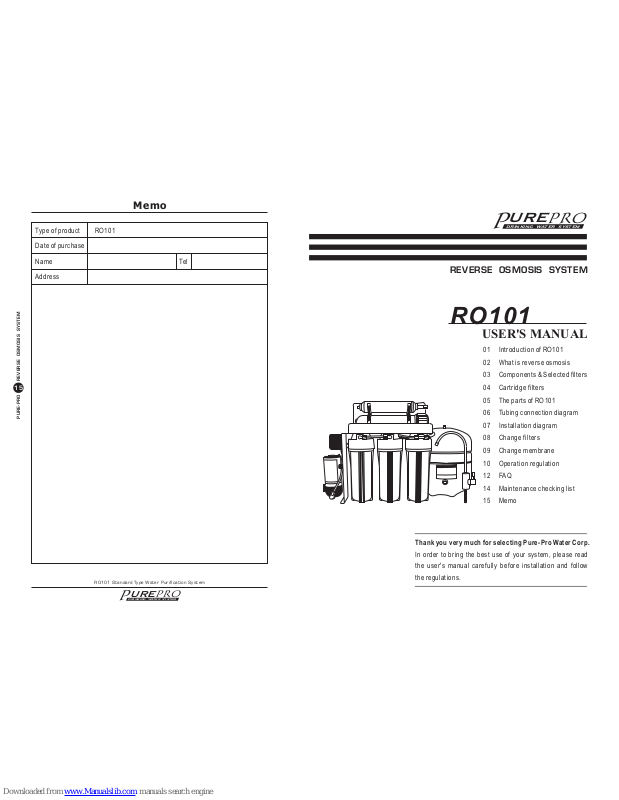

USER'S MANUAL
01 Introduction ofRO101
02 What isreverse osmosis
03 Components &
04 Cartridge filters
05 The parts of RO101
06
07
09
10
12
14
15
Selected filters
Tubing connection diagram
Installation diagram
08 Change filters
Change membrane
Operation regulation
FAQ
Maintenance checkinglist
Memo
Thank youvery much forselecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
RO101
Page 2
01
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
14
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Introduction of RO101
¨
¨
Standard Type
Specifications
RO101-
Comply with newly RO technology, RO101 is designed for where feed water has
very low water pressure (under 45PSI), or where the source water contains
higher than normal amount of dissolved solids. It uses high quality booster pump
that can provides 100PSI water pressure to pass through the membrane even
with areas under low water pressures. The booster pump prevents the life of
membrane from damaging and prolongs and improves the TDS rejection. It is
capable to remove over 95% of total dissolved solids, +99% of all organics, and
+99% ofall bacteria. RO105meets all different water quality needs.
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage
4th stage 5th stage
Other items
Production: 80GPD / 302LPD
Available in 110Volt, 220Volt or 240Volt (50/60Hz) with atransformer
Safety approval:TUV (EN60950) & CE MARK
100% factorytested and sterilizedready for installation
Operation pressure:5 -80 PSI
3.2 gallonsNSF standards waterstorage tank
FDA approved polypropylenemade flat caphousing (double O'ring)
Automatic shut-off valve
Flow restricto
Stainless steelcheck valve
Long reachattractive faucet
Feed waterconnector & deliver valve
Drain saddlevalve
Four-color coded1/4 inch tubingfor system connection
Completely assembled& water leaking testing
Dimensions: (cm)37 (L) x20 (W) x 45(H) - System
(cm) 28(L) x 35(W) x 28(H)- Tank
Weight: 12 Kg - System
4Kg-Tank
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
Page 3
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properlyit will removeall microorganisms fromtap water andproduce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flowis reversed, waterfrom the saltsolution is forcedto pass throughthe
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screeningout the saltsand other contaminants.
13
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
02
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Q: How willthe Pure-Pro series water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, Pure-Pro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will youfind the white scum on the inside of pans after boiling water.
Q: How muchwater does the Pure-Pro system produce ?
Q: Don't peopleneed minerals removed from the water ?
Q: What isthe maintenance schedule for the Pure-Pro System ?
Under ideal conditions, the RE1812-70 TFC membrane is rated at 70gallons of
production per day (70gpd at 60psi, 95gpd at 100psi). Under the average
conditions, the consumer can expect 70-95 gallons of product water per day. But
that's still a lot of water for the average household's drinking and cooking
requirements.
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comesfrom the water we drink.
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine todestroy the membrane.
FAQ
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
Page 4
03
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
12
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
T.D.S
UVC-LIGHTING
ULTRAVIOLETWATERSTERILIZER
PRO
P
URE
DRINKING WATER SYSTEM
Infra-Red Filter
PRO
P
URE
DRINKING WATER SYSTEM
Mineral Filter
PRO
P
URE
DRINKING WATER SYSTEM
Components & Selected filters
European ceramicfaucet
3.2G waterstorage tank
Housing wrench
Deliver-valve
Water supply connector
Drain saddle
Tankball shut-off valve Four colorcoded 1/4 inch
tubing forsystem connection
¨Selected filters
¨Components
Mineral cartridgefilter
UV watersterilizer
Infra-red cartridgefilter
TDS meter
PRO
P
URE
DRINKING WATER SYSTEM
Q: What isthe guarantee on the Pure-Pro system ?
Q: What factorsaffect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q: Can thePure-Pro system be connected to an extra faucet?
Q: What doesthe Pure-Pro series drinking water taste like?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown.The membrane has one year pro-rated guarantee.
There are fourmajor variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced.Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommendedis 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
Pure-Pro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane inthe world.
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some familiesrun Pure-Pro system to all of their bathrooms.
The taste of the Pure-Pro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or naturalspring water (moderate mineral content).
0 0
0
0
FAQ
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
Page 5
11
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
04
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
Shelf life
6 Months
4 Years
1 Year
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Cartridge Filters
Stage 1
Stage3
Stage 2
Block CarbonFilter
Stage 4
TFC Membrane
Stage 5
Post CarbonFilter
Cartridge Filters
Filter Description
6 Months
6 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts,particles and rusts.
This block carbon filter is composed of highperformance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals thatcontributed to tasteand odor.
This 1micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts,particles and rusts.
Made in USA. High rejection TFC type membrane
with the capacity of producing 80 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium, chromium, mercury, sodium,
cadmium, fluoride,nitrite, nitrate, andselenium.
NSF approved.This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors fromthe tank and provides a
finer conditioningof pure water.
5 Micron
Sediment Filter
1 Micron
Sediment Filter
PRO
P
URE
DRINKING WATER SYSTEM
A.With everythingconnected, turn onthe water checkfor leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters onfirst time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sinktop faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DONOT USE FIRST TANK OFWATER.***
G.Close thesink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checkedannually.
Caution
1.Do notuse hot water(over 45 C)!
2.Do notfreeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drainout pure water.
0
Operation regulation
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
Page 6
Micro
FUL
Pump
05
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
10
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
5 Let the waterrun for atleast 30
minutes. This flushes the carbon
filters onfirst time use.
4 Pump starts tofunction.
1 Plug in electricity.
2 Turnon water source.
3 Switch on watertank.
PRO
P
URE
DRINKING WATER SYSTEM
Operation regulation
ToRO system
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
ThepartsofRO101
RO membrane housing
Post carbonfilter
Flow restrictor300ml
The 1st stage housing
The 2nd stage housing
The 3rd stage housing
Pump
Transformer
IN
OUT
IN
High pressure protector
To thetank
Post carbonfilter
Housing bracket white
RO membrane housing
Todrain out tube
To thefaucet
Transformer
Auto shut-off valve
Flow restrictor300ml
Page 7
Joco
06
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
09
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
Tubing connection diagram
Faucet
Tank
Drain
Input water
CONNECTING THECOLOR TUBING:
A. Connectthe WHITE tubingto the watersupply connector.
B. Connectthe BLUE tubingto the sinktop faucet.
C. Connectthe BLACK tubingto the drainsaddle.
D. Connectthe RED tubingto the storagetank.
A
B
C
D
PRO
P
URE
DRINKING WATER SYSTEM
PRO
NG
WATER
SYSTEM
4 Loose the Joco fitting anticlockwise.
5 Remove the membranehousing
cap anticlockwise.
6 Remove the membrane by a pincer.
7 Install the membraneby carefully
pushing thespigot end intothe
socket atthe far endof the housing
until completelyin.
ToRO system
1 Unplug electricity.
2 Turn off water source. 3 Switch offwater tank.
Change membrane
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
Page 8
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
07 08
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
Input water: Install watertank :
1.Remove the membrane housing cap.
2.Replace the membrane.
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ToRO system
Deliver valve
Tofaucet
Towater source pipe
Install Europeanceramic faucet :
Install drainsaddle :
Assemble membrane:
Hand tightenplastic
shut-off valveto tank.
Then connectcolor
tubing.
Drill a1/4" hole into
the drainpipe.
Mount drain
saddle aligning
holes.
Installation diagram
ToRO system
1 Prepare a housing
wrench.
2 Turnoff water
source.
4 Unplug electricity.
6 Put the replacementfilters in the
housings anddouble O' ring.
7 Drain out 1Gallon of waterto
purify replacementfilters.
PRO
P
URE
DRINKING WATER SYSTEM
3 Switch offwater tank.
Change filters
Be suretighten with
O-ring toprevent
from leaking.
5 Open housings clockwise with a wrench.
RO101 Standard Type Water Purification System RO101 Standard Type Water Purification System
Loading...
