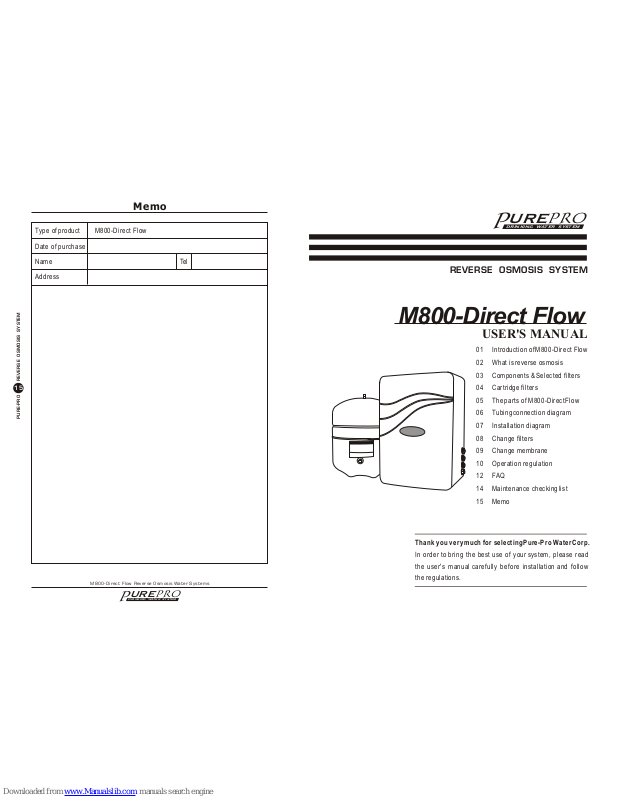

01 Introduction of M800-Direct Flow
02 What is reverse osmosis
03 Components & Selected filters
04 Cartridge filters
05 The parts of M800-Direct Flow
06 Tubing connection diagram
07 Installation diagram
08 Change filters
09 Change membrane
10 Operation regulation
12 FAQ
14 Maintenance checking list
15 Memo
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
M800-Direct Flow
M800-Direct Flow
M800-Direct Flow Reverse Osmosis Water Systems
Page 2
01
PURE-PRO REVERSE OSMOSIS SYSTEM
14
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Introduction of M800-Direct Flow
¨M800-Direct Flow-Unlimited direct flow of fresh water
PurePro M800-Direct Flow system is a modern kitchen appliance that has been
carefully designed with health consciousness, efficiency, high performance and
convenience in mind. PurePro M800- Direct Flow are the world's most elegant
design water filter system. Output 1.2 liters per minutes. No Tank Required.
PurePro M800-Direct Flow RO system uses reverse osmosis (RO) technology which is recognized as the most effective at significantly reducing a large number
of contaminants that may be in your water - no other home water treatment
system offers you as much protection and reliability.
Maintenance checking list
Production: 400 GPD / 1512 LPD
With a booster pump (optional):
Input in AC 110Volt, 220Volt or 240Volt (50 / 60Hz)
Operation pressure: 10 - 80 psi
Dimensions: (cm) 29 (L) x 41 (H) x 18 (W)
Weight: 10 kg - system
Date
Filters
1st stage 2nd stage 3rd stage
4th stage 5th stage
Other items
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems
¨Features
No need of water storage tank
Easy-open lid for easily cartridge filters replaced
Use inline filter design makes filter changes fast, clean and easy
Electronic solenoid valve
Flow restrictor, stainless steel check valve
European designer faucet
Feed water connector, deliver valve & drain saddle valve
Quick-connect fitting for easy installation
Completely assembled & water leaking testing
100% factory tested and sterilized ready for installation
¨Specifications
Page 3
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
13
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
FAQ
Q: How will the Pure-Pro series water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, Pure-Pro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will you find the white scum on the inside of pans after boiling water.
Q: How much water does the Pure-Pro system produce ?
Under ideal conditions, the RE1812-200 TFC membrane is rated at 400gallons
of production per day (400gpd at 80psi). Under the average conditions, the
consumer can expect 70-95 gallons of product water per day. But that's still a lot
of water for the average household's drinking and cooking requirements.
Q: Don't people need minerals removed from the water ?
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comes from the water we drink.
Q: What is the maintenance schedule for the Pure-Pro System ?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy the membrane.
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems
Page 4
03
PURE-PRO REVERSE OSMOSIS SYSTEM
12
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM

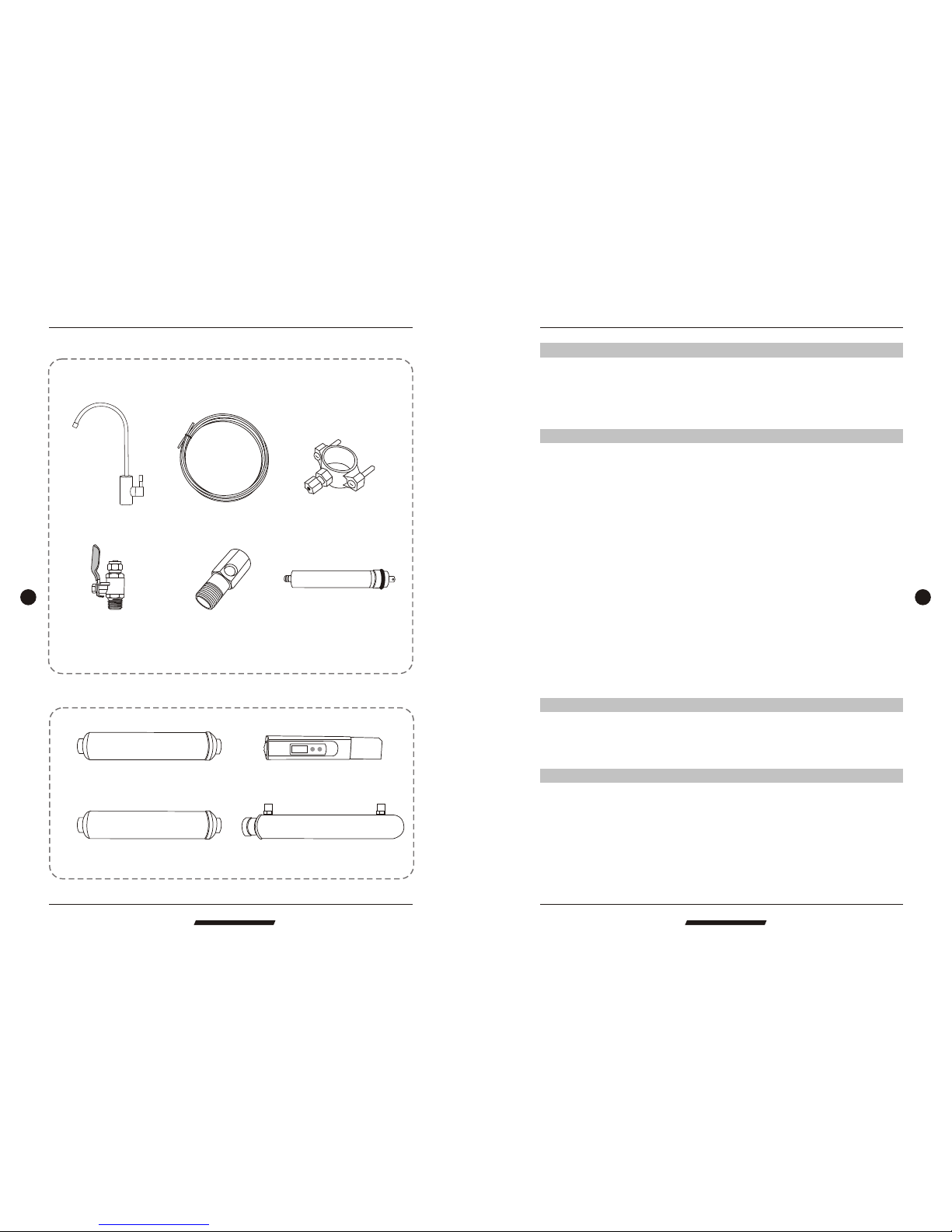

Components & Selected filters
¨Selected filters
¨Components
P
R
O
P
URE
DRINKING WATER SYSTEM
Q: What is the guarantee on the Pure-Pro system ?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect the quantity and the quality of the water production?
There are four major variables to consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
Pure-Pro system includes RE1812-200 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: Can the Pure-Pro system be connected to an extra faucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run Pure-Pro system to all of their bathrooms.
Q: What does the Pure-Pro series drinking water taste like?
The taste of the Pure-Pro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water (moderate mineral content).
FAQ
Infra-red cartridge filter
T.D.S
UVC-LIGHTING
ULTRAVIOLET WATER STERILIZER
Mineral cartridge filter
UV water sterilizer
TDS meter
Infra-Red
Mineral
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems
Deliver-valve Water supply connector
Drain saddleTubing
Faucet
RO membrane x 2
Page 5
11
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Cartridge Filters
P
R
O
P
URE
DRINKING WATER SYSTEM
Caution
0
1.Do not use hot water (over 45 C)!
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.
Operation regulation
6 Months
2 Years
1 Year
Stage 1
Stage3
Stage 2
GAC Filter
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters
Filter Description
6 Months
6 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particles and rusts.
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
Made in USA. High rejection TFC type membrane
with the capacity of producing 200 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium, chromium, mercury, sodium,
cadmium, fluoride, nitrite, nitrate, and selenium.
NSF approved. This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors from the tank and provides a
finer conditioning of pure water.
5 Micron
Sediment Filter
Service Life
GAC Filter
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems

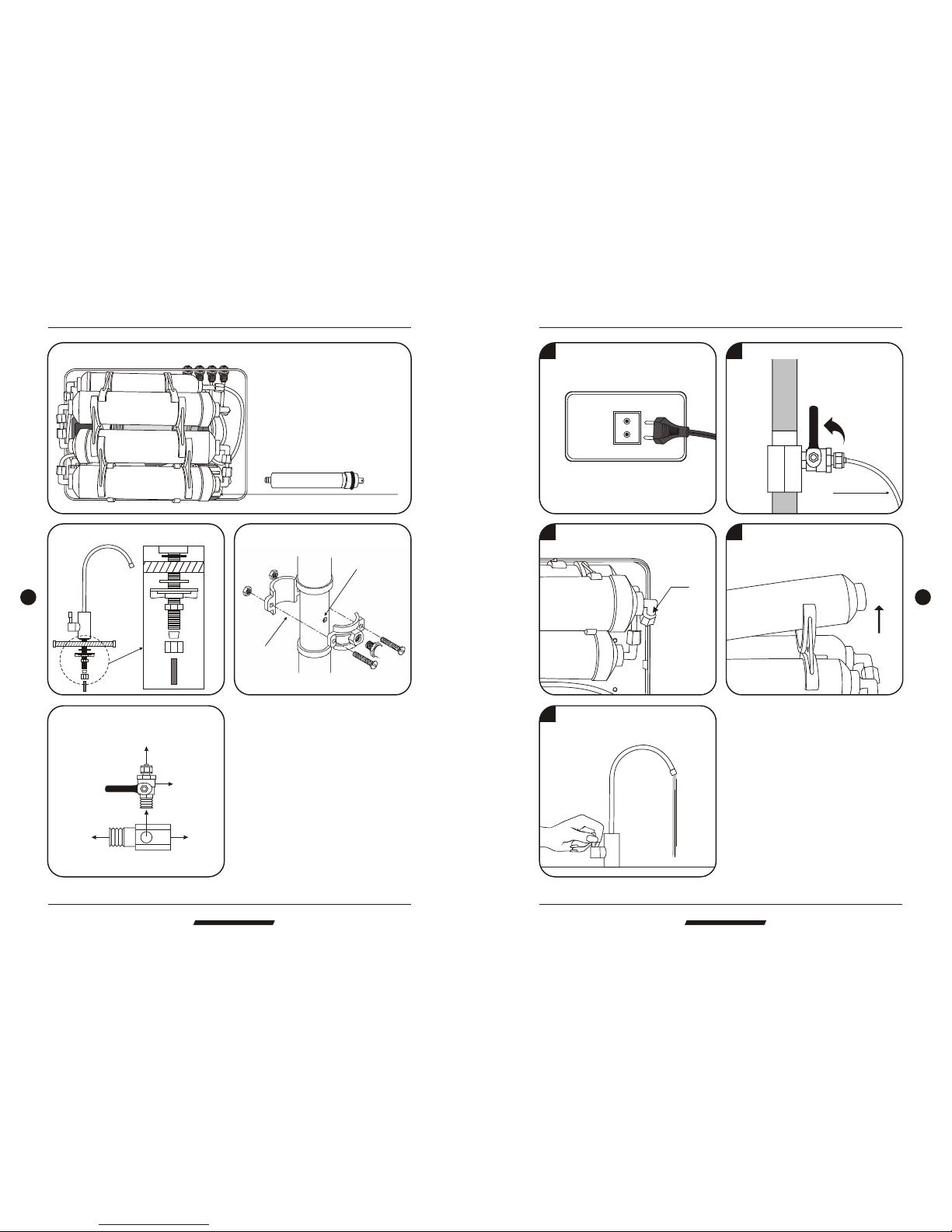

A. With everything connected, turn on the water check for leaks.
B. Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C. Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D. Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
E. Begin initial flushing.
F. Close the sink top faucet. The system is now ready for use.
G. Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Page 6
05
PURE-PRO REVERSE OSMOSIS SYSTEM
10
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Operation regulation

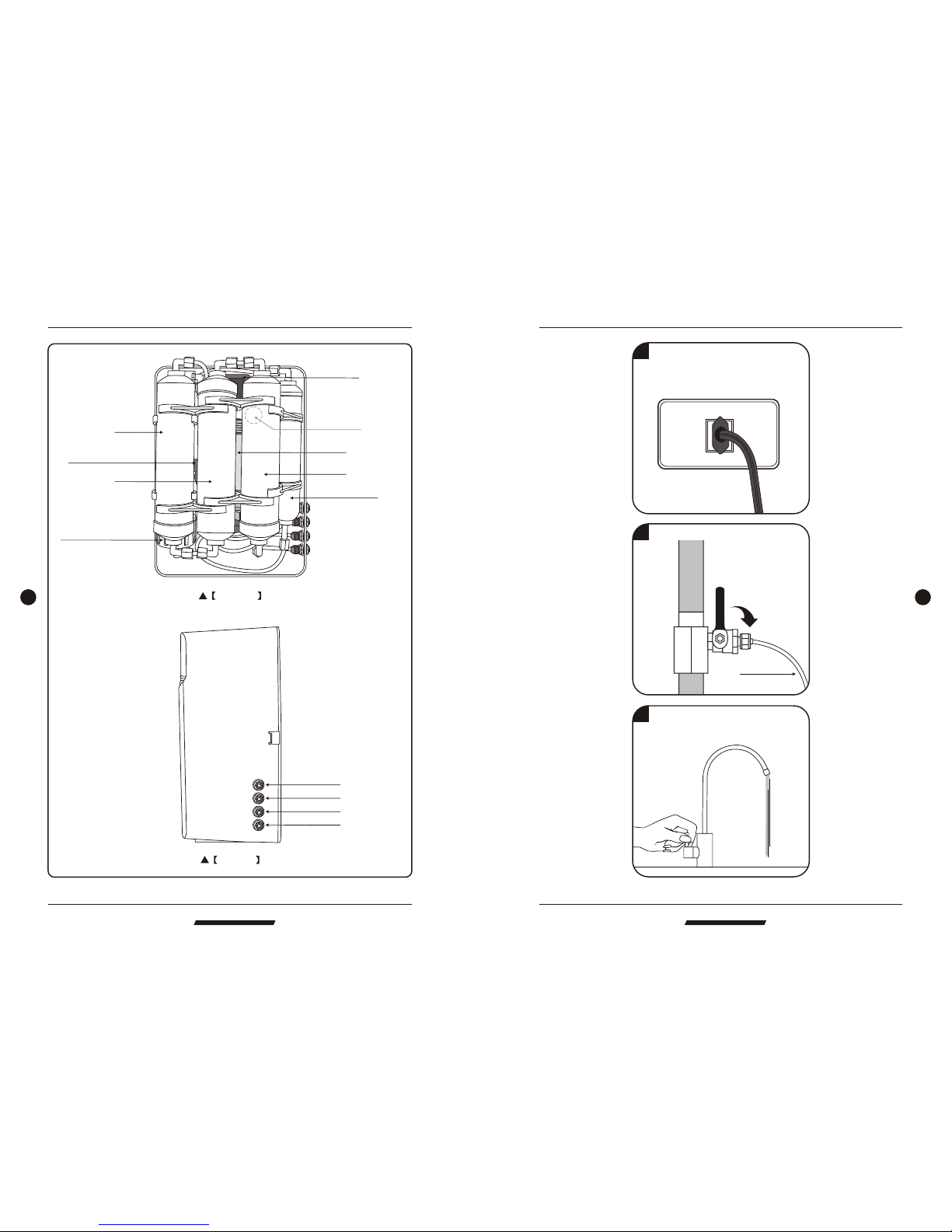

The parts of M800-Direct Flow
Front view
Side view
RO membrane housing x 2
Post carbon filter
Input water
To drain out tube
To the tank
To the faucet
Transformer
To RO system
2 Turn on water source.
Pump
1st stage
3rd stage
2nd stage
Solenoid valve
High pressure protector
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems
3 Let the water run for at least 30
minutes. This flushes the carbon
filters on first time use.
1 Plug in electricity.
Page 7
Jaco
06
PURE-PRO REVERSE OSMOSIS SYSTEM
09
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Tubing connection diagram
Faucet
Drain
Input water
A
B
C
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
N
G
W
A
TE
R
S
Y
S
T
E
M

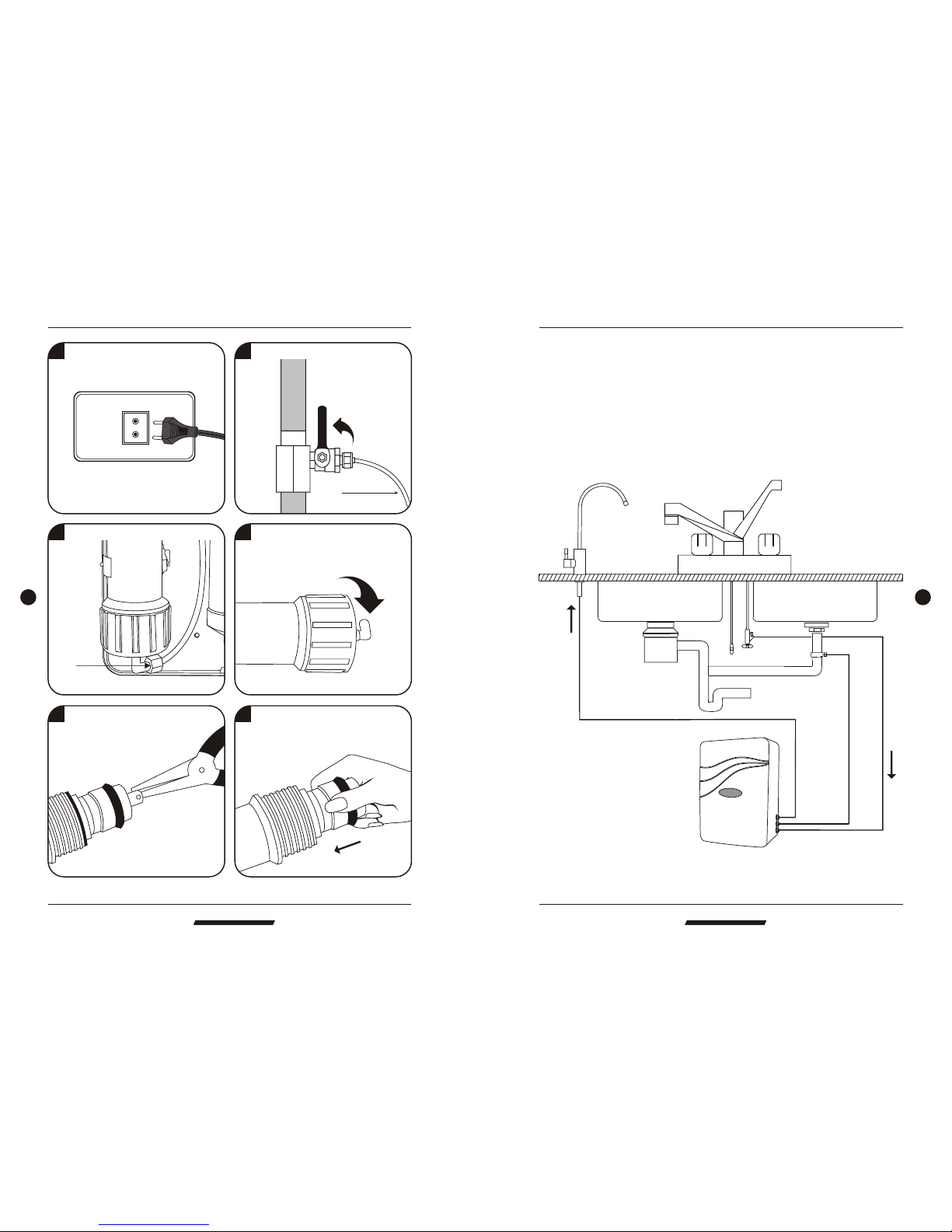

4 Loose the Jaco fitting anticlockwise.
5 Remove the membrane housing
cap anticlockwise.
6 Remove the membrane by a pincer.
7 Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
Change membrane
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems
1 Unplug electricity.
To RO system
2 Turn off water source.
CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
Page 8
Install European ceramic faucet :
PURE-PRO REVERSE OSMOSIS SYSTEM
07 08
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Install drain saddle :
1.Remove the membrane housing cap.
2.Replace the membrane.
Assemble membrane :
Drill a 1/4" hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Installation diagram
5 Turn on water source and water
tank, drain out 1 Gallon of water
to purify replacement filters.
P
R
O
P
URE
DRINKING WATER SYSTEM
Change filters
2 Turn off water source.
To RO system
3 Loose the Jaco fitting anticlockwise.
Jaco
4 Remove the used filters from clips
and replace with new ones.
1 Unplug electricity.
M800-Direct Flow Reverse Osmosis Water Systems
M800-Direct Flow Reverse Osmosis Water Systems
Input water :
To RO system
Deliver valve
To faucet
To water source pipe
Loading...
