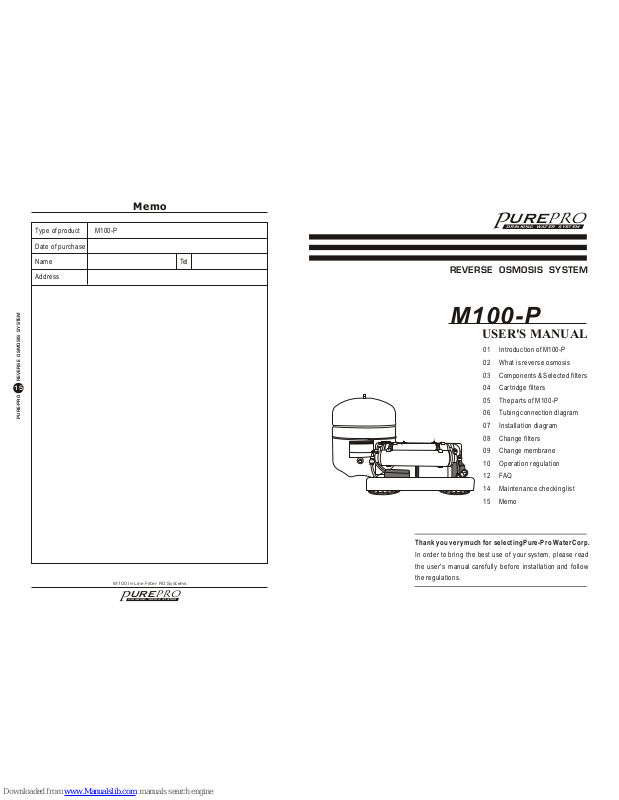

USER'S MANUAL
01 Introduction of M100-P
02 What is reverse osmosis
03 Components & Selected filters
04 Cartridge filters
05 The parts of M100-P
06 Tubing connection diagram
07 Installation diagram
08 Change filters
09 Change membrane
10 Operation regulation
12 FAQ
14 Maintenance checking list
15 Memo
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
M100-P
M100 In-Line Filter RO Systems
01
PURE-PRO REVERSE OSMOSIS SYSTEM
14
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM

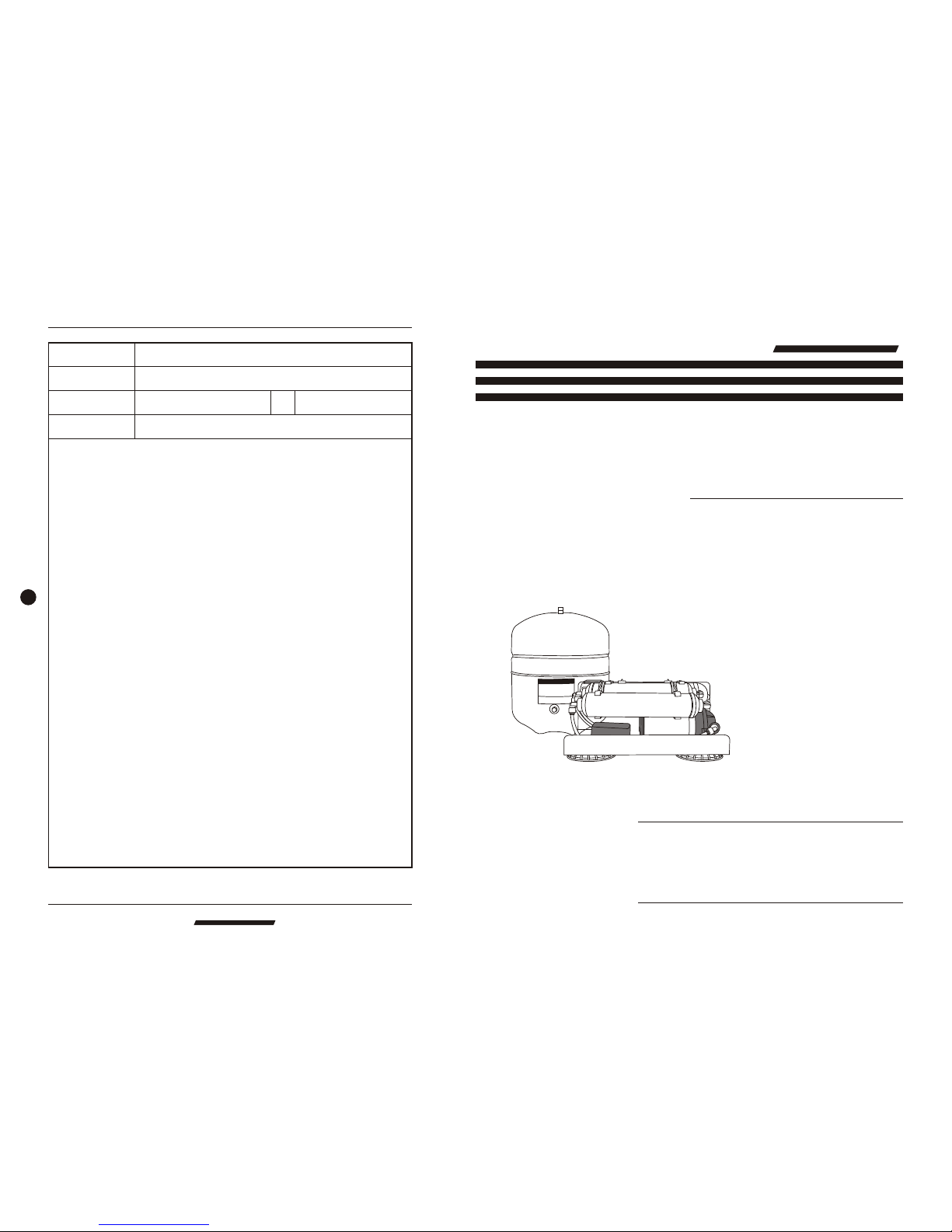

Introduction of M100-P
¨M100-P Mini RO systems
PurePro M100-P reverse osmosis system uses the most advanced water
treatment technology available. Reverse Osmosis is recognized as one of the
best available technologies for producing high quality drinking water. It's also the
same method used by many bottled water companies to make safe and great
tasting drinking water.
The newly designed M series is user friendly with design simplicity in mind. It
requires no tools for filter changes. Use in-line filter cartridge design makes filter
changes fast, clean and easy. This space saving allows maximum use of your
under counter space.
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage
Other items
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
Production: 50 GPD / 189 LPD
Water storage tank: 2.2gallons / 8.4 liters
With a booster pump (optional):
Input in AC 110Volt, 220Volt or 240Volt (50 / 60Hz)
Operation pressure: 10 - 80 psi
Dimensions: (cm) 35 (L) x 17 (H) x 17.8 (W)
(cm) 28 (L) x 35 (H) x 28 (W) - tank
Weight: 5 kg - system
3 kg - tank
¨Specifications
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
13
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM

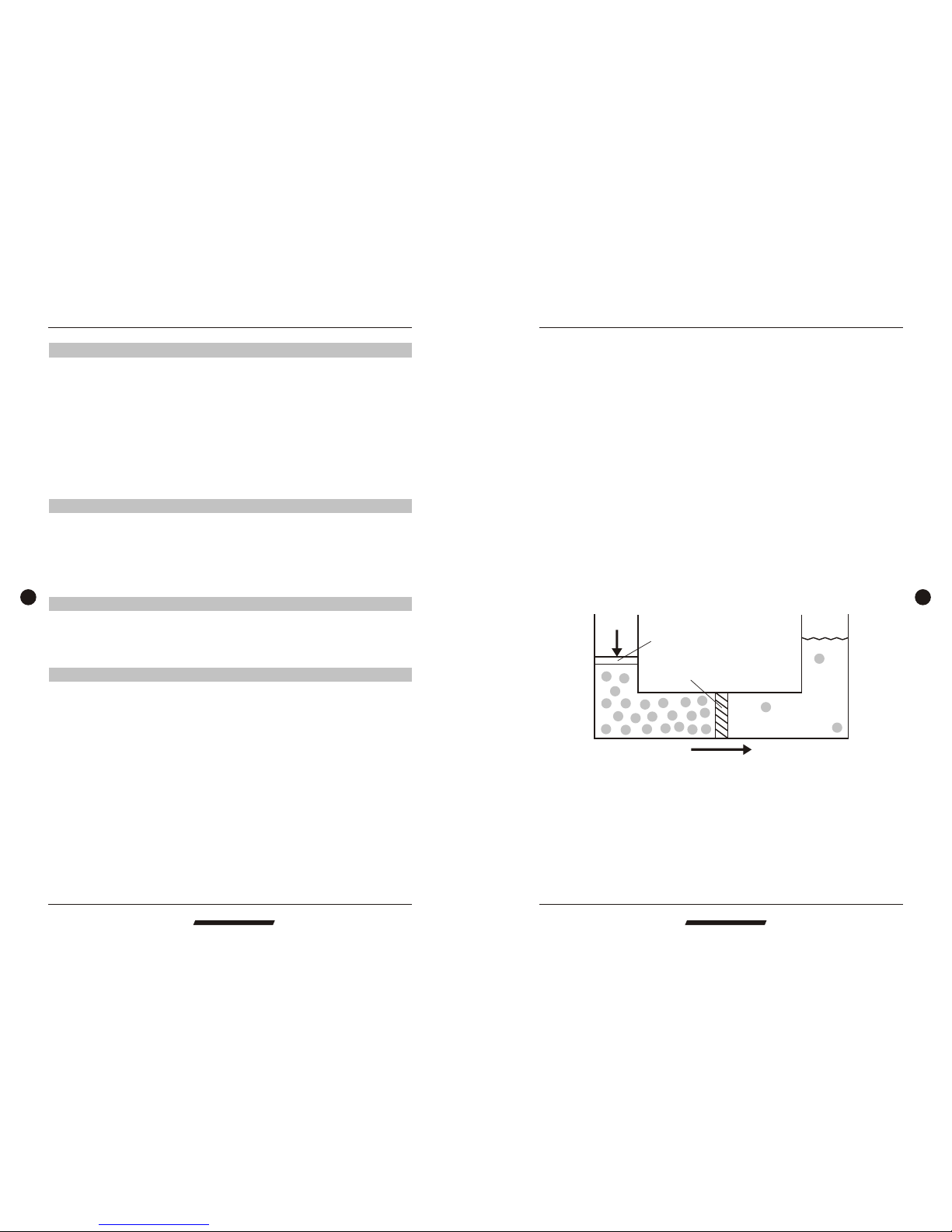

What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Q: How will the PurePro series water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, PurePro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will you find the white scum on the inside of pans after boiling water.
Q: How much water does the PurePro system produce ?
Under ideal conditions, the TW30-1812-50 TFC membrane is rated at 50 gallons
of production per day. Under the average conditions, the consumer can expect
50 gallons of product water per day. But that's still a lot of water for the average
household's drinking and cooking requirements.
Q: Don't people need minerals removed from the water ?
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comes from the water we drink.
Q: What is the maintenance schedule for the PurePro system ?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy the membrane.
FAQ
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
03
PURE-PRO REVERSE OSMOSIS SYSTEM
12
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM

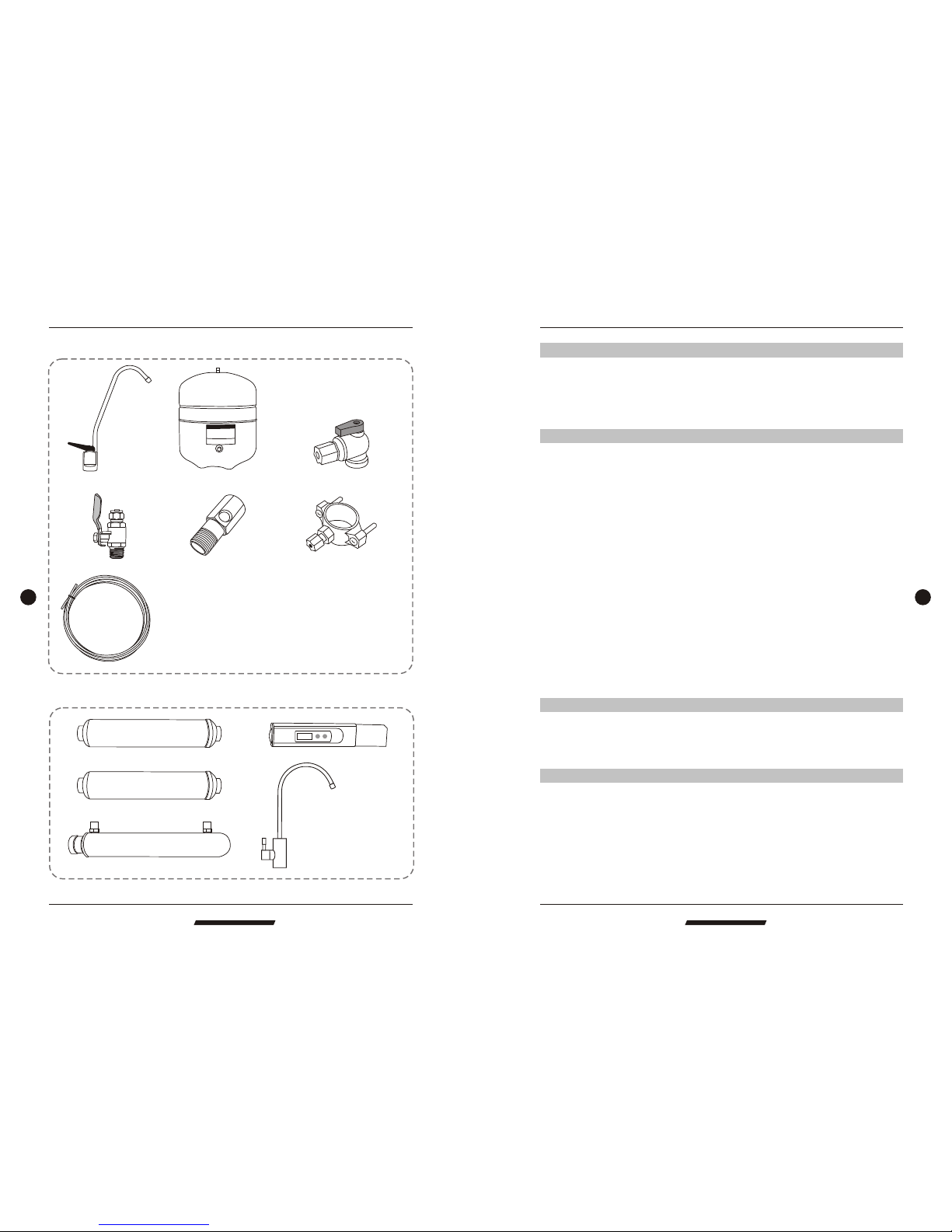

Components & Selected filters
Water storage tank
Deliver-valve
Water supply connector
Drain saddle
Tank ball shut-off valve
¨Selected filters
¨Components
P
R
O
P
URE
DRINKING WATER SYSTEM
Q: What is the guarantee on the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect the quantity and the quality of the water production?
There are four major variables to consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-50 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: Can the PurePro system be connected to an extra faucet?
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some families run PurePro system to all of their bathrooms.
Q: What does the PurePro series drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water (moderate mineral content).
FAQ
Standard faucet
Color tubing
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
Infra-red cartridge filter
T.D.S
UVC-LIGHTING
ULTRAVIOLET WATER STERILIZER
Mineral cartridge filter
UV water sterilizer
TDS meter
Infra-Red
Mineral
Upgraded European
ceramic faucet
11
PURE-PRO REVERSE OSMOSIS SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Cartridge Filters
P
R
O
P
URE
DRINKING WATER SYSTEM
A.With everything connected, turn on the water check for leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink top faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOT USE FIRST TANK OF WATER.***
G.Close the sink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not use hot water (over 45 C)!
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.
Operation regulation
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
6 Months
2 Years
1 Year
Stage 1
Stage 2
Stage 3
TFC Membrane
Post Carbon Filter
Cartridge Filters
Filter Description
It takes out 99% of the chlorine and organic
chemicals. It provides enhanced reduction of
taste, odor, and color.
Made in USA. High rejection TFC type membrane
with the capacity of producing 50 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium, chromium, mercury, sodium,
cadmium, fluoride, nitrite, nitrate, and selenium.
NSF approved. This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors from the tank and provides a
finer conditioning of pure water.
Service Life
GAC Filter
4 Let the water run for at least 30
minutes. This flushes the carbon
filters on first time use.
05
PURE-PRO REVERSE OSMOSIS SYSTEM
10
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Operation regulation
The parts of M100-P

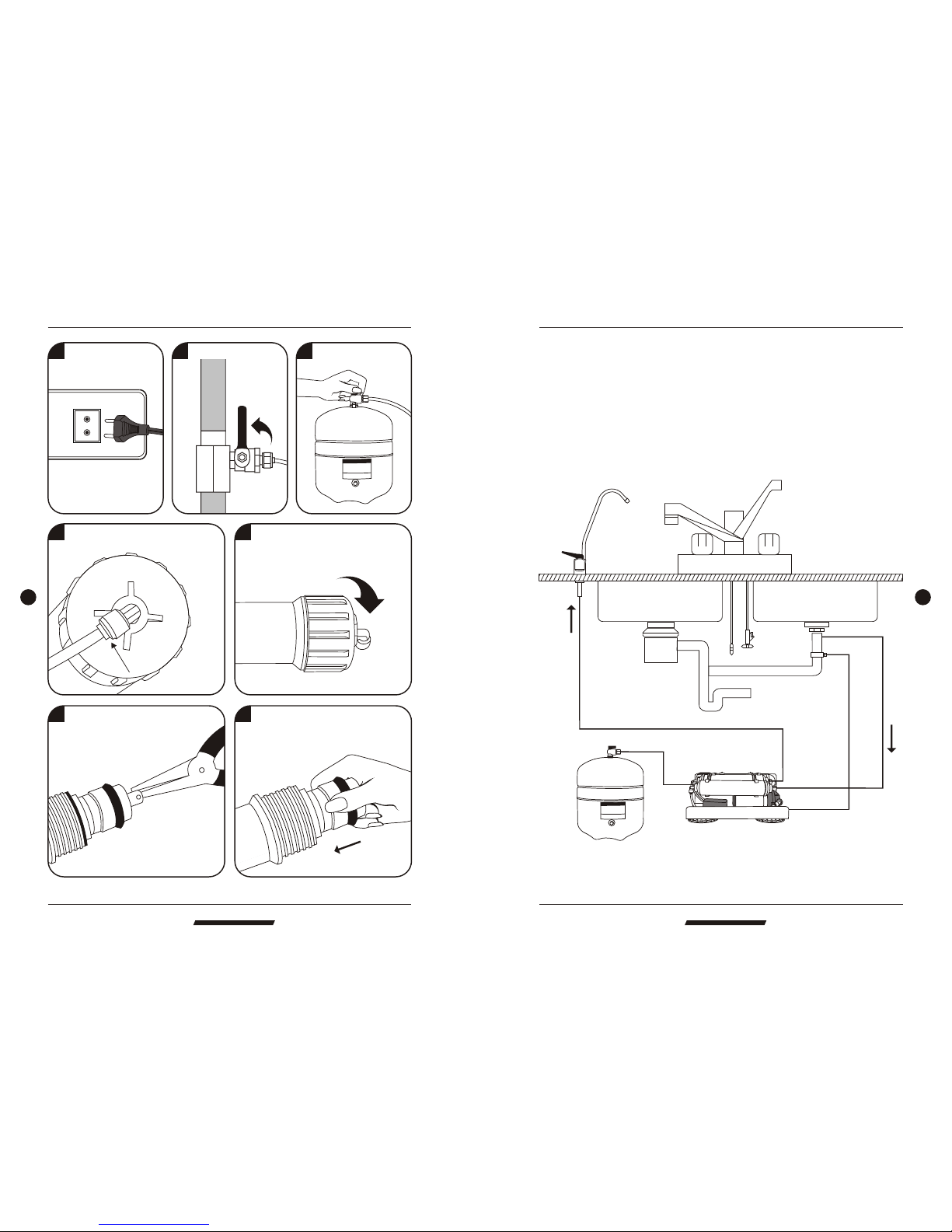

2 Turn on water source.
To RO system
3 Switch on water tank.
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
1 Plug in electricity.
Front view
Side view
To the faucet
To the tank
RO membrane housing(2)
Post carbon filter(3)
GAC filter(1)
Input water
Auto shut-off valve
Pump
To drain out tube
06
PURE-PRO REVERSE OSMOSIS SYSTEM
09
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Tubing connection diagram
Faucet
Tank
Drain
Input water
A
B
C
D
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
N
G
W
A
TE
R
S
Y
S
T
E
M
6 Remove the membrane by a pincer.
7 Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
Change membrane
CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
D. Connect the RED tubing to the storage tank.
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
1 Unplug electricity.
2 Turn off water source. 3 Switch off water tank.
4 Remove the tube.
5 Remove the membrane housing
cap anticlockwise.
PURE-PRO REVERSE OSMOSIS SYSTEM
07 08
PURE-PRO REVERSE OSMOSIS SYSTEM

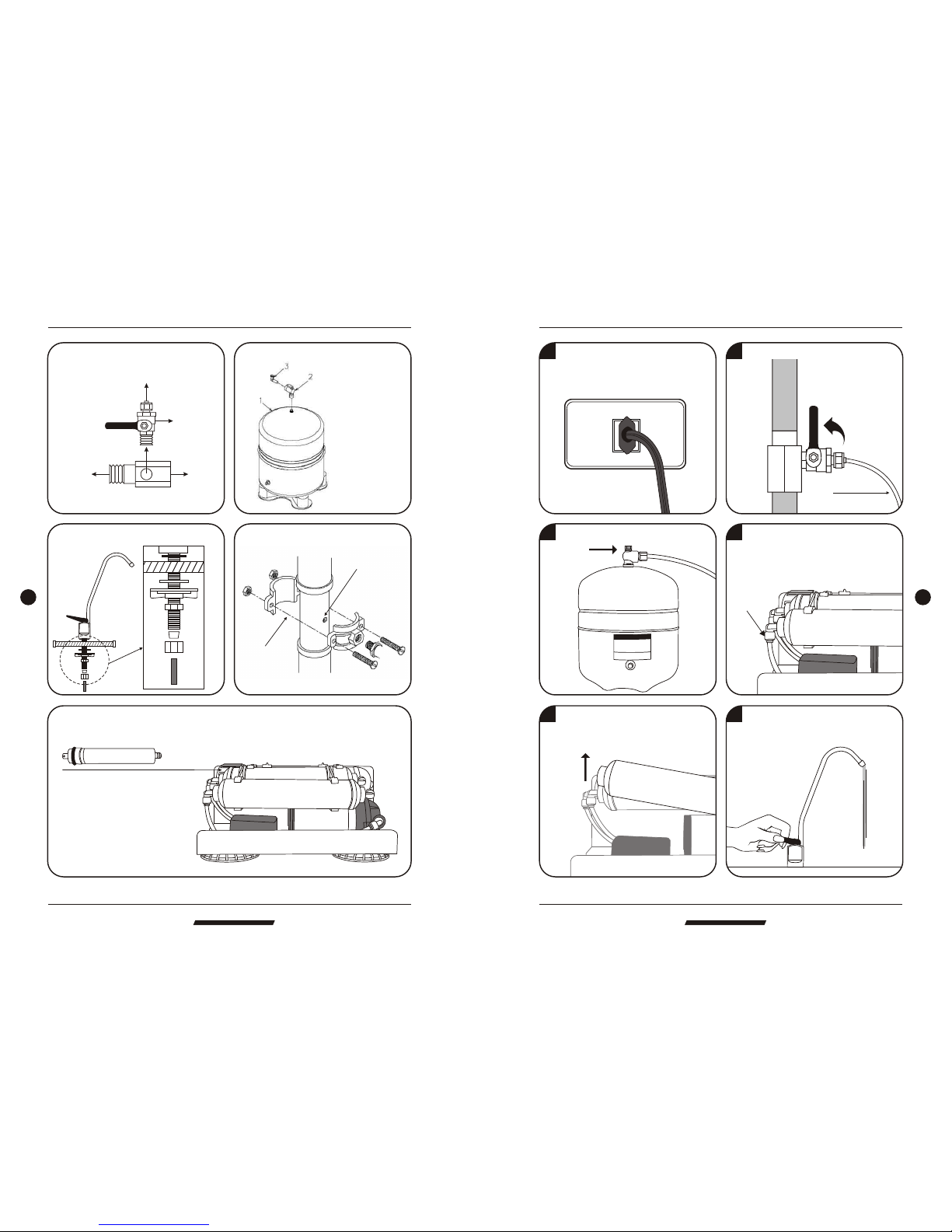

Input water : Install water tank :
1.Remove the membrane housing cap.
2.Replace the membrane.
P
R
O
P
URE
DRINKING WATER SYSTEM
To RO system
Deliver valve
To faucet
To water source pipe
Install drain saddle :
Assemble membrane :
Hand tighten plastic
shut-off valve to tank.
Then connect color
tubing.
Drill a 1/4" hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Installation diagram
6 Turn on water source and water
tank, drain out 1 Gallon of water
to purify replacement filters.
P
R
O
P
URE
DRINKING WATER SYSTEM
Change filters
2 Turn off water source.
To RO system
4 Remove the quick-connect fitting.
5 Remove the used filters from clips
and replace with new ones.
3 Switch off water tank.
M100 In-Line Filter RO SystemsM100 In-Line Filter RO Systems
1 Plug in electricity.
Install faucet :
Loading...
