PurePro HRO-500, HRO-200, HRO-400 User Manual
P
R
O
P
URE
DRINKING WATE R SYSTEM
REVERSE OSMOSIS SYSTEM
19
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Type of product
Date of purchase
Name Tel
Address
Memo

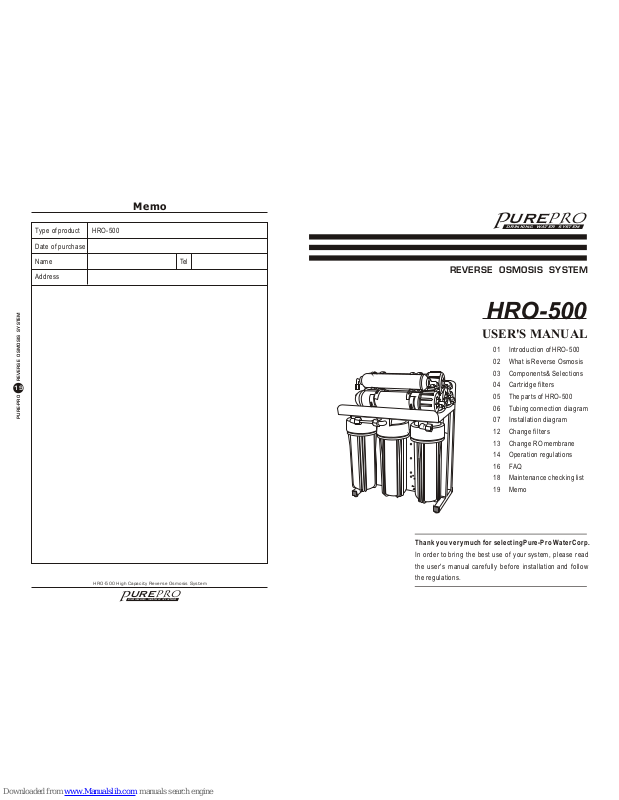

USER'S MANUAL
HRO-500
HRO-500 High Capacity Reverse Osmosis System
HRO-500
01 Introduction of HRO-500
02 What is Reverse Osmosis
03 Components& Selections
04 Cartridge filters
05 The parts of HRO-500
06 Tubing connection diagram
07 Installation diagram
12 Change filters
13 Change RO membrane
14 Operation regulations
16 FAQ
18 Maintenance checking list
19 Memo
¨HRO-500 High Capacity RO System
A high capacity, low cost system. Perfect for offices or small factory. Designed for
commercial and residential application. It is suitable for manufacturing,
restaurants, food processing industries, shopping centers, schools and hotels.
Provides high quality drinking water with capacity up to 1.3 liters per minutes.
Can be installed under or next to kitchen sink. Designed for the direct flow, No
tank required, provides maximum output, while taking up minimum space.
System is equipped with High Flow Booster Pump for increased water production
capacity.
01
PURE-PRO REVERSE OSMOSIS SYSTEM
18
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Maintenance checking list
Production: 500 GPD / 1890 LPD
Operation Pressure : 10 - 80 psi
Available in : 110 volt, 220volt, 240volt. ( 50 / 60 Hz)
Weight (System) : 20 kg
Dimensions: 38.0 (L) x 25.5 (W) x 46.0 (H) cm
Date
Filters
1st stage 2nd stage 3rd stage
4th stage
6th stage
Other items
5th stage
~
¨Specifications
¨Features
200 gallons per day membrane
High flow booster pump
Direct flow for 1.3 liters per minutes
FDA approved polypropylene made flat cap housings
Comes with attractive designer faucet
Build in electrical shut off valve to prevent any damage of the membrane
All hardware included
Completely assembled, 100% factory tested and sterilized ready for
installation
x 3
Introduction of HRO-500
HRO-500 High Capacity Reverse Osmosis System HRO-500 High Capacity Reverse Osmosis System
17
PURE-PRO REVERSE OSMOSIS SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage
4th stage
7th stage
Other items
6th stage
~
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
HRO-500 High Capacity Reverse Osmosis System HRO-500 High Capacity Reverse Osmosis System
