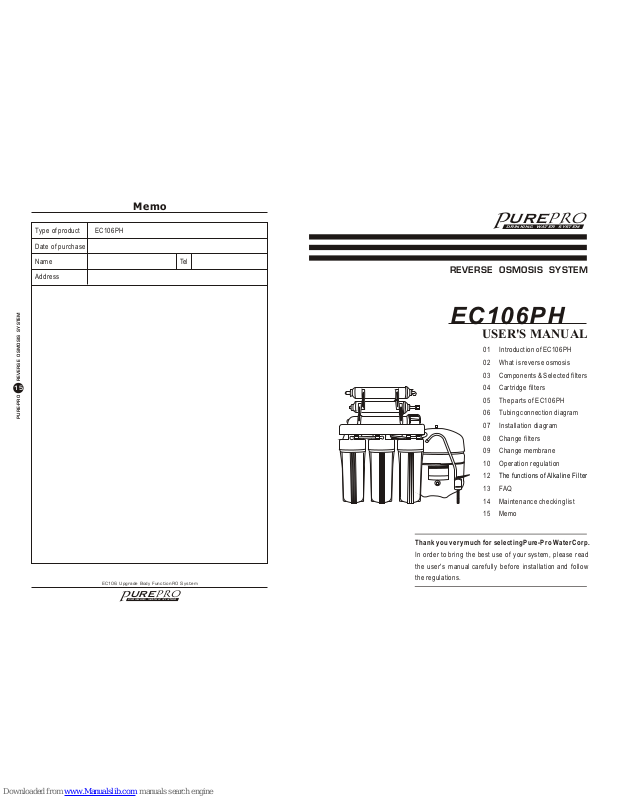

EC106PH
REVERSE OSMOSIS SYSTEM
15
Type of product
Date of purchase
Name Tel
Address
USER'S MANUAL
01 Introduction of EC106PH
02 What is reverse osmosis
03 Components & Selected filters
04 Cartridge filters
05 The parts of EC106PH
06 Tubing connection diagram
07 Installation diagram
08 Change filters
09 Change membrane
10 Operation regulation
12
13 FAQ
14 Maintenance checking list
15 Memo
The functions of Alkaline Filter
Memo
EC106PH
EC106 Upgrade Body Function RO System
P
R
O
P
URE
DRINKING WATE R SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Page 2
01 14
Introduction of EC106PH
Maintenance checking list
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
Date
Filters
1st stage 2nd stage 3rd stage
4th stage 5th stage 6th stage
Production: 50 GPD / 189 LPD
Operation pressure: 50 -100 PSI
Dimensions: (cm) 37 (L) x 20 (W) x 48 (H) - System
(cm) 28 (L) x 28 (W) x 35 (H)- Tank
Weight: 9 kg - system
4 kg - tank
¨Features
100% factory tested and sterilized ready for installation
3.2 gallons NSF standards water storage tank
FDA approved polypropylene made flat cap housing (double O'ring)
Automatic shut-off valve
Mini flow restrictor
Stainless steel check valve
Feed water connector
Drain saddle valve
Four-color coded 1/4 inch tubing for system connection
Completely assembled
European ceramic faucet
¨Specifications
¨EC106PH New 6 Stage with Alkaline Filter
The only filtration in the world today that will reduce acidity in the body and it will
produce natural calcium, magnesium, sodium and potassium ions that can be
absorbed 100% in the human body.
EC106PH is a super quality 6 stage filter system comes with PurePro Alkaline
Filter, to offer the very best in water filtration and balanced pH water for drinking.
Using reverse osmosis technologies with alkaline filter can actually remove
99.99% of contaminants and provide people with healthy alkaline drinking water.
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Page 3
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properly it will remove all microorganisms from tap water and produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flow is reversed, water from the salt solution is forced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screening out the salts and other contaminants.
13 02
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
FAQ
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Q: What is the guarantee on the PurePro system ?
The PurePro system (excluding filters) is guaranteed for 1 year for material and
workmanship. All defective parts will be replaced free within the first year under
natural breakdown. The membrane has one year pro-rated guarantee.
Q: What factors affect the quantity and the quality of the water production?
There are four major variables to consider:
1.Pressure-The greater the water pressure, the better water quantity and
quality it produced. Water pressure of 60 PSI is ideal.
00
2.Temperature-76 F is the ideal water temperature for R.O. 40 F water will
0
cause the production of R.O. water to fall to half of that at 76F. The maximum
0
water temperature recommended is 85 F.
3.Total Dissolved Solids (TDS)-The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4.Membrane-Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
PurePro system includes TW30-1812-50 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane in the world.
Q: What is the maintenance schedule for the PurePro system ?
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine to destroy the membrane.
Q: What does the PurePro series drinking water taste like?
The taste of the PurePro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or natural spring water (moderate mineral content).
Page 4
03 12
Components & Selected filters
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
The Alkaline filter changes the acidic RO water into a perfect Natural Alkali Calcium
Ionized Water. The PurePro Alkaline filter simply gives back minerals such as
ionized calcium, magnesium, sodium, potassium ion, which were taken away while
purifying the water. The PurePro Alkaline filter is effective and affordable.
Produce perfectly ph-balanced alkaline water
Help minimize the fluctuations of your body's pH.
Turn acidic drinking water into alkali calcium ion water.
This natural calcium, magnesium, sodium, potassium ions can be absorbed 100%
by the body.
It is easily absorbed in the body because it has structurally smaller molecules
which help the body take in more water and replenish quickly lost water.
Makes the water cleaner and healthier.
The functions of Alkaline Filter
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
T.D.S
UVC-LIGHTING
ULTRAVIOLET WATER STERILIZER
Standard faucet
3.2G water storage tank
Housing wrench
Deliver-valve
Water supply connector
Drain saddle

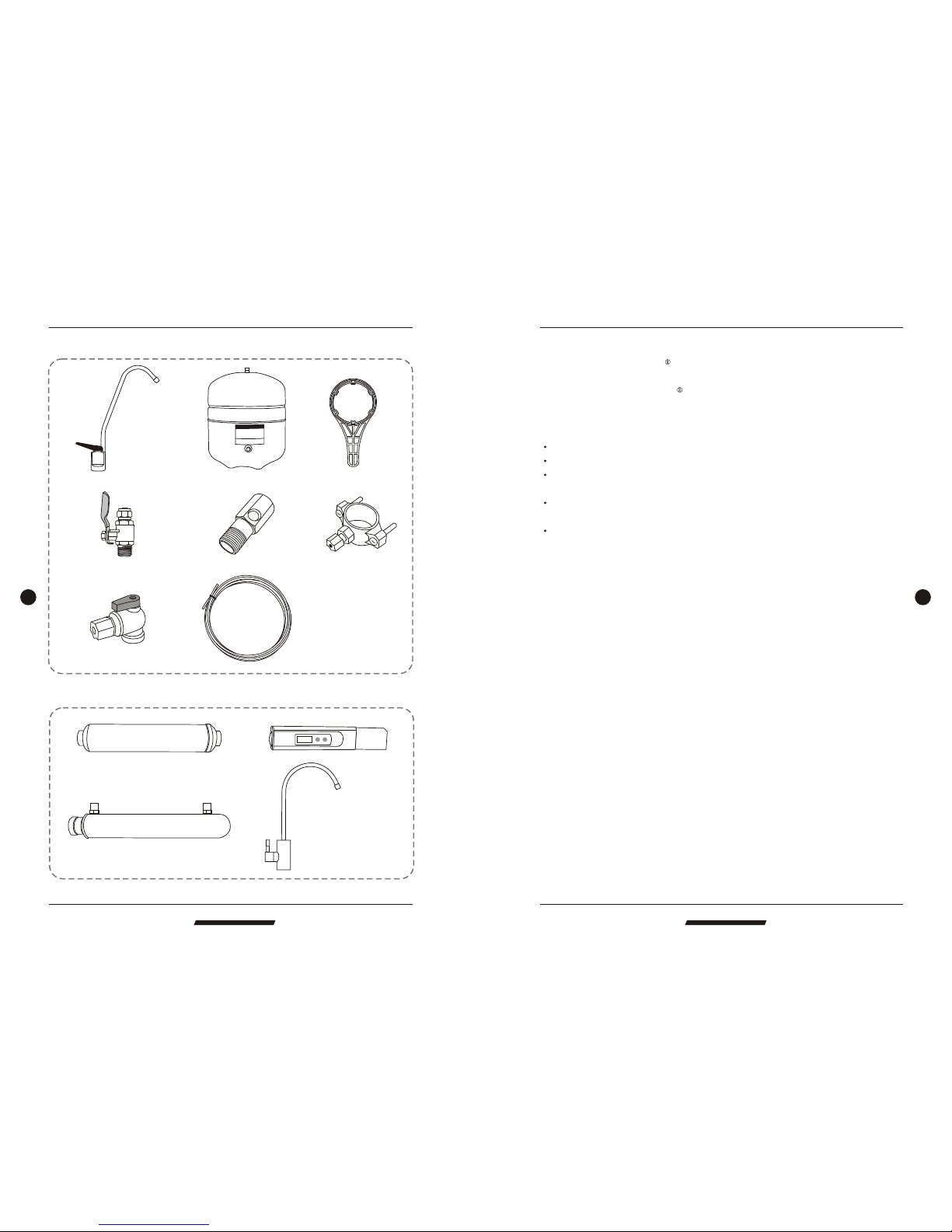

¨Selected filters
¨Components
UV water sterilizer
TDS meter
Upgraded european
ceramic faucet
Infra-red cartridge filter
Tank ball shut-off valve
Tubing
Infra-Red
Page 5
11 04
6 Months
2 Years
1 Year

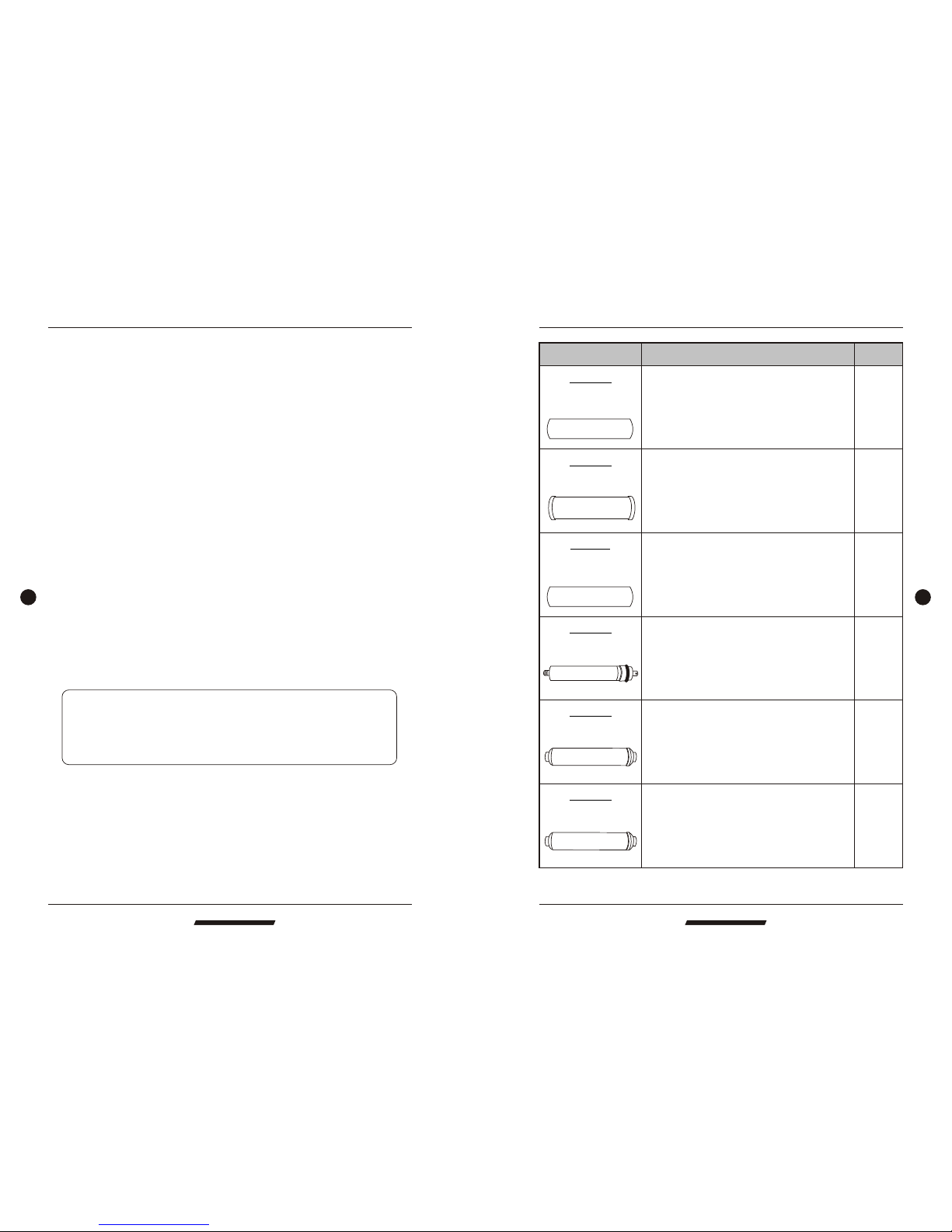

Cartridge Filters
Stage 1
Stage3
Stage 2
Block Carbon Filter
Stage 4
TFC Membrane
Stage 5
Post Carbon Filter
Cartridge Filters
Filter Description
6 Months
6 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particles and rusts.
This block carbon filter is composed of highperformance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals that contributed to taste and odor.
This 1micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts, particles and rusts.
Made in USA. High rejection TFC type membrane
with the capacity of producing 50 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium, chromium, mercury, sodium,
cadmium, fluoride, nitrite, nitrate, and selenium.
NSF approved. This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors from the tank and provides a
finer conditioning of pure water.
5 Micron
Sediment Filter
1 Micron
Sediment Filter
A.With everything connected, turn on the water check for leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters on first time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sink top faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DO NOT USE FIRST TANK OF WATER.***
G.Close the sink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checked annually.
Caution
0
1.Do not use hot water (over 45 C)!
2.Do not freeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drain out pure water.
Operation regulation
1 Year
Stage 6
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
Service Life
Alkaline Filter
The Alkaline filter changes the acidic RO water into
a perfect Natural Alkali Calcium Ionized Water. The
Alkaline filter simply gives back minerals such as
ionized calcium, magnesium, sodium, potassium
ion, which were taken away while purifying the
water.
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Page 6
05 10
Operation regulation

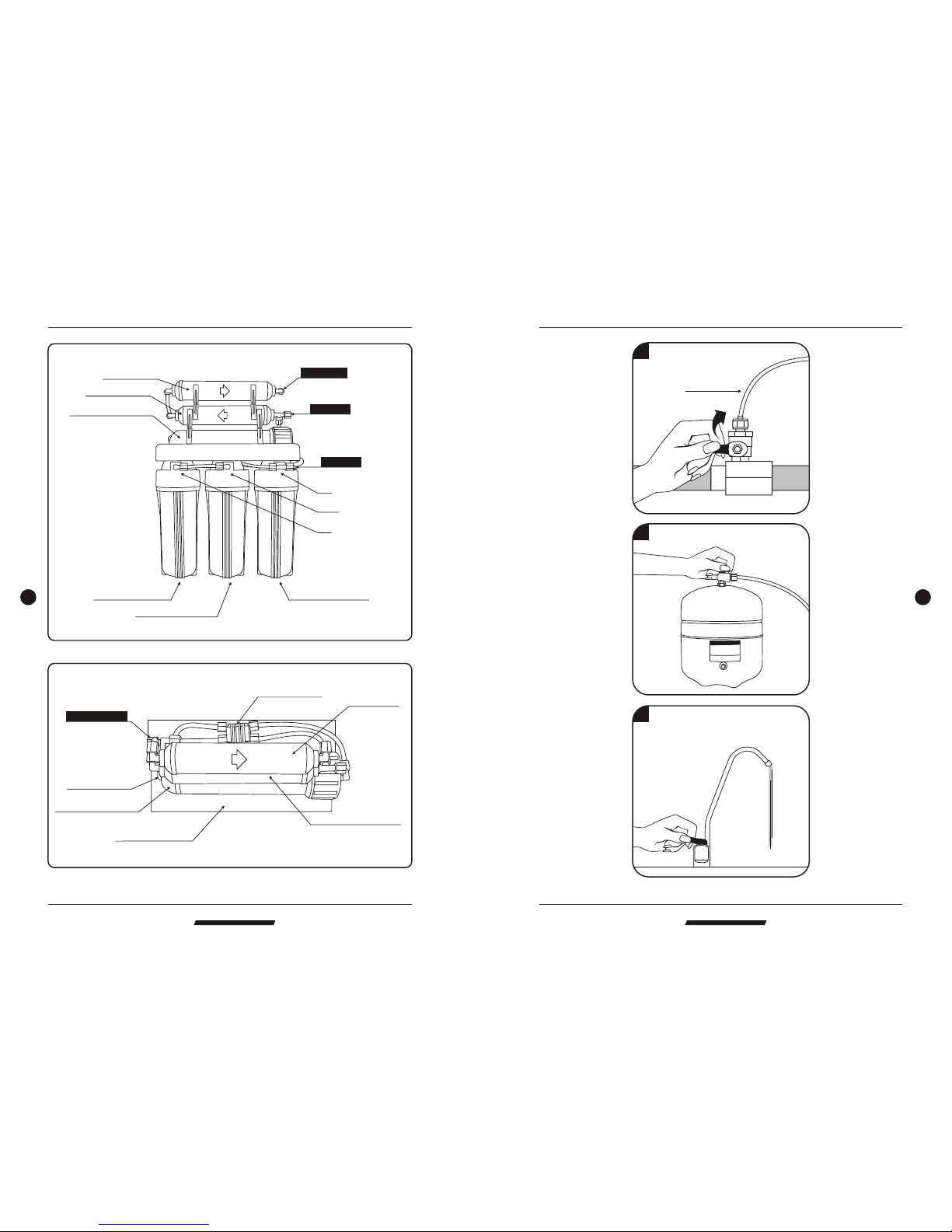

The parts of EC106R
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
3 Let the water run for at least 30
minutes. This flushes the carbon
filters on first time use.
2 Switch on water tank.
1 Turn on water source.
To RO system
RO membrane housing
Post carbon filter
IN
OUT
IN
The 1st stage housing
The 2nd stage housing
The 3rd stage housing
Post carbon filter
Housing bracket white
RO membrane housing
Auto shut-off valve
Mini flow restrictor
To drain out tube
To the faucet
To the tank
Input water
Alkaline filter
Alkaline filter
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Page 7
0609

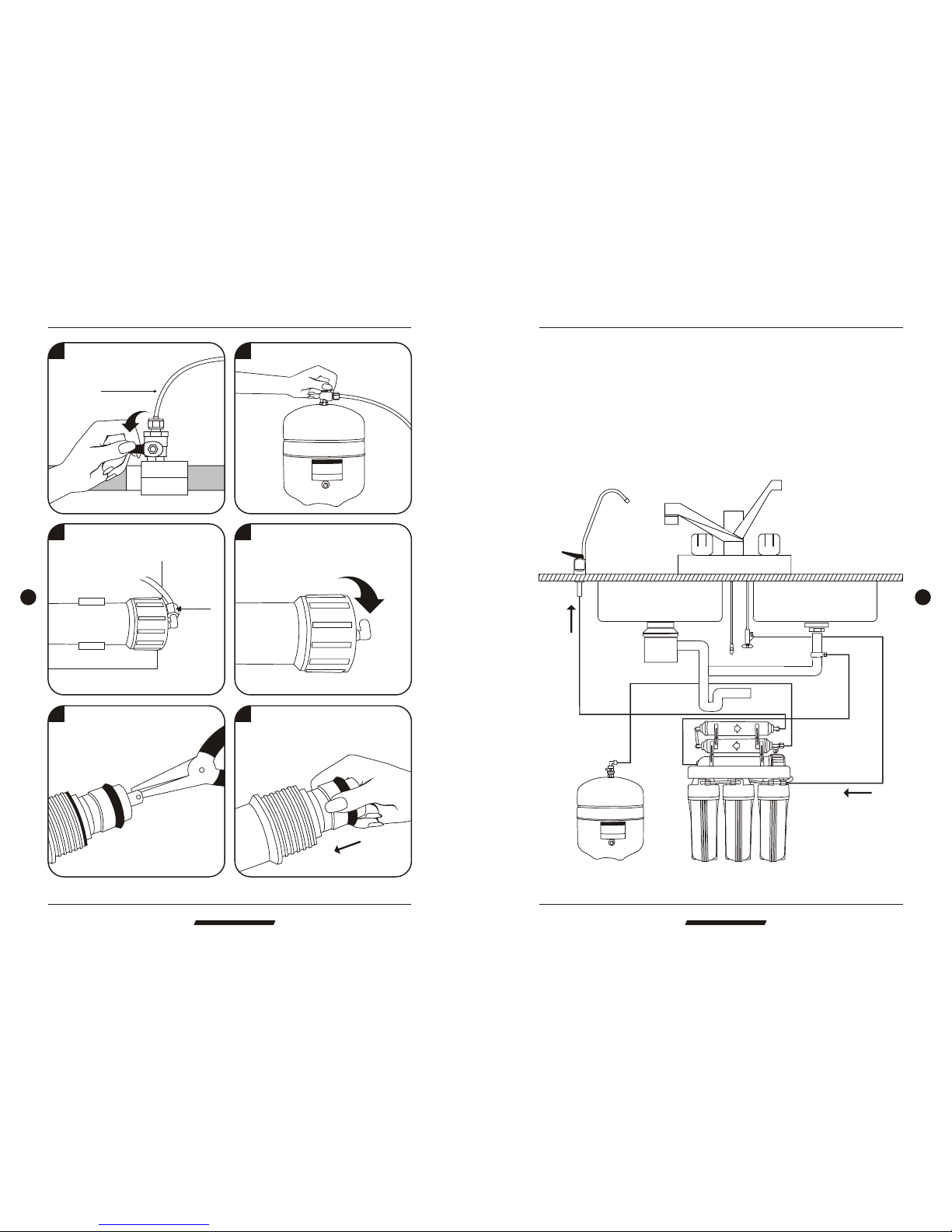

Tubing connection diagram
Change membrane
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
Jaco
P
R
O
N
G
W
A
TE
R
S
Y
S
T
E
M
3 Loose the Jaco fitting anticlockwise.
4 Remove the membrane housing
cap anticlockwise.
5 Remove the membrane by a pincer.
6 Install the membrane by carefully
pushing the spigot end into the
socket at the far end of the housing
until completely in.
1 Turn off water source. 2 Switch off water tank.
To RO system
Faucet
Tank
Drain
Input water
A
B
C
D
CONNECTING THE COLOR TUBING:
A. Connect the WHITE tubing to the water supply connector.
B. Connect the BLUE tubing to the sink top faucet.
C. Connect the BLACK tubing to the drain saddle.
D. Connect the RED tubing to the storage tank.
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Page 8

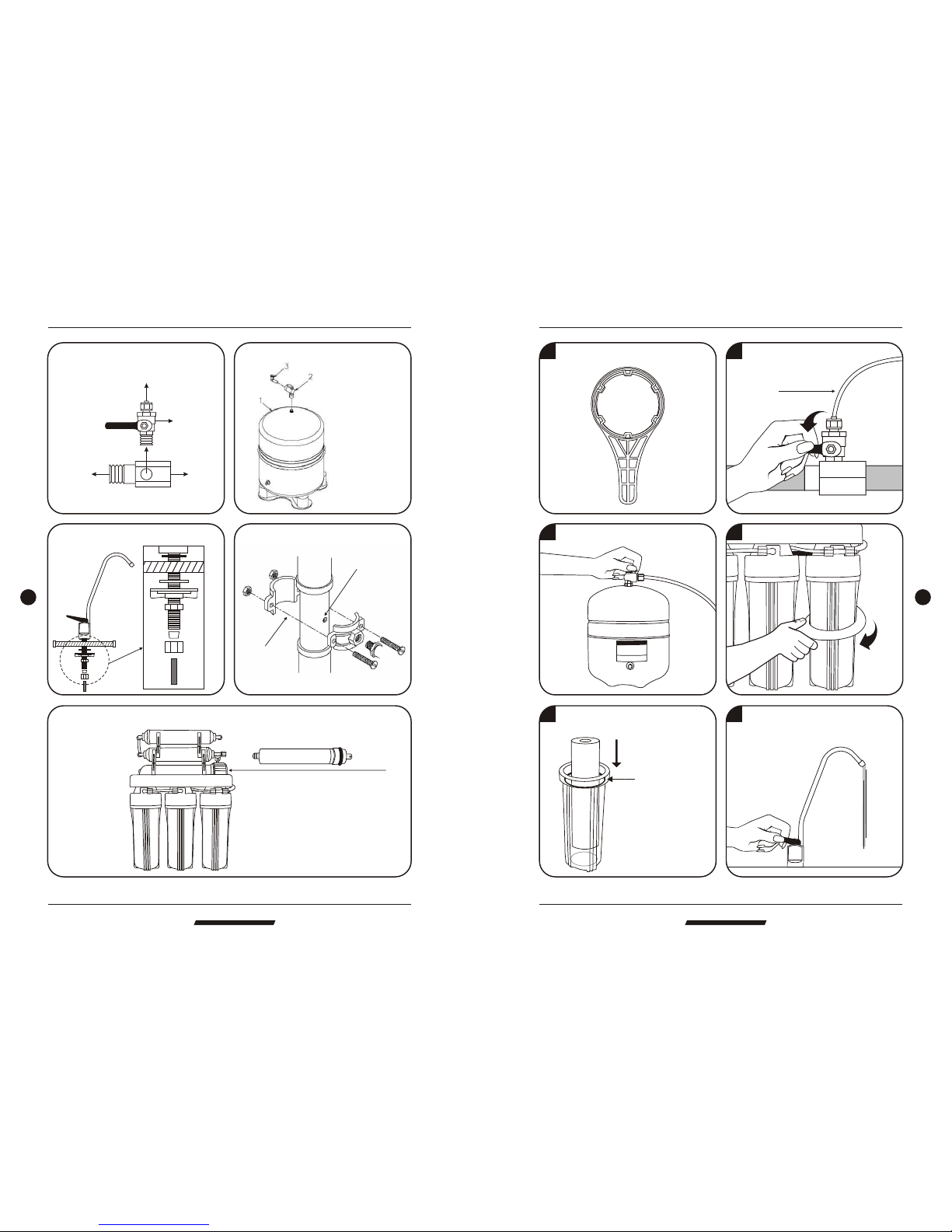

Install faucet :
07 08
Input water : Install water tank :
1.Remove the membrane housing cap.
2.Replace the membrane.
To RO system
Deliver valve
To faucet
To water source pipe
Install drain saddle :
Assemble membrane :
Hand tighten plastic
shut-off valve to tank.
Then connect color
tubing.
Drill a 1/4" hole into
the drain pipe.
Mount drain
saddle aligning
holes.
Installation diagram
Change filters
EC106 Upgrade Body Function RO System EC106 Upgrade Body Function RO System
Micro Computer Controller
POWER
SOURCEPROCESSFLUSH
FULL
1 Prepare a housing wrench.
5 Put the replacement filters in the
housings and double O'ring.
6 Drain out 1 Gallon of water to
purify replacement filters.
Be sure tighten with
O-ring to prevent
from leaking.
4 Open housings clockwise with a wrench.
3 Switch off water tank.
2 Turn off water source.
To RO system
PURE-PRO REVERSE OSMOSIS SYSTEM
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Loading...
