DRINKING WATER SYSTEM
REVERSE OSMOSIS SYSTEM
Type of product
Date ofpurchase
Name Tel
Address
DRINKING WATER SYSTEM
USER'S MANUAL
01 Introduction of
02 What isreverse osmosis
03 Components &
04 Cartridge filters
05 The parts of
06
07
09
10
12
14
15
EC105
Selected filters
EC105
Tubing connection diagram
Installation diagram
08 Change filters
Change membrane
Operation regulation
FAQ
Maintenance checkinglist
Memo
Thank youvery much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Memo
EC105
EC105 Economic Type
Page 2
Introduction of EC105
¨¨EC105-Economic Type
Specifications
Comply with the advanced RO technology, EC105 is designed for a life-long use
for all families. This system hides away under your sink. It is the most classic RO
system among all products. As no chemicals or electricity is applied to produce
premium water quality but with its stone-firmed high quality parts, EC 105 is
capable to remove over95% of total dissolved solids, +99% of all organics, +99%
of allbacteria, and reduces up to+99% of the chlorine. It also improves bothtaste
and qualityof water as well as objectionable odors and sediment. EC 105 not only
eliminates the harmful materials such as lead, cooper, barium, chromium,
mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium that may be
present in your water, but also brings you healthy pure-tasting water from your
fingertips.
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage
4th stage 5th stage
Other items
EC105 Economic Type EC105 Economic Type
Production: 50GPD / 189 LPD
100% factorytested and sterilized ready for installation
Operation pressure:45 -100 PSI
3.2 gallonsNSF standards water storage tank.
FDA approved polypropylenemade flat cap housing (double O'ring)
Automatic shut-off valve
Mini flowrestrictor
Stainless steelcheck valve
Long reachchrome faucet
Feed waterconnector
Drain saddlevalve
Four-color coded1/4 inch tubing for system connection
Completely assembled
Dimensions: (cm)37 (L) x 20 (W) x 45(H) - System
(cm) 28(L) x 35 (W) x 28(H) - Tank
Weight:8kg-System
4kg-Tank
Page 3
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properlyit will removeall microorganisms fromtap water andproduce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flowis reversed, waterfrom the saltsolution is forcedto pass throughthe
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screeningout the salts and other contaminants.
DRINKING WATER SYSTEMDRINKING WATER SYSTEM
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Q: How willthe Pure-Pro series water affect mixed beverages?
Because reverse osmosis removes invisible contaminants that mask flavor, it
allows the natural taste of your beverages to come through. You will be able to
use less coffee and still get the full flavor. Concentrated beverages like orange
juice will taste tangier. You will probably be drinking a lot more water as well,
since many people drink soda, Kool-Aid, concentrated juices, and beer as an
alternative to bad-tasting tap water. Also, Pure-Pro eliminates most of the lime
build up on drip coffee makers, preventing the need for frequent cleaning. No
longer will youfind the white scum on the inside of pans after boiling water.
Q: How muchwater does the Pure-Pro system produce ?
Q: Don't peopleneed minerals removed from the water ?
Q: What isthe maintenance schedule for the Pure-Pro System ?
Under ideal conditions, the RE1812-70 TFC membrane is rated at 70gallons of
production per day (70gpd at 60psi, 95gpd at 100psi). Under the average
conditions, the consumer can expect 70-95 gallons of product water per day. But
that's still a lot of water for the average household's drinking and cooking
requirements.
Most of the minerals that we receive are from the foods we eat. Only a very
small percentage comesfrom the water we drink.
The three pre-filter cartridges should be changed every 6 months. The 5 micron
sediment cartridge filter is the first one; the second is a carbon cartridge filter,
and the third one is a 1 micron sediment filters. (some systems comes with the
Extruded carbon filter.) Failure to change the cartridge every 6 months may
cause chlorine todestroy the membrane.
FAQ
EC105 Economic Type EC105 Economic Type
Page 4
PRO
P
URE
DRINKING WATER SYSTEM
Infra-Red Filter
DRINKING WATER SYSTEM

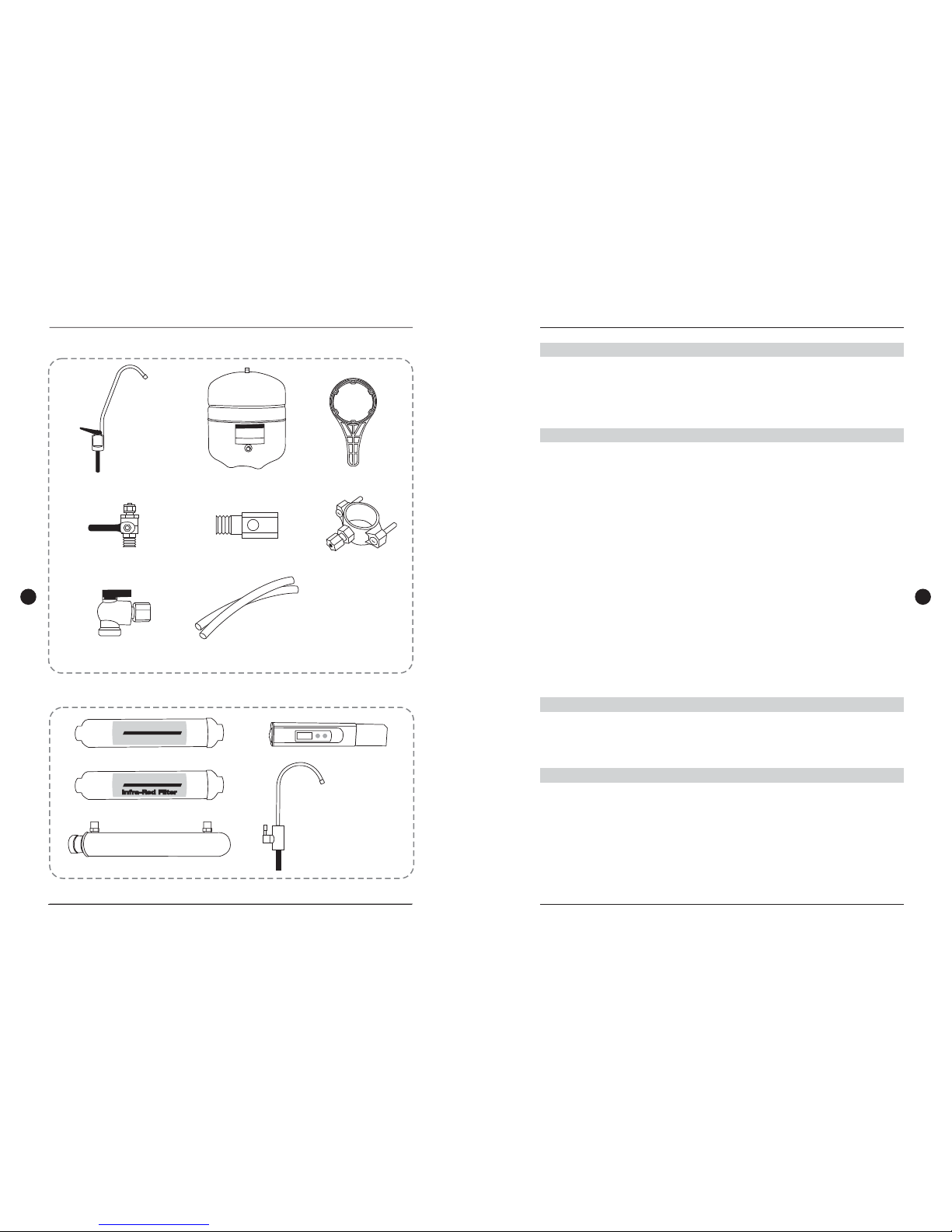

Components & Selected filters
3.2G waterstorage tank
Housing wrench
Deliver-valve
Water supply connector
Drain saddle
Tankball shut-off valve Four colorcoded 1/4 inch
tubing forsystem connection
¨Selected filters
¨Components
Infra-red cartridgefilter
DRINKING WATER SYSTEM
Q: What isthe guarantee on the Pure-Pro system ?
Q: What factorsaffect the quantity and the quality of the water production?
Pressure
Temperature
Total Dissolved Solids (TDS)
Membrane
Q: Can thePure-Pro system be connected to an extra faucet?
Q: What doesthe Pure-Pro series drinking water taste like?
The Pure-Pro System (excluding filters) is guaranteed for 1 year for material
and workmanship. All defective parts will be replaced free within the first year
under natural breakdown.The membrane has one year pro-rated guarantee.
There are fourmajor variables to consider:
1. -The greater the water pressure, the better water quantity and
quality it produced.Water pressure of 60 PSI is ideal.
2. -76 F is the ideal water temperature for R.O. 40 F water will
cause the production of R.O. water to fall to half of that at 76 F. The maximum
water temperature recommendedis 85 F.
3. -The higher the amount of dissolved
contaminants in the water, the lower the quantity of water produced. A high
level of TOTAL DISSOLVED SOLIDS can be overcome with additional water
pressure.
4. -Different membranes have different characteristics. Some
produce more water than others; some have better contaminant rejection
capabilities; some have greater resistance to chemical abrasion for longer life.
Pure-Pro system includes RE1812-70 The Thin Film Composite (TFC)
membranes combine the best of these characteristics and are considered the
finest membrane inthe world.
It only takes a 1/4" tee and tubing to run the water to a refrigerator or a extra
faucet. Some familiesrun Pure-Pro system to all of their bathrooms.
The taste of the Pure-Pro water depends on the amount of contaminants in the
tap water originally. If 95% of dissolved minerals and chemicals are removed,
the R.O. water may taste like distilled water (no minerals), bottled water (low
mineral), or naturalspring water (moderate mineral content).
0 0
0
0
FAQ
EC105 Economic Type EC105 Economic Type
Standard faucet
T.D.S
UVC-LIGHTING
ULTRAVIOLETWATERSTERILIZER
PRO
P
URE
DRINKING WATER SYSTEM
Mineral Filter
Mineral cartridgefilter
UV watersterilizer
TDS meter
Upgraded european
ceramic faucet
Page 5
6 Months
18mths
6Mth
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
DRINKING WATER SYSTEM

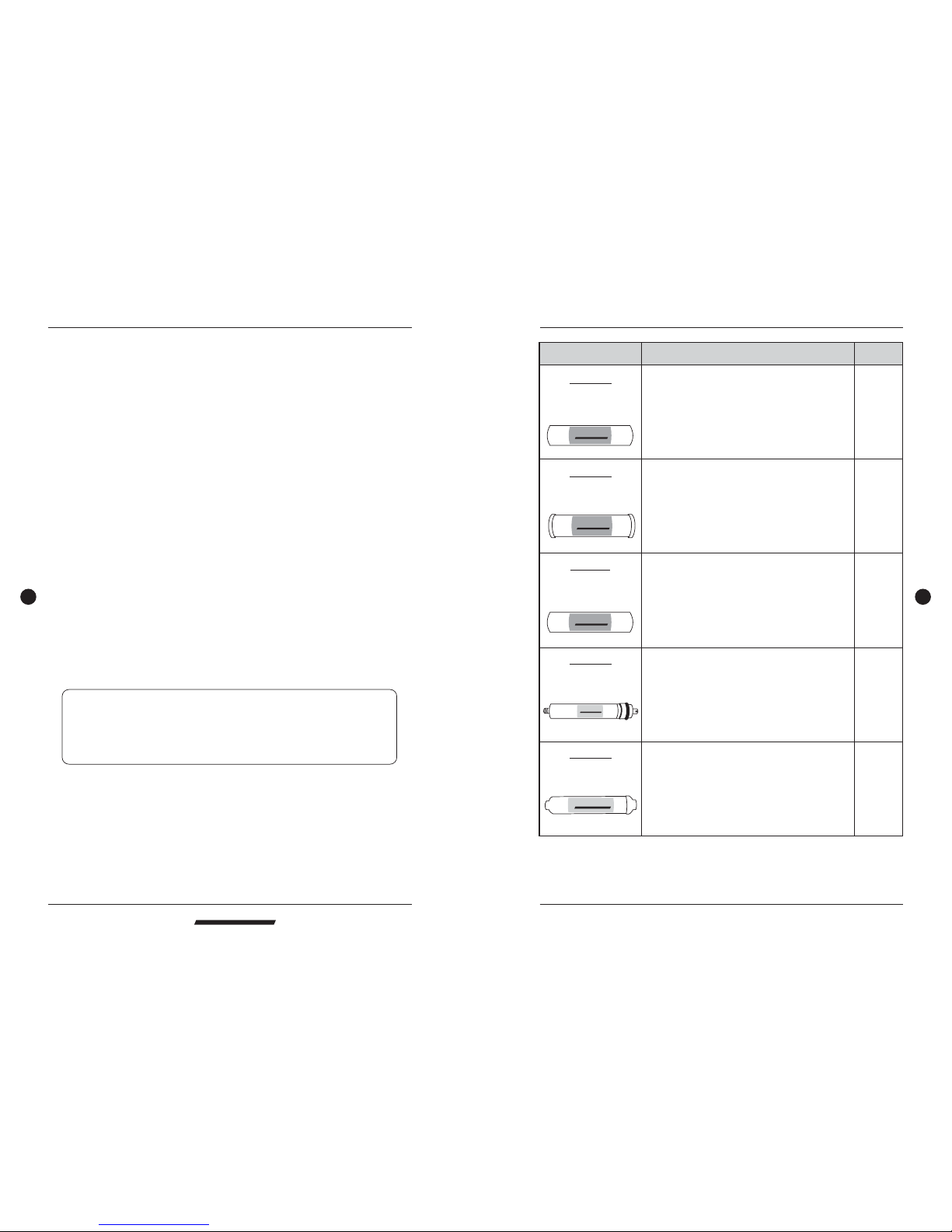

Cartridge Filters
Stage 1
Stage3
Stage 2
Block CarbonFilter
Stage 4
TFC Membrane
Stage 5
Post CarbonFilter
Cartridge Filters
Filter Description
6 Months
6 Months
This 5micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts,particles and rusts.
This block carbon filter is composed of highperformance carbon that removes free chlorine,
odor, organic contaminants, pesticides and
chemicals thatcontributed to tasteand odor.
This 1micron sediment filter is made of 100%
pure polypropylene fibers. High capacity filter
removes dusts,particles and rusts.
Made in USA. High rejection TFC type membrane
with the capacity of producing 80 gallons per day.
This membrane removes the following hard water
contaminants that may be present in your water:
lead, cooper, barium, chromium, mercury, sodium,
cadmium, fluoride,nitrite, nitrate, andselenium.
NSF approved.This post carbon filter is designed
to improve taste. It removes any residual
impurities and odors fromthe tank and provides a
finer conditioningof pure water.
5 Micron
Sediment Filter
1 Micron
Sediment Filter
A.With everythingconnected, turn on the water check for leaks.
B.Make sure the storage tank shut-off valve is "OFF". Open the sink
top faucet.
C.Within a few minutes (up to 15) the water will start to run from the
faucet slowly.
D.Let the water run for at least 30 minutes. This flushes the carbon
filters onfirst time use.
E.After initial flushing, open the shut-off valve on the tank and close
the sinktop faucet.
F.Tank will now full of water (usually 2 to 3 hours) after the tank has
filled. Open the sink top faucet and drain all water until the storage
tank is empty and there is only a small flow from the sink top
faucet.*** DONOT USE FIRST TANK OFWATER.***
G.Close thesink top faucet. The system is now ready for use.
H.Change filters regularly every 6 to 12 months and have the
membrane checkedannually.
Caution
1.Do notuse hot water (over 45 C)!
2.Do notfreeze the machine!
3.Switch off electricity and water source if away for more than 5 days,
and drainout pure water.
0
Operation regulation
EC105 Economic Type EC105 Economic Type
Service Life
Page 6
3 Let thewater run forat least 30
minutes. This flushes the carbon
filters onfirst time use.
2 Switch onwater tank.
DRINKING WATER SYSTEM
Operation regulation
1 Turn on watersource.
ToRO system

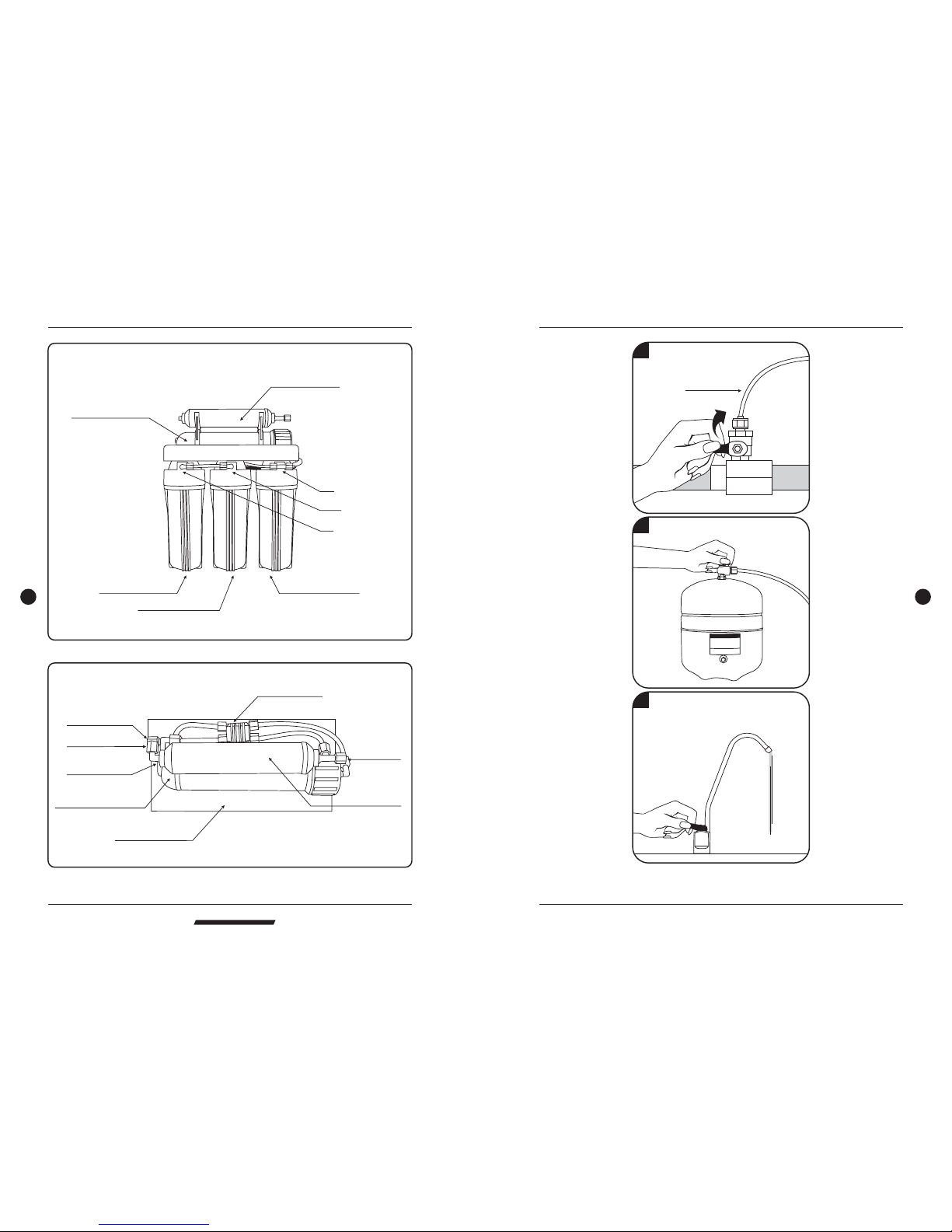

ThepartsofEC105
RO membrane housing
Post carbonfilter
The 1st stage housing
The 2nd stage housing
The 3rd stage housing
IN
OUT
IN
To thetank
Post carbonfilter
Housing bracket white
RO membrane housing
Todrain out tube
To thefaucet
Auto shut-off valve
EC105 Economic Type EC105 Economic Type
Mini flow restrictor
Page 7
Joco
Faucet
Tank
Drain
Input water

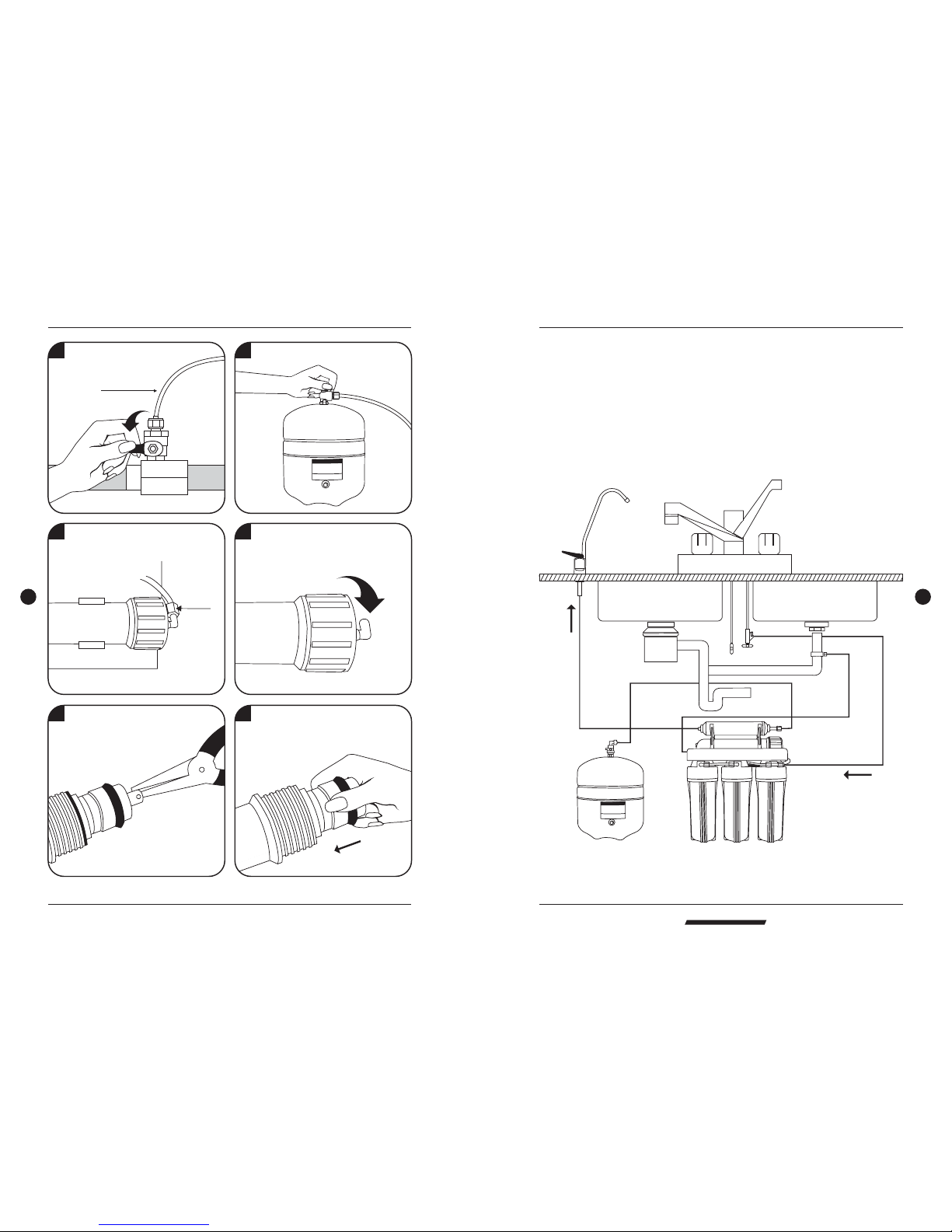

CONNECTING THECOLOR TUBING:
A. Connectthe WHITE tubing to the water supply connector.
B. Connectthe BLUE tubing to the sink top faucet.
C. Connectthe BLACK tubing to the drain saddle.
D. Connectthe RED tubing to the storage tank.
A
B
C
D
DRINKING WATER SYSTEM
PRO
NG
WATER
SYSTEM
3 Loose the Joco fitting anticlockwise.
4 Remove themembrane housing
cap anticlockwise.
5 Remove the membrane by a pincer.
6 Install themembrane by carefully
pushing thespigot end into the
socket atthe far end of the housing
until completelyin.
1 Turn off water source. 2 Switch off water tank.
Change membrane
ToRO system
EC105 Economic Type EC105 Economic Type
Page 8

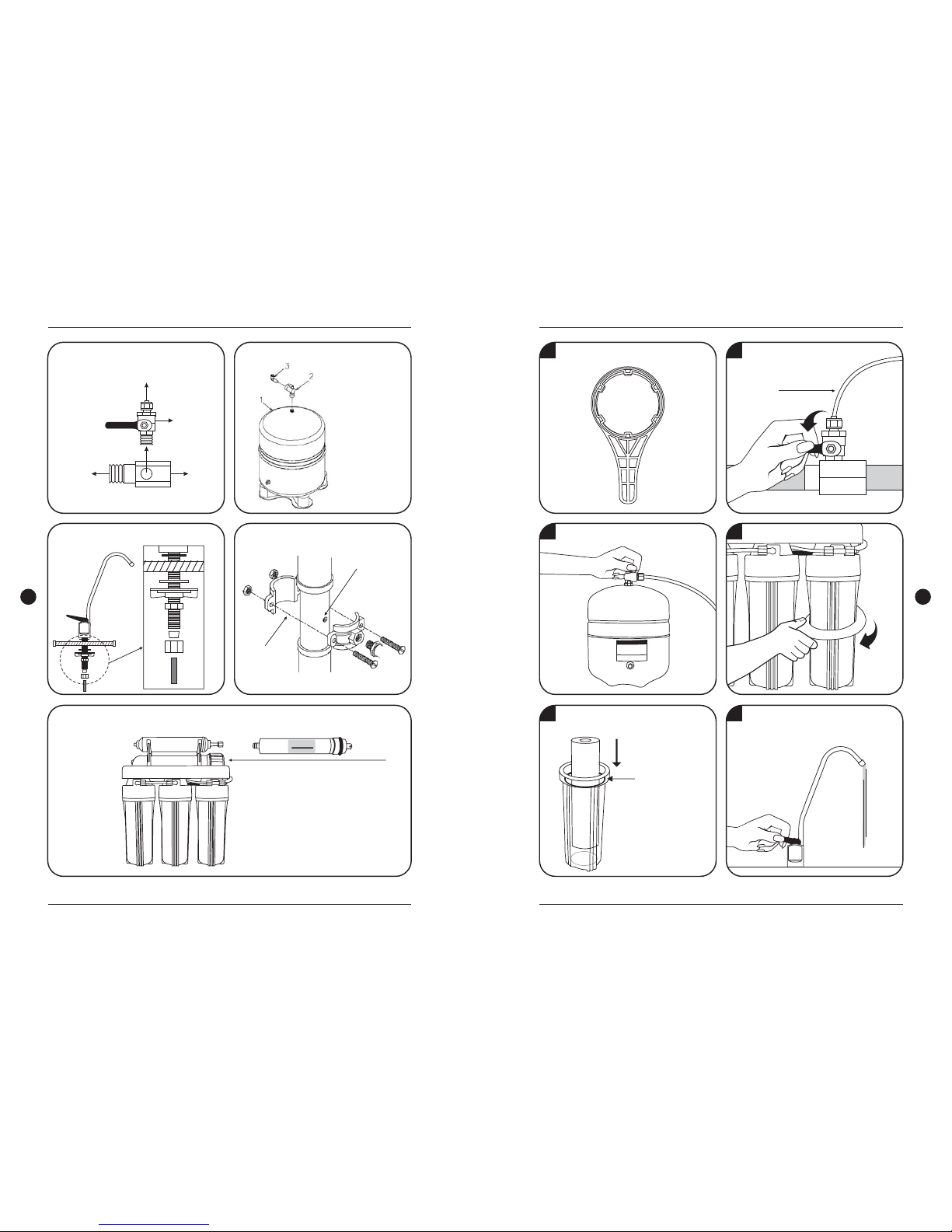

Install Europeanceramic faucet :
07
1.Remove the membrane housing cap.
2.Replace the membrane.
PRO
P
URE
DRINKINGWATER SYSTEM
DRINKING WATER SYSTEM
ToRO system
Deliver valve
Tofaucet
Towater source pipe
Install drainsaddle :
Assemble membrane:
Hand tightenplastic
shut-off valveto tank.
Then connectcolor
tubing.
Drill a1/4" hole into
the drainpipe.
Mount drain
saddle aligning
holes.
Installation diagram
1 Prepare ahousing wrench.
6 Put thereplacement filters in the
housings anddouble O' ring.
7 Drain out1 Gallon ofwater to
purify replacementfilters.
DRINKING WATER SYSTEM
Change filters
Be suretighten with
O-ring toprevent
from leaking.
5 Open housings clockwise with a wrench.
3 Switch off water tank.
2 Turn off water source.
ToRO system
EC105 Economic Type EC105 Economic Type
Loading...
