Page 1
Thank you very much for selecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read the user's manual
carefully before installation and follow the regulations.
P
R
O
P
URE
DRINKING WATE R SYSTEM
Type of product
Date of purchase
Name Tel
Address
P
R
O
P
URE
DRINKING WATER SYSTEM
Memo
PURE-PRO REVERSE OSMOSIS SYSTEM
07
BB20-02
01 Introduction of BB20-02
02 Cartridge filters
03 Components & Selected filters
04 Tubing connection diagram
05 Change filters
06 FAQ

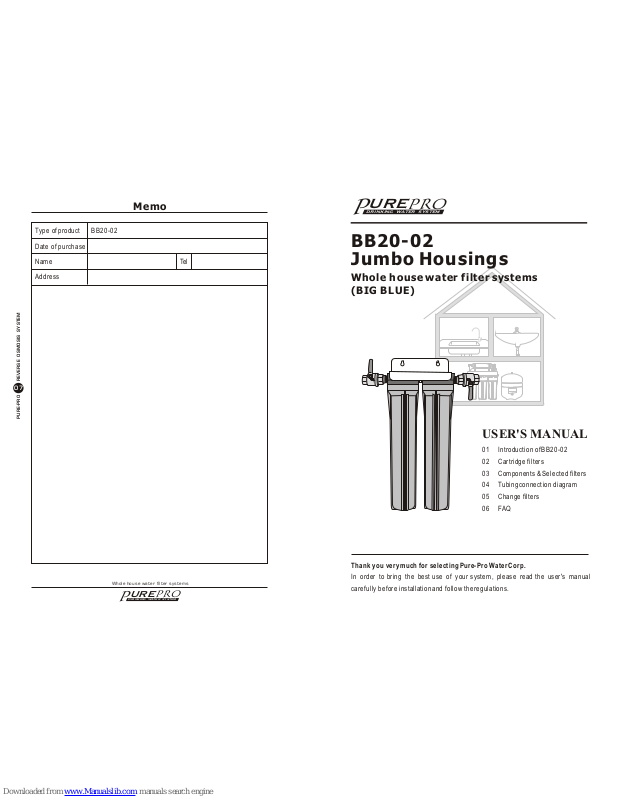

USER'S MANUAL
Whole house water filter systems
(BIG BLUE)
BB20-02
Jumbo Housings
Whole house water filter systems
Page 2
Introduction of WF-20
01
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
06
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
¨BB20-02
This whole house water filter with 20" single replaceable filter provides you with
great tasting water. It removes hundreds of contaminants from your water. Water
travels through 2 stages of filtration
First water travels through a five micron filter pad, GAC, and another one
micron pad and removes hundreds of contaminants from your water
Conveniently provides 10,000 gallons of quality water. Great for homes,
apartments and offices.
¨Features
Pressure Release Valve
Wall Bracket
Easy Filter Changes
Compact
Available in 1" NPT input/output
Operating Data:
Max. Pressue:125 psi
00
Max. Temperature: 120 F (50 C)
NOTE:
Filter housing must be protected against freezing
Must be operated under recommended pressure
Do not install filter housings to direct sunlight
FAQ
Q: How long does the BB20-02 whole house water filter system last?
The BB20-02 unit is ideal for a 10,000 gallon capacity at 8 gpm, the highest
certified capacity of any whole house water filter system. The main filter unit is
easily replaced, and only needs to be replaced every 6 months ; the sediment prefilter (EQ-304) should be replaced every 3-4 months.
Q: What are the benefits of whole house filtration?
By filtering all the water that enters your home, you not only greatly enhance the
healthfulness of your household water, but you also dramatically improve your
indoor air quality. It removes radon, VOCs, pesticides, metals, and will reduce TDS
down to 5 microns and will alkalize the water. The will also raise the pH of
your water to around 7.5.Every home has an elevated level of chloroform gas
present due to the vaporization of chlorine... from tap and shower water. Chlorine
vapors are a suspected cause and irritant of respiratory problems such as asthma,
bronchitis, and allergies. Filtered water will benefit every aspect of your family's
health.
Q: If I put in a whole house unit, do I still need the other counter or shower
units?
The shower system is not needed, but the use of the drinking water filter is still
recommended because it removes more contaminants, and after water goes
through the whole house filter, the house's plumbing will introduce new
contamination like lead.
Q: Does the whole house filter system have any benefits for laundry and/or
dishwashing?
Definitely. Clothes will not have VOCs and chlorine embedded in them to irritate
skin, colors will last longer with the chlorine removed as well as look newer. The
dishwasher releases more VOCs and chloroform into the household indoor air than
any other source besides the shower. The system prevents this toxic gas from
being released. Filtered water in the dishwasher also reduces film or soap scum on
dishes. For both laundry and dishwashing, filtered water reduces the amount of
detergent you need to use in each cycle.
BB20-02
Whole house water filter systems Whole house water filter systems
Page 3
¨Filter Description
05
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
02
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Cartridge filters
Stage 1 Stage 2
Carbon Block Filter
With only five micron
rating. It is effective in
removing dirt, rust and
sand particles.
It takes out 99% of the
chlorine and organic
chemicals. It provides
enhanced reduction of
taste, odor, and color.
5 Micron
Sediment Filter
6 Months
Service Life
6 Months
Service Life
1.Turn off water source.
Change filters
*Drain out 1 Gallon of water to purify replacement filters.
2.Open housings clockwise with a wrench.
3.Put the replacement filters in the housings and double O' ring.
Be sure tighten with
O-ring to prevent
from leaking.
Whole house water filter systems Whole house water filter systems
Page 4
BB20-02
UVC-LIGHTING
ULTRAVIOLET WATER STERILIZER
UV
03
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
04
PURE-PRO REVERSE OSMOSIS SYSTEM
P
R
O
P
URE
DRINKING WATER SYSTEM
Components & Selected filters
Tubing connection diagram
¨Selected filters
¨Components
Cartridge filter Housing wrench
Whole House Filter
RO system
Kitchen Bathroom
Shower filter
T.D.S
TDS meter
Whole house water filter systems Whole house water filter systems
