ASTROBOY Countertop Smart RO System
ABSTRO OY
AB
STRO OY

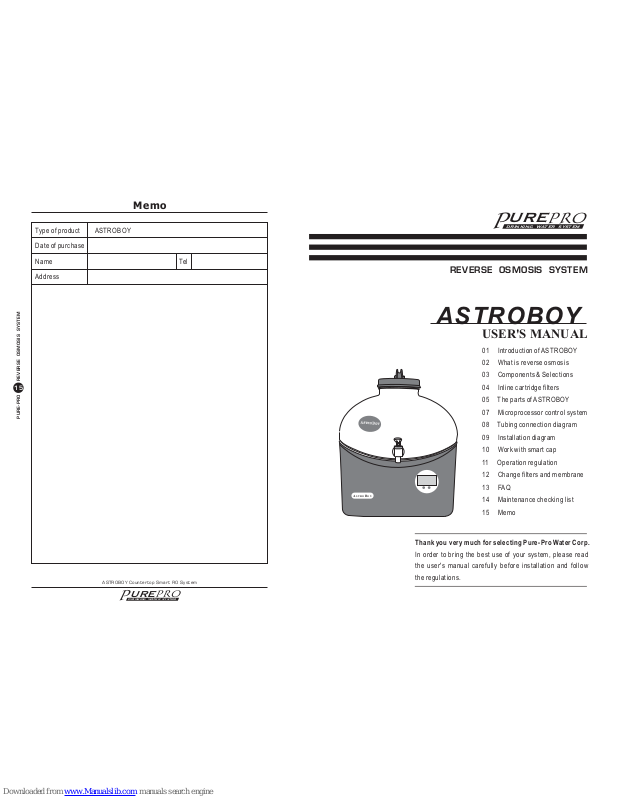

USER'S MANUAL
Thank youvery much forselecting Pure-Pro Water Corp.
In order to bring the best use of your system, please read
the user's manual carefully before installation and follow
the regulations.
Type of product
Date ofpurchase
Name Tel
Address
Memo
ASTROBOY
01
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
14
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System ASTROBOY Countertop Smart RO System
Introduction of ASTROBOY
Maintenance checking list
Date
Filters
1st stage 2nd stage 3rd stage
4th stage 5th stage
Other items
¨ASTROBOY
As a smart countertop RO system, Astroboy is especially designed for homes,
offices, restaurants, and shops use. It is the most delightful RO system
invention of 21 century. Astroboy not only brings you 100% pure clean water,
but with a multi-function tank, you can enjoy pure clean water wherever you are
anytime youwant it.
With built-in the automatic flushing and self-cleaning procedure, its membrane
always remains clean. Water never stands still for a long time to avoid bacteria
growing. You can always get the best quality of water. LCD display shows the
service life of filter, and tells you if filters need to be replaced. It even knows
which filteris expired.
Build-in Smartmicroprocessor control system.
Complete 5stage reverse osmosis waterfilter system.
Build-in highcapacity booster pump.
Extremely versatileRO system.
Easy installation,just plug & drink.
LCD displayto show the servicelife of filters.
LCD displayto tell which filterneeds to be replaced.
Warning if the filter wasexpired or out of use.
Auto shut-off whenno feed water comes in.
Self-cleaning procedureto automatic flushingmembrane. (every 8hrs)
Quick-connect fittingfor easy maintenance.
Versatile /Portable water storage tank fitsanybottle water dispenser.
Best Travel Companion.
Wide Application: Countertop / Outdoor /Motorhome / Boat
¨Specifications
¨Features:
Production
Water storage tank
Transformer
Output
Wattage
Operation pressure
Dimensions
Weight
Max. inletwater temperature
80 GPD/ 300 LPD
4.5gallons /17 liters
220Volt or 240Volt (50/60Hz)
DC24V
30W
10 -100PSI
(cm)36 (L)x 46(H) x25 (W)
12.5 kg
46
13
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
02
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System ASTROBOY Countertop Smart RO System
FAQ
Q: Why isthe testing result of my TDS higher than 40ppm?
Q: Can thewater tank be used for similar coolers?
Q: How doesthe over-flow tube function?
Q: What shouldI do if the water productivity is shrinking?
Q: What arethe importance to change filters regularly?
We suggest you stop drinking water from the system if TDS testing result is
higher than 40ppm. And change the RO membrane right away. Do remember to
change filters regularly.
Yes, this is a multi-function tank for which you can easily use for any similar
coolers.
It acts asa protector when the over-flow ball valve is malfunction.
Please change the filters. If the problem remains the same, please contact a
nearest distributor forsolutions.
1.Toensure the quality of drinking water
2.Tomake the best use and extend the life ofsystems.
3.Filters have anexpired life of service and must be changed regularly.
What is reverse osmosis
Reverse Osmosis
Pressure
Membrane
Water flow
Reverse osmosis was originally designed to make sea water drinkable for the
navy. It is ideal for anyone on a low sodium diet. An R.O. membrane has a pore
size much smaller than bacteria virus, or the cryptosporidium parasite. When
functioning properlyitwill remove all microorganisms from tapwaterand produce
sterile water. Reverse osmosis is the reversal of the natural flow of osmosis. In a
water purification system, the goal is not to dilute the salt solution, but to
separate the pure water from the salt and other contaminants. When the natural
osmotic flowisreversed, water from the salt solution isforced to pass through the
membrane in the opposite direction by application of pressure-thus the term
REVERSE OSMOSIS. Through this process, we are able to produce pure water
by screeningout the saltsand other contaminants.
03
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
12
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
TDS meter
T.D.S
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
ABSTRO OY
AB
STRO OY
1 Switch off water source
and electricity.
2 Turn off system power
switch
4 Remove water tank and holder.
5 Take out the4 fixed screws. Then
remove filtersand connectors.
6 Coil the connectors with Teflon
tape andconnect to anew filter.
Then connectto its tube.
7 Put back the tube jointto the tank
cap. switchon water sourceand
electricity.
3 Take out tubejoint.
Check carefullyto see ifthere is aleaking. If so,repeat the proceduresdescribed above.
Deliver-valve
Water supply connector
Components & Selections
¨Selections
¨Components
Faucet Smart cap
Transformer
8mm over-flowtube white x1
6mm feedwater tube whitex 1
6mm drainout tube orangex 1
Tubes
Change filters and membrane
ToASTROBOY
Withe Teflon tape
11
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
04
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKINGWATER SYSTEM
PRO
P
URE
DRINKING WATERSYSTEM
Service lifevaries with consumption andquality of water.
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
AB
STRO OY
AB
STRO OY
4 The system begins to produce
water 30seconds after filtersare
being flushed.
5 Microprocessor control system
functions asshown on the picture.
1 Plug in electricity.
2 Switch on water source.
3 Turnon system power switch.
PRO
P
URE
DRINKING WATER SYSTEM
6 Dain out the first tankofwater to
flush filtersand carbon fines.
Drink fromthe second tank of water.
ASTROBOY Countertop Smart RO System
Query Reset
TANK FULL
FLUSHING
NOINLET WATER
CALLSERVICE
PUMP REMAINING CAPACITY
GAL
DAYS
12345FILTER
3000
365
When underproduction of water, it'snormal that thedrain out tubecomes with drainout water.
Do notstuff the drainout tube toprevent the systemfrom breaking down.
Inline cartridge filters
Service life
Cartridge Filters
Filter Description
Stage 1
Stage3
Stage 2
Inline Activated
Carbon Filter
Stage 4
Filmtec Membrane
Stage 5
Post CarbonFilter
Inline 1Micron
Sediment Filter
PRO
P
URE
DRINKING WATERSYSTEM
CARBON
PRO
P
URE
DRINKING WATERSYSTEM
1 Micron
PRO
P
URE
DRINKING WATERSYSTEM
CARBON
Inline Activated
Carbon Filter
1 Year
6 Months
4 Years
6 Months
6 Months
This 1micron sediment filter is made by
Dupont Anti-Bacteria. High capacity filter
removes dusts, particles and rusts, 99.70%
anti-bacterial, comply with FDA test standard.
Use 100% pure PP fine fiber. Product series
have been passed the test in accordance with
the filtering effect test of ANSI-NSF standard
42 -particulate reduction classII-V of U.S.A.
Service Life:1500GAL
This granular activated carbon filter is
composed of high-performance activated
carbon that removes free chlorine, odor,
organic contaminants, pesticides, and
chemicals thatcontributed to tasteand odor.
Service Life:1500GAL
This granular activated carbon filter is
composed of high-performance activated
carbon that removes free chlorine, odor,
organic contaminants, pesticides, and
chemicals thatcontributed to tasteand odor.
Service Life:1500GAL
Filmtec (Dow Chemical)membranes, maker of
the world's most advanced reverse osmosis
membranes. High rejectionmembrane with the
capacity of producing 80 gallons per day.
Eliminates up to 99.9% of most chemicals,
dissolved solids,metals, bacteria, andviruses.
Service Life:10000GAL
This post carbon filter is designed to improve
taste. It removes any residual impurities and
odors and provides afiner conditioning of pure
water.
Service Life:3000GAL
Operation regulation
ToASTROBOY
10
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
05
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
ABSTRO OY
AB
STRO OY
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
AB
STRO OY
AB
STRO OY
1.Fasten thesmart cap clockwisetogether with watertank.
2.Takeoff the cover stickerfromthe smart cap. Turn the tank upside down and
hook upwith any countertop drink water systems/ coolers.
It's normalthat a plasticstopper shall befloating after turningthe water tankupside down.
Each part of main body
Tankcap
Holder
Microprocessor
control system
Multi-fuction tank
Faucet
The front
Tube joint
Over-flow /drain out hole
In theback
Power switch
Transformer plug
From theside
Work with smart cap
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
ToASTROBOY
Deliver valve
Tofaucet
Towater supply pipe
PRO
P
URE
DRINKING WATER SYSTEM
06
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
09
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
T
1.Pure watersupply
2.Over flowprotector
3.Auto shut-off switch
ube jointis the combinationof :
ASTROBOY Countertop Smart RO System
Each part of main body
Tube joint
Drain outtube
Low pressure switch
Solenoid valve
Booster pump
Feed watertube
Auto flushing
solenoid valve
Over-flow tube
View from thetop
Drain outtube
Auto flushing
solenoid valve
Booster pump
Over-flow tube
1st stagefilter
2nd stagefilter
3rd stagefilter
4th stagefilter
5th stagefilter
View from theside
Installation diagram
Connect 6mmfeed water tubewhite
Connect 6mmdrain out tubeorange
Connect 8mmover-flow
tube white
Input water
Connect tubejoint
Check theremaining service life ofeach cartridge filter.
Reset thissystem after yourhave done thereplacement.
Showing lifeof service for filters.
st 1500GAL 1499.....0
3st 3000GAL 2999.....0
4st 9999GAL 9998.....0
5st 6000GAL 5999.....0
Example :1st 1500GAL 1499.....0
2
Flashing whichfilter needs to bereplaced.
Showing thewater drop whenthe system ismaking the water.
Showing different functionsas follows :
TAN K FULL !
FLUSHING :Automatic flushing membrane (per 8hrs).
NO INLETWATER : Nofeedwater!
CALL SERVICE : Flashing when thefilter needs to be replaced (filter expired).
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
Query Reset
TAN K FULL
FLUSHING
NO INLET WATER
CALL SERVICE
PUMP REMAINING CAPACITY
GAL
DAYS
12345FILTER
3000
365
1
2
3
4
5
6
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
07 08
PURE-PRO
R
EVERSE OSMOSIS SYSTEM
PRO
P
URE
DRINKING WATER SYSTEM
ASTROBOY Countertop Smart RO System
3
5
1
4
2
6
Simply leavethe drain outtube and overflow tube inthe sink!
Microprocessor control system
Tubing connection diagram
6mm feedwater tube white
6mm drainout tube orange
8mm over-flowtube white
Kitchen sink
Loading...
