PurePower 700, 2000, 1050 User Manual

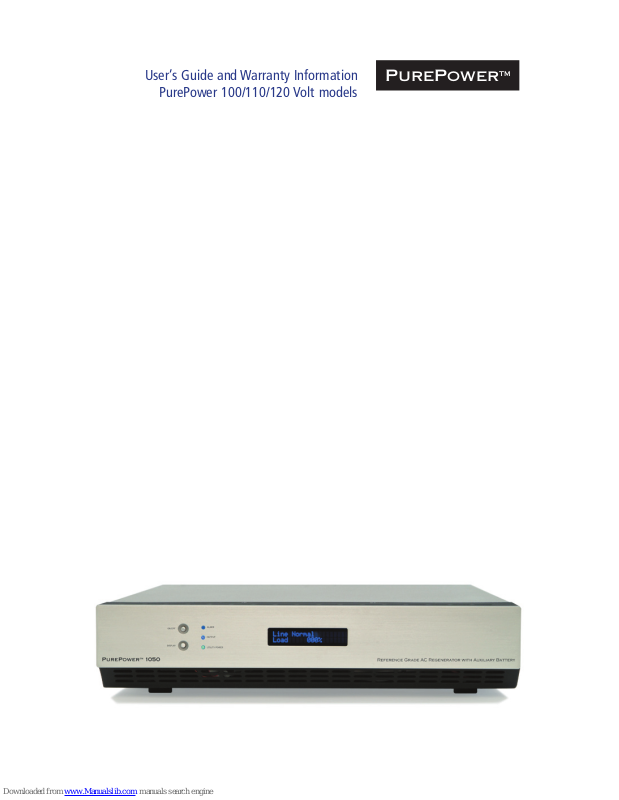

User’s Guide and Warranty Information

PurePower 100/110/120 Volt models

PurePower

TM

Audio/Video Power Supply • www.purepoweraps.com | 01

Contents

Table of Contents

About the PurePower APS 2

Inspecting the Equipment 4

PurePower Preparation 5

Activating Up Your PurePower 8

02 | Pure Power in > Pure Sound out

About the PurePower APS

wave form with propper voltage and frequency from the DC. We make sure that your system gets

the power it was designed for and your amplifiers get the current they need for top performance.

The APS also protects from power disturbances including power sags, power surges, over-

voltages, line noise, undervoltages, frequency variations, switching transients and harmonic dis-

tortion. Power disturbances have the potential to damage sensitive hardware causing expensive

With the APS you can safely eliminate the effects of power disturbances and guard the integrity

In addition to pure power, the APS provides you with something unique in audio power

when the power fails completely.

• True double conversion AC regeneration design with pure sine wave output. The APS filters

and regulates incoming AC power, creates a DC source, then regenerates new pure AC and

provides monitored, consistent power to your components.

• The APS improves amplifier performance by ensuring full wattage and improves signal

component output quality by removing noise and distortion.

• The PurePower APS design allows any of our high quality, full contact receptacles

to supply digital, analog or amplifier components.

• Hours of extended viewing or listening time with optional APS PowerPack Modules

during outages.

• Built in line surge protection guards against spikes and surges on coax, RJ11and RJ45 lines.

Audio/Video Power Supply • www.purepoweraps.com | 03

Safety Warnings

tenance of the APS and batteries. Please read all instructions before operating the equipment and

the APS is not plugged in.

turned on. This removes the safety ground from the APS and the equipment connected to the

APS.

To reduce the risk of fire or electric shock, install this APS in a temperature and humidity

To comply with international standards and wiring regulations, the total equipment connected

to the output of this APS must not have an earth leakage current greater than 3.5 milliamperes.

Proper disposal of batteries is required. Refer to your local codes for disposal requirements.

04 | Pure Power in > Pure Sound out

Installation

with an IEC female connector to fit the PurePower input connector and a Nema

1) File with the carrier within 15 days of receipt of the equipment

2) Send a copy of the damage claim within 15 days to your PurePower APS dealer.

Audio/Video Power Supply • www.purepoweraps.com | 05

Installation

When you position the APS horizontally on a shelf or in a non-rack style AV equipment stand or

Attach the mounting handles to the bracket with the screws provided in the accessory kit.

the APS.

Mounting

Handle

Mounting Bracket

06 | Pure Power in > Pure Sound out

Installation

Hubbell NEMA 5-15 output receptacles that may

fiers. The 2000

television, satellite, ethernet and teleph

y. The

prevent satellite or cable TV coax cables, telephone and ethernet lines from

AC power lines by the PurePower A

intended to prevent

All surge modules provide instantaneous response using advanced silicon avalanche diodes with

the ability to safely dissipate surge currents of up to 1kA and auto reset in readiness for any sub-

Type F (2) 30 45 2 GHzT

Telephone

RJ11 4 wire 190 <298 na

RJ45 5 10 155MHz

Audio/Video Power Supply • www.purepoweraps.com | 07

Installation

powering the APS

tion, place the Power Packs below the PurePower unit.

tional 36 volt

the unit can be factory retrofit

All PurePower 2000 models incorporate a PowerPack connector that mates only with the 72 Volt

designed for the 2000.

A small amount of arcing may occur when connecting a PowerPack Module to the

APS. This is normal and will not harm you. Insert the connection cable into the APS battery con-

· Plug the first PowerPack cable into the battery connector on the APS rear panel

· If additional PowerPacks are to be installed, plug the cable of the second cabinet into the

battery connector on the previous Powerpack

08 | Pure Power in > Pure Sound out

Installation

Activating the APS

power source are correctly matched.

· Plug the components to be supplied into the APS output receptacles. The PurePower APS

design allows any outlet to supply digital, analog or power amplifier components.

· DO NOT operate electric space heaters or other items with heater elements with the APS.

t circit breaker is switched to "on"

· Plug the APS power cord into a utility outlet. The APS conducts a self-test. You may hear

a slight click and the fans will rotate momentarily. When the self-test is complete, the APS

is in standby mode.

· Start the APS by pressing the On/Off button until the blue LED is illuminated..

When the blue "Output" LED is illuminated, power is being supplied to the PurePower output

the capacity of the PurePower APS.

After init

APS on at all times to ensure its batteries are fully

AC supply

the line cord,

ensure AC power is available at the receptacle and

the back of the unit before

notifying PurePower service.

from the wall.

Audio/Video Power Supply • www.purepoweraps.com | 09

Installation

After the APS is connected to a power outlet, it conducts a self-test and enters Standby mode,

test.

10 | Pure Power in > Pure Sound out

Operation

ver Load

your system. The APS monitors and provides power to your system and charges the batteries as

Audio/Video Power Supply • www.purepoweraps.com | 11

Operation

filtered by the APS. The LCD display will indicate "Bypass" when bypass mode is engaged. The

APS switches to Bypass mode when:

· The APS has an overtemperature condition.

· The APS has an overloaded condition of 101 to 110% for 2 minutes.

· The APS has an overloaded condition of 111 to 150% for up to 30 seconds.

· The APS detects a fault in the battery or APS electronics.

When the APS is operating during a power outage, the "Battery" screen is presented on the

12 | Pure Power in > Pure Sound out

Operation

Mode

When the APS is operating in Normal

APS to enter test mode for 10 seconds. The APS will then operate on battery and complete a self

test.

APS or a possible internal problem. Unplug each load in turn. If the problem continues after all

When the APS detects an overload condition its behavior varies with the amount and duration

Audio/Video Power Supply • www.purepoweraps.com | 13

APS Maintenance

the APS into a power outlet. The batteries charge to 80% capacity in approximately 2 hours.

When the battery load indicator remains low (below 50%) even after a prolonged charge cycle,

the batteries may need replacing. Conduct a self-test by holding the On/Off button momentarily

while the unit is in "Line Normal" mode . The unit will switch to battery mode for 10 seconds to

test the batteries. If the test indicates a battery fault, contact PurePower or your PurePower dealer

to order new batteries. The average battery life is aproximately 5-7 years.

compartment acccess

to hinge forward. This provides access to the battery compa

y operation in this area, turn off the APS, unplug the unit, open the hinge, discon-

14 | Pure Power in > Pure Sound out

Specifications

· Electrical input and output

· Weights and dimensions

· Environmental and safety

· Battery

Model List

VA/Watts Weight Lb (Kg) Dimensions (HxWxD)

PurePower APS Model 700 1000/700 34 (15) 3.5" x 17" x 19"

PurePower APS Model 1050 1500/1050 60 (27) 3.5" x 17" x 20"

PurePower APS Modl 2000 2000/1400 80 (36) 5.25 x 17 x 22.5

Electrical Input

Nominal Voltage 100/110/120

Voltage Range 80 – 145V

Frequency Range 45-65Hz, 50/60 Hz auto-sensing

Noise filtering MOVs & line filter for normal & common mode noise

Input Connections 700/1050 IEC-320 -cC3 15 amp Input connector

2000 IEC 320-C19 20 amp Input connector

Electrical Outputs

Output Voltage 100/110/120 (factory set)

Voltage Regulation Nominal output voltage ±2%

Voltage Waveform Normal mode: Sine wave; <3% THD with full PFC

Output Receptacles Hubbell Nema 5-15R

Energy Efficiency 89 - 92 % depending on load

Specifications

Environmental and Safety

Operating Temperature 0°C to 32°C (32°F to 90°F)

Optimal battery performance: 21°C (72°F)

Storage Temperature 0°C to 25°C (32°F to 77°F)

Transit Temperature -25°C to 55°C (-13°F to 131°F)

Relative Humidity 5-90% noncondensing

Operating Altitude Up to 3,000 meters above sea level

Transit Altitude Up to 10,000 meters above sea level

Audible Noise Less than 17 dBA

Surge Suppression ANSI C62.41 Category B (formerly IEEE 587)

Safety Conformance cULus

the instructions, may cause harmful interference to radio communications. However, there is no

Audio/Video Power Supply • www.purepoweraps.com | 15

16 | Pure Power in > Pure Sound out

Troubleshooting

The LED indicator lights Power cord not connected Check connections

APS Fuse or breaker blown Clear Cause and Replace Fuse

Amber Fault LED illuminated Receptacle ground wiring fault, rewire receptacle

Short circuit on output Remove load, repair short

Internal fault Notify PurePower Service

APS is not connected to wall Check Input power cable

Your components have been transferred

to utility power. Power filtering and

APS shuts down Overload or over temp condition Reduce load, check for obstruction and

fan operation

Utility failure and batteries depleted APS will restart when utility returns

then hold On/Off button for 1 secs.

for self test.

Battery failure Replace the batteries or contact your

dealer.

to cool. Check for blocked vents

and that airflow is not restricted. If

problem persists, contact your dealer.

APS turns off output APS overload capacity* seconds, restart APS. If problem

persists, remove components from

APS until wattage is within APS rating.

Amplifier startup demands Some amplifiers have very high

power draws* on startup.

A higher wattage APS may be required.

to 30 seconds. Turn on multiple high power amps one unit at a time.

Audio/Video Power Supply • www.purepoweraps.com | 17
