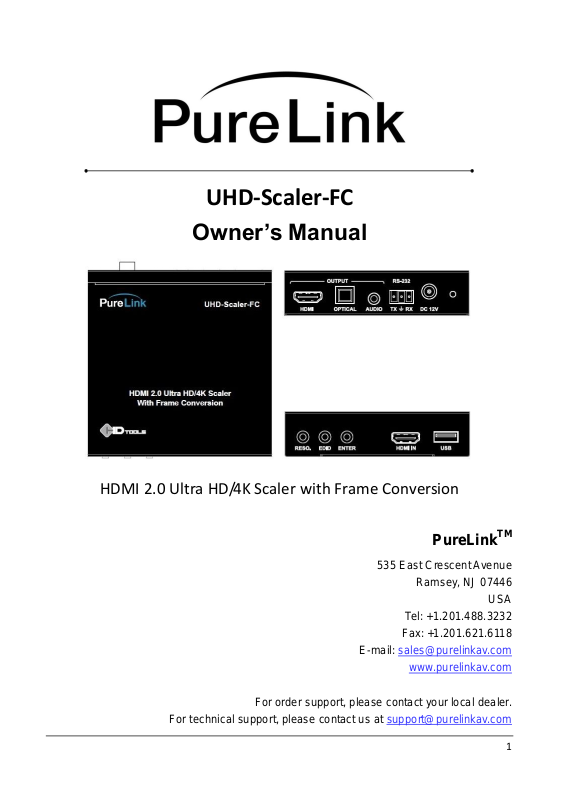

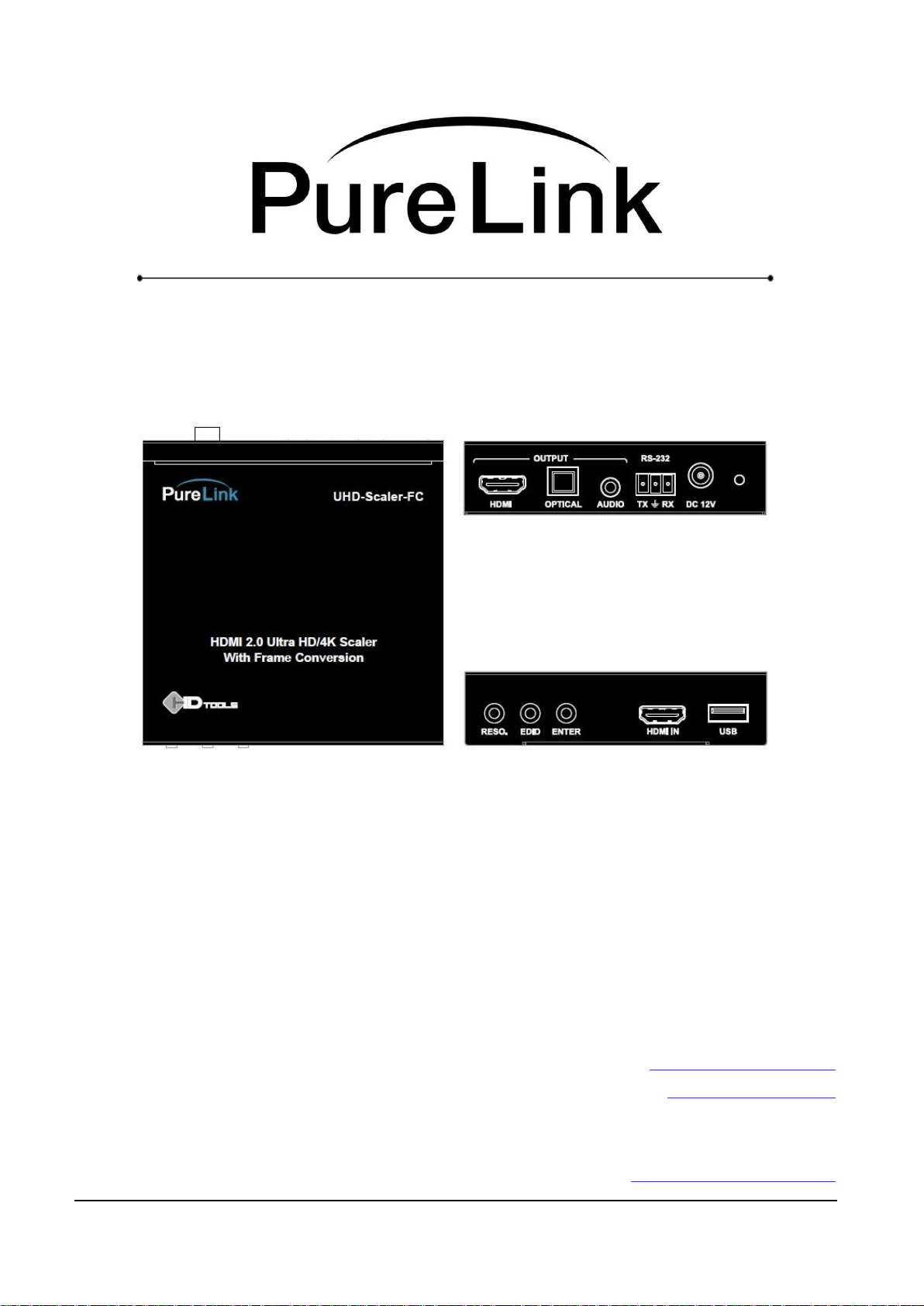

UHD-Scaler-FC
Owner’s Manual
HDMI 2.0 Ultra HD/4K Scaler with Frame Conversion
PureLinkTM
535 East Crescent Avenue
Ramsey, NJ 07446
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail: [email protected]
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at [email protected]
USA
1
Page 2
TABLE OF CONTENTS
Manual version
Release date
1.0
1/23/2017
Chapter 1. Product Overview, Operation & Specification
1.1 Safety Precautions -------------------------------------------------------------- 3
1.2 What’s in the Box --------------------------------------------------------------- 4
1.3 Product Introduction --------------------------------------------------------------- 4
1.4 Features -------------------------------------------------------------- 4
1.5 Product View and Connection Ports ------------------------------------------------ 5
1.6 Product Specification --------------------------------------------------------------- 5
1.7 Cable Termination -------------------------------------------------------------- 7
Chapter 2. Application Diagram Examples
2.1 Ultra HD/4K@60Hz to 1080p@60Hz Downscaling ---------------------------- 8
2.2 1080p@60Hz to Ultra HD/4K@60Hz Upscaling ---------------------------- 8
2.3 Ultra HD/4K@60Hz to Ultra HD/4K@30Hz Frame Conversion ------------- 9
2.4 Fixed Output Resolution for BYOD Application -------------------------------- 9
2.5 Fixed Output Resolution for VTC Codec Application -------------------------- 10
2.6 4K System with 1080p TV HDMI Matrix Application -------------------------- 10
2.7 1080p System with 4K TV HDMI Matrix Application -------------------------- 11
Chapter 3. Additional Information
3.1 Manufacturer’s Warranty (3-Year) ------------------------------------------------- 12
3.2 Customer Service ------------------------------------------------------------------- 12
2
Page 3
Chapter 1. Introduction
1.1 Safety Precautions
All safety instructions should be read and understood before the unit is operated.
The owner’s manual and safety instructions should be retained for future reference.
Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth only.
Keep away from wet, magnetic, and flammable surfaces or substances.
Always use the correct power supply (indicated on the product label) when operating this unit.
This unit may be equipped with a 3 wire grounding-type plug - a plug having a third (grounding) pin.
This pin will only fit in to a grounding type power outlet. If you are unable to insert the plug in to the
outlet, contact your electrician to replace your obsolete outlet.
Air vents should be kept clean and unobstructed at all times.
Please refrain from using frayed power cords and damaged wall outlets.
Do not place any heavy objects or equipment on top of the unit.
If you experience any malfunctioning of product or have any question as to operation of the
product, please contact our customer service center.
PureLinkTM
Tel: 201.488.3232
Email: [email protected]
3
Page 4
1.2 What’s in the Box
Please make sure all of the following items are included in the package:
1 x UHD-Scaler-FC
1 x Power adapter
1 x User manual
1.3 Product Introduction
The PureLink UHD-Scaler-FC is a high performance, HDMI 2.0, HDCP 2.2 compliant scaler capable upscale
and downscale among Ultra HD/4K, Full HD, and HD resolutions with frame converting support. It accepts
wide range of resolutions from 480i up to 4K@60Hz 4:4:4 and output resolutions up to 4K@60Hz 4:4:4 with
digital and analog audio extraction.
It provides one HDMI input and one HDMI output and the scaler automatically scale any input signal to match
native resolution of the display or any connected HDMI device. Or output can be set to specific resolution.
It supports data rate up to 18 Gbps with 4K60 4:4:4 color format which is HDMI 2.0 specification.
The scaler features front panel buttons or OSD (on screen display) menu, or RS-232 control for scaler
configuration. UHD-Scaler-FC is an ideal device for HD, Full HD and Ultra HD/4K interoperation environment
with mismatch resolution, EDID, and HDCP version issue
1.4 Features
HDMI 2.0 Ultra HD/4K 60Hz 4:4:4 color format support
Ideal solution for HD, Full HD, and Ultra HD/4K interoperation environment
HD to Full HD or Ultra HD/4K upscaling up to 4K@60Hz 4:4:4 resolution
Ultra HD/4K to Full HD or HD downscaling down to 1024x768@60Hz
25/30/50/60Hz frame conversion
HDCP 2.2 compliant
High bandwidth up to 18 Gbps
4
Page 5
BT2020 color representation
CEC pass-through
Adaptive de-interlacing support
HDMI audio extraction via optical digital audio and 3.5mm analog audio
Comprehensive output picture adjustments including aspect ratio
Three easy ways to control (Front panel buttons, OSD, and RS-232)
USB firmware update
Noise cancellation and error correction logic enhances HDMI video and audio signal
Supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
DVI and DisplayPort support via HDMI ports with adapters (sold separately)
Low profile design for a limited space environment such as behind a flat panel display
1.5 Product View and Connection Ports

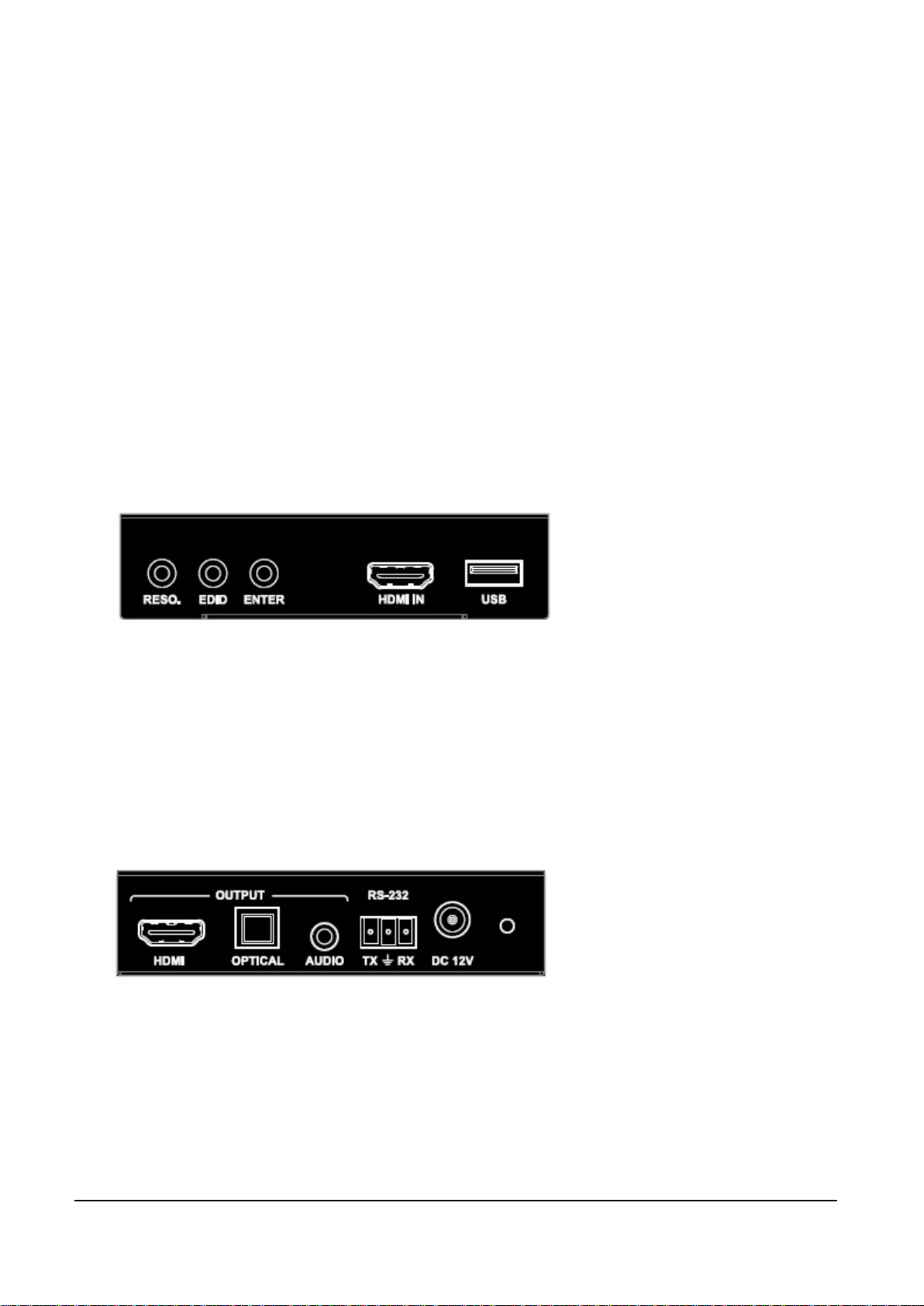

Front Panel
1. RESOLUTION: Output resolution list menu
2. EDID: EDID list menu
3. ENTER: To save the change
4. HDMI IN: HDMI input port
5. USB: Firmware update port
Rear Panel
1. HDMI OUTPUT: HDMI output port
2. OPTICAL OUTPUT: OPTICAL digital audio output port
3. AUDIO OUTPUT: 3.5mm analog audio output port
4. RS232: RS232 control port
5. DC 12V: DV 12V power supply unit input connector
6. POWER STATUS LED
5
Page 6
General Specification
Power
Input: AC100 – 240V 50/60Hz
Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Operational Temperature
32° ~ 117° F (0° to 47° C)
Storage Temperature
- 4° ~ 158° F (-20° to 70° C)
Humidity
10 ~ 90% non-condensing
MTBF
50,000 hours
Dimensions (W x D x H)
4.5'' x 3.9'' x 0.98'' (115 x 100 x 25mm)
Shipping Dimensions (with cover box)
TBD
Weight
Tx: 1.0 lbs (0.45 kg) Rx: 1.0 lbs (0.45 kg)
Shipping Weight
(with accessories and cover box)
TBD
Technical Specification
HDMI Version
HDMI 2.0
HDCP Compliance
HDCP 2.2
Data Rate
18 Gbps
Resolution
Ultra HD/4K up to 4096 x 2160 @50/60Hz (RGB 4:4:4, YCbCr
4:4:4, 4:2:2, 4:2:0)
HDMI Audio
LPCM 2/5.1/7.1 Ch, Dolby Digital+, Dolby TrueHD, Dolby Digital,
Dolby Atmos, DTS:X, DTS-HD Master Audio, DTS 5.1
Inputs
1 x HDMI Type A [19-pin female]
1 x RS232 [Phoenix connector]
1 x Firmware [Mini USB]
Outputs
1 x HDMI Type A [19-pin female]
1 x Optical digital audio
1 x 3.5mm analog audio
640x480@60Hz
720x480i@60Hz
720x480p@60Hz
720x576i@50Hz
720x576p@50Hz
800x600@60Hz
1024x768@60Hz
1152x864@75Hz
1024x768@75Hz
1280x768@60Hz
1280x960@60Hz
1280x1024X60Hz
1365x1024@60Hz
1600x1200@60Hz
1680x1050@60Hz
1856x1392@60Hz
1920x1080@60Hz
1920x1200@60Hz
1920x1440@60Hz
3840x2160@24Hz
3840x2160@30Hz
1.6 Product Specifications
* Supported Input Resolution List
6
Page 7
3840x2160@25Hz
4096x2160@24Hz
4096x2160@25Hz
4096x2160@30Hz
3840x2160@50Hz
3840x2160@60Hz
4096x2160@50Hz
4096x2160@60Hz
1024x768@60Hz
1280x720@50Hz
1280x720@60Hz
1280x800@60Hz
1360x768@60Hz
1400x1050@60Hz
1600x1200@60Hz
1680x1050@60Hz
1920x1200@60Hz
1920x1080@50Hz
1920x1080@60Hz
3840x2160@30Hz
3840x2160@50Hz
3840x2160@60Hz
Audio Format
HDMI
Optical Digital
3.5mm Analog
LPCM 2.0
LPCM 5.1
x
x
LPCM 7.1
x
x
Bitstream
x
x
HD Bitstream
x
x
Pin
RS-232
1
Tx
2
Ground
3
Rx
* Supported Output Resolution List
* Supported Audio Format List

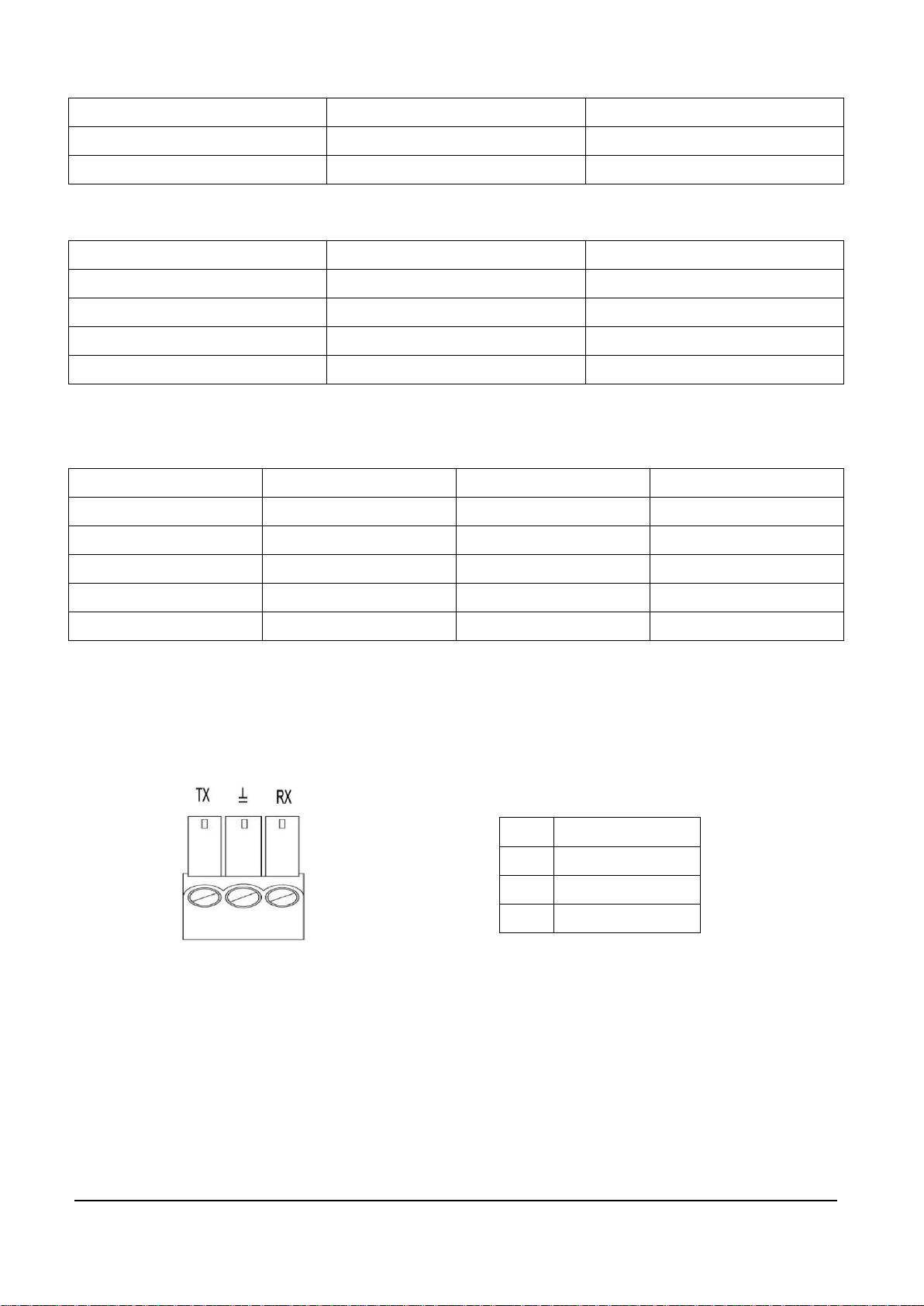

1.7 Cable Termination
RS-232 Cable Termination
3-pin Phoenix connector is used for RS-232 communication
* Pinout from the left
7
Page 8
Chapter 2. Application Diagram Examples

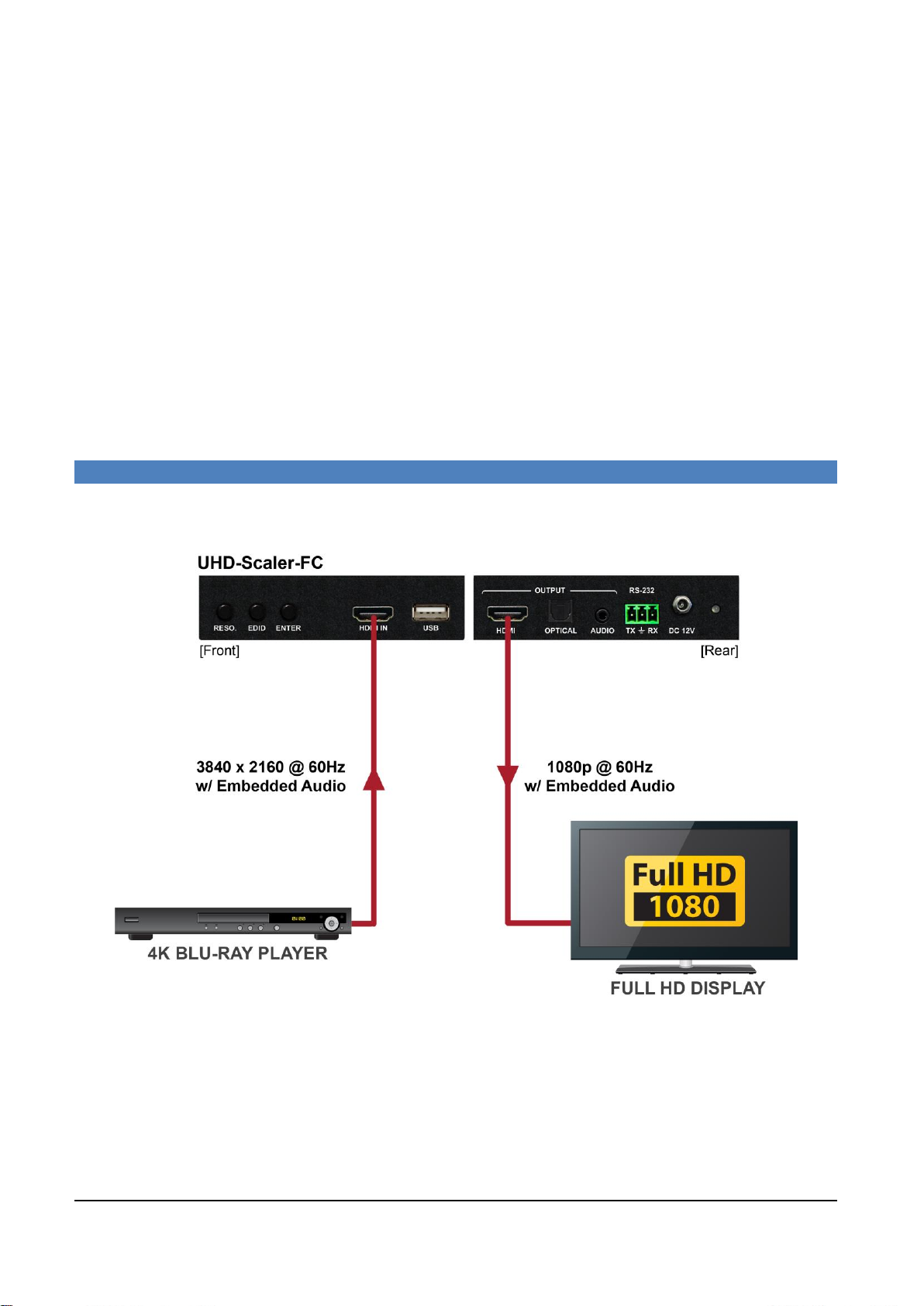

2.1 Ultra HD/4K@60Hz to 1080p@60Hz downscaling

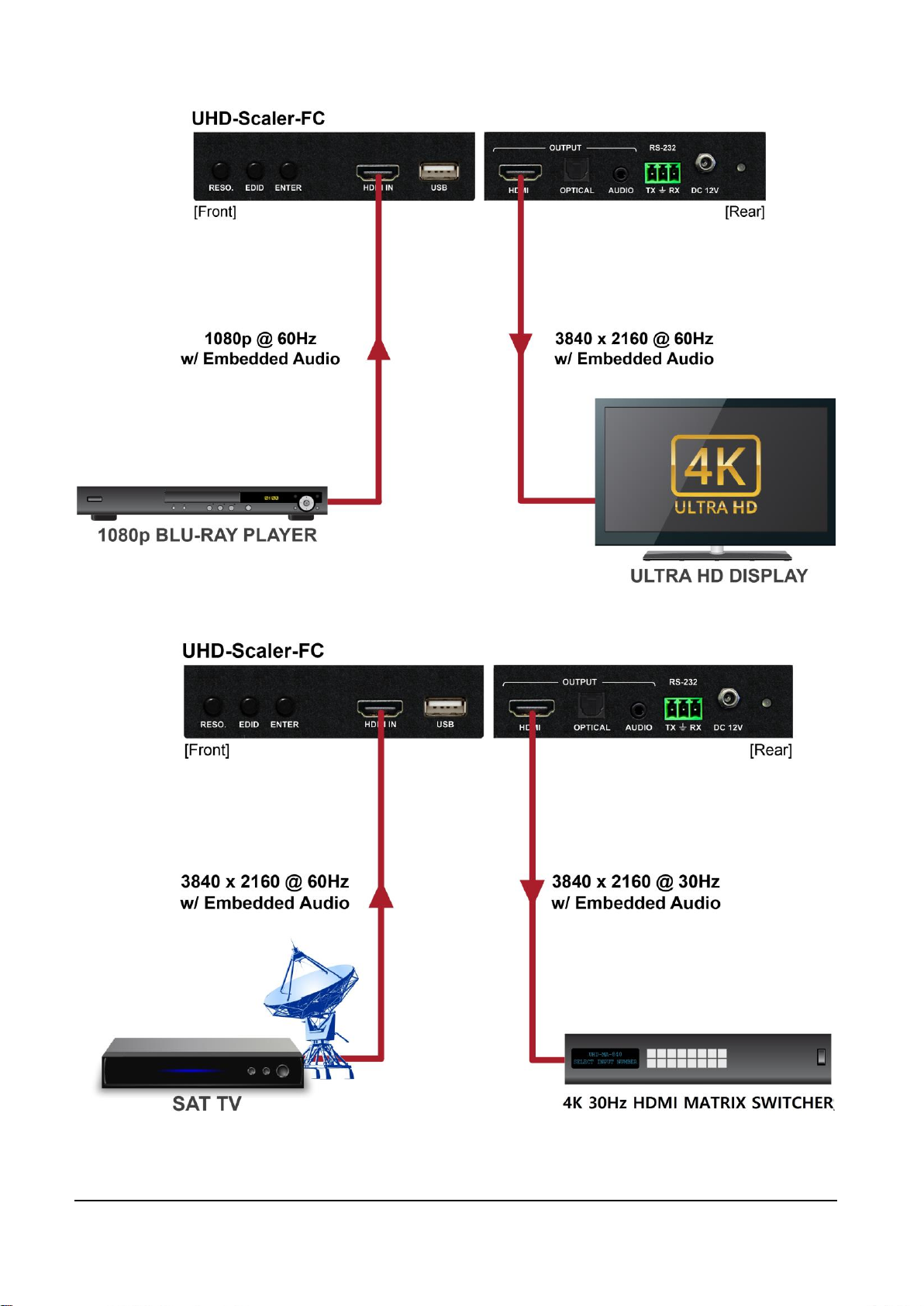

2.2 1080p@60Hz to Ultra HD/4K@60Hz Upscaling
8
Page 9
2.3 Ultra HD/4K@60Hz to Ultra HD/4K@30Hz frame conversion
9
Page 10

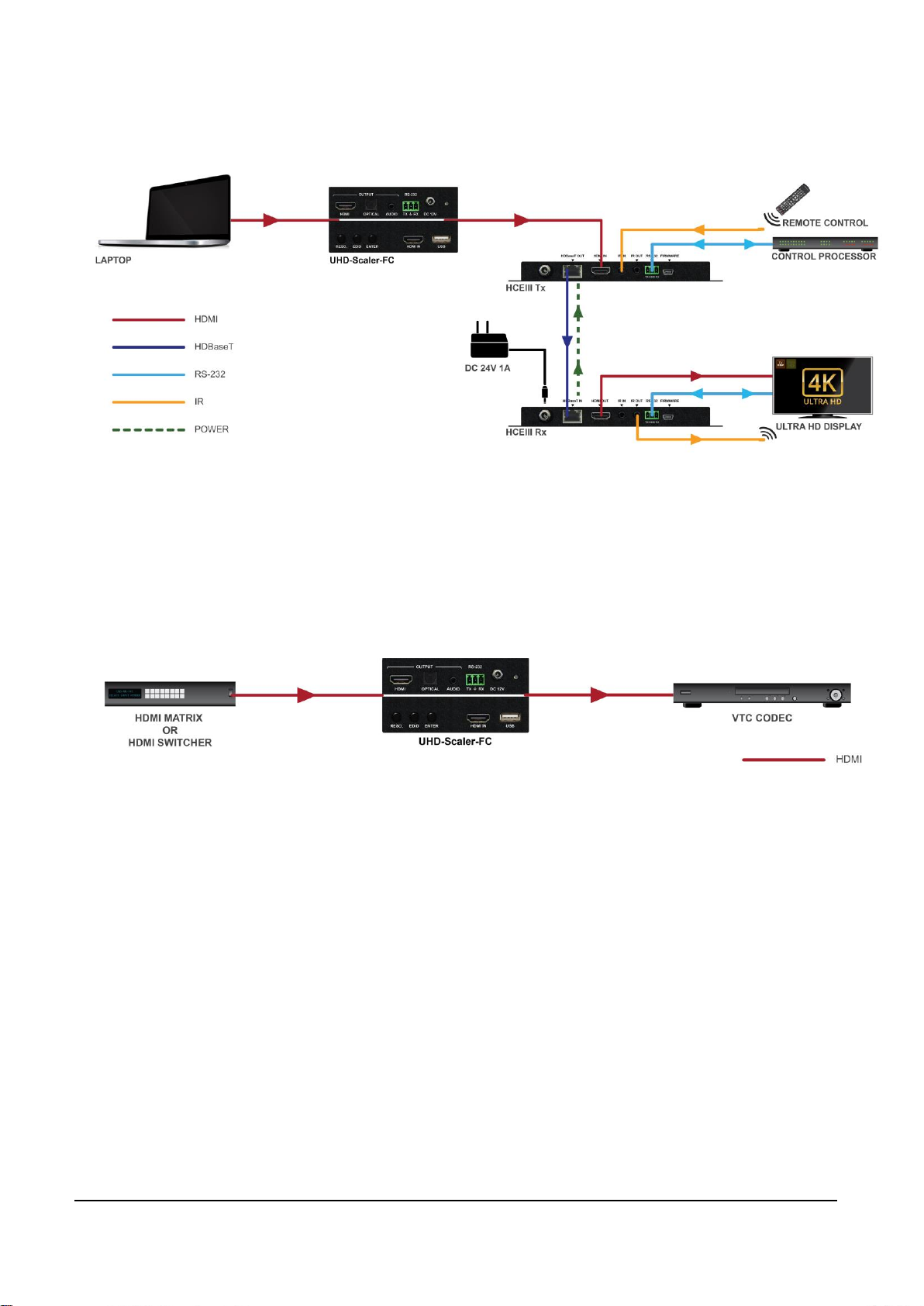

2.4 Fixed Output Resolution for BYOD Application
2.5 Fixed Output Resolution for VTC Codec Application

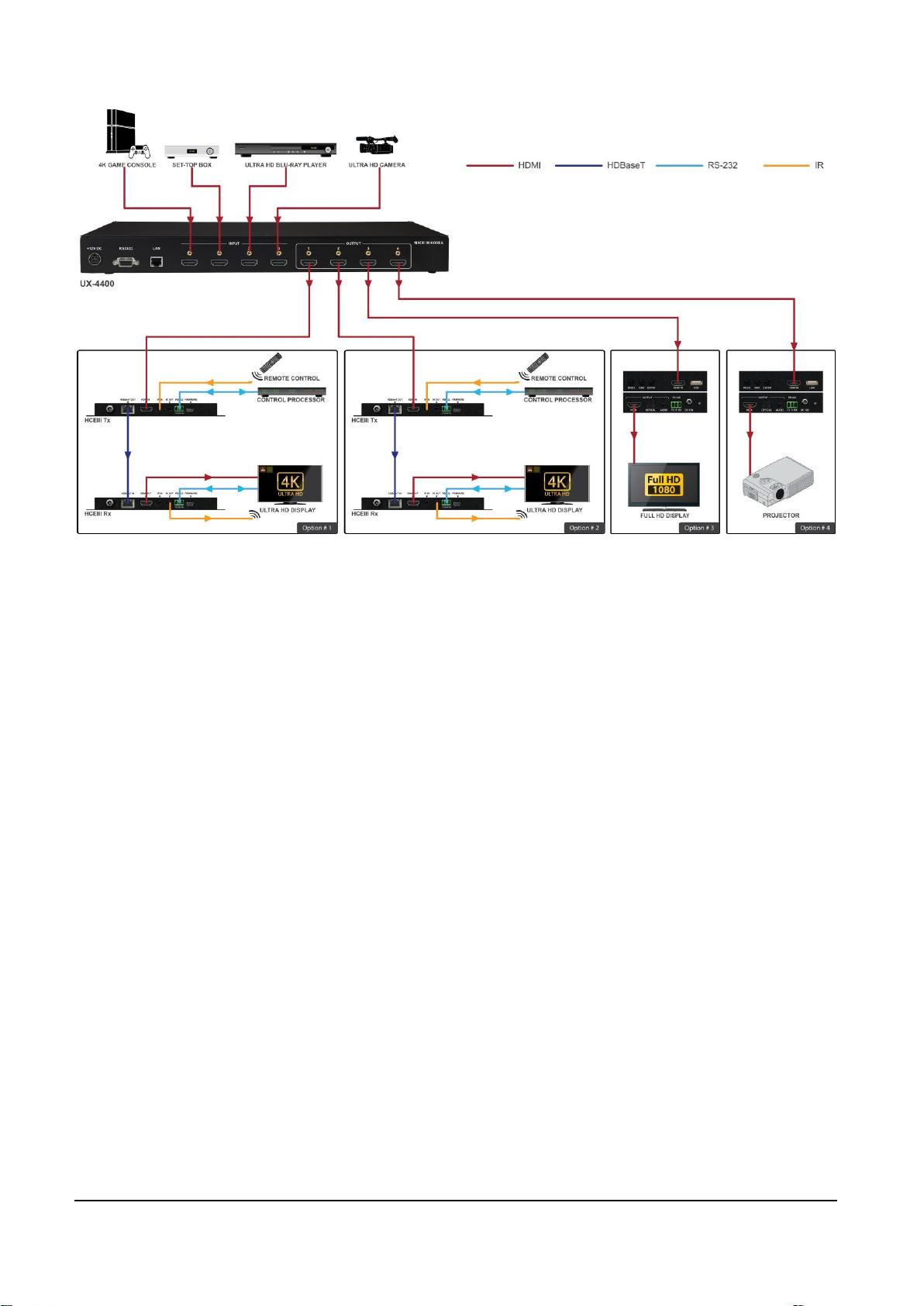

2.6 4K System with 1080p TV HDMI Matrix Application
Ultra HD/4K to 1080p downscaling
(Ex, 4K TVs in a living room and a game room and 1080p TV in a kitchen)
10
Page 11

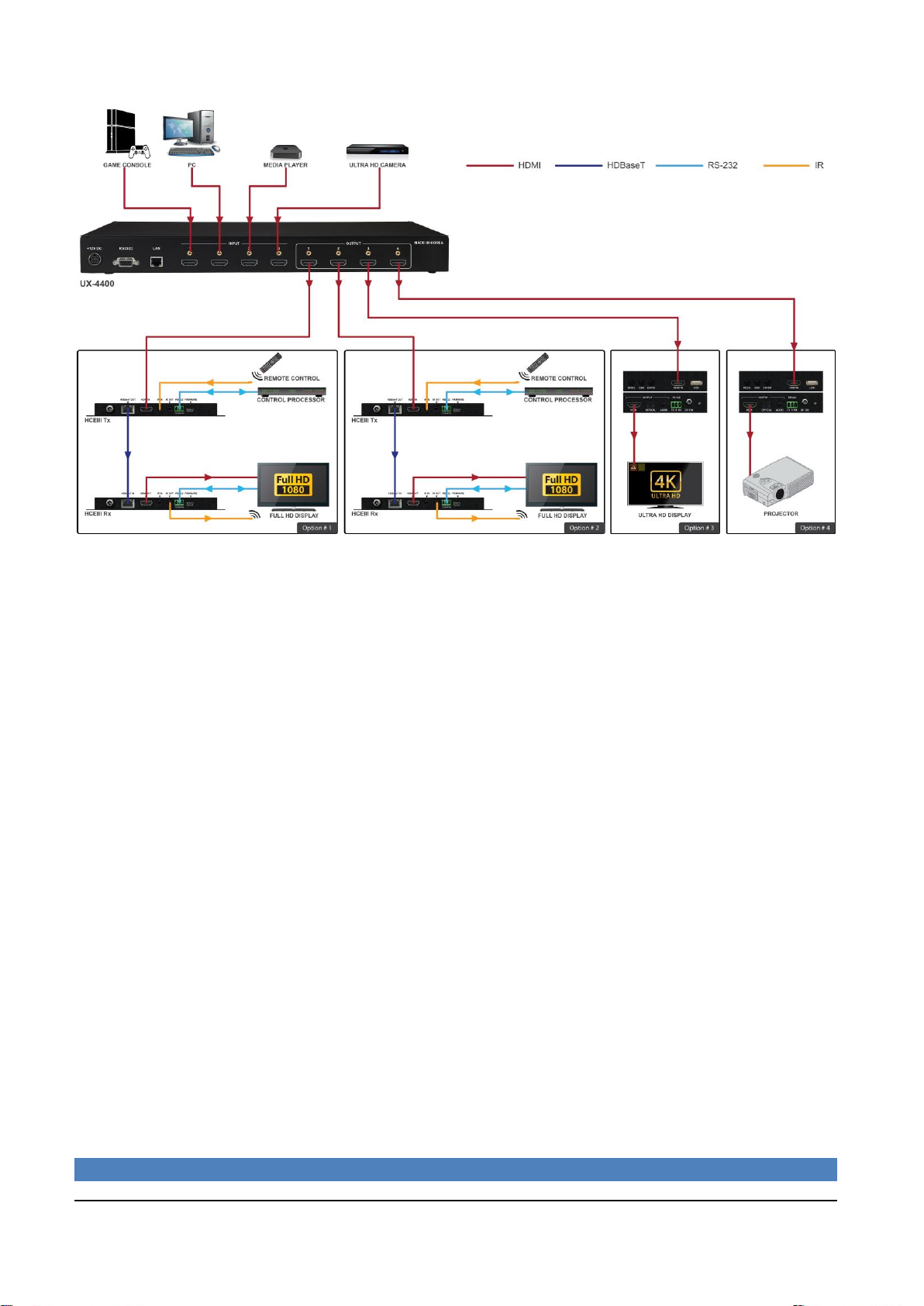

2.7 1080p System with 4K TV HDMI Matrix Application
1080p to Ultra HD/4K upscaling
11
Page 12
Chapter 3. Additional Information
12
Page 13
3.1 Manufacturer’s Warranty (3-Years)
PureLink warrants this UHD-Scaler-FC to be free from defects in workmanship and materials, under
normal use and service, for a period of three (3) year from the date of purchase from PureLink or its
authorized resellers.
If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its
option and expense, execute one of the following as necessary:
1. Repair the defective product or part
2. Deliver to customer and equivalent product or part to replace the defective item
3. Refund to customer the purchase price paid for the defective product
All products that are replaced become the property of PureLink. Replacement products may be new or
reconditioned. Repaired or replacement products or parts come with a 90-day warranty or the remainder of
the warranty period. Dtrovision shall not be responsible for any software, firmware, information, or memory
data loss of contained in, stored on, or integrated with any products returned to Dtrovision for repair under
warranty.
3.2 Customer Service
Any customer service inquiries can be submitted electronically through the Q&A form on our website
( www.purelinkav.com ).
For immediate assistance please contact us at (201) 488-3232 to reach our customer care or tech support
team.
13
