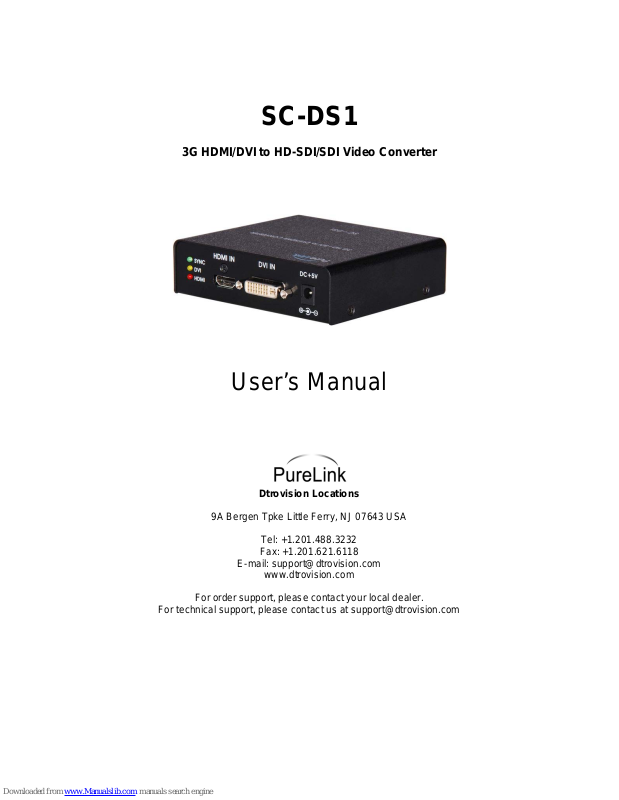

Pure Link SC-DS1 User Manual

SC-DS1

3G HDMI/DVI to HD-SDI/SDI Video Converter

User’s Manual

Dtrovision Locations

9A Bergen Tpke Little Ferry, NJ 07643 USA

Tel: [phone]

Fax: [phone]

E-mail: [email protected]

www.dtrovision.com

For order support, please contact your local dealer.

For technical support, please contact us at [email protected]

Unpacking

Each DTROVISION HD/SDI converter package includes the following items;
DTROVISION HD/SDI (SC-DS1) Unit

One (1) 5V, 3A Power Sup ply Adapter
User manual

CONTENTS

Contents 1-1
Description, General Specification 1-2

Environmental and Reliability Specifications 1-3

Supported I/O Resolutions 1-4
Panel Descriptions 1-5
Mechanical Specification 1-6

Technical Specification 1-7

Warranty Information 1-8

Troubleshooting 1-9

1-1 Contents

DescriptionGeneralSpecification

DTROVISION SC-DS1

ITEM DESCRIPTION

Model Name SC-DS1

Input Signal DVI/HDMI

Output Signal HD-SDI

VIDEO

Input format

VIDEO

Output format

Input format

AUDIO

Receptacle

Power Consumption DC +5V, 3A

Dimension 117 x 105 x 33 mm

RGB(444), YCbCr(444), YCbCr(422)

YCbCr(422)

I2S / 48Khz

DC Power Jack for +5V power in the rear panel

1-2 Description, General Specification

EnvironmentalandReliabilitySpecifications



[Recommended Operating Conditions]

Parameter Symbol Min. Typ. Max. Units

Operating Temp. TA 10 25 + 40 °C

Storage Temp. Ts -25 + 60 °C

H

10 80 RH%

StorageHumidity

s





1-3 Environmental and Reliability Specifications

Supported I/O Resolutions

VIDEO INPUT

Input – Data Format

Input – Connector DVI-I / HDMI female connector

Input - Resolution

VIDEO OUTPUT

Output - Data Format SMPTE format YCbCr(4:2:2)

Output - Connector SDI BNC

Output Signal Resolution

AUDIO DATA FORMAT

RGB(444), YCbCr(444), YCbCr(422)

1080p(60/59.94), 1080i(60/59.94,50),

1080p(25/24/23.976) 720p(60/59.94/50), 480i(59.94),

SMPTE-424M 1080p (60/59.94)
SMPTE-274M 1080i (60/59.94/50)
SMPTE-296M 1080p (25/24/23.976)
SMPTE-260M 720p(60/59.94/50)

SMPTE-259M 480i (59.94), 576i(50)

DVI/HDMI format

576i(50)

Data Format I2S

Sampling Rate 48 kHz

1-4 Supported I/O Resolutions

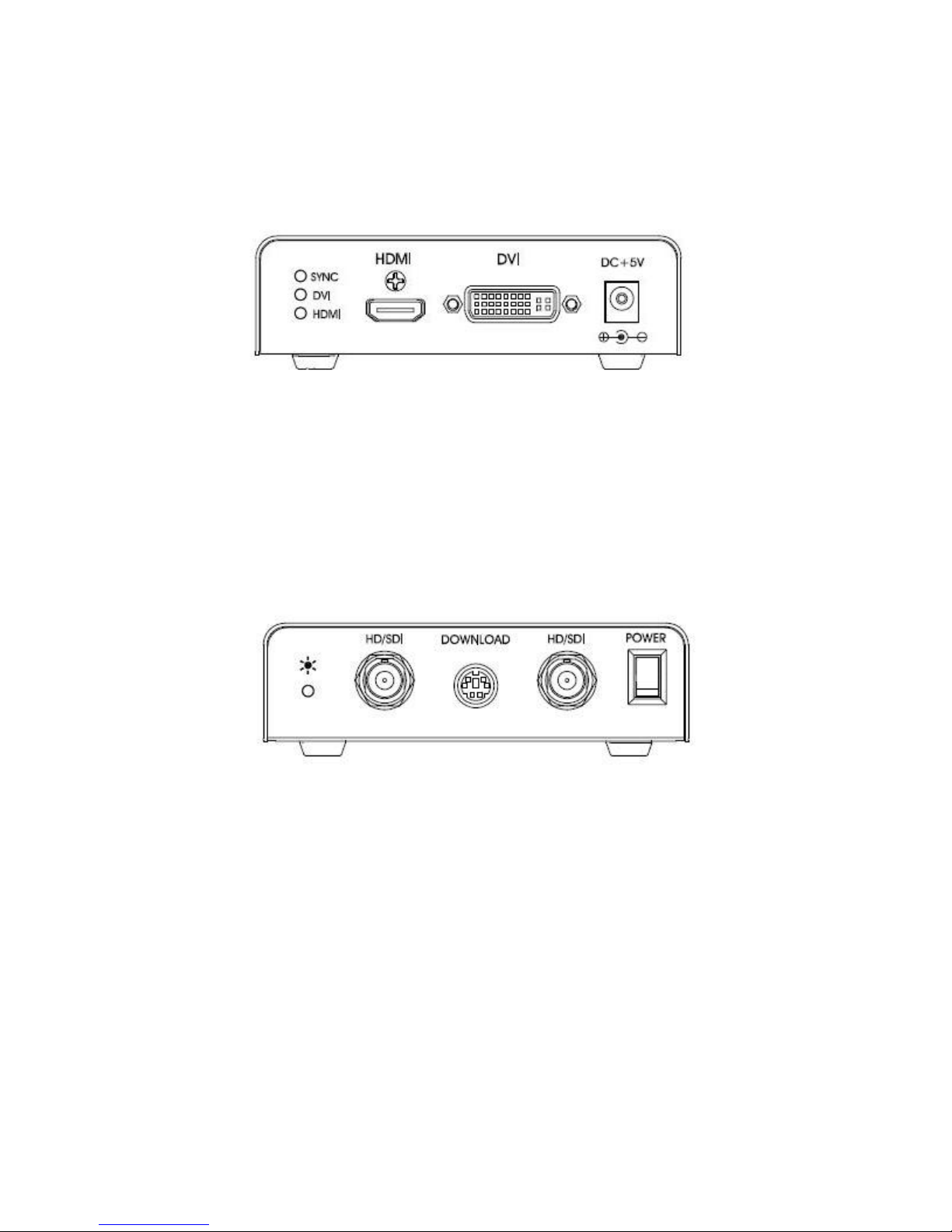

Panel Descriptions

< Front-Video Input >

z Status indicator LED

1) Video sync detection LED

2) DVI input connection status LED

3) HDMI input connection status LED

z HDMI Input port
z DVI Input port
z 5V power jack

< Rear-Video Output >

z Power switch
z Power indicator light
z Firmware update PS2 port (Programmer use only)
z HD-SDI outputs

1-5 Panel Descriptions

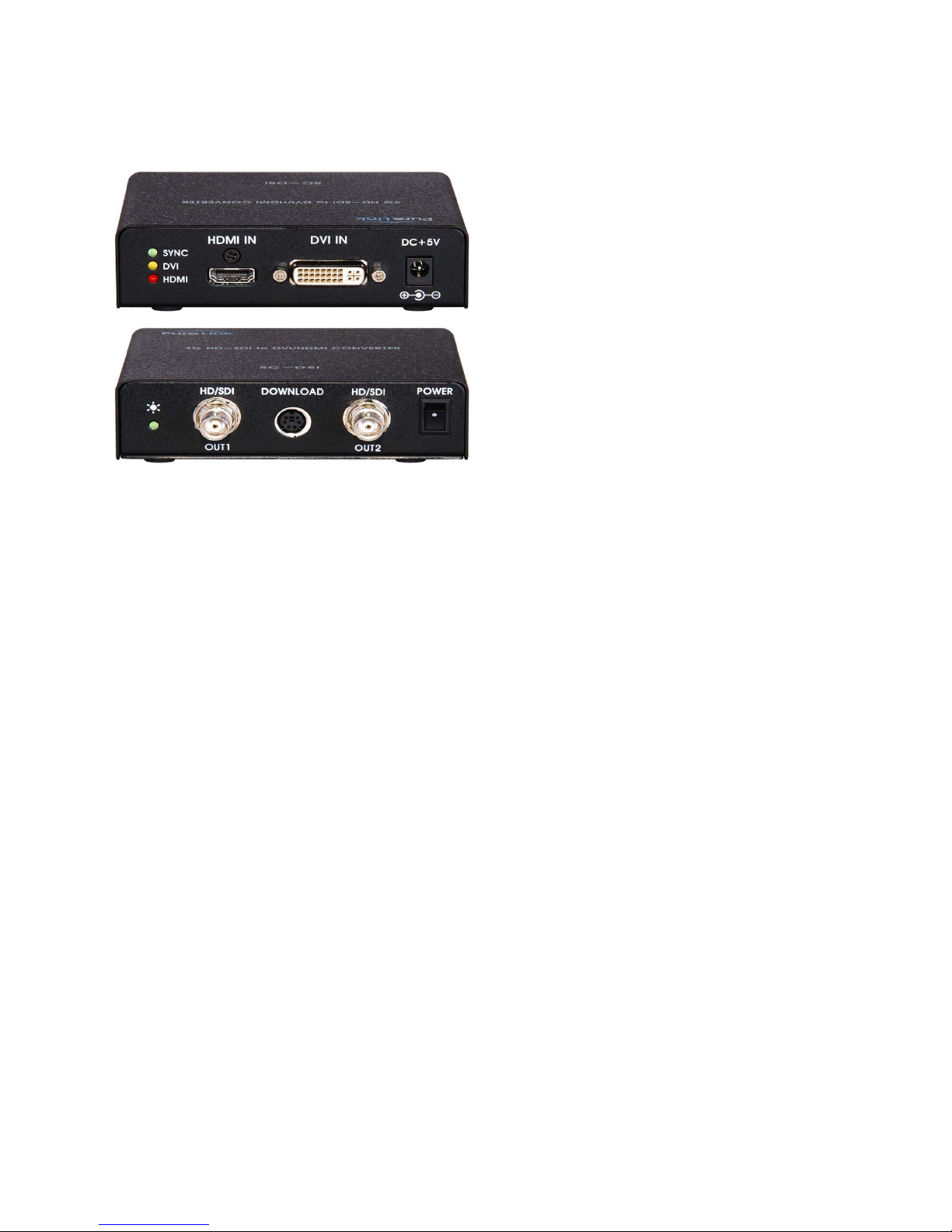

MechanicalSpecification

[Dimensions]

 SC-DS1: 117 x 105 x 33 (mm)

[Connector]

 DVI Connector: DVI-I 29-pin female (Digital only)
 HDMI Connector: HDMI female
 HDSDI/SDI Connector: BNC female
 Firmware Download Port: PS2 female

[Power].

 Power: +5V DC Toggle switch ON/OFF

[LED Indicators]

 Power: Power On
 HDMI: HDMI input

DVI: DVI input

1-6 Mechanical Specification

TechnicalSpecification

[Data rates and Maximum resolution]

Data rates and Resolution

Input Video Bandwidth 2.97Gbps

Output Video Bandwidth 2.97Gbps

Maximum Input Resolution 1920x1080p/60Hz

Maximum Output Resolution 1920x1080p/60Hz

※

The HDMI input is prior to DVI input when HDMI and DVI port is concurrently connected to video source.

1-7 Technical Specification

WarrantyInformation

1 (One) Year Warranty

DTROVISION warrants SC-DS1 HD/SDI converter to be free from defects in workmanship and materials,
under normal use and service, for a period of one (1) year from the date of purchase from DTROVISION
or its authorized resellers.

If a product does not work as warranted during the applicable warranty period, DTROVISION shall, at its
option and expense, repair the defective product or part, deliver to customer an equivalent product or part
to replace the defective item, or refund to customer the purchase price paid for the defective product.

All products that are replaced will become the property of DTRPVISION.

Replacement products may be new or reconditioned.

Any replaced or repaired product or part has a ninety (90) day warranty or the reminder of the initial
warranty period, whichever is longer.

DTROVISION shall not be responsible for any software, firmware, information, or memory data of
customer contained in, stored on, or integrated with any products returned to DTROVISION for repair
under warranty or not.

Warranty Limitation and Exclusion

DTROVISION shall have no further obligation under the foregoing limited warranty if the product has
been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress,
unauthorized modifications, tampering, alterations, or service other than by DTROVISION or its
authorized agents, causes other than from ordinary use or failure to properly use the Product in the
application for which said Product is intended.

1-8 Warranty Information
