PureLink PT-HDBT-200 User Manual
1

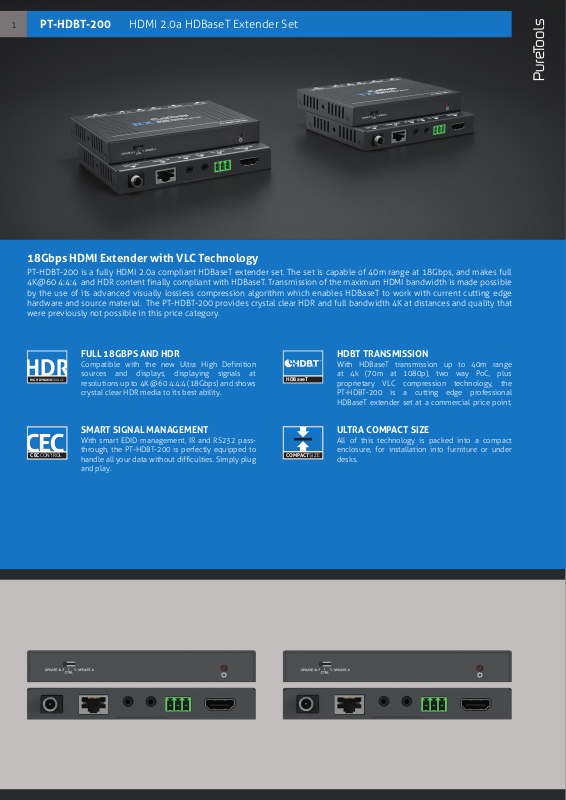

PT-HDBT-200 HDMI 2.0a HDBaseT Extender Set
18Gbps HDMI Extender with VLC Technology
PT-HDBT-200 is a fully HDMI 2.0a compliant HDBaseT extender set. The set is capable of 40m range at 18Gbps, and makes full
4K@60 4:4:4 and HDR content finally compliant with HDBaseT. Transmission of the maximum HDMI bandwidth is made possible
by the use of its advanced visually lossless compression algorithm which enables HDBaseT to work with current cutting edge
hardware and source material. The PT-HDBT-200 provides crystal clear HDR and full bandwidth 4K at distances and quality that
were previously not possible in this price category.
HIGH DYNAMIC RANGE
CECCONTROL
FULL 18GBPS AND HDR
Compatible with the new Ultra High Definition
sources and displays, displaying signals at
resolutions up to 4K @60 4:4:4 (18Gbps) and shows
crystal clear HDR media to its best ability.
SMART SIGNAL MANAGEMENT
With smart EDID management, IR and RS232 passthrough, the PT-HDBT-200 is perfectly equipped to
handle all your data without difficulties. Simply plug
and play.
HDBaseT
COMPACTSIZE
HDBT TRANSMISSION
With HDBaseT transmission up to 40m range
at 4k (70m at 1080p), two way PoC, plus
proprietary VLC compression technology, the
PT-HDBT-200 is a cutting edge professional
HDBaseT extender set at a commercial price point.
ULTRA COMPACT SIZE
All of this technology is packed into a compact
enclosure, for installation into furniture or under
desks.
PT-HDBT-200 HDMI 2.0a HDBaseT Extender Set
IR
PT-HDBT-200-TX TRANSMITTER PT-HDBT-200-RX RECEIVER
2
VIDEO
Input 1 x HDMI
Output 1 x HDBaseT (RJ45)
HDMI Standard HDMI 2.0a & HDCP2.2; HDR
Bandwidth 18Gbps
Resolution Up to 4K@60Hz 4:4:4
Transmission Mode HDBaseT
CONTROL PART
Control Ports
Button Control 1 x 3 Pos Slide Switch
1 x IR In (3.5mm Jack);
1 x IR Out (3.5mm Jack);
1 x RS232 (3 pin Phoenix)
GENERAL
Transmission Distance 1080p ≤ 70m; 4K ≤ 40m
Operation/Storage
Temperature
Relative Humidity 0% ~ 90%
Power Supply
Power Consumption 14W (max)
Dimension (W*H*D) 115mm x 12 mm x 84mm
Net Weight 240g
-10°C~55°C
12VDC 2A Locking Barrel
(5.5mm Outside Diameter,
2.1mm Inside Diameter)
VIDEO
Input 1 x HDBaseT (RJ45)
Output 1 x HDMI
HDMI Standard HDMI 2.0a & HDCP2.2; HDR
Bandwidth 18Gbps
Resolution Up to 4K@60Hz 4:4:4
Transmission Mode HDBaseT
CONTROL PART
Control Ports
Button Control 1 x 3 Pos Slide Switch
1 x IR In (3.5mm Jack);
1 x IR Out (3.5mm Jack);
1 x RS232 (3 pin Phoenix)
GENERAL
Transmission Distance 1080p ≤ 70m; 4K ≤ 40m
Operation/Storage
Temperature
Relative Humidity 0% ~ 90%
Power Supply
Power Consumption 14W (max)
Dimension (W*H*D) 115mm x 12 mm x 84mm
Net Weight 240g
-10°C~55°C
12VDC 2A Locking Barrel
(5.5mm Outside Diameter,
2.1mm Inside Diameter)
(3 pin Phoenix)
CONNECTION DIAGRAM DETAILED TECHNICAL SPECIFICATION
OPTIONAL ACCESSORIES
RACKMOUNT
RS232
HDMI
RS232
IR In
(3.5mm Jack)
Power
(DC Barrel)
PT-RM-SE104 Rack Mount Kit 1U for 4x Slim Extenders
PT-RM-SE312 Rack Mount Kit 5U for 12x Slim Extenders
PT-IRE-HDBT IR Emitter for HDBaseT Extenders
PT-IRK-HDBT IR Kit for HDBaseT Extenders
PT-IRR-HDBT IR Receiver for HDBaseT Extenders
PTM-RS100 Universal RS232 Cable with Adjustable Pin Settings
HBaseT (RJ45)
IR Out (3.5mm Jack)
RS232
(3 pin Phoenix)
IR In
(3.5mm Jack)
Power
(DC Barrel)
Video
Control
Power
HDMI
IR Out
(3.5mm Jack)
VERSION 1.0 | 2017-09
