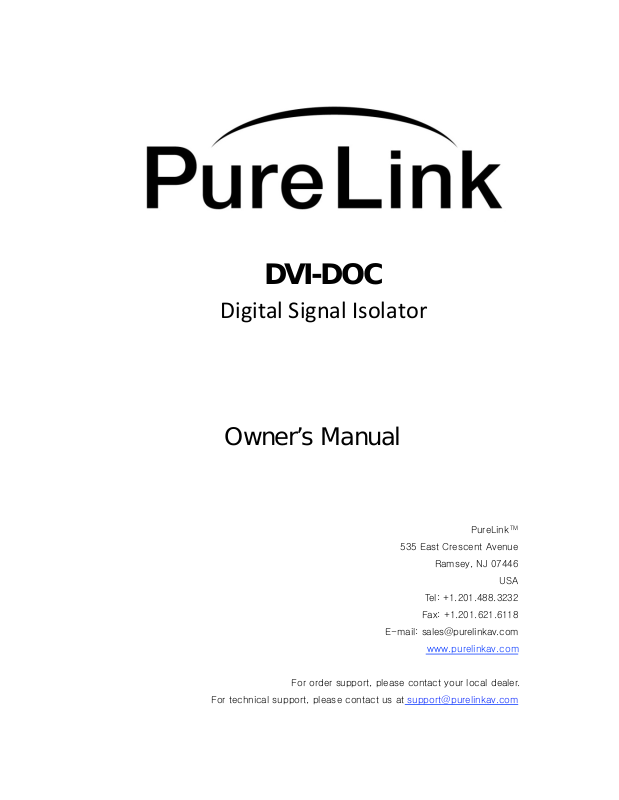

DVI-DOC
Digital Signal Isolator
Owner’s Manual
PureLink
535 East Crescent Avenue
Ramsey, NJ 07446
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail: [email protected]
www.purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at [email protected]
TM
USA
Page 2
PureLink by Dtrovision
Model
DVI-DOC
Input Signal
Digital RGB(DVI), Single Link
3.5mm Analog Stereo Audio
Output Signal
Digital RGB(DVI), Single Link
3.5mm Analog Stereo Audio
Supporting Display
Resolutions
VGA(640x480)~HDTV(1920x1080)/WUXGA(1920x1200)
Max. Distance
Max. 50M(165ft)
Connector Type
Input : 29 PIN DVI-I Connector
Output : 29 PIN DVI-I Connector
Audio:3.5mm Stereo Jack
Power: 2mm DC Connector
Power Supply
DC +5V
Dimension
69 x 26 x 55 mm, 2.7 x 1.0 x 2.2 inches. W x H x D
Weight
150g, 0.33 lbs
1. DVI-DOC Package Contents
Please make sure all of the following items are included in the package:
1) DVI-DOC Module
2) DC 5V Power Supply
3) User Manual
2. General Specification
DVI-DOC product is Purelink’s first digital signal isolator, simply disconnecting power supply
adapter from the DVI-DOC will allow the user to easily isolate the transmission of signal between
a video source and display device.
2
Page 3
PureLink by Dtrovision
3. Operation and Reliability Specification
1. Operating Environment
Temperature: 50F ~ 104F (10℃~ 40℃), Humidity: 10% ~ 80% , Altitude: 3,000m Max.
2. Transit Environment
Temperature: -13F ~ 140F (-25℃~ 60℃), Humidity: 5% ~ 95%, Altitude: 15,000m Max.
3. Storage Environment
Temperature: -4F ~ -49F (-20℃~ 45℃), Humidity: 5% ~ 95% , Altitude: 3,000m Max.
4. Reliability
MTBF: 90% at over 50,000 hours aging test
In compliance with LCD Monitor reliability test standard
3
Page 4
PureLink by Dtrovision
4. Main Features
1. 50 meter long DVI cable compensation.
2. Providing 5V power to the connected fiber optic extension cable.
5. Installation and Connection Instructions
♦Important: Please use the installation procedure below.
Improper or no operation may result if the start-up sequence is not correctly followed.
Step 1
Connect DVI and audio cable to DVI-DOC
Step 2
Connect Power adapter to DVI-DOC
6. DVI-DOC Specification
Dimensions: 69 x 26 x 55 mm, 2.7 x 1.0 x 2.2 inches. W x H x D
Connection Ports:
♦ INPUT: DVI-D Input
♦ OUTPUT: DVI-D Output
♦DC +5V: Power Supply Unit
♦AUDIO: 3.5mm Stereo Audio In, Out
4
Page 5
PureLink by Dtrovision
7. Technical Specification
♦Data Transfer Speed: Up to 2.25 Gbps(Deep Color)
♦Frequency Range: 25 ~ 165 Mhz
♦Supporting Display Resolutions: Up to WUXGA(1920x1200)@60Hz
♦Max Distance: Single Link - 50M(164ft)
♦Input Ports: DVI-D Female 29P
♦Output Ports: DVI-D Female 29P
♦Audio Ports: 3.5’ Stereo Jack
♦ Power Supply: 5V DC / 1.0A
5
Page 6
PureLink by Dtrovision
8. Warranty
2 (Two) Years Warranty
Dtrovision warrants this DVI-DOC to be free from defects in workmanship and materials, under
normal use and service, for a period of two (2) years from the date of purchase from Dtrovision or
its authorized resellers.
If a product does not work as warranted during the applicable warranty period, Dtrovision shall, at
its option and expense, repair the defective product or part, deliver to customer an eq
product or
defective product.
All products that are replaced will become the property of Dtrovision.
Replacement products may be new or reconditioned.
Any replaced or repaired product or part has a ninety (90) day warranty or the reminder of the initial
warranty period, whichever is longer.
Dtrovision shall not be responsible for any software, firmware, informati
custom
under warranty or not.
2.Warranty Limitation and Exclusion
Dtrovision shall have no further obligation under the foregoing limited warranty if the product has
been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress,
unauthorized modifications, tampering, alterations, or service other th
authori
application for which said Product is intended.
part to replace the defective item, or refund to customer the purchase price paid for the
on, or memory data of
er contained in, stored on, or integrated with any products returned to Dtrovision for repair
an by Dtrovision or its
zed agents, causes other than from ordinary use or failure to properly use the Product in the
uivalent
6
