Thank you for purchasing Pure Acoustics’ products, and welcome to the Pure Acoustics family of
satisfied customers!

Pure Acoustics was established to fulfill the need for high quality speakers of exceptional design
at an affordable price. After years of research and development, and by manufacturing all parts
ourselves - from the voice-coil to the uniquely-designed crossover - Pure Acoustics is able to offer
you speakers of superior value.

Each speaker component has been designed and engineered with first-rate materials to produce
exceptional sound. Our speakers offer the best of it all – high-quality sound, hand-made solid
construction, and a remarkably stylish appearance.

We welcome you to witness the results. Our team’s dedication to quality, reliability and attractive
design has created some of the best-value speakers you can find today.

Reading this manual fully will help you to set up your speaker properly and reward you with a fine
listening experience. Pure Acoustics distribution centers in Europe, Asia, Australia and the
Americas will be happy to assist you with any questions you may have. Please look for the distributor
nearest you on our web site, www.pure-acoustics.com.

Make sure all equipment is turned off. When connecting the speakers, be sure to retain the correct
polarity. Most speaker cables will have (+) red sign for positive and (-) black sign for negative.

Connect the speaker cable to the positive (+) front-left speaker terminal on the amplifier and to
the positive (+) terminal on the front-left speaker. Connect the speaker cable to the negative (-)
front-left speaker terminal on the amplifier and to the negative (-) terminal on the front left speaker.
Repeat the same step for the right-side front speaker. This method can be applied to bi-wire
terminals as long as the shorting straps are in place. If your amplifier is equipped with bi-wire
output connection, remove the shorting straps and connect each terminal to the associated terminal
in your amplifier.

Connect the speaker cable to the positive (+) center speaker terminal on the amplifier and to the
positive (+) terminal on the center speaker. Connect the speaker cable to the negative (-) center
speaker terminal on the amp and to the negative (-) terminal on the center speaker.

Connect the speaker cable to the positive (+) rear left speaker terminal on the amplifier and to the
positive (+) terminal on the rear-left speaker. Connect the speaker cable to the negative (-) rear­left speaker terminal on the amplifier and to the negative (-) terminal on the rear-left speaker.
Repeat the same step for the right-side rear speaker.

Introduction

Connections

Position

Running time and cleaning

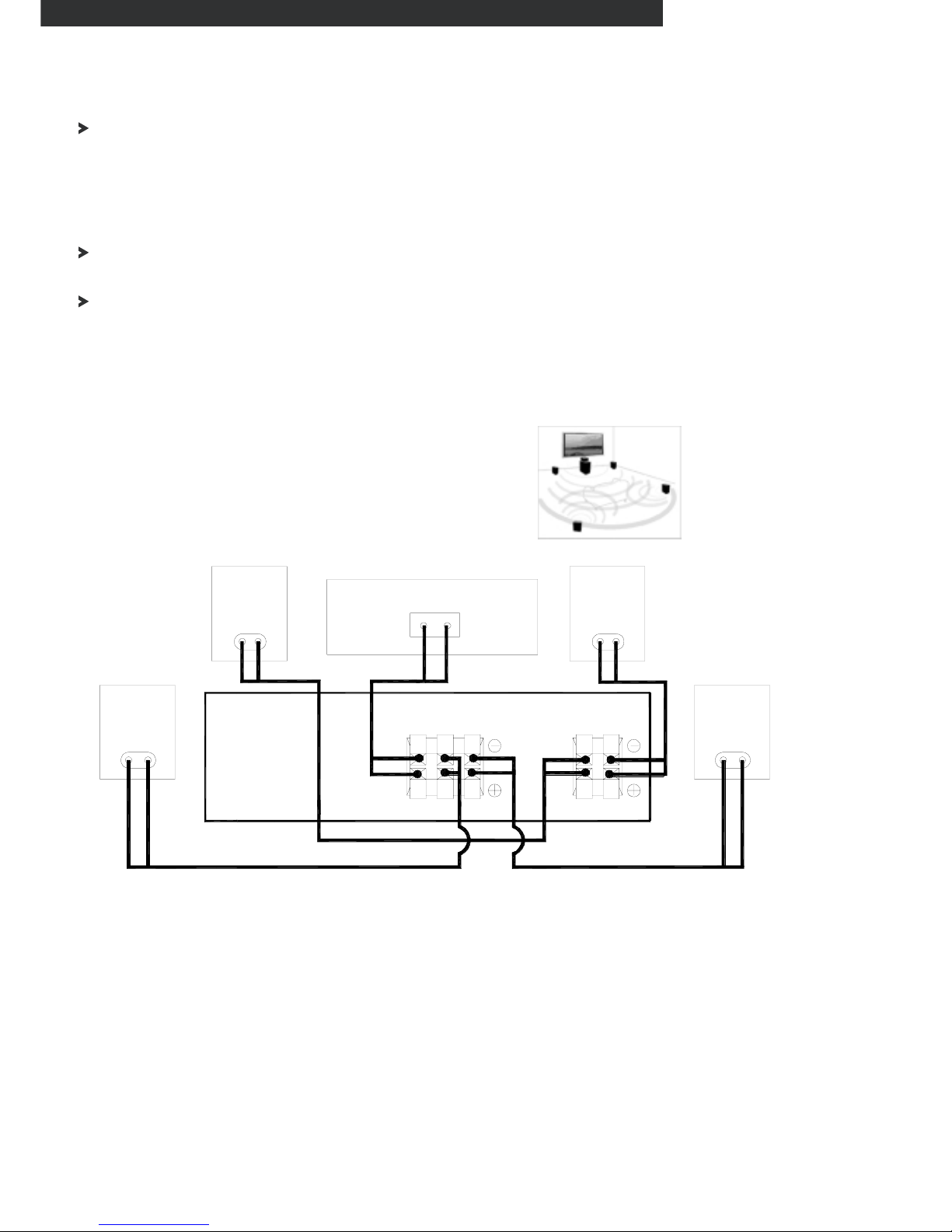

Set-Up Diagram

Left
Front
Speaker

Left

Surround

Speaker

Center Speaker

Receiver

Right
Front
Speaker

Surround Speaker

REARCENTER

LR

CLR

FRONT

Right

Surround

Speaker

Dolby

THE FRONT SPEAKERS should be placed on each side of your TV or in front of your favorite listening
position. As a general guideline the space from the speakers to the listening position should be 1.5
times the distance between the speakers. For example if your listening position is 9ft (2.7m) away
from the speakers, the distance between the speakers should be 6ft (1.8m)

THE CENTER CHANNEL SPEAKER should be on top of or just above your TV.

THE REAR (SURROUND) SPEAKERS should be positioned either to the side of, or behind, your

listening position. Typical placement is on the side walls, slightly above ear level, about two-thirds of
the way back from the front of the room. This allows the surround speakers to aim directly at the
listener, placing you in the middle of a five-speaker sound field.

The performance of the speakers may change during the initial use due to storage and mechanical
limitations. Please allow 15 hours of use for the temperature effect and mechanical parts to attain
their intended design characteristics.

Make sure to turn all equipment off before cleaning. The cabinet only requires occasional dusting.
Please avoid touching the drive units.

Limited one-year warranty

Technical Specifications

Design and specifications are subject to change without notice.

www.pure-acoustics.com

EX650F EX650C EX650S

200 Watts

40Hz - 22Khz

92dB

8 Ohm Compatible

2 way DRAV FIG

Two 6.5” woofer PC CON for

low & mid frequencies

1” (25mm) silk SCOS dome

2,500 Hz

101x20x31 Cm

5.4 Kg (12 Lbs) each

Black, Silver, Cherry,

Beech, Mahogany, Maple

Black, Silver cloth

No

150 Watts

60Hz - 22Khz

89dB

8 Ohm Compatible

2 way DRAV FIG. magnetic

shielding

Two 4.25” woofer PC CON

5/8” (14mm) ND tweeter

2,700 Hz

15x48x16 Cm

3 Kg (6.6 Lbs)

Black, Silver, Cherry, Beech,

Mahogany, Maple

Black, Silver cloth

Yes

150 Watts

65Hz-22Khz

91dB

8 Ohm Compatible

2 way DRAV FIG

Two 4.25” woofer PC CON

5/8” (14mm) ND tweeter

3,000 Hz

24x15.5x16 Cm

2.5 Kg (5.5 Lbs) each

Black, Silver, Cherry, Beech,

Mahogany, Maple

Black, Silver cloth

No

Pure Acoustics products have been designed and manufactured to the highest quality standards. However,
in the event that something malfunctions, Pure Acoustics and your local authorized distributor warrant
free of charge parts and labor (some exclusions may apply) for a period of one year. This warranty is
only valid for the original owner. This warranty is limited to the repair of the product. This warranty will
not apply to units that were subject to misuse, neglect, abuse, alteration or improper installation. This
warranty will not cover damage due to fire, water, heat, lightning or any other cause beyond the control
of Pure Acoustics. Retention of your original dated recipe is required in order to obtain warranty service
from your local authorized Pure Acoustics Dealer.

POWER HANDLING

FREQUENCY RESPONSE

(+/-3dB)

SENSITIVITY (+/-3DB)

IMPEDANCE

DRIVER COMPLEMENT

WOOFER

TWEETER

CROSSOVER FREQUENCY

DIMENSIONS (HXWXD)

WEIGHT

FINISH

GRILLE

VIDEO SHIELDING
