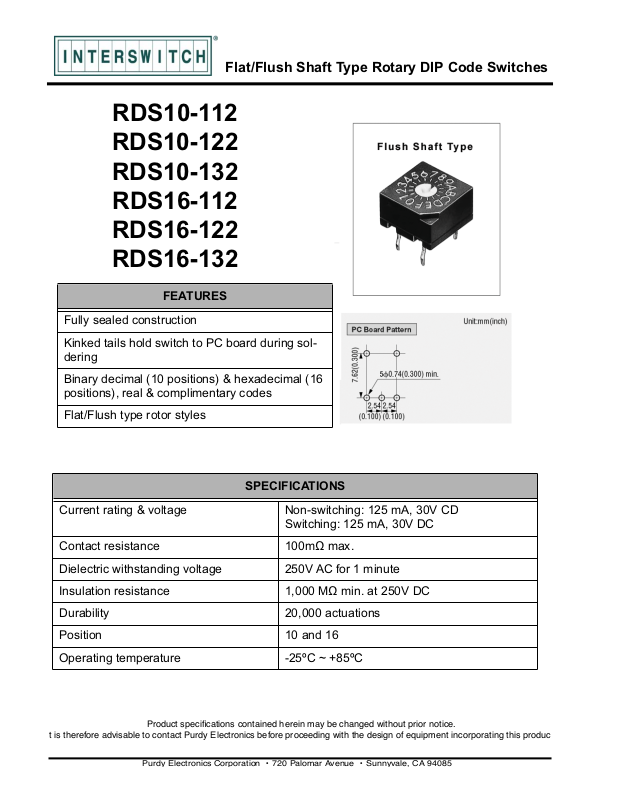

Flat/Flush Shaft Type Rotary DIP Code Switches

RDS10-112
RDS10-122
RDS10-132
RDS16-112
RDS16-122
RDS16-132

FEATURES

Fully sealed construction

Kinked tails hold switch to PC board during sol­dering

Binary decimal (10 positions) & hexadecimal (16
positions), real & complimentary codes

Flat/Flush type rotor styles

SPECIFICATIONS

Current rating & voltage Non-switching: 125 mA, 30V CD

Switching: 125 mA, 30V DC

Contact resistance 100mΩ max.

Dielectric withstanding voltage 250V AC for 1 minute

Insulation resistance 1,000 MΩ min. at 250V DC

Durability 20,000 actuations

Position 10 and 16

Operating temperature -25ºC ~ +85ºC

Product specifications contained herein may be changed without prior notice.

t is therefore advisable to contact Purdy Electronics before proceeding with the design of equipment incorporating this produc

Purdy Electronics Corporation • 720 Palomar Avenue • Sunnyvale, CA 94085

Flat/Flush Type Shaft Rotary DIP Code Switches

MATERIAL

Insulator Glass-filled polymide

Contact Copper alloy, selective gold plating over nickel

Rotor control Polyacetal

Rotor switch element Glass epoxy, gold plating over nickel

Solvents: Acceptable

Isopropyl alcohol Trichlene (Trichlorethylene)

Ethyl alcohol Chlorothene (Trichloroethane)

Toluene Freon (Trichlorotrifuoroethane)

Solvents: Not Acceptable

Acethone Methanol

Benzine

Part Number Knob Type Description

Number of
Positions

RDS10-112 Flat/Flush Shaft BCD Real Code 10

RDS10-122 Flat/Flush Shaft BCD Complement 10

RDS10-132 Flat/Flush Shaft EECO - BCD Real Code 10

RDS16-112 Flat/Flush Shaft Hexadecimal 16

RDS16-122 Flat/Flush Shaft Hexadecimal Complement 16

RDS16-132 Flat/Flush Shaft EECO - Hexadecimal 16
