OPTOELECTRONICSOPTOELECTRONICSOPTOELECTRONICS

AND720HW

Ultra Bright LED Lamps

Weight: 0.31g Unit: mm

AND720HW

InGaN High Brightness White Light Emission
T-1 3/4 Package (5mm)

Features

• Popular T-1 3/4 round package

• High luminous power

• Typical chromaticity coordinates x=0.30, y=0.29 according to CIE 1931

• Bulk, available taped on reel

• ESD-withstand voltage: up to 4KV

• RoHS compliant

Applications: message panels, optical indicators, backlighting, marker lights

Maximum Ratings (Ta - 25 ºC)

Characteristic Symbol Rating Unit

Forward Current IF 30 mA

Reverse Voltage VR 5 V

Peak Forward Current (Duty Cycle
1/10 @ 1 KHz)

Power Dissipation PD 110 mW

Operating Temperature Range T OPR -40 to 85 ºC

Storage Temperature Range T STG -40 to 100 ºC

Soldering Temperature T SOT 260 ± 5 ºC

Electrostatic Discharge ESD HBM 4,000 V

Zener Reverse Current IZ 100 mA

IFP 100 mA

Electro-Optical Characteristics (Ta = 25ºC)

Item Symbol Test Condition Minimum Typical Maxiumum Unit

Forward Voltage VF IF = 20 mA 2.8 — 3.6 V

Reverse Current IR VR = 5 V — — 50 μA

Luminous Intensity IV IF = 20 mA 9,000 — 18,000 mcd

Full Viewing Angle

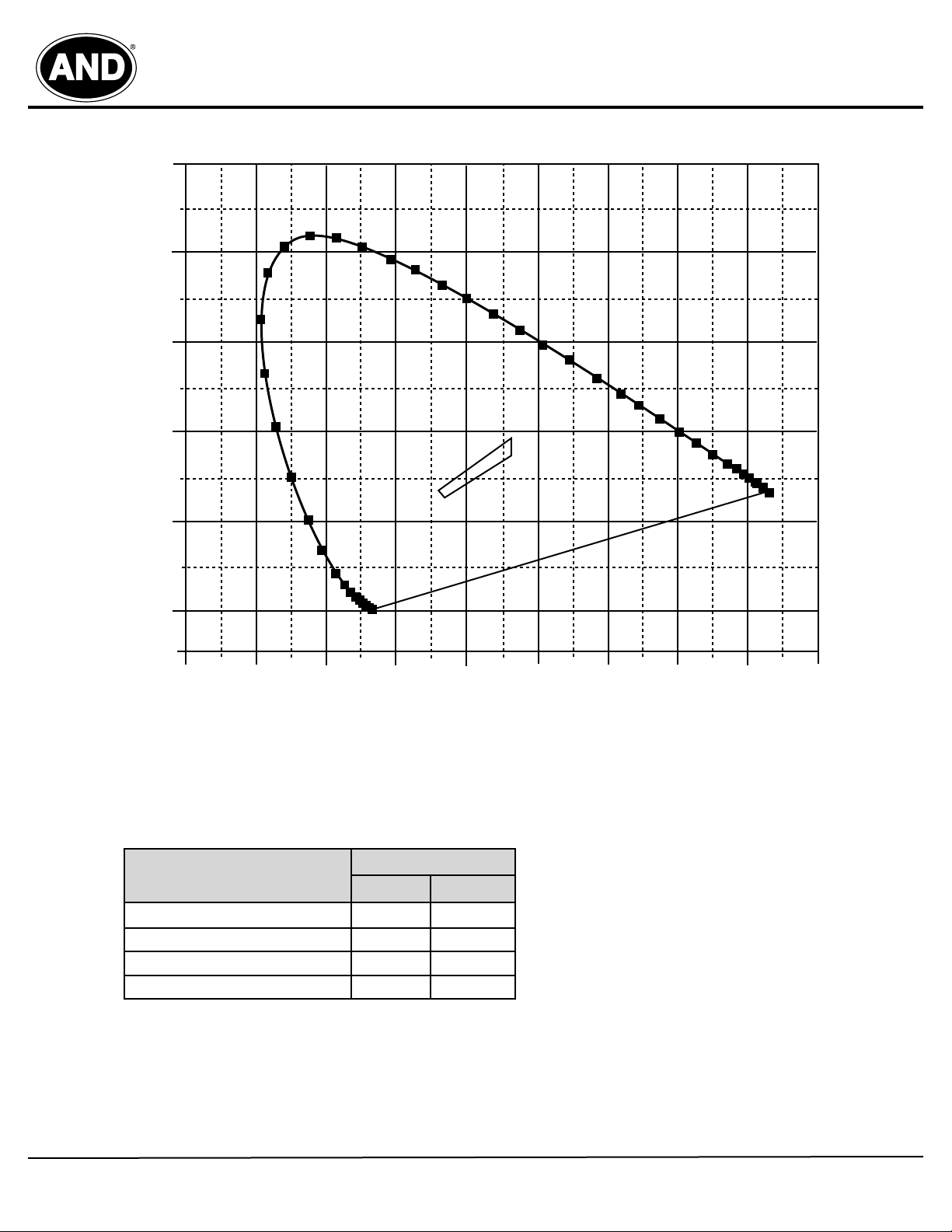

Chromaticity Coordinates

Zener Reverse Voltage VZ IZ = 5 mA 5.2 — — V

Precaution
The products are sensitive to static electricity and care must be taken when handling products.

I

Purdy Electronics Corporation • 755 North Pastoria Avenue • Sunnyvale, CA 94085-2918

1

Tel: [phone] • Fax: [phone] • [e-mail] • www.purdyelectronics.com

2 θ 1/2

X

Y

Product specifications contained herein may be changed without prior notice.

IF = 20 mA — 15 — degrees

— — 0.30 —

— — 0.29 —

9/4/12

OPTOELECTRONICSOPTOELECTRONICSOPTOELECTRONICS

AND720HW

Ultra Bright LED Lamps

Purdy Electronics Corporation • 755 North Pastoria Avenue • Sunnyvale, CA 94085-2918

2

Tel: [phone] • Fax: [phone] • [e-mail] • www.purdyelectronics.com

9/4/12
