Pump Solutions Group Neptune Chemical Feed Solutions User Manual

Chemical Feed

Chemical Feed

Solutions for

Solutions for

Agriculture

Agriculture

CENTER PIVOT & DRIP

CENTER PIVOT & DRIP

BULLETIN AG-08

• Fertilizer Pumps

• Chemigation Pumps

• Acid & Chlorine Pumps

• Pump Platforms

• Chemigation Systems

• Injection Quills

Fertilizer and

Fertilizer and

Chemigation Pumps

Chemigation Pumps

INNOVATIVE DESIGN

QUALITY WORKMANSHIP

LONG-TERM RELIABILITY

Neptune has
manufactured
reliable metering
pumps for over
50 years.

SERIES 500 HYDRAULIC
DIAPHRAGM METERING PUMPS

Bi-Directional Motor option eliminates the need to set rotation

when moving between pivots – pump runs in either rotation.

CHEMIGATION PUMPS

• “SE-PUMPS”: For use with clear liquids and light suspensions

• “VS-PUMPS”: Designed for thick fluids to 5000 CPS and light slurries

• Large internal porting with a large, single ball,
suction check valve

• Teflon®diaphragm and viton “o” rings withstand
most chemicals

• All 316SS wetted metal parts

Neptune Series SE & VS “dia-PUMPS”

Integral Motor: 1/2 HP-3ph-230/460VAC-60-TEFC*

MODEL (GPH) DIAMETER PER
NUMBER AT 150 PSI (INCHES) MINUTE

522-SE-AG 4.0 0.687 72

547-SE-AG 30.0 1.187 144

522-VS-AG 4.0 0.687 72

525-VS-AG 7.0 0.687 117

527-VS-AG 8.6 0.687 144

532-VS-AG 11.0 1.062 72

535-VS-AG 18.0 1.062 117

547-VS-AG 30.0 1.187 144

See Motor Options

*

CAPACITY PISTON STROKES

547-SE-N3T

(flange mounted

Model

motor)

DUPLEX: Combine any two models

with same stroking speed.

Motor Options

STANDARD MOTOR: Integral Mount 3 Phase 460 VAC TEFC

BI-DIRECTIONAL MOTOR: Flange Mount 3 Phase 460 VAC TEFC

• To specify, change “AG” in model number to “N3T”

12 VOLT DC MOTOR: Flange Mount TENV

• To specify, add suffix “FALP-12” to end of model number

15 VOLT MOTOR:

1

• To specify, change “AG” in model number to “N3”

535-VS-AG-FALP-12

(flange mounted motor)

Integral Mount 1 Phase 115 VAC TEFC

Model

(12 volt motor)

Model

565-S-N3T

FERTILIZER PUMPS

• EZE-CLEAN™ Valves: Cartridges are
removable without disturbing piping

• Teflon®diaphragm and viton “o” rings
withstand most chemicals

• All 316SS wetted metal parts

Neptune Series 500 “dia-PUMPS”

Integral Motor: 1/2 HP-3ph-230/460VAC-60-TEFC*

MODEL (GPH) DIAMETER PER
NUMBER AT 100 PSI (INCHES) MINUTE STYLE

547-SE-AG 30 1.187 144 Simplex

565-S-AG 65 2.0 117 Simplex

567-S-AG 80 2.0 144 Simplex

547-DE-AG 30 x 30 1.187 144 Duplex

565-D-AG 65 x 65 2.0 117 Duplex

567-D-AG 80 x 80 2.0 144 Duplex

See Motor Options

*

CAPACITY PISTON STROKES

Model
567-D-AG
DUPLEX

(standard motor)

Model
547-SE-AG

(standard motor)

3

YEAR

WARRANTY

EZE-Grab

FERTILIZER PUMP PLATFORMS

Purpose

A one-piece molded polyethylene platform
with handles allows easy handling of fertilizer
pumps. Unit integrates pump controls and
wiring for complete portability.

Features

• Strong, lightweight polyethylene
base (order pump separately)

• Resistant to corrosion

• Electrical controls for 3 phase 460 volt
motors are standard; 12VDC and
115VAC available as options

• Manual motor starters provided for AC units
include adjustable overload protection

• 12 volt units include solenoid to auto­matically disconnect motor from
battery when system shuts down

• 12 ft. power cord

Optional accessories include:

• Suction Assembly • Injectors

• Discharge Assembly • Discharge Bleeder Assembly

MODEL
EFP-12

MODEL
EFP-460

Ordering Information

MODEL DESCRIPTION

EFP-1 EZE-Grab Fertilizer Platform* –

No Controls

EFP-460 EZE-Grab Fertilizer Platform*

EFP-12 EZE-Grab Fertilizer Platform*

ESA-75 3/4" Suction Assembly, 12' long**

ESA-100 1" Suction Assembly, 12' long**

EDA-50 1/2" Discharge Assembly, 12' long

EDA-50C EDA-50 with Double Wall

EDA-75 3/4" Discharge Assembly, 12' long

EDB-50 Discharge Bleeder Assembly

*Includes: Suction & Discharge Hose Barb Fitting

*

**See chart below

w/ 460v Manual Motor Starter

w/ 12v Solenoid Cutoff

Maximum Suction Line Length

CAUTION: Must Use Non-Collapsing Type Hose

TUBE I.D. 1/2" 3/4" 1" 1-1/2"

18 GPH 6' 10' 15' N.A.

30 GPH N.A. 10' 15' N.A.

40 GPH N.A. 6' 10' 15'

65 GPH N.A. 5' 8' 12'

80 GPH N.A. N.A. 6' 10'

“E”Liminator

“E”Liminator

Chemigation Systems

Chemigation Systems

Purpose

Model CIS-30 combines a Neptune Series 500 hydraulic
diaphragm pump with a lightweight, portable, 30 gallon
tank and accessories to offer the “E”Liminator chemigation system.

The small tank offers greater convenience than larger systems and the
Neptune Series 500E completes this portable unit to offer an economical
system for applications which do not need to handle high viscosity chemicals.

The “E”Liminator eliminates:

• Yield robbing pests from
your fields

• High cost of other
application methods

• Waiting for commercial
applicators

• Soil compaction and
crop damage

• Skips and overlaps by
using your center pivot
as a spray boom

• Handling cumbersome
injection systems when
small volume applications
are required

MODEL CIS-30

with Series 500E Pump and Controls

MODEL CIS-30

with Series 500VS Pump

and Controls

• Fully assembled with
pump, tank, piping valves and strainer

• Order pump separately:

— Use Series E for clear liquids and light suspensions

— Use Series VS for heavier suspensions or

high viscosity chemicals

Each CIS-30 “E”Liminator includes:

• 30 gallon calibrated tank

• Molded base with four molded handles
for portability

• Pump and mixer motor starting switches
with overload for motor control, 3 phase,
460 volt

• Calibration column marked in ounces
and milliliters

The Experts in Closed Containment Systems

Only Neptune offers you the original, patented closed
containment system. An investment in a Neptune
closed containment system now means that your

chemigation system will not become obsolete when
regulations require containment, as is the case now in a number of states. With a Neptune
closed containment system, you protect your investment in your chemigation equipment and
operate in an environmentally responsible manner.

Containment Chemigation

Containment Chemigation

Injection Systems

Injection Systems

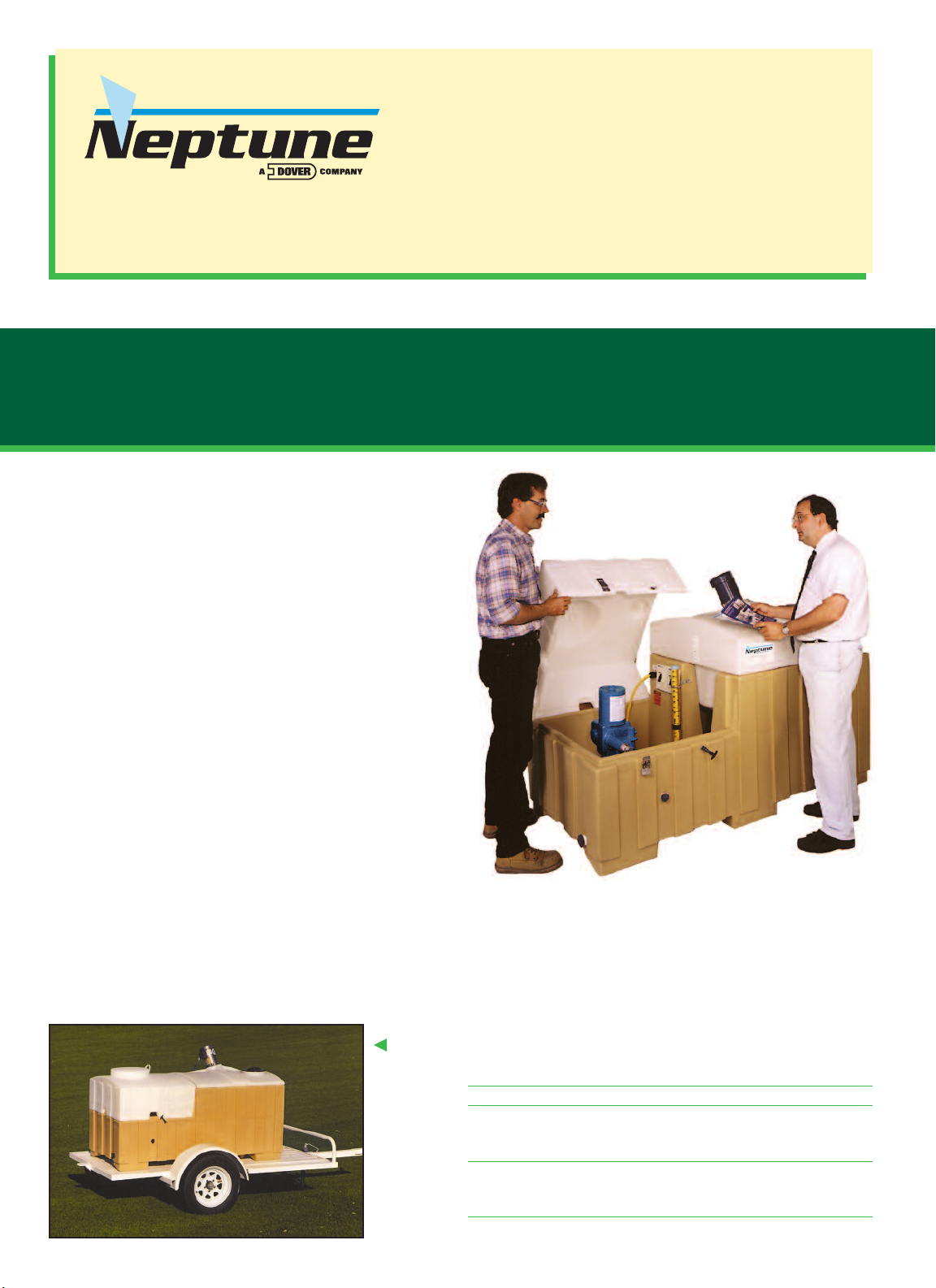

Purpose

Designed for application of herbicides, fungicides,
insecticides and other strong chemicals that require
dilution and mixing. This modern, completely assembled
unit addresses concerns about protecting the environ­ment, including ease of housekeeping and spill
containment when handling powerful chemicals.

A chemical tank, sloped for complete drainage and ease
of cleaning, is fitted into a double-walled containment
base. A cover encloses and protects the pump, piping
and electrical controls.

Features

• Completely assembled includes mixer, valves, strainer,
piping, wiring, controls and 12 ft. power cord

• Polyethylene units are chemical resistant

• Double-wall injection line returns chemical to contain­ment if discharge line ruptures (see photo on back page)

• Double-wall containment vessel

• Cover excludes rainwater and debris from the
containment and allows 100% recapture of
uncontaminated product in case of piping leaks
or discharge line rupture

• Plugged drain allows recovery of spilled chemical

• Use with simplex or duplex pump

Trailer
Mount
Option
provides
total
portability
& ease in
handling.

• Through-the-wall double threaded fitting allows piping
of a second chemical from an external tank to the second
head of a duplex pump. Also allows connection of an
external flush water source or filling tank from bottom.

(see photo on back page)

• Mixer has stainless steel shaft and dual propellers

• Calibration cylinder

Ordering Information (order pump separately)

MODEL DESCRIPTION

CIS-60 Complete Containment Chemigation Injection

System including 60 gal. tank, mixer, piping,
calibration tube and 460v controls*

CIS-90 Complete Containment Chemigation Injection

System including 90 gal. tank, mixer, piping,
calibration tube and 460v controls*

*12VDC and 115VAC units available.

MODEL

Pumps for

Pumps for

Drip Irrigation

Drip Irrigation

MODEL

PZ

PZ

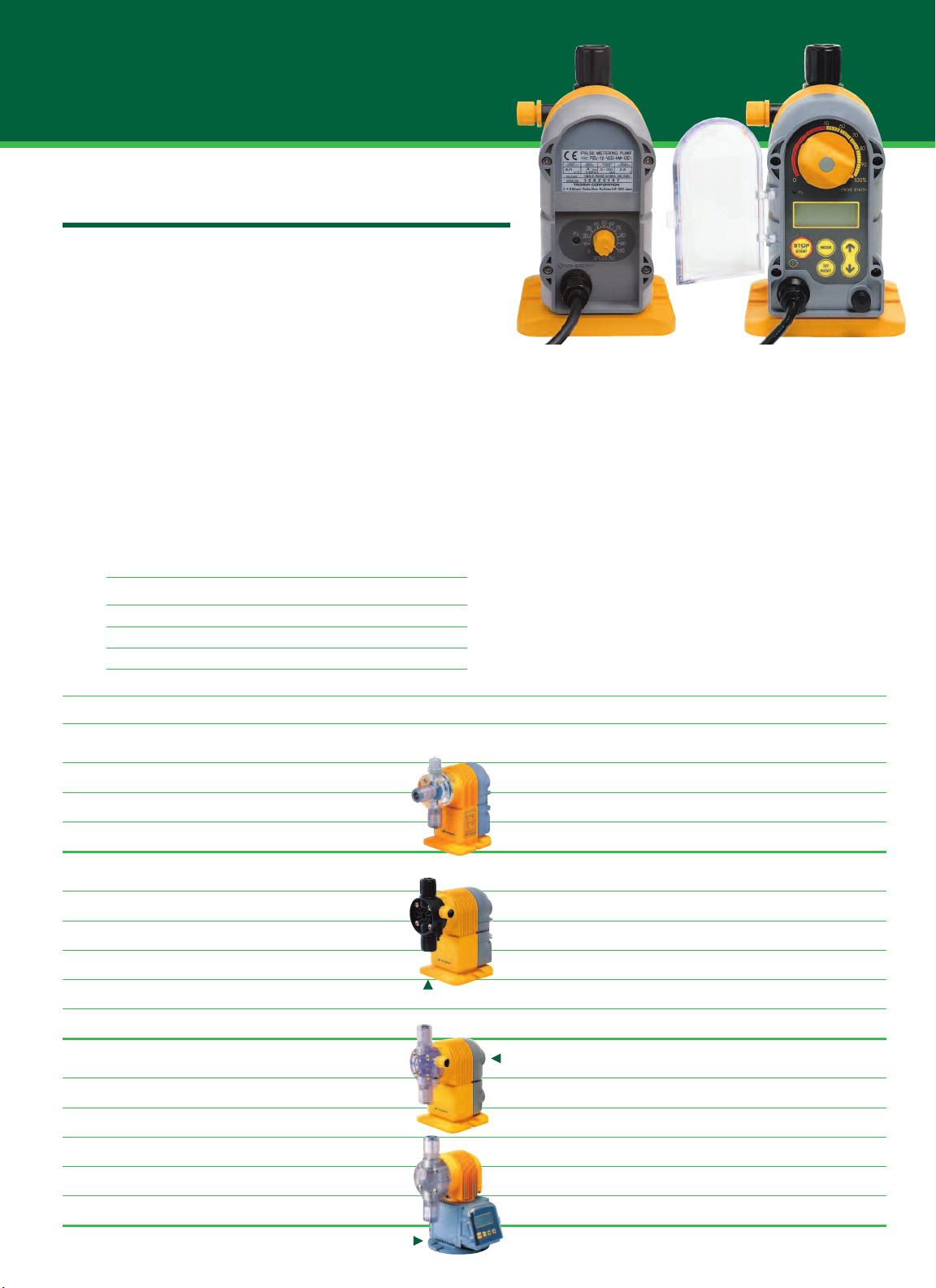

SERIES PZ ELECTRONIC
DIAPHRAGM METERING PUMPS

Manual Control PZ Models allow speed adjustment from

15 to 300 strokes per minute (20 to 1 turndown).

Automatic Control PZi4 Models allow manual or auto-

matic adjustment of speed from 1 to 300 strokes per minute
plus manual stroke length adjustment from 50 to 100 percent
(600 to 1 turndown). All models accept analog (4-20 mADC)
input or pulse signal input to automatically adjust speed.
Automatic models include:

• External interlock for level switch, remote start, etc.

• Operational display shows speed or operational status

• Pulse signal frequency division 1/1 to 1/9999 or
multiplication 1 to 9999

• Analog signal has shift function, proportional band control

Materials of Construction

ATERIAL

M

ODE HEAD SEALS DIAPHRAGM CHECKS

C

Teflon

®

Ceramic

®

Ceramic

®

Ceramic

CL Acrylic Viton Teflon

FTC PVDF Teflon

VFC PVC Viton Teflon

®

MODEL

MODEL

PZi4

PZi4

All Models

• 300 SPM operation insures uniform chemical
distribution even at low feed rates

• Chemical delivery is constant at any single phase
voltage from 94 to 264 VAC, 50/60 Hz and is
unaffected by voltage fluctuations

• Waterproof and UV resistant – IP 65

Accessories included with each pump

• Foot valve strainer, back pressure check valve
with injection quill, 4 ft. suction tubing,
10 ft. discharge tubing, 3 ft. air release tubing,
power cord and 3-prong plug

• Automatic models include signal cable with
multi-pin connector

MAXIMUM FEED RATE MAX PRESSURE MATERIAL DISCHARGE SHIPPING MANUAL CONTROL AUTOMATIC CONTROL

(GPD) (GPH) (ML/MIN) (PSI) CODE TUBE

WT. (LBS.) MODEL NUMBER MODEL NUMBER

*

SODIUM HYPOCHLORITE – DEGASSING HEAD (purges gas automatically, prevents air binding)

11.4 0.48 30 140 CL 3/8" PE 7 ARPZ-31 ARPZi4-31

22.8 0.95 60 115 CL 3/8" PE 7 ARPZ-61 ARPZi4-61

38.0 1.60 100 60 CL 3/8" PE 7 ARPZ-12 ARPZi4-12

ACIDS – KYNAR®HEAD (PVDF)

11.4 0.48 30 140 FTC 3/8" FEP 7 PZ-31-FTC PZi4-31-FTC

22.8 0.95 60 115 FTC 3/8" FEP 7 PZ-61-FTC PZi4-61-FTC

38.0 1.60 100 60 FTC 3/8" FEP 7 PZ-12-FTC PZi4-12-FTC

137.0 5.70 360 45 FTC 18mm FEP 14 PZD-32-FTC PZDi4-32-FTC

205.0 8.50 540 30 FTC 18mm FEP 14 PZD-52-FTC PZDi4-52-FTC

GENERAL CHEMICALS – PVC HEAD

11.4 0.48 30 140 VFC 3/8" PE 7 PZ-31-VFC PZi4-31-VFC

22.8 0.95 60 115 VFC 3/8" PE 7 PZ-61-VFC PZi4-61-VFC

38.0 1.60 100 60 VFC 3/8" PE 7 PZ-12-VFC PZi4-12-VFC

PZ TYPE

PZ TYPE

137.0 5.70 360 45 VFC 18mm PVC 14 PZD-32-VFC PZDi4-32-VFC

205.0 8.50 540 30 VFC 18mm PVC 14 PZD-52-VFC PZDi4-52-VFC

PZD TYPE

3/8" Tube is 3/8" O.D. x 1/4" I.D.; 18mm Tube is 18mm O.D. x 12mm I.D.

*

DISCHARGE ASSEMBLY

Features

• Double wall construction

• Inner tube is 3/8" polyethylene with pressure fittings at each end

• The outer covering is nylon reinforced PVC tubing sealed only at the
discharge end. The outer covering provides abrasion resistance. The outer
tube will trap any leakage from the inner tube, returning the liquid to the
containment unit.

• Injection connection provided with self-sealing quick disconnect coupler

• Optional injection quills available in 316SS or GFPP

SUCTION ASSEMBLY

Features

• Completely piped suction with glass reinforced polypropylene fittings
offers UV and chemical resistance

• A glass reinforced polypropylene “Y” strainer

• Single union polypropylene ball valves are provided for:
— Pump/Tank Isolation — Calibration Column Isolation
— Auxiliary Feed/Drain Connection

• Calibration tube carries dual markings to allow measuring a feed rate in
millimeters and ounces and remaining tank contents in gallons

• Auxiliary connection with valve allows pumping unused chemicals directly
from the tank to a transportation container

INJECTION QUILLS

Injection Quills allow chemicals to be injected into the turbulent flow
near the center of the line, providing more uniform dispersion.

The Disk Type Check and Seat are located at the tip of the quill to allow constant flushing.

• Provides back pressure to insure metering accuracy

SSQ75

PPQ50

P.O. Box 247 • Lansdale, PA 19446-0247

Tel: [phone] • Fax: [phone]

Toll-Free Tel: 1-888-3NEPTUNE (1-888-363-7886)

Toll-Free Fax: [phone]

Web Site: http://www.neptune1.com

E-mail: [e-mail]

Agricultural Services Center

P.O. Box 406 • 201 S. Georgetown Unit #1 • Yuma, CO 80759
Tel: [phone] • Fax: [phone]

• Prevents back flow

• Prevents bleed through when water pressure is low or line is drained

• Prevents siphoning when metering pumps are off and line is flowing

Mount directly to a coupling in the sidewall of lines 6 inches and larger. For
smaller lines the quill may be mounted to a coupling attached to a nipple
(of the length required), to hold the tip of the quill near the center of the line.

PART LINE CONN. INLET CONN.*FLOW*BODY CHECK SPRING MAX. MAX.
NUMBER NPT NPT GPH MATERIAL MATERIAL MATERIAL PRESSURE TEMP.

PPQ50 3/4" 1/4" 50 PP** Viton 316SS 150 psi 120°F

SSQ75 3/4" 1/2" 200 SS Viton 316SS 150 psi 150°F

SSQ100 1" 3/4" 300 SS Viton 316SS 150 psi 150°F

At 50-PSI Differential

*

© 2008 Neptune Chemical Pump Company
All Rights Reserved Bulletin AG-08 P/N ZL106869 Printed in U.S.A.

Glass Filled Polypropylene

**
