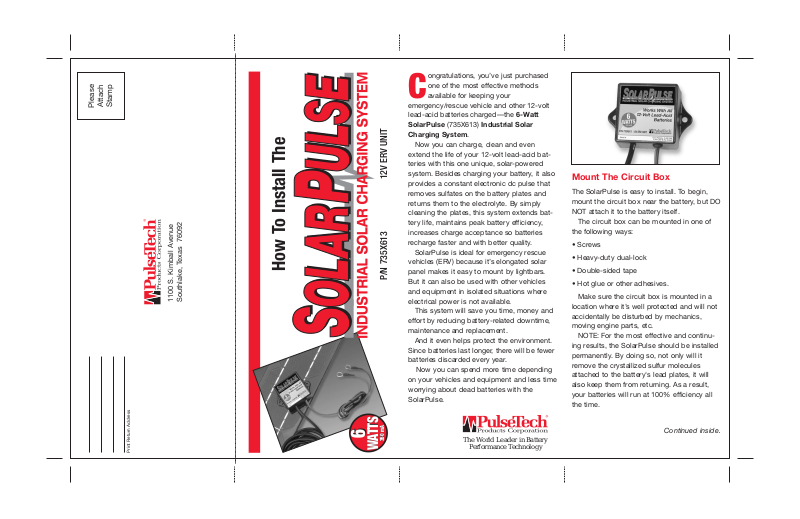

How To Install The
P/N 735X613 12V ERV UNIT
ongratulations, you’ve just purchased
one of the most effective methods
available for keeping your
C
emergency/rescue vehicle and other 12-volt
lead-acid batteries charged—the 6-Watt
SolarPulse (735X613) Industrial Solar
Charging System.
Now you can charge, clean and even
extend the life of your 12-volt lead-acid batteries with this one unique, solar-powered
system. Besides charging your battery, it also
provides a constant electronic dc pulse that
removes sulfates on the battery plates and
returns them to the electrolyte. By simply
cleaning the plates, this system extends battery life, maintains peak battery efficiency,
increases charge acceptance so batteries
recharge faster and with better quality.
SolarPulse is ideal for emergency rescue
vehicles (ERV) because it’s elongated solar
panel makes it easy to mount by lightbars.
But it can also be used with other vehicles
and equipment in isolated situations where
electrical power is not available.
This system will save you time, money and
effort by reducing battery-related downtime,
maintenance and replacement.
And it even helps protect the environment.
Since batteries last longer, there will be fewer
batteries discarded every year.
Now you can spend more time depending
on your vehicles and equipment and less time
worrying about dead batteries with the
SolarPulse.
Mount The Circuit Box
The SolarPulse is easy to install. To begin,
mount the circuit box near the battery, but DO
NOT attach it to the battery itself.
The circuit box can be mounted in one of
the following ways:
• Screws
• Heavy-duty dual-lock
• Double-sided tape
• Hot glue or other adhesives.
Make sure the circuit box is mounted in a
location where it’s well protected and will not
accidentally be disturbed by mechanics,
moving engine parts, etc.
NOTE: For the most effective and continuing results, the SolarPulse should be installed
permanently. By doing so, not only will it
remove the crystallized sulfur molecules
attached to the battery's lead plates, it will
also keep them from returning. As a result,
your batteries will run at 100% efficiency all
the time.
6
6
350 mA
350 mA
WATTS
WATTS
Continued inside.
The World Leader in Battery
Performance Technology
Mount The Solar Panel
Mount the solar panel where it will have direct
access to the sun. It can be mounted on the
vehicle or equipment either horizontally or
vertically.
The solar panel can be mounted in one of
the following ways:
• Heavy-duty dual-lock
• Double-sided tape
• Hot glue or other adhesives.
Splicing The Solar Panel Wire (Optional)
If you wish to remove excess wiring between
the solar panel and circuit box, they can be
cut and spliced together. If you wish to
extend the length of the solar panel wires,
they can be spliced with up to 10-feet of the
same gauge wire as the model you are
installing.
NOTE: Only the wires between the solar
panel and the circuit box can be spliced. DO
NOT splice the wires between the circuit box
and battery.
Connect The Wires To The Battery
Terminals
IMPORTANT: The red positive (+) wire must
be connected to the red positive (+) battery
terminal and the black negative (—) wire to
the black negative (—) battery terminal in
order for SolarPulse to work.
To connect the wires, do the following:
• Remove the nut securing the battery
clamp to the positive (+) battery terminal.
•Slip the round metal lug at the end of the
positive SolarPulse terminal wire onto the
clamp bolt
• Screw the clamp nut back onto the bolt
and tighten it securely
• Now repeat the last three steps with the
negative SolarPulse wire
Call For More Information
The SolarPulse is just one of many patented
battery maintenance products available from
PulseTech Products Corporation.
For information on the full line of PulseTech
products, see your local PulseTech dealer.
You can also call 1-800-580-7554. Or go to
our website at www.pulsetech.net to find the
dealer nearest you.
Precautions
• Make sure the terminal lugs are connected to the correct terminals (i.e. positive on positive). Reversing connections
could drain the battery of power.
• DO NOT hold the positive and negative
ends if the terminal wires at the same time
the solar panel is in sunlight. It can inflict
an electric charge to the body.
• DO NOT hold ends together while the solar
panel is in full sunlight. The wires may
become very warm and cause the unit to
fail.
• In full sunlight this unit is capable of producing an open circuit voltage far in
excess of rated volts.
• Any solvents that may be harmful to plastic should not be used on the unit.
• Be cautious with wires around moving
engine parts and accessories.
Please Note
The pulsating dc current produced by this
product may interfere with the correct operation of some electronic devices when the
unit is placed near the antenna. In order to
insure no interference, the circuit box should
be placed away from the antenna.
Warranty
This unit is guarantied against defective
materials or workmanship for a period of five
(5) years. If, for any reason, this unit should
fail to operate because of defective materials
or workmanship anytime within five (5)
months from the date of purchase, return
the defective unit with proof of purchase to
your distributor for repair or new replacement unit.
U.S. Patent Number: 5,491,399
U.S. Patent Number: 5,592,068
