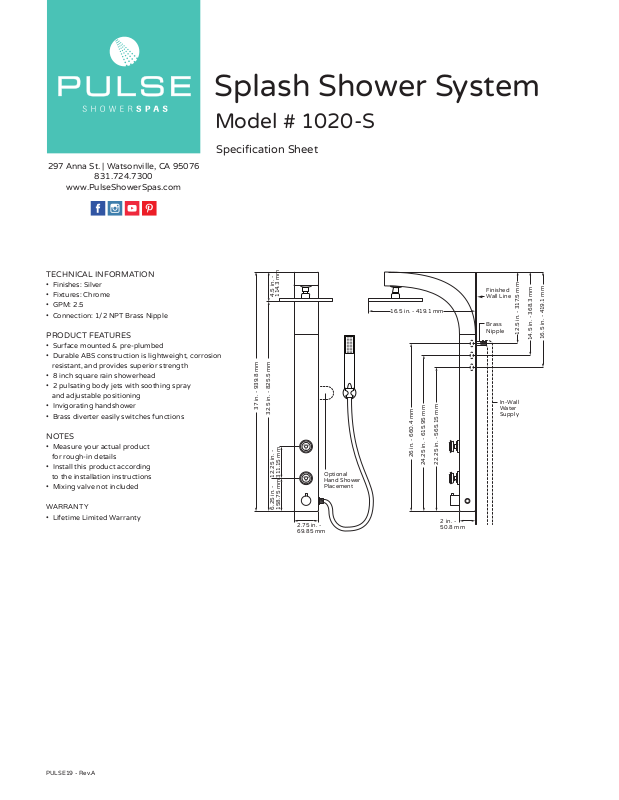

Splash Shower System
Model # 1020-S
297 Anna St. | Watsonville, CA 95076
831.724.7300
www.PulseShowerSpas.com
TECHNICAL INFORMATION
• Finishes: Silver
• Fixtures: Chrome
• GPM: 2.5
• Connection: 1/2 NPT Brass Nipple
PRODUCT FEATURES
• Surface mounted & pre-plumbed
• Durable ABS construction is lightweight, corrosion
resistant, and provides superior strength
• 8 inch square rain showerhead
• 2 pulsating body jets with soothing spray
and adjustable positioning
• Invigorating handshower
• Brass diverter easily switches functions
Specification Sheet
4.5 in. -
114. 3 mm
37 in. - 939.8 mm
32.5 in. - 825.5 mm
16.5 in. - 419.1 mm
Finished
Wall Line
Brass
Nipple
In-Wall
Water
Supply
12.5 in. - 317.5 mm
16.5 in. - 419.1 mm
14.5 in. - 368.3 mm
NOTES
• Measure your actual product
for rough-in details
• Install this product according
to the installation instructions
• Mixing valve not included
WARRANTY
• Lifetime Limited Warranty
26 in. - 660.4 mm
22.25 in. - 565.15 mm
24.25 in. - 615.95 mm
2.75 in. -
69.85 mm
Optional
Hand Shower
Placement
2 in. -
50.8 mm
12.25 in. -
311.15 mm
6.25 in. -
158 .75 mm
PULSE19 - Rev.A
